Drill Rigs

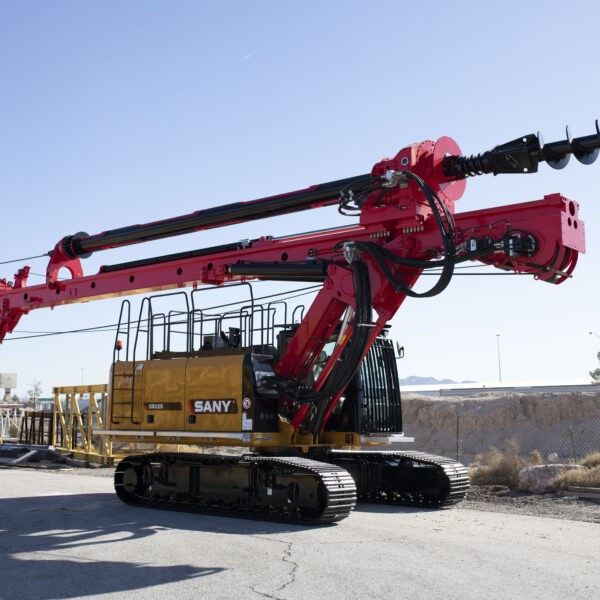

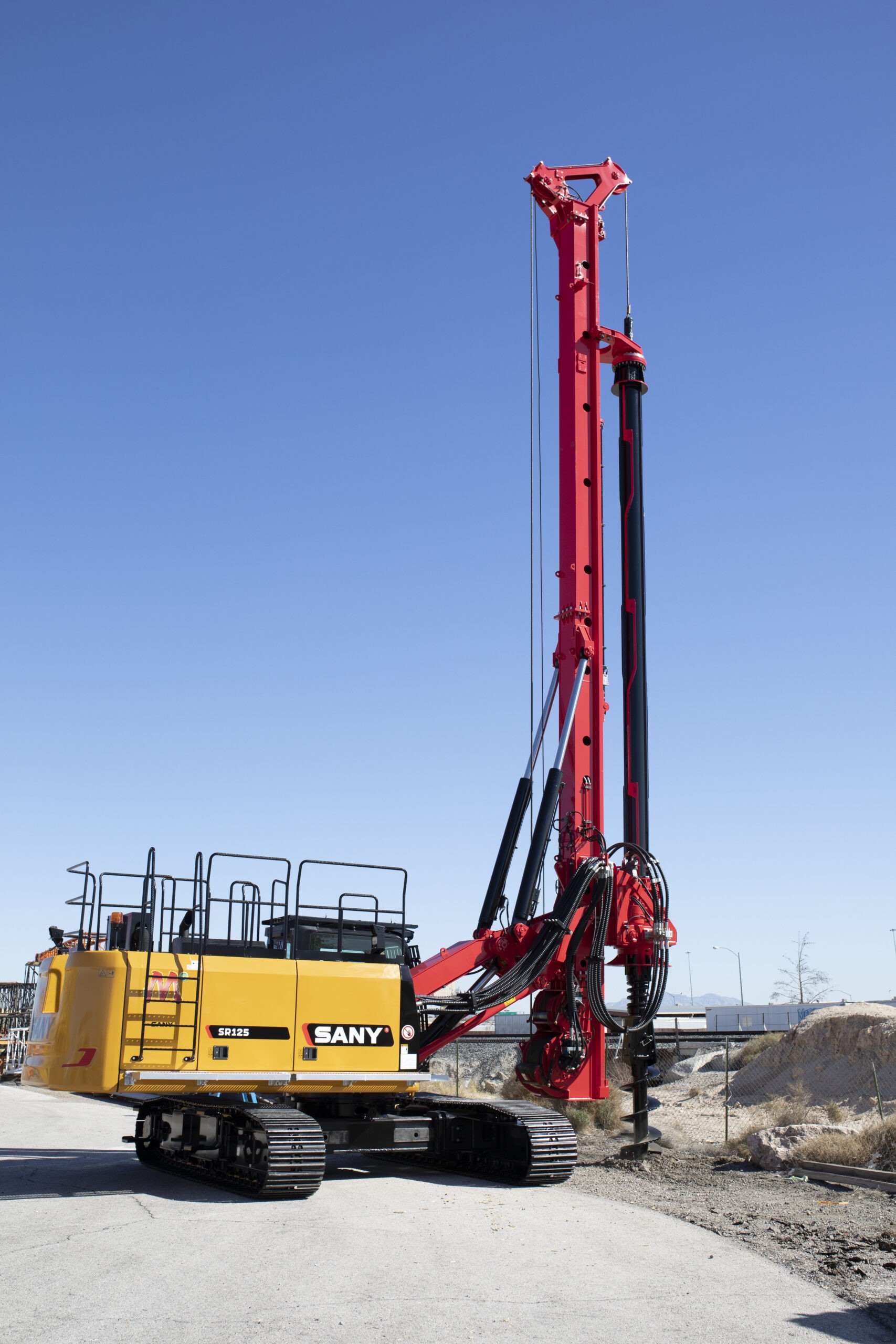

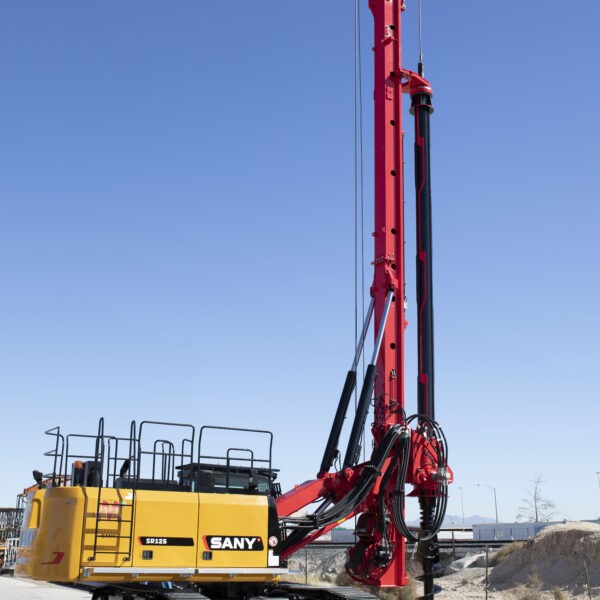

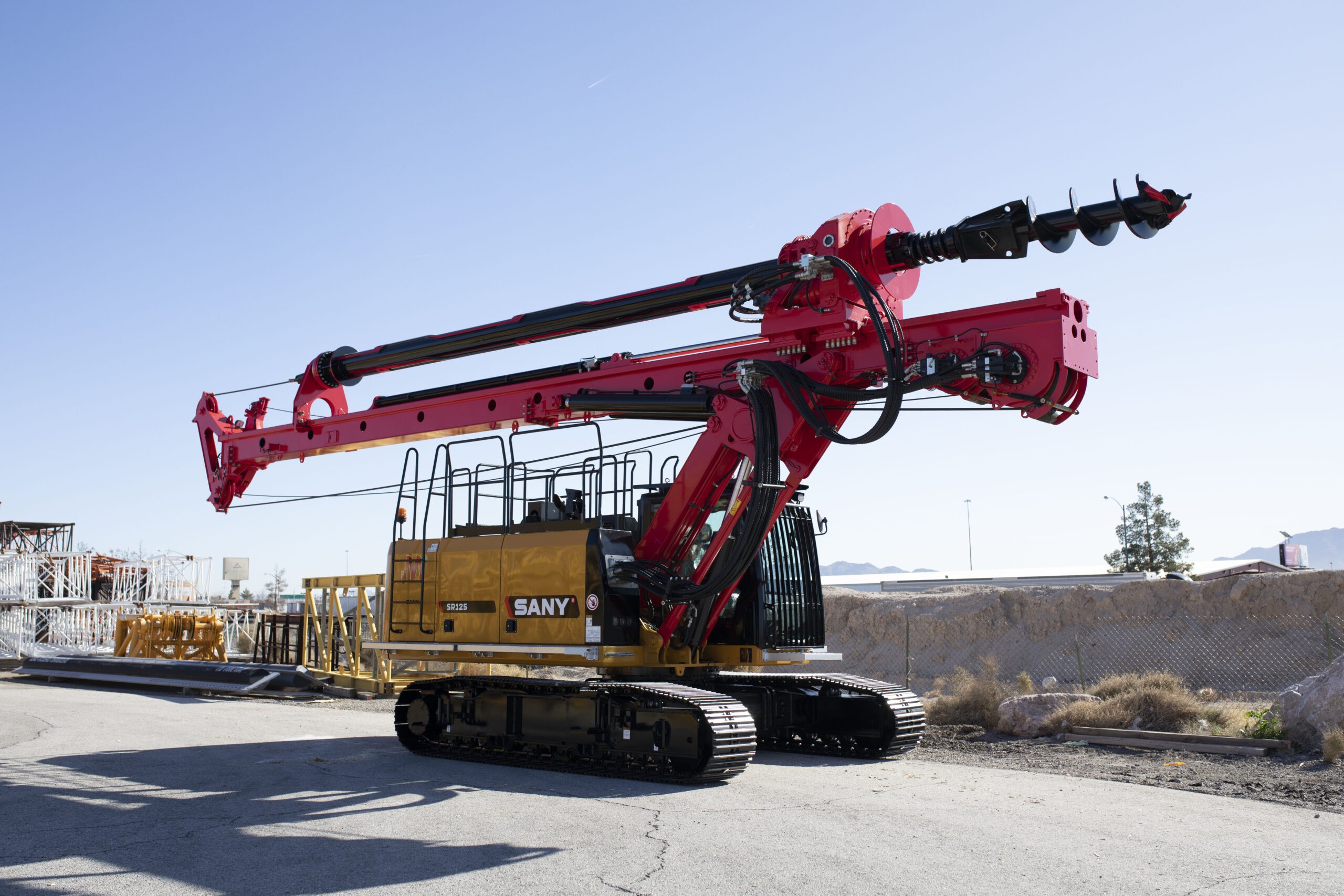

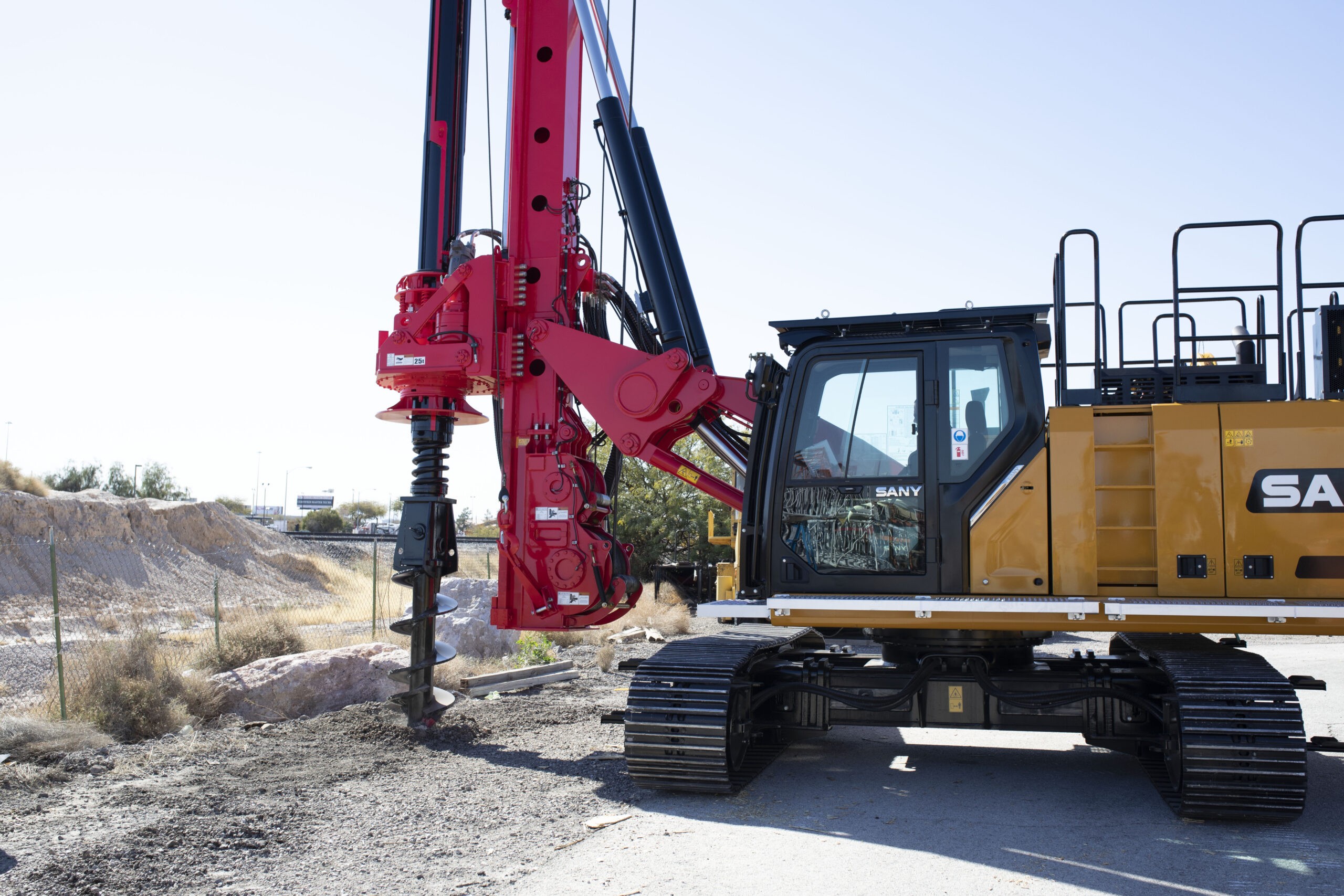

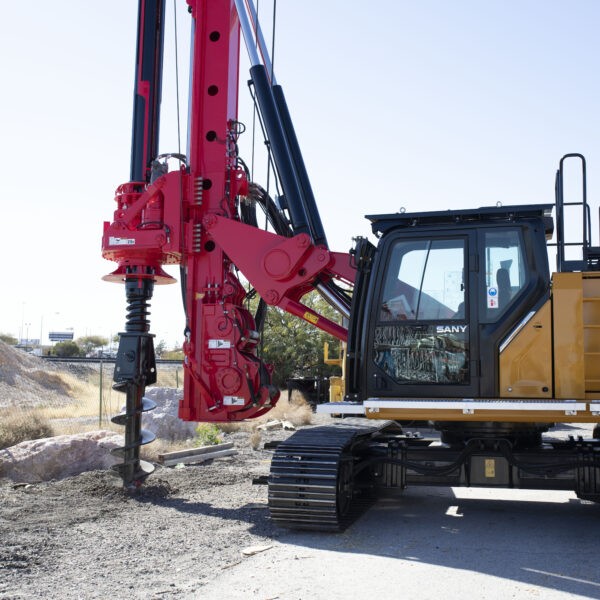

SR125MV

Fast winch speeds and auto return to center get you back on the hole faster so that you can optimize productivity throughout the day. Top that off with the safety features that abound like the blind side and backup cameras, cab protection screens, high visibility cab and counterweight and swing alert lights. Easy to transport so you can get the most out of the daylight, the SR125MV moves on a single truck and is ready to go to work when it arrives on site.

10.4″ HD touchscreen display

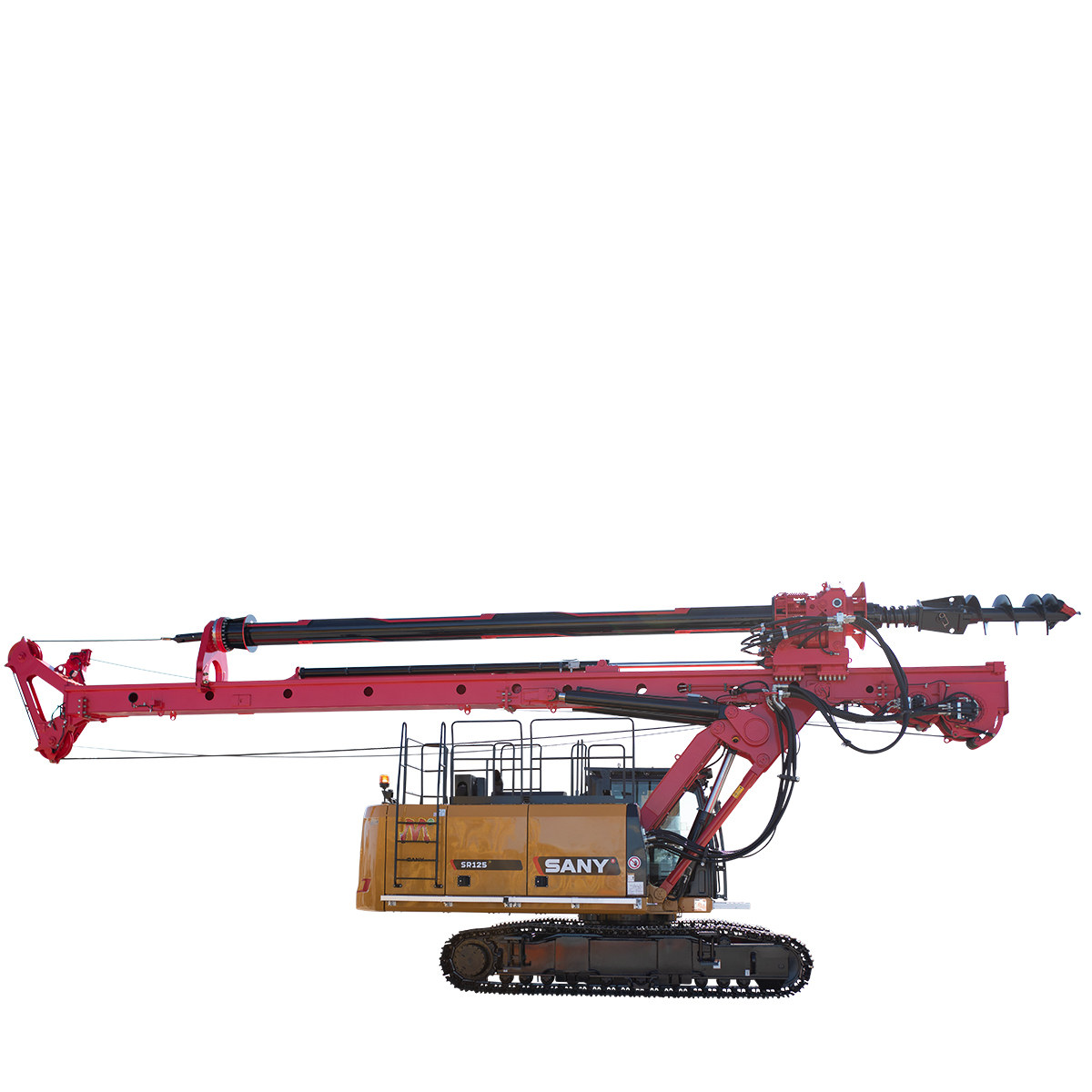

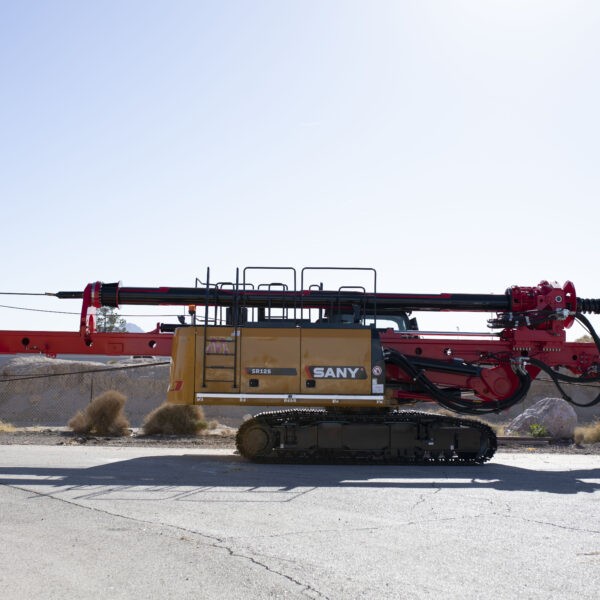

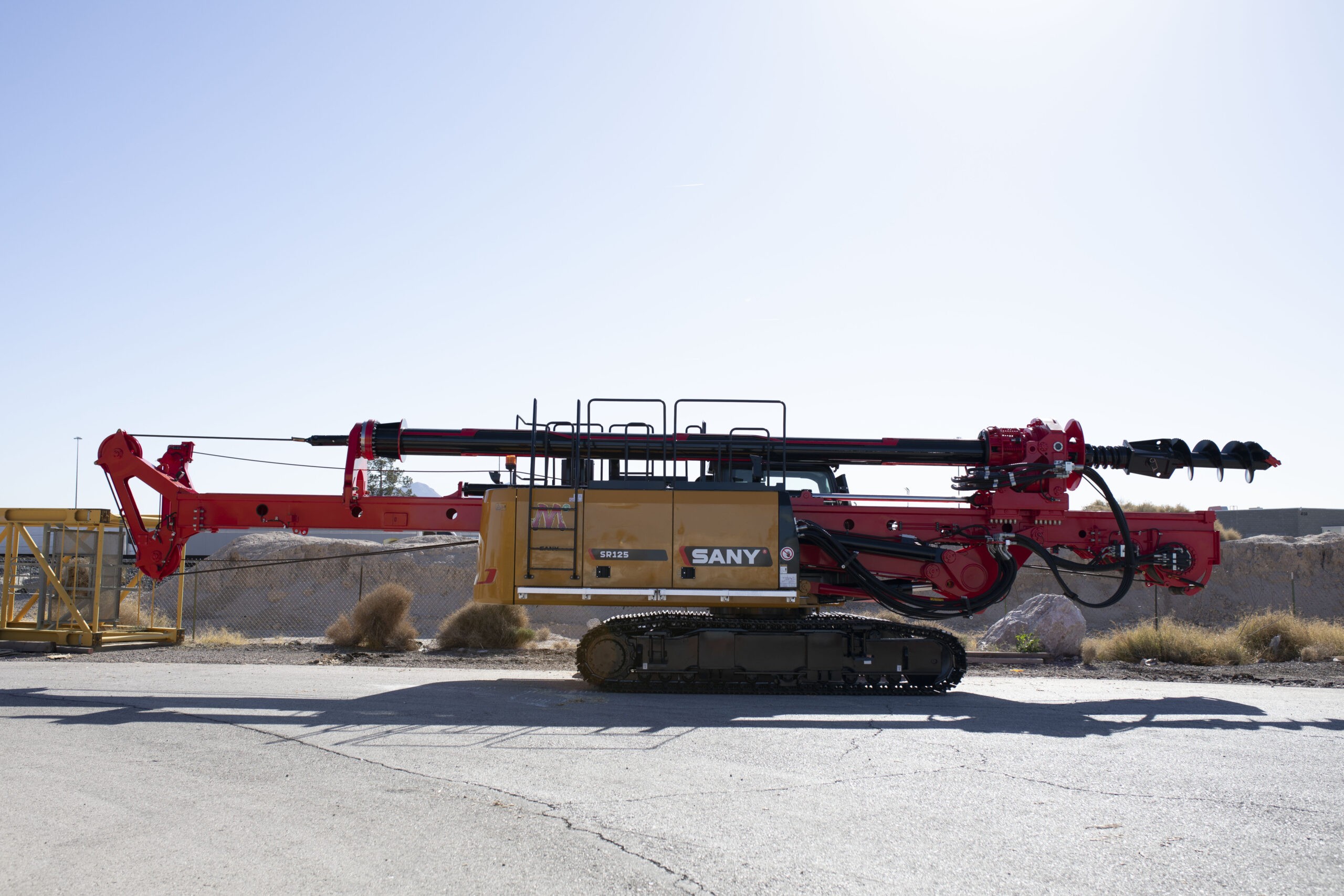

Transports in a single load
Multi-functional drill rig
Automatic soil spin-off and shaking
Powerful Cummins engine

Find a Dealer Near You
Have Product Feedback?

Max. Drilling Diameter

4′ 11″
1,500 mm

Max. Drilling Depth

134′ 6″
41 m

Rated Output Torque

95,883 lbf·ft
130 kN·m

Features

Technical Spec Sheet Family Brochure

*Friction kelly / inter-locking kelly depth
**Width when dismantling the cab bridge platform
***The higher location of boom
****The lower location of boom
*****The drilling depth is 20m when drilling diameter is 800-900mm. The drilling depth is 21.5m when drilling diameter is 500-700mm.

Pile
Max. Drilling Diameter	4' 11"
Max. Drilling Depth	134' 6"/101' 8"
Rotary Drive
Rated Output Torque	95,883 lbf·ft
Rotation Speed	6~40 rpm
Crowd System
Crowd Force	26,977 lbf
Line Pull	33,721 lbf
Stroke	12' 1"
Main Winch
Lifting Capacity	31,473 lbf
Wire Rope Diameter	1"
Max. Line Speed	253 ft/min
Auxiliary Winch
Lifting Capacity	13,488 lbf
Wire Rope Diameter	–
Max. Line Speed	–
Mast Inclination
Forward/Backward	5/90º
Lateral	±3º
Main Chassis
Base Engine	Cummins B4.5
Engine Power	200 hp/ 2,200 rpm
Exhaust Emission	Stage V/T4f
Engine Displacement	–
Extension Width	12'
Track Shoe Width	23.6"
Swing Radius	12'
Overall Machine
Overall Height	50' 4"
Operating Weight	85,098 lbs
Transport Width	8' 5"
Transport Height	11' 4"
Transport Length	43' 10"

Inter-Locking Kelly Φ325×4×9
Weight	7,937 lbs
Depth	101' 8"
Option	Standard
Inter-Locking Kelly Φ351×4×9
Weight	9,039 lbs
Depth	101' 8"
Option	–
Friction Kelly Φ325×4×9
Weight	7,496 lbs
Depth	105'
Option	–
Friction Kelly Φ351×5×9
Weight	9,480 lbs
Depth	134' 6"
Option	–

Pile
Max. Drilling Diameter	4' 11"
Max. Drilling Depth	65' 7"
Rotary Drive
Rated Output Torque	95,883 lbf-ft
Rotation Speed	6~24 rpm
Crowd System
Crowd Force	26,977/22,480 lbf
Line Pull	33,721 lbf
Stroke	8' 6"
Overall Machine
Overall Height	31' 6"
Overall Height	29' 2"
Operating Weight	75,839 lbs

Inter-Locking Kelly Φ351×4×4.5
Weight	4,960 lbs
Depth	42' 8"
Option	–
Friction Kelly Φ351×5×4.5
Weight	5,181 lbs
Depth	65' 7"
Option	Standard

Pile
Max. Drilling Diameter	2' 11"
Max. Drilling Depth	70' 7"
Rotary Drive
Rated Output Torque	95,883 lbf-ft
Rotation Speed	6~40 rpm
Crowd System
Crowd Force	11,240 lbf
Line Pull	–
Stroke	45' 11"
Main Winch
CFA Max. Lifting	≥67,443 lbf
Wire Rope Diameter	–
Max. Line Speed	–
Overall Machine
Overall Height	82' 5"
Operating Weight	88,846 lbs
