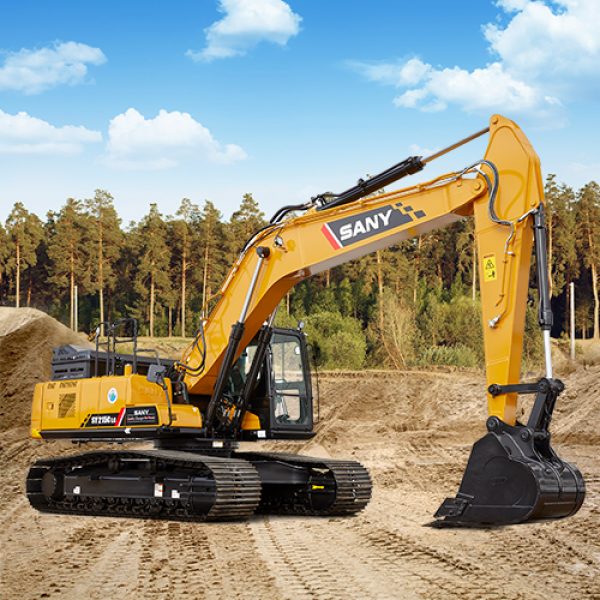

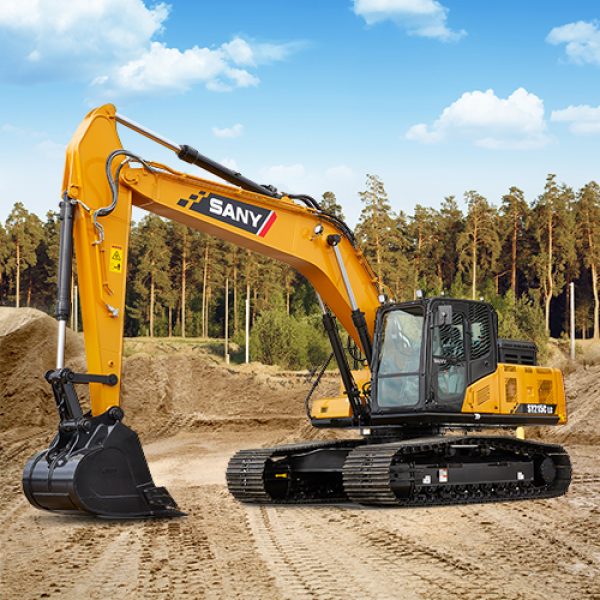

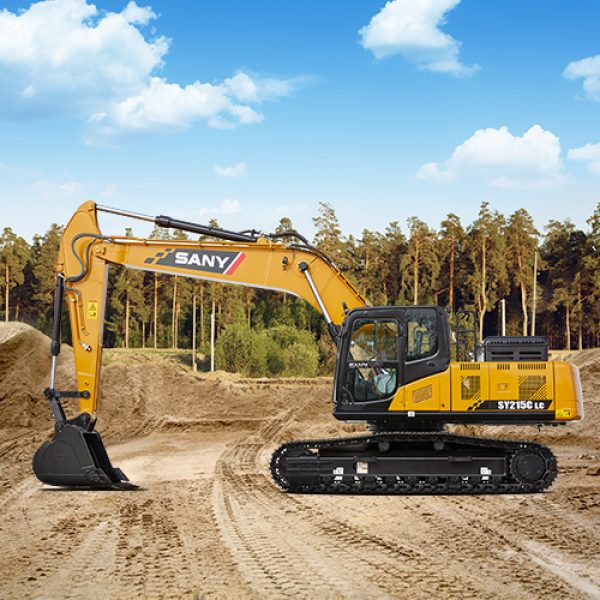

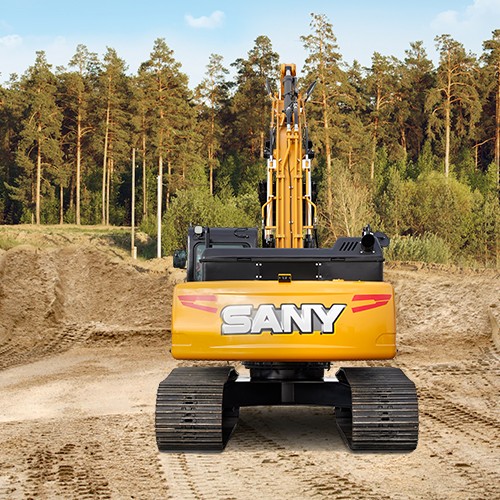

Medium Excavator

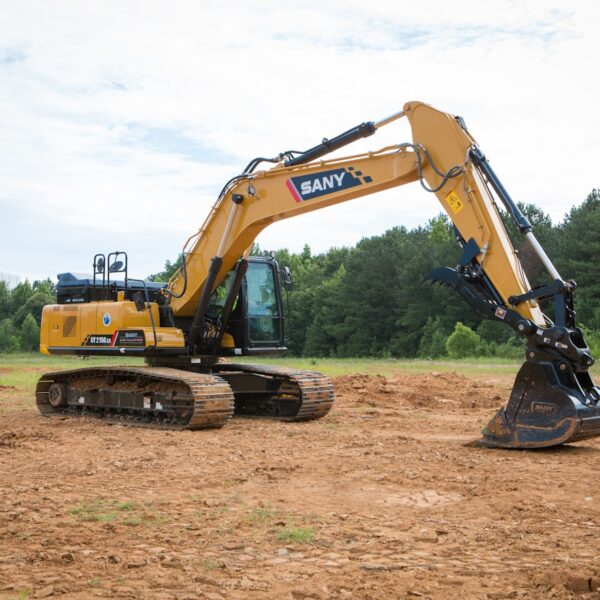

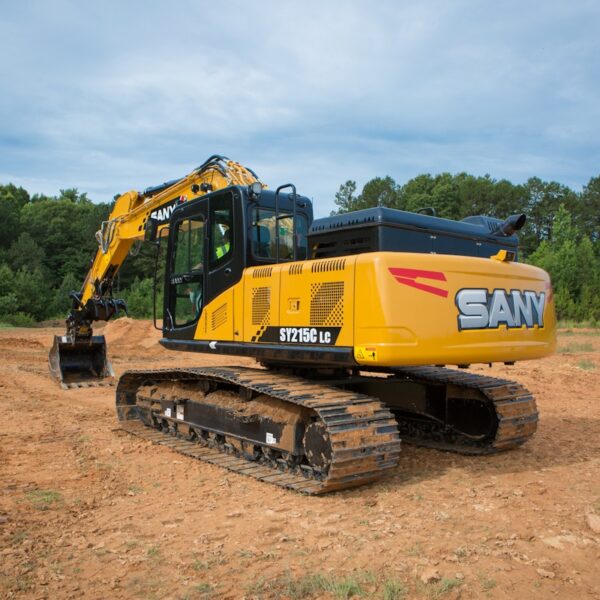

SY215C

Find the power and durability you need in your excavator when you choose SANY’s SY215C. Powered by a Cummins Diesel engine, the SY215C features fuel-efficient technology that can save as much as 10% on your fuel costs. With SANY’s optimized positive flow hydraulic system that improves operating efficiency by as much as 5%, you can get more work done in less time – and for less money – in even the toughest conditions with the SY215C medium excavator.

Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications.
Optimized positive flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%

Find a Dealer Near You
Have Product Feedback?

Operating Weight

51,919 lbs
23,550 kg

Gross Power

163.6 hp
122 kW

Dig Depth

21′ 8″
6,600 mm

Features

Technical Spec Sheet Family Brochure

In the interest of continual equipment development, SANY America, Inc. reserves the right to change these specifications at any time without prior notification.

*Based on theoretical calculation at max flow with no load. Subject to alterations.

Boom Length	5,700 mm18' 8"
Stick (Arm) Length	2,919 mm9' 7"
Transport Length	9,728 mm31' 11"
Transport Width	3,180 mm10' 5"
Transport Height	3,370 mm11' 1"
Upper Structure Width	2,710 mm8' 11"
Cab Height	––
Blade Height	––
Track Width (standard shoe)	800 mm31"
Track Gauge	2,380 mm7' 10"
Ground Clearance (minimum)	480 mm19"
Tail Swing Radius	2,890 mm9' 6"
Track Length on Ground	3,640 mm11' 11"
Track Length	4,450 mm14' 7"

Operating Weight	23,550 kg51,919 lb
Ground Pressure	36.3 kPa5.3 psi
Engine	Cummins QSB6.7
Displacement	6.7 L408.9 in³
Net Power	––
Gross Power	122 kW163.6 HP
Hydraulics	Positive Flow Control with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	444.0 L/min117.3 gal/min
Operating Pressure (maximum)	34.3 MPa4,975 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa4,975 psi
Travel Speeds (maximum)	3.1 / 5.3 km/hr1.9 / 3.3 mph
Travel Effort (maximum)	180.0 kN40,466 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	27.5 MPa3,989 psi
Swing Speed (maximum)	10.9 RPM
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	800 mm31"
Track Rollers (per side)	9
Carrier Rollers (per side)	2

Boom Length	5,700 mm18' 8 "
Stick (Arm) Length	2,925 mm9' 7"
Maximum Digging Height	9,180 mm30' 1"
Maximum Dumping Height	6,670 mm21' 11"
Maximum Digging Depth	6,600 mm21' 8"
Maximum Vertical Wall Digging Depth	5,980 mm19' 7"
Maximum Reach at Ground Level	10,307 mm33' 10"
Minimum Swing Radius	3,730 mm12' 3"

Boom Length	––
Stick Length	2,919 mm9' 7"
Bucket Breakout Force (ISO)	––
Stick Digging Force (ISO)	––

Road Equipment

Rollers

Graders

Construction Equipment

Backhoe Loader

Excavators

Telehandlers

Wheel Loaders

Forklift Trucks

Cranes

Crawler Cranes

Rough Terrain Cranes

Container Handlers

Empty Container Handlers

Loaded Container Handlers

Reach Stackers

Piling Machinery

Drill Rigs

SY215C

Operating Weight

Gross Power

Dig Depth

Features

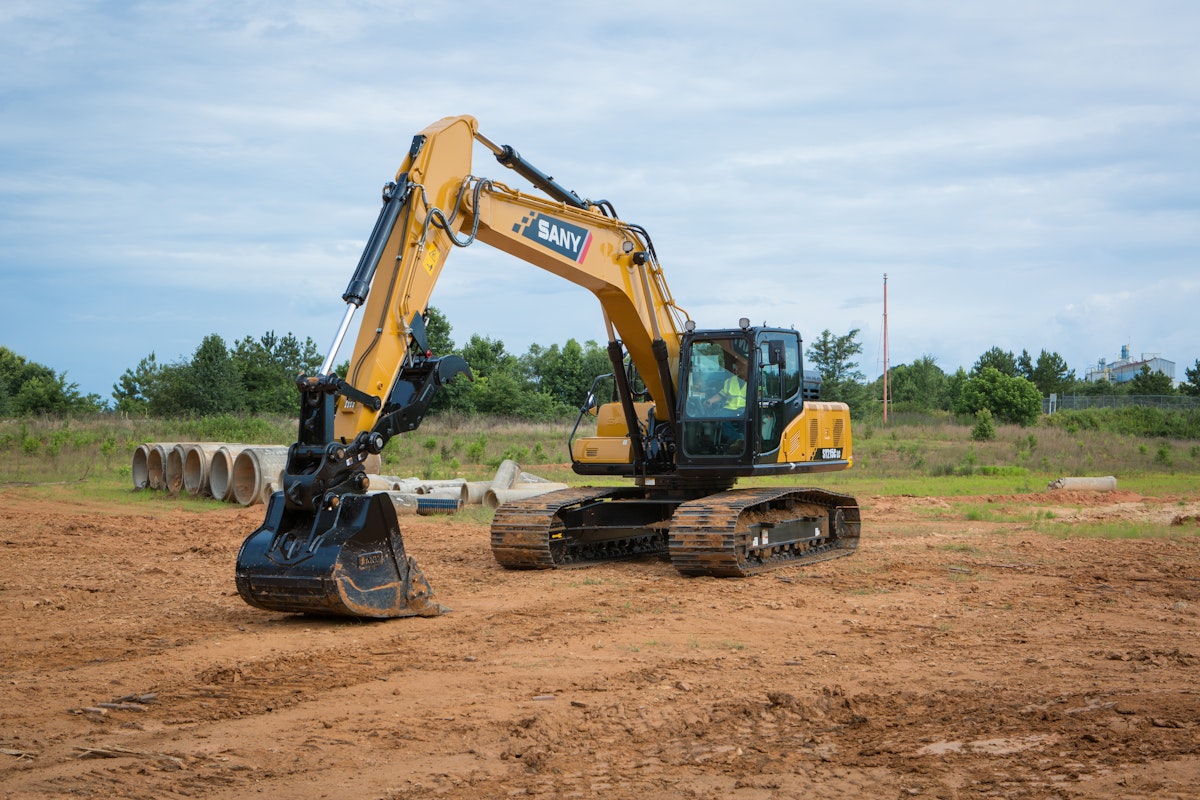

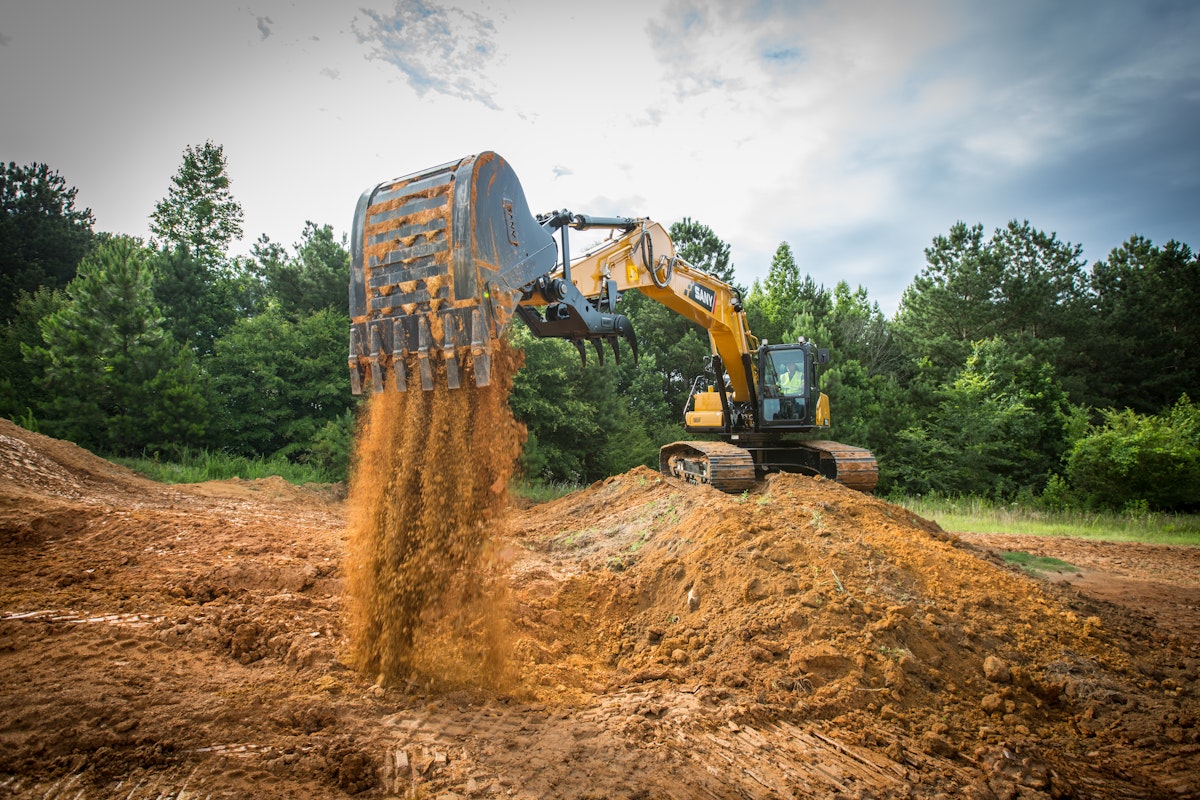

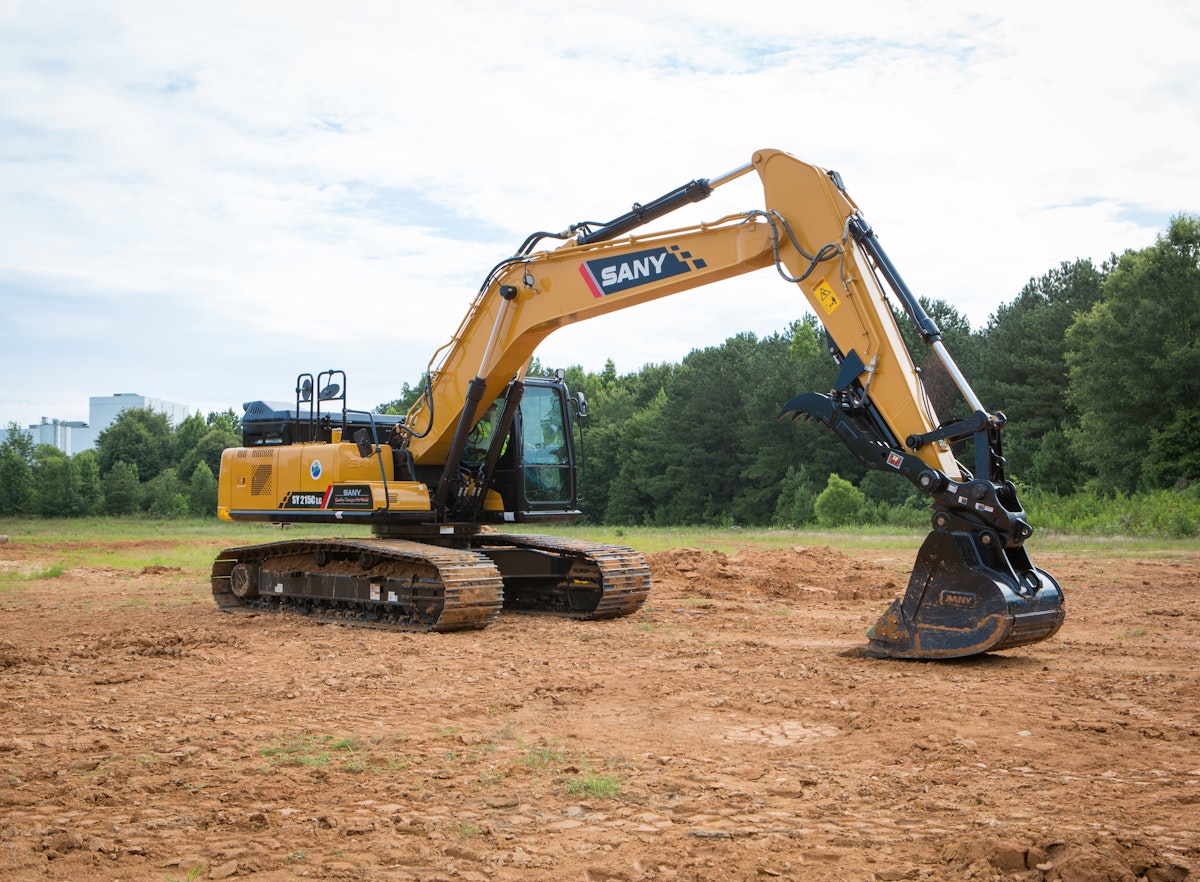

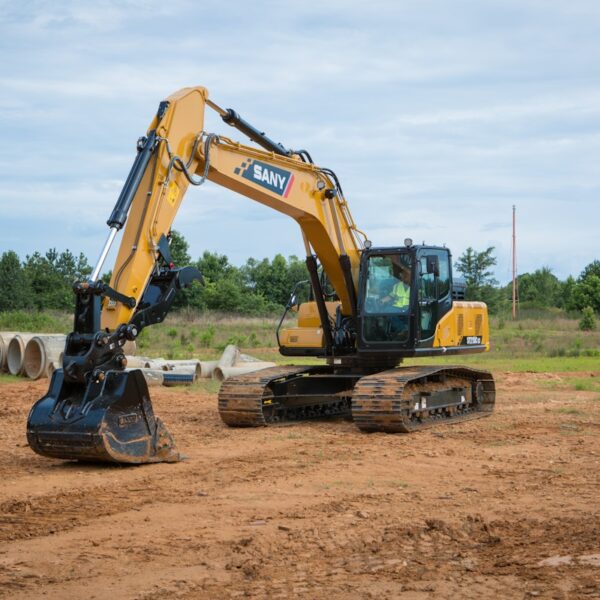

The SY215C in Action
