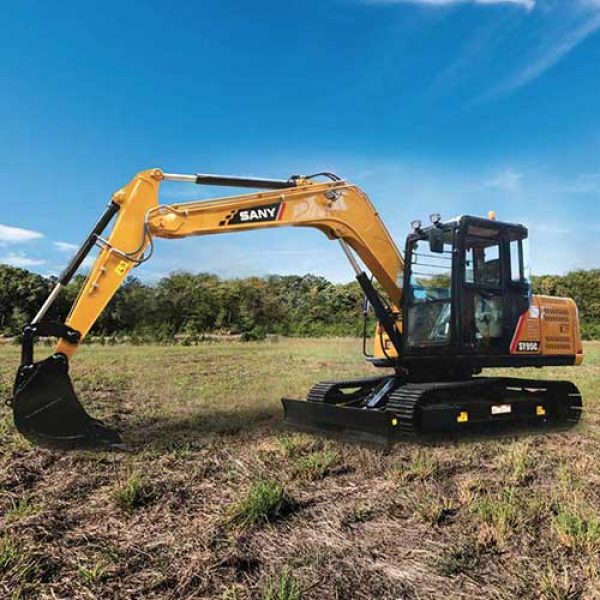

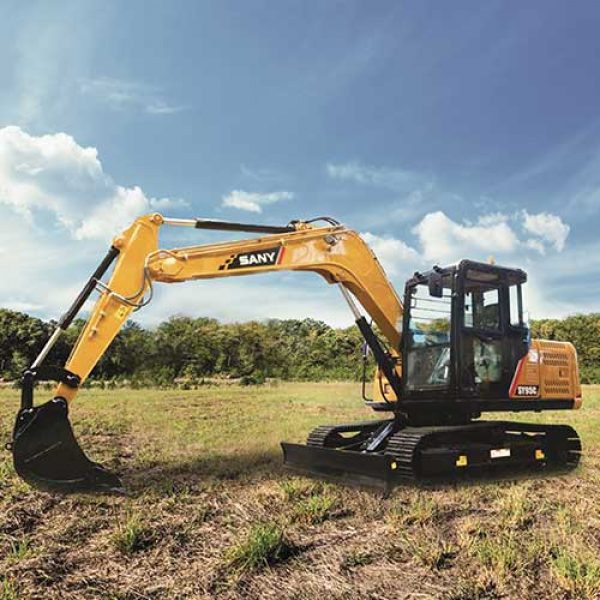

Small Excavator

SY95C

Perfect for small- and mid-sized projects, SANY’s SY95C compact excavator brings more than power and performance to your workforce – it brings efficiency, too. Designed with load-sensing hydraulics that work to optimize and improve operational efficiency, this excavator can improve your working speed and save you as much as 10% on fuel costs. Plus, with reliable and robust powertrain and hydraulic systems, the SY95C makes both tough work and difficult terrain look easy.

Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications
Optimized load sensing hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%

Find a Dealer Near You
Have Product Feedback?

Operating Weight

20,238 lbs
9,180 kg

Gross Power

72 hp
53.7 kW

Dig Depth

14′ 2″
4,330 mm

Features

Technical Spec Sheet Family Brochure

In the interest of continual equipment development, SANY America, Inc. reserves the right to change these specifications at any time without prior notification.

*Based on theoretical calculation at max flow with no load. Subject to alterations.

Boom Length	4,000 mm13' 1"
Stick (Arm) Length	2,000 mm6' 7"
Transport Length	6,560 mm21' 6"
Transport Width	2,260 mm7' 5"
Transport Height	3,200 mm10' 6"
Upper Structure Width	2,160 mm7' 1"
Cab Height	––
Blade Height	420 mm17"
Track Width (standard shoe)	450 mm18"
Track Gauge	1,810 mm5' 11"
Ground Clearance (minimum)	360 mm14"
Tail Swing Radius	1,885 mm6' 2"
Track Length on Ground	2,340 mm7' 8"
Track Length	2,980 mm9' 9"

Operating Weight	9,180 kg20,238 lb
Ground Pressure	38.6 kPa5.6 psi
Engine	Yanmar 4TN98CT-VSY
Displacement	3.3 L201.4 in³
Net Power	––
Gross Power	53.7 kW72 HP
Hydraulics	Load Sensing with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	199.5 L/min52.7 gal/min
Operating Pressure (maximum)	26.3 MPa3,814 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	26.3 MPa3,814 psi
Travel Speeds (maximum)	2.9 / 5.0 km/hr1.8 / 3.1 mph
Travel Effort (maximum)	83.0 kN18,659 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	21.5 MPa3,118 psi
Swing Speed (maximum)	11 rpm
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	450 mm18"
Track Rollers (per side)	5
Carrier Rollers (per side)	1

Boom Length	4,000 mm13' 1"
Stick (Arm) Length	2,000 mm6' 7"
Maximum Digging Height	7,260 mm23' 10"
Maximum Dumping Height	5,210 mm17' 1"
Maximum Digging Depth	4,330 mm14' 2"
Maximum Vertical Wall Digging Depth	3,080 mm10' 1"
Maximum Reach at Ground Level	6,660 mm21' 10"
Minimum Swing Radius	1,990 mm6' 6"

Boom Length	––
Stick Length	2,000 mm6' 7"
Bucket Breakout Force (ISO)	––
Stick Digging Force (ISO)	––
