Forklift Truck

SCP160V4

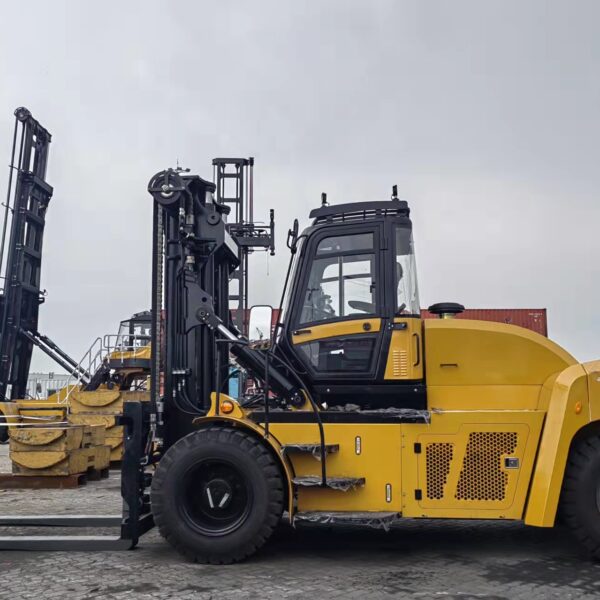

Ready to work, SANY’s SCP160V4 forklift truck is powered by a 6.7-liter Cummins diesel engine, delivering power and performance all day long. This machine is built to make work ease, with a robust power train design and piston pump-supported hydraulics that help extend the life of hoses and components. Designed to make it easy to access service points and reduce maintenance time, the SCP160V4 also ships standard with features like automatic fire suppression and rear camera/radar.

Find a Dealer Near You
Have Product Feedback?

Weight Without Load

52,000 lbs
23,400 kg

Engine

Cummins
QSB6.7L Diesel

Lifting Capacity

36,000 lbs @ 48″
16,330 kg @ 1,220 mm

Features

Technical Spec Sheet Family Brochure

Rated Load Capacity	16,000 kg36,000 lbs
Load Center	1,220 mm48"
Wheelbase	3,750 mm148"
Hydraulic Tank Capacity
Main	183 L48 gal
Brake	––
Fuel Tank Capacity	310 L82 gal

Total Truck Weight without Load	23,000 kg52,000 lbs
Axle Loading with Load
Front	35,000 kg77,200 lbs
Rear	4,400 kg9,700 lbs
Axle Loading without Load
Front	11,200 kg24,700 lbs
Rear	12,200 kg26,900 lbs

Tire Type	Pneumatic
Tire Size
Drive	12.00-20 18PR
Steer	12.00-20 18PR

Mast Tilt, Fwd (α)/Back (β)	12º/15º
Mast Height Lowered	3,754 mm148"
Mast Height Extended	5,704 mm225"
Lift Height	4,000 mm157"
Cab Height	3,590 mm141"
Length to Load Face	5,705 mm225"
Width	2,910 mm115"
Load Distance	1,043 mm41"
Fork
Thickness	100 mm4"
Width	200 mm8"
Length	2,440 mm96"
Carriage Width	2,540 mm100"
Fork Spread (in-in) Minimum	275 mm11"
Fork Spread (out-out) Maximum	2,274 mm90"
Minimum Ground Clearance	300 mm12"
Aisle width (with load length)	8,883 mm350"
Outside turning radius	5,200 mm205"

Travel Speed
with load	24 km/h15 mph
without load	25 km/h16 mph
LIfting Speed
with load	0.40 m/s78 ft/min
without load	0.45 m/s88 ft/min
Lowering Speed
with load	0.45 m/s88 ft/min
without load	0.43 m/s84 ft/min
Drawbar pull-Max	138 kN31,000 lbf
Gradeability @ 1 mph (1.6 km/h)
with load	33%

Road Equipment

Rollers

Graders

Construction Equipment

Backhoe Loader

Excavators

Telehandlers

Wheel Loaders

Forklift Trucks

Cranes

Crawler Cranes

Rough Terrain Cranes

Container Handlers

Empty Container Handlers

Loaded Container Handlers

Reach Stackers

Piling Machinery

Drill Rigs

SCP160V4

Weight Without Load

Engine

Lifting Capacity

Features

The SCP160V4 in Action

Engine Type	Cummins QSB 6.7 Diesel
Emissions Type	EPA Tier 4 Final
Engine Output-Rated	168 kW225 HP
Governed Speed	2,200 rpm
Number of cylinders/displacement	6/6.7 L
Turbocharger	Variable geometry
Alternator AMPS	100A24V
Drive Axle	Kessler D91
Transmission	Dana TE17
Number of gears fwd/rev	3/3
Battery Capacity	24 V 120 Ah
Brakes	Wet disc
Parking Brake	Dry disc
DEF tank capacity	38 L10 gal
