Small Excavator

SY135C

The SANY SY135C compact excavator brings power and performance to a design that makes all-day work easy on operators. The cab features superior visibility for the driver and is fully enclosed with a powerful AC and heating system for comfortable operation in hot or cold climates. With responsive and intuitive controls, positive flow hydraulics, incredible fuel efficiency and a reliable powertrain, the SY135C is the excavator to take on your toughest jobs.

Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications
Optimized positive flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%

Find a Dealer Near You
Have Product Feedback?

Operating Weight

32,783 lbs
14,870 kg

Gross Power

103.3 hp
77.0 kW

Dig Depth

18′ 1″
5,500 mm

Features

Technical Spec Sheet Family Brochure

In the interest of continual equipment development, SANY America, Inc. reserves the right to change these specifications at any time without prior notification.

*Based on theoretical calculation at max flow with no load. Subject to alterations.

Boom Length	4,600 mm15' 1"
Stick (Arm) Length	2,500 mm8' 2"
Transport Length	7,700 mm25' 3"
Transport Width	2,600 mm8' 6"
Transport Height	2,815 mm9' 3"
Upper Structure Width	2,490 mm8' 2"
Cab Height	––
Blade Height	458 mm18"
Track Width (standard shoe)	600 mm24"
Track Gauge	1,990 mm6' 6"
Ground Clearance (minimum)	425 mm17"
Tail Swing Radius	2,205 mm7' 3"
Track Length on Ground	2,930 mm9' 7"
Track Length	3,665 mm12' 0"

Operating Weight	14,870 kg32,783 lb
Ground Pressure	39.0 kPa5.7 psi
Engine	ISUZU 4JJ-FT4
Displacement	3.0 L183 in³
Net Power	––
Gross Power	77.0 kW103.3 HP
Hydraulics	Positive Flow Control with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	242.0 L/min63.9 gal/min
Operating Pressure (maximum)	34.3 MPa4,975 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa4,975 psi
Travel Speeds (maximum)	3.5 / 5.5 km/hr2.2 / 3.4 mph
Travel Effort (maximum)	110.0 kN24,729 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	25.0 MPa3,626 psi
Swing Speed (maximum)	12 rpm
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	600 mm24"
Track Rollers (per side)	7
Carrier Rollers (per side)	1

Boom Length	4,600 mm15' 1"
Stick (Arm) Length	2,500 mm8' 2"
Maximum Digging Height	8,645 mm28' 4"
Maximum Dumping Height	6,175 mm20' 3"
Maximum Digging Depth	5,500 mm18' 1"
Maximum Vertical Wall Digging Depth	4,850 mm15' 11"
Maximum Reach at Ground Level	8,290 mm27' 2"
Minimum Swing Radius	2,500 mm8' 2"

Boom Length	––
Stick Length	2,500 mm8' 2"
Bucket Breakout Force (ISO)	––
Stick Digging Force (ISO)	––

Road Equipment

Rollers

Graders

Construction Equipment

Backhoe Loader

Excavators

Telehandlers

Wheel Loaders

Forklift Trucks

Cranes

Crawler Cranes

Rough Terrain Cranes

Container Handlers

Empty Container Handlers

Loaded Container Handlers

Reach Stackers

Piling Machinery

Drill Rigs

SY135C

Operating Weight

Gross Power

Dig Depth

Features

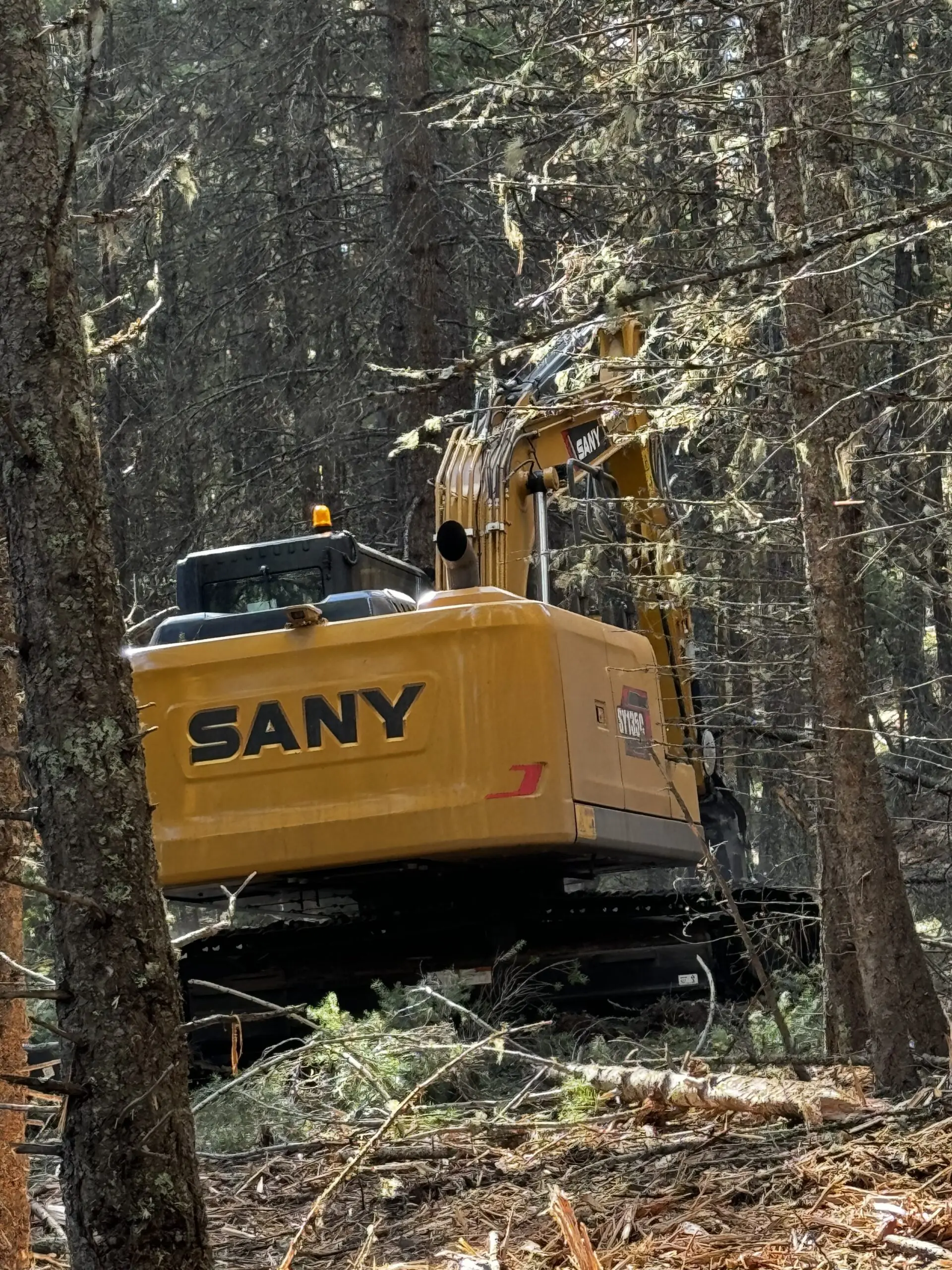

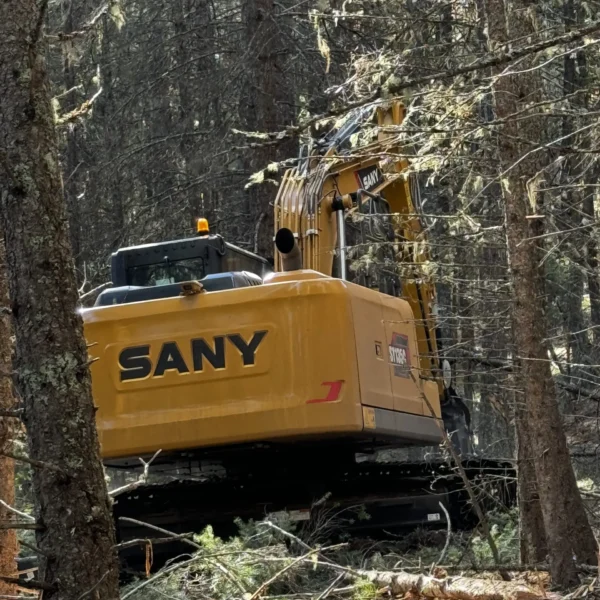

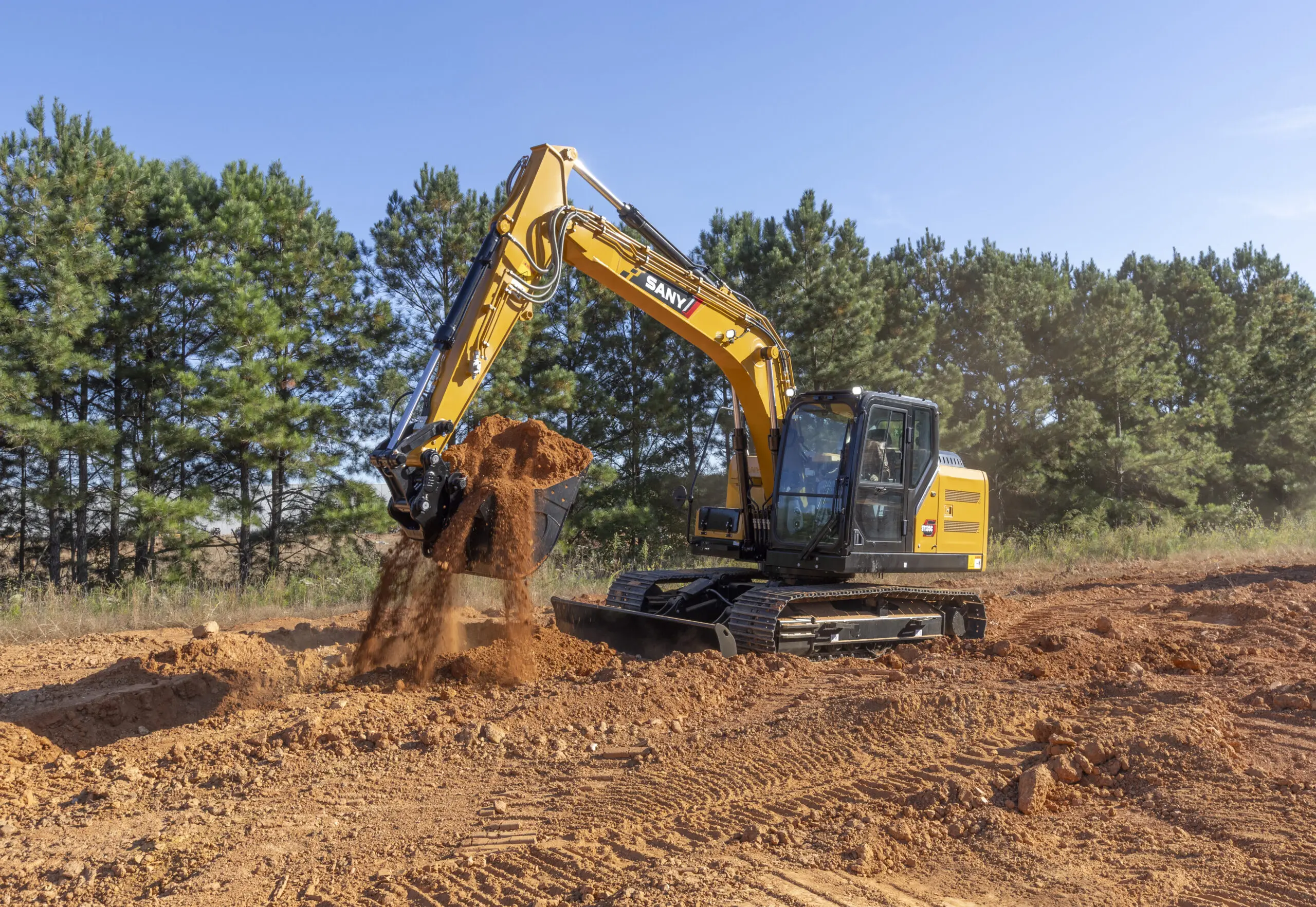

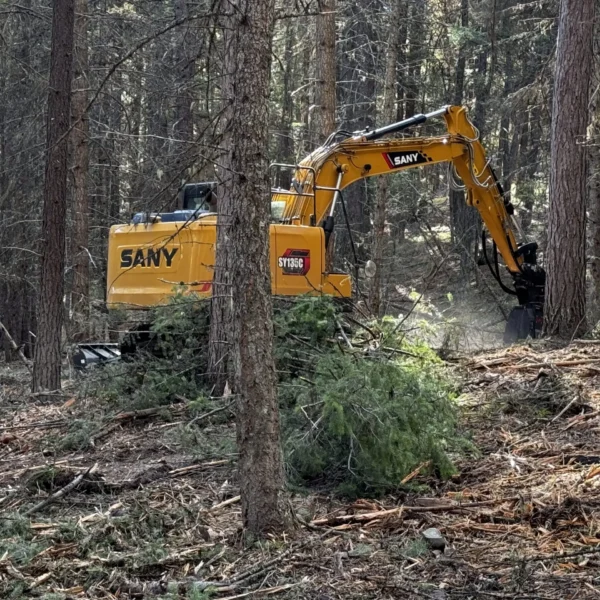

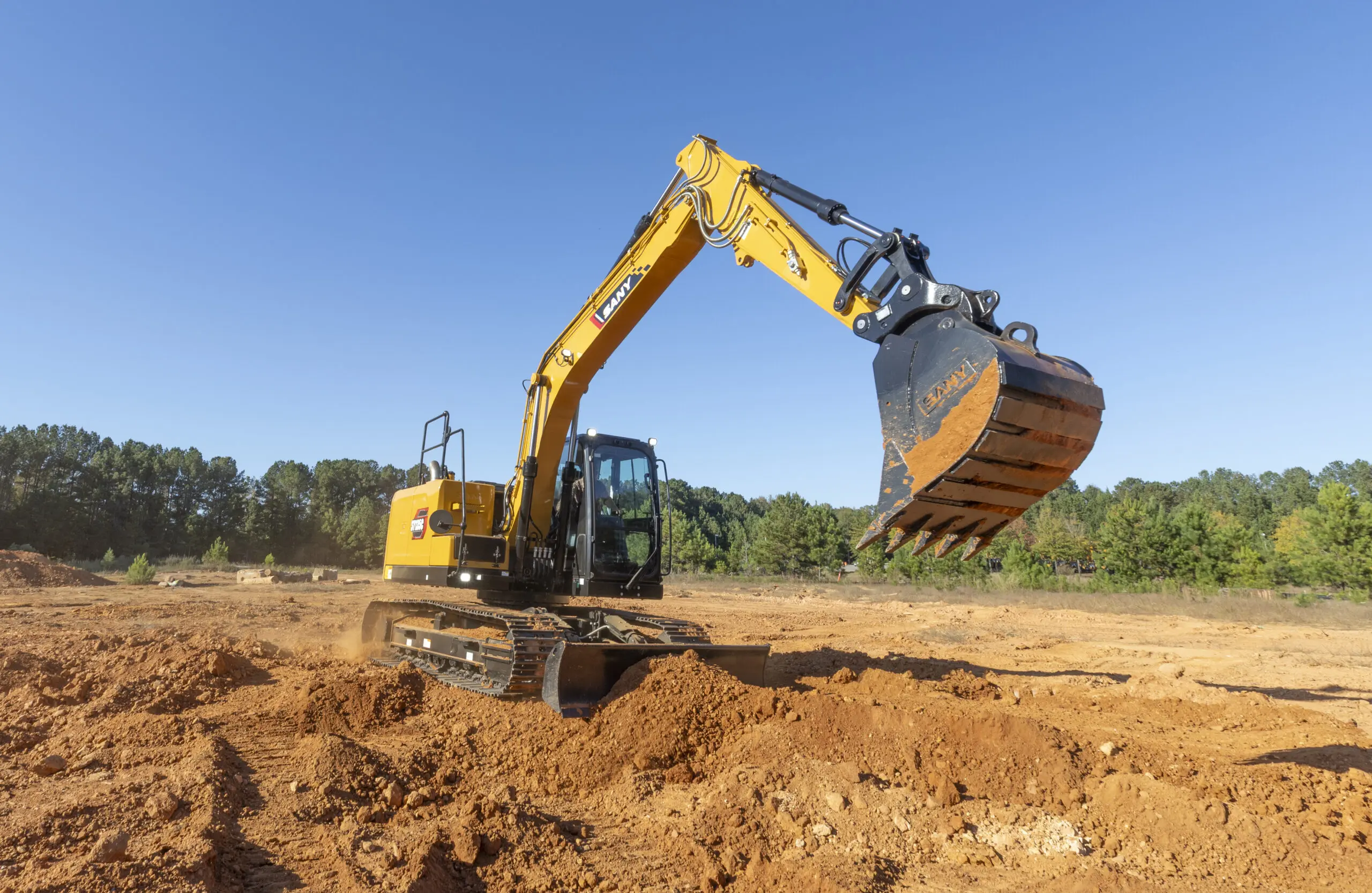

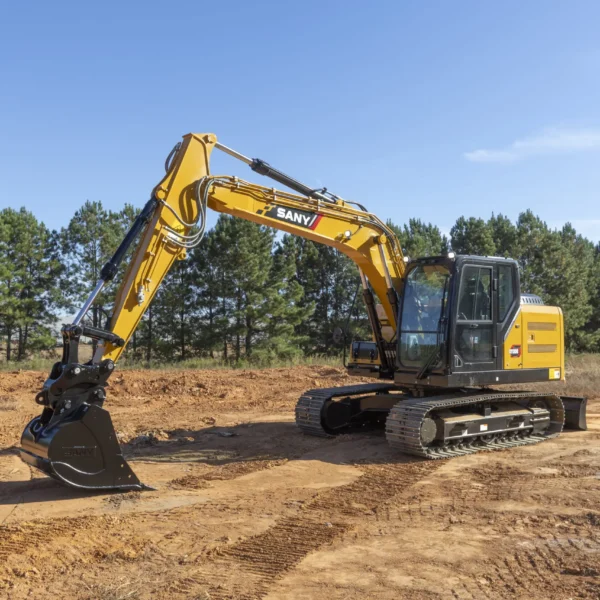

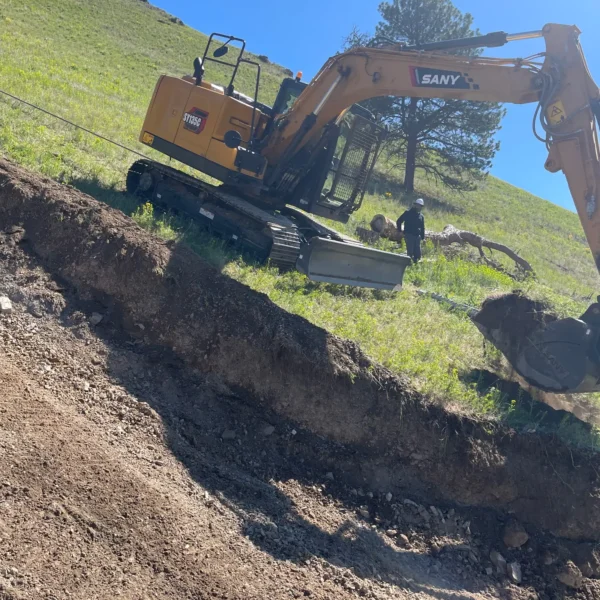

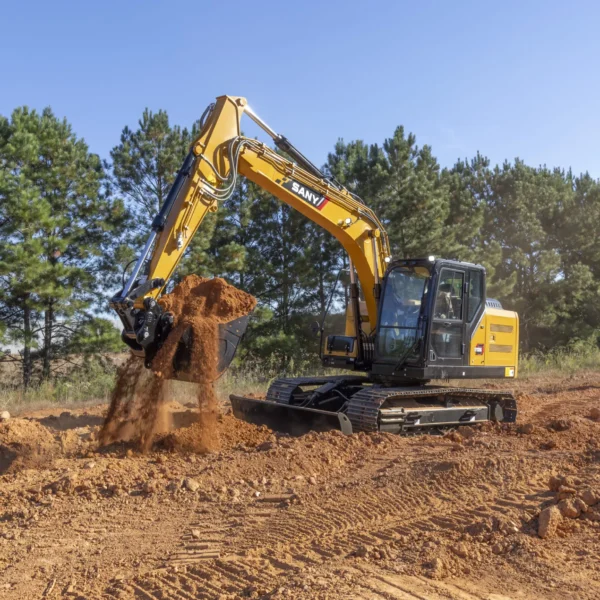

The SY135C in Action
