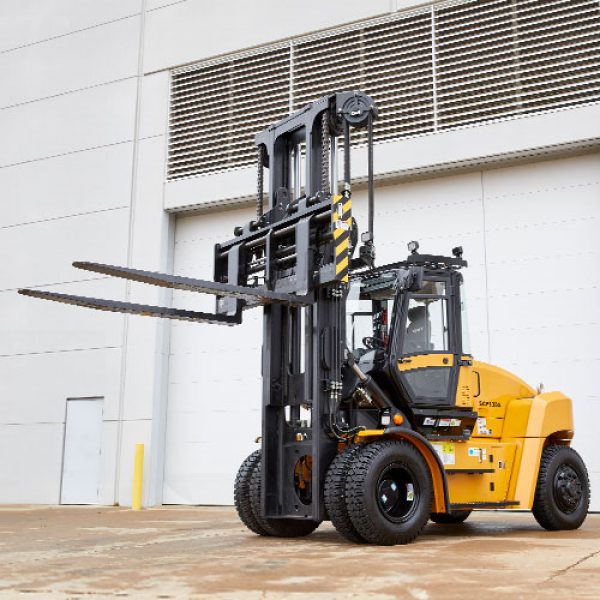

Forklift Truck

SCP130A

The SCP130A forklift truck from SANY is built to be the durable and reliable workhorse in your operations. This machine features a power-on-demand system that revs the engine up when needed to boost performance, improving efficiency and reducing fuel costs. The hydraulics are supported by piston pumps that help provide longer life for hoses and components, and each machine is built to deliver a comfortable ride and intuitive controls to reduce operator fatigue.

Find a Dealer Near You
Have Product Feedback?

Operating Weight

37,400 lbs
16,490 kg

Engine

Cummins
4.5L T4

Lifting Capacity

28,600 lbs @ 24″
13,000 kg @ 600 mm

Features

Download Product Specifications Sheet

In the interest of continual equipment development, SANY America, Inc. reserves the right to change these specifications at any time without prior notification.

Rated Load Capacity	13,000 kg28,600 lbs
Load Center	600 mm24"
Load Distance	869 mm34"
Wheelbase	2,900 mm114"
Hydraulic Tank Capacity
Main	170 L45 gal
Brake	190 L50 gal
Fuel Tank Capacity	190 L50 gal

Total Truck Weight without Load	16,490 kg37,400 lbs
Axle Loading with Load
Front	27,200 kg59,840 lbs
Rear	2,300 kg5,060 lbs
Axle Loading without Load
Front	7,890 kg17,358 lbs
Rear	8,600 kg18,920 lbs

Tire Type	Pneumatic
Tire Size
Drive	10 x 20 (16PR)
Steer	10 x 20 (16PR)

Mast Tilt, Fwd (α)/Back (β)	12º/15º
Mast Height Lowered	3,635 mm143"
Freelift (Top of Fork)	0 mm0"
Mast Height Extended	5,478 mm216"
Cab Height	3,292 mm129"
Overall Length	6,988 mm275"
Length to Load Face	4,548 mm179"
Overall Width Drive Tires	2,366 mm93"
Fork
Thickness	75 mm2.95"
Width	200 mm7.9"
Length	2,440 mm96"
Carriage Width	2,366 mm93"
Fork Spread (in-in) Minimum	495 mm19"
Fork Spread (out-out) Maximum	2,255 mm88.8"
Ground clearance under mast with load	230 mm9"
Ground clearance center wheelbase	264 mm10"
Minimum aisle width (with load length)	7,728 mm304"
Outside turning radius	4,150 mm163"

Travel Speed
with load	30 km/h18.6 mph
without load	31 km/h19 mph
LIfting Speed
with load	0.40 m/s79 ft/min
without load	0.45 m/s88 ft/min
Lowering Speed
with load	0.50 m/s98 ft/min
without load	0.48 m/s94 ft/min
Drawbar pull-Max	103 kN23,155 lbs
Gradeability @ 1 mph (1.6 km/h)
with load	–
without load	–

Road Equipment

Rollers

Graders

Construction Equipment

Backhoe Loader

Excavators

Telehandlers

Wheel Loaders

Forklift Trucks

Cranes

Crawler Cranes

Rough Terrain Cranes

Container Handlers

Empty Container Handlers

Loaded Container Handlers

Reach Stackers

SCP130A

Operating Weight

Engine

Lifting Capacity

Features

The SCP130A in Action

Power type	Diesel
Engine Manufacturer	Cummins
Engine Output-Rated	119 kW160 HP
Engine Output-Peak	172 kW230 HP
Governed Speed	2,300 rpm
Number of cylinders/displacement	4/4.5 L
Maximum Engine Torque	624 N-m194 lb-ft
Turbocharger	Water-cooled variable geometry
Alternator	24V 70A
Drive Axle	Kessler D-61
Transmission	Dana TE-10
Number of gears fwd/rev	3/3
Battery Capacity	2x12/120Ah
Brakes	Wet disc
Parking Brake	Dry disc
DEF tank capacity	19 L5 gal
