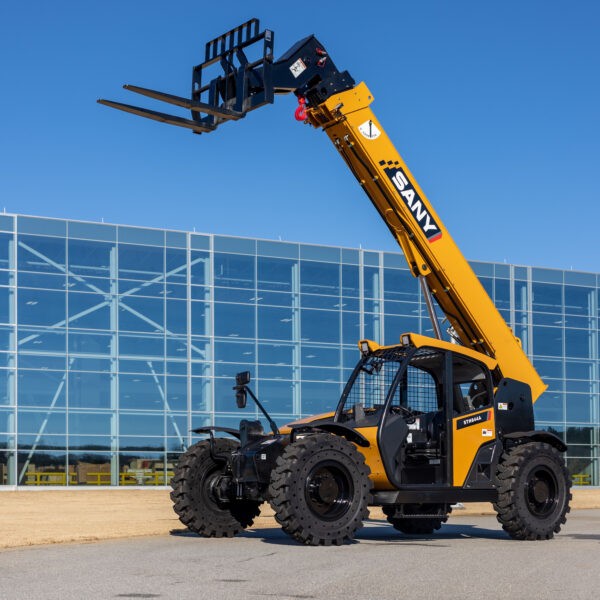

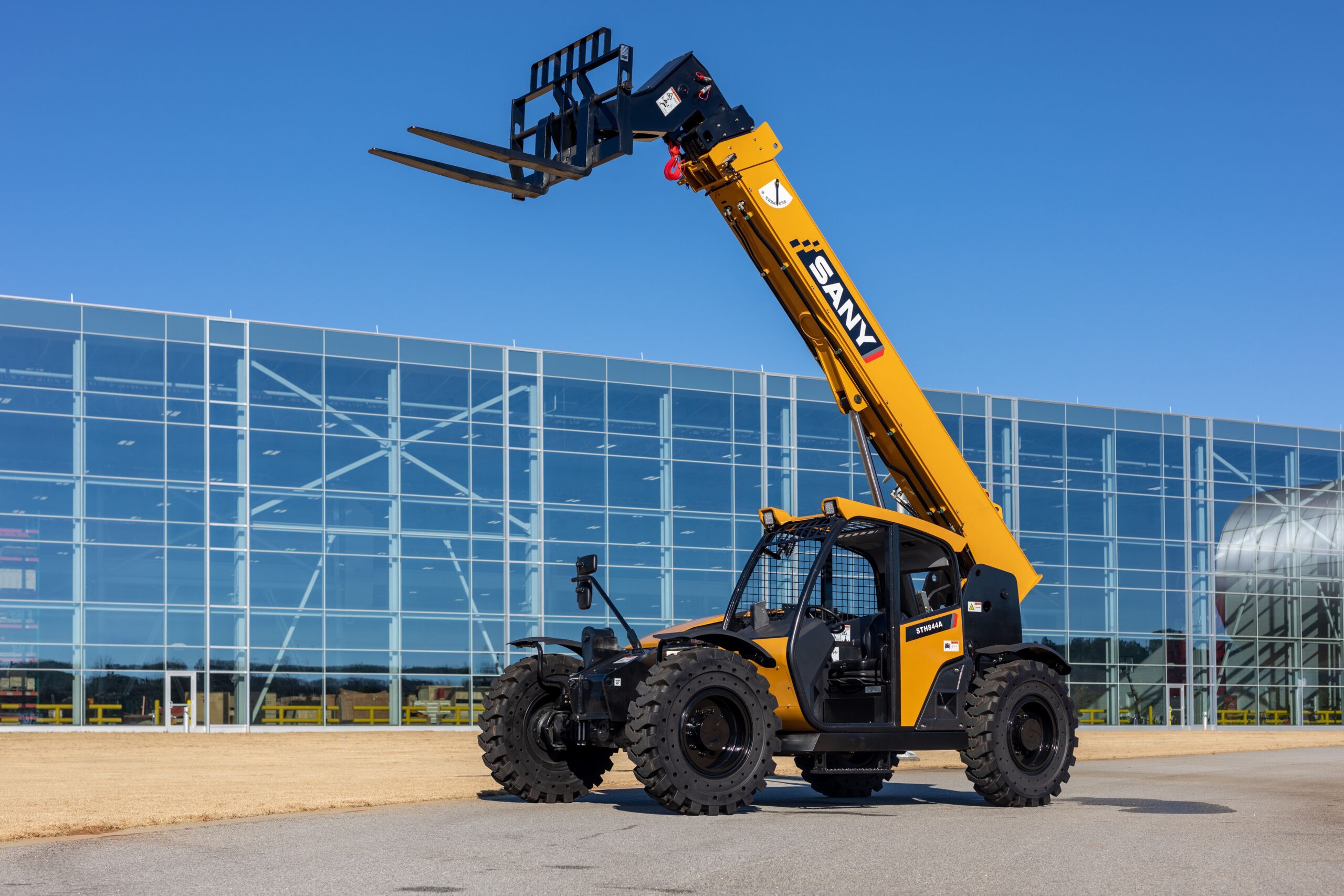

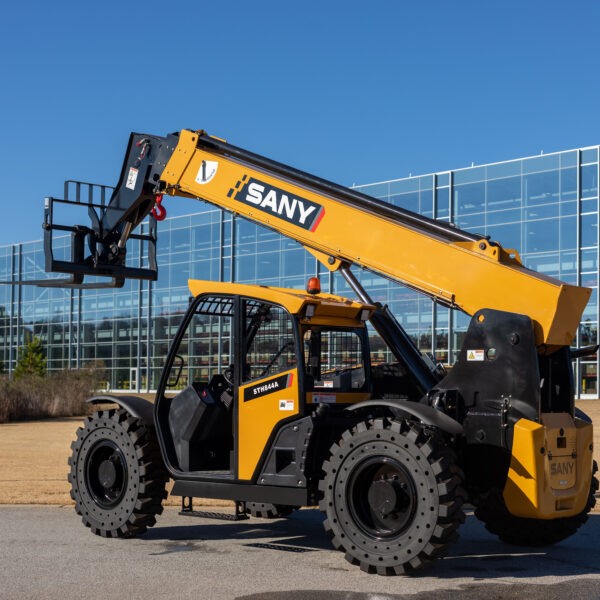

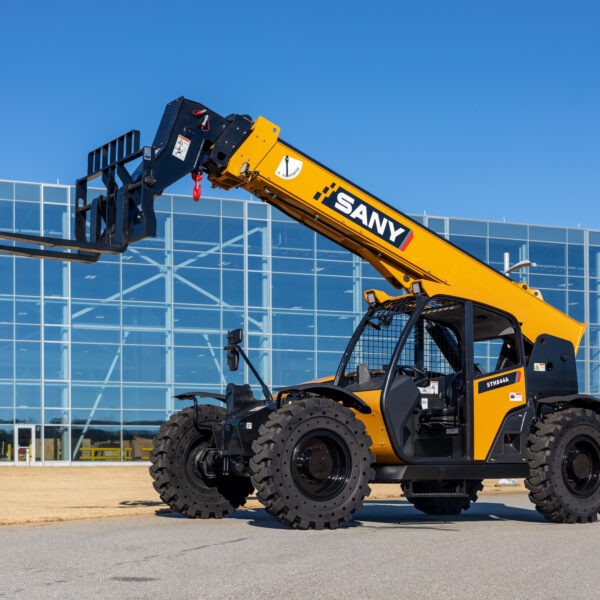

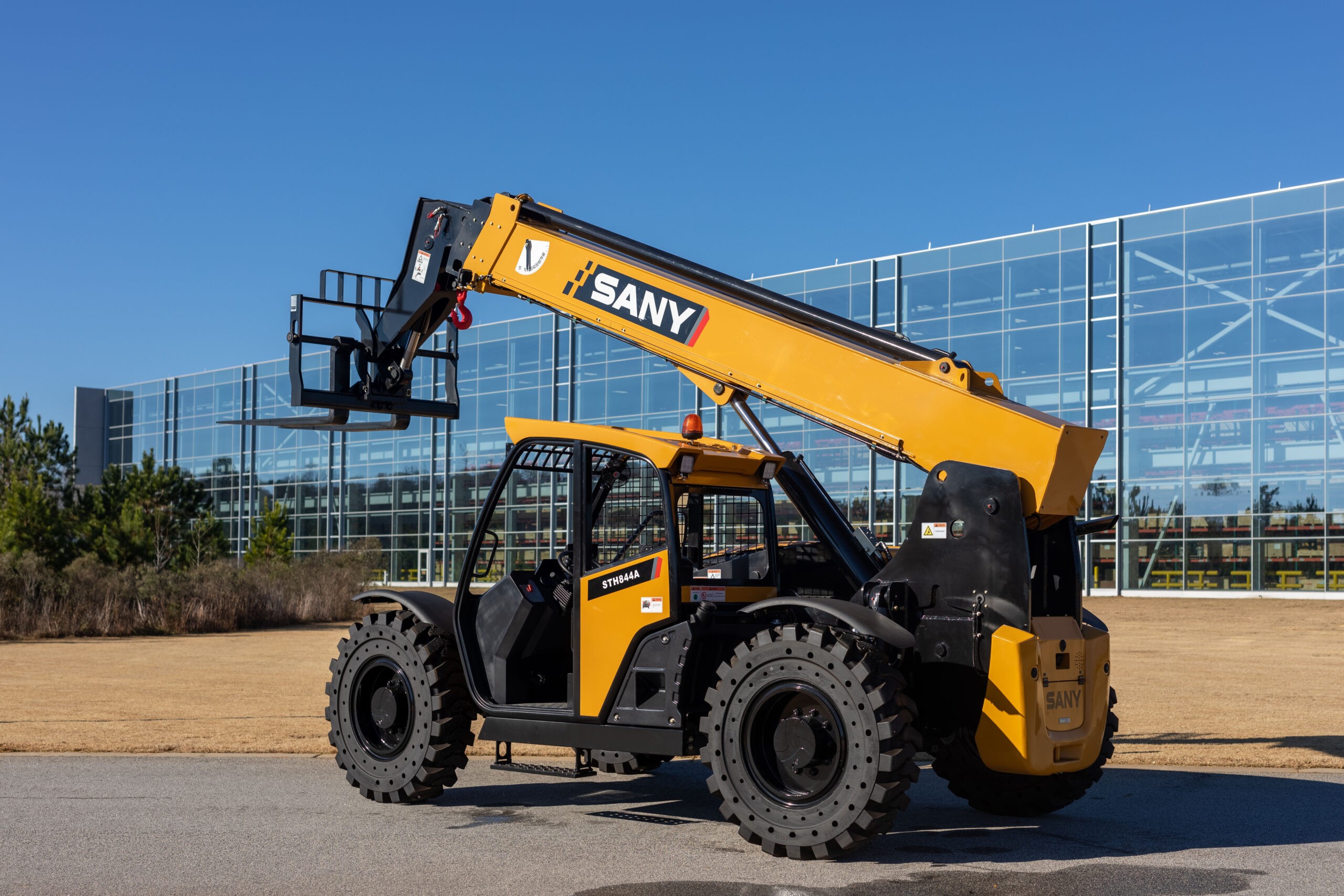

Telehandler

STH844A


Find a Dealer Near You
Have Product Feedback?

Maximum Lift Height

44′
13.40 m

Maximum Lift Capacity

8,000 lbs
3,629 kg

Power

74 hp
55 kW

Features

Technical Spec SheetFamily Brochure
Overall Dimensions
Maximum Lift Height
13.40 m44' 0"
Maximum Forward Reach
9.15 m30' 0"
Height, Stowed
2.54 m8' 4"
Length, Stowed (Without Forks)
6.15 m20' 2"
Width
2.46 m8' 1"
Wheelbase
3.42 m11' 3"
Ground Clearance (Center)
0.46 m1' 6"
Ground Clearance (Axle)
0.43 m1' 5"
Weight
11,633 kg25,647 lbs
Performance
Maximum Lift Capacity
3,629 kg8,000 lbs
Lift Capacity at Maximum Height
2,722 kg6,000 lbs
Lift Capacity at Maximum Reach
681 kg1,500 lbs
Boom (Raise/Lower)
13 seconds13 seconds
Boom (Extend/Retract)
16 seconds16 seconds
Frame Leveling+/- 10 degrees
Maximum Drive Speed
23 kph14 mph
Outside Turning Radius (4WS)
4.30 m14' 1"
Auxiliary Hydraulic Flow
63 L/min17 gpm
Auxiliary Hydraulic Pressure
17 MPa2,466 psi
Standard Tire Size13.00-24
Capacities
Power
Torque
488 Nm360 lbf-ft
Electrical System24 volt
Hydraulic Tank Capacity
124 L33 gal
Hydraulic System Capacity
159 L42 gal
Fuel Tank Capacity
135 L36 gal
Components
EngineDeutz TCD 3.6
TransmissionDana VDT12000
Axles F/R
Dana 212Dana 212
Hydraulic PumpKawasaki Load Sense Piston Pump
Hydraulic ManifoldParker

To provide peace of mind and ensure maximum uptime, SANY backs all its equipment with the industry’s strongest warranties.

The STH844A in Action
