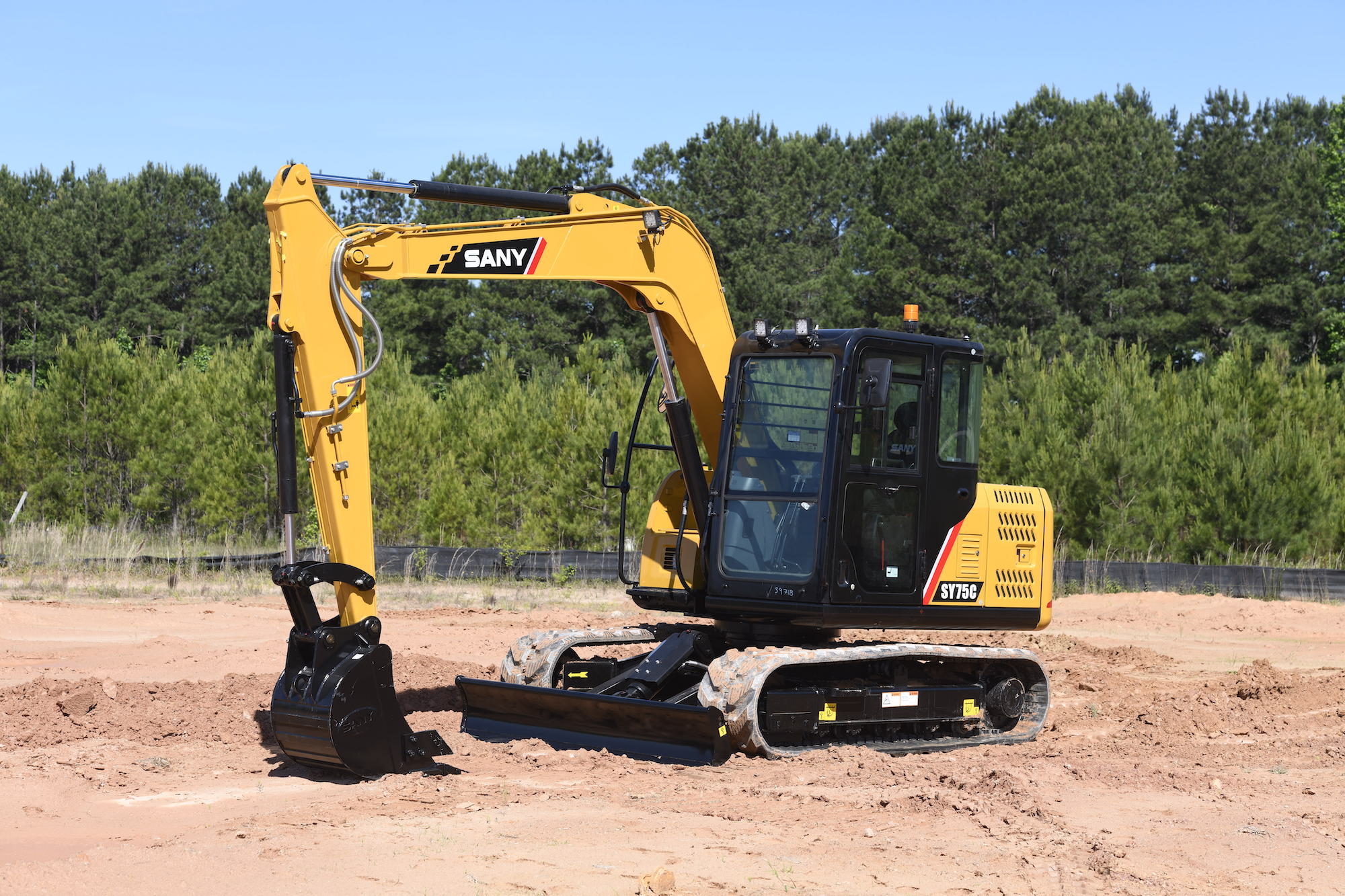

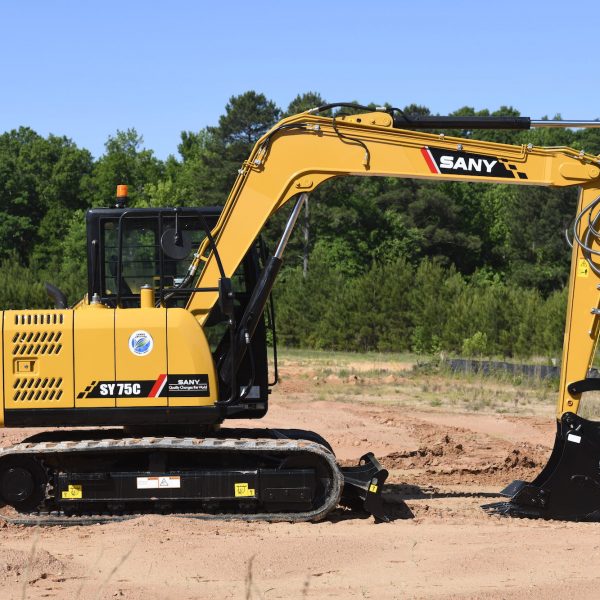

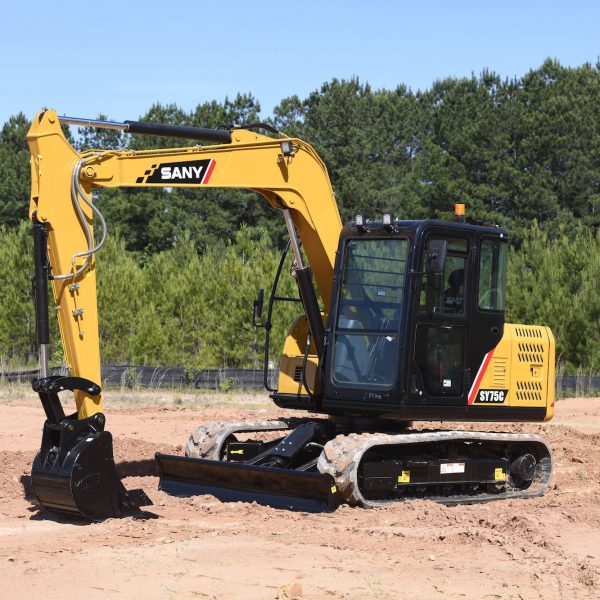

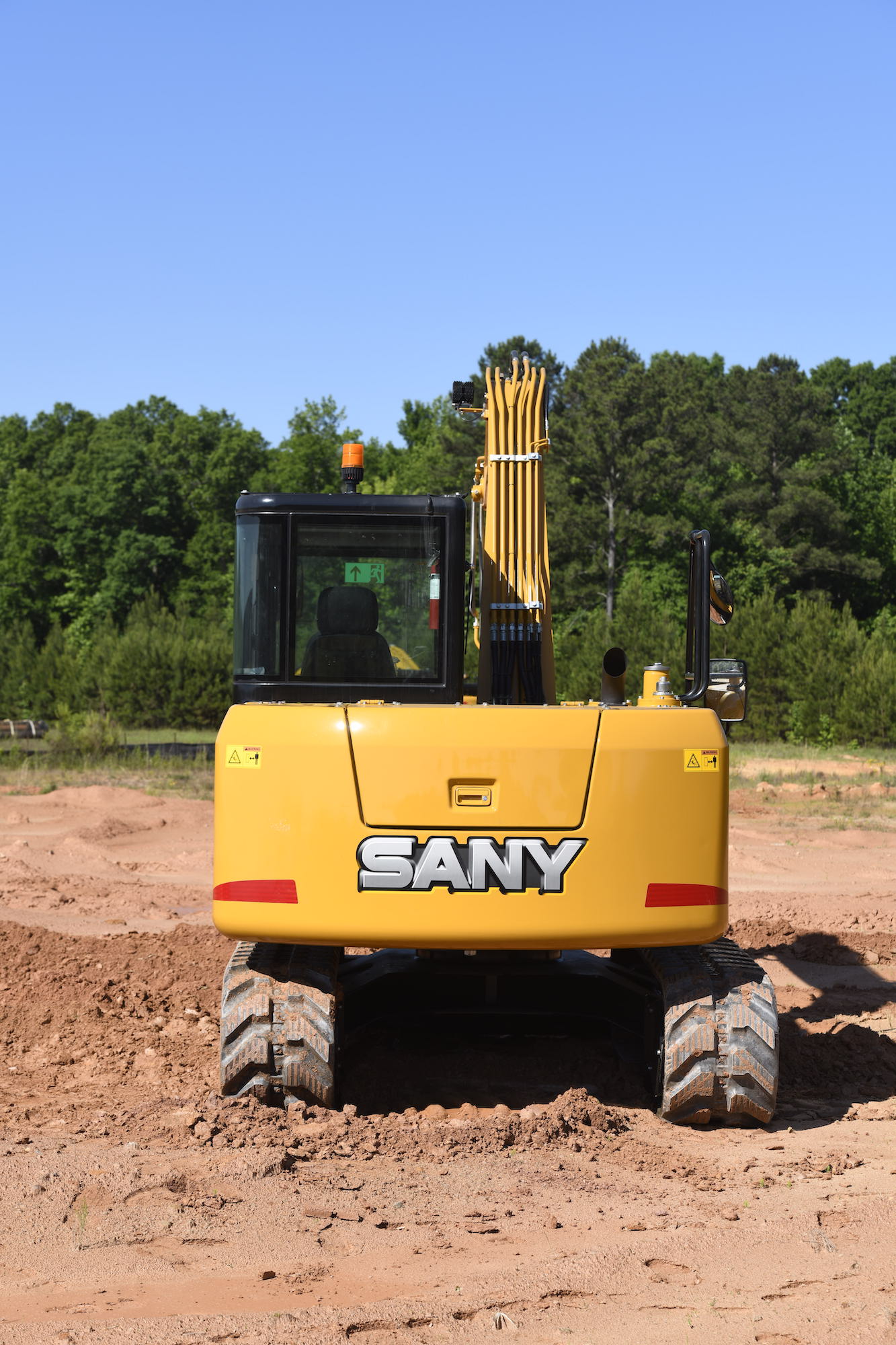

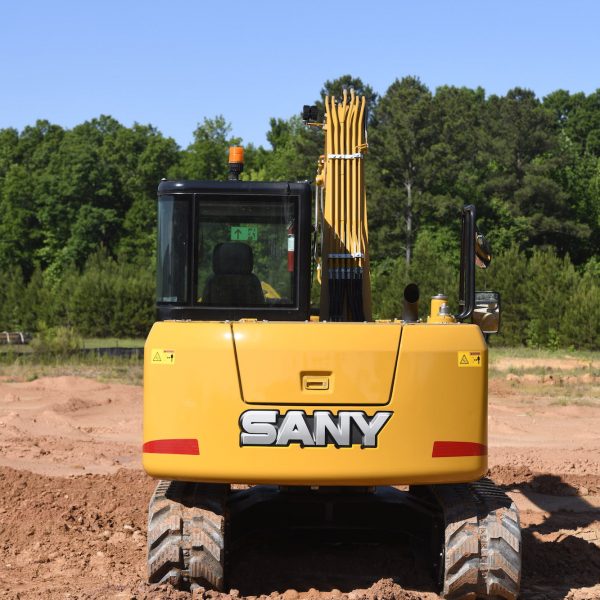

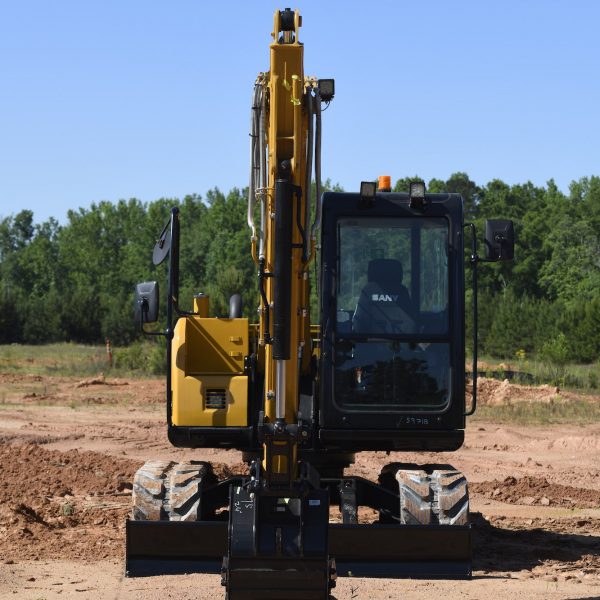

Small Excavator

SY75C

Built tough with reinforced boom, arm, swing platform and undercarriage, the SY75C boasts an efficient and reliable Isuzu T4F engine. Featuring joystick controls and a bi-directional auxiliary hydraulic system, this compact excavator proves you don’t have to trade size for performance. The comfortable cockpit features heating and AC for all-day operation in any climate, and the maintenance-friendly design allows for quick access to all service points to minimize downtime.

Powered by a reliable, efficient Yanmar T4F engine
Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life
Equipped with joystick controlled, proportional, bi-directional auxiliary hydraulics

Find a Dealer Near You
Have Product Feedback?

Operating Weight

16,050 lbs
7,280 kg

Gross Power

57.7 hp
43.0 kW

Dig Depth

14′ 7″
4,450 mm

Features

Technical Spec Sheet Family Brochure

In the interest of continual equipment development, SANY America, Inc. reserves the right to change these specifications at any time without prior notification.

*Based on theoretical calculation at max flow with no load. Subject to alterations.

Boom Length	3,720 mm12' 2"
Stick (Arm) Length	2,050 mm6' 9"
Transport Length	6,121 mm20' 1"
Transport Width	2,220 mm7' 3"
Transport Height	2,720 mm8' 11"
Upper Structure Width	2,040 mm6' 8"
Cab Height	––
Blade Height	405 mm16"
Track Width (standard shoe)	450 mm18"
Track Gauge	1,750 mm5' 9"
Ground Clearance (minimum)	380 mm15"
Tail Swing Radius	1,800 mm5' 11"
Track Length on Ground	2,195 mm7' 2"
Track Length	2,820 mm9' 3"

Operating Weight	7,280 kg16,050 lb
Ground Pressure	33.0 kPa4.8 psi
Engine	Yanmar 4TNV98C
Displacement	2.2 L134.3 in³
Net Power	––
Gross Power	43.0 kW57.7 HP
Hydraulics	Load Sensing with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	149.0 L/min39.4 gal/min
Operating Pressure (maximum)	26.3 MPa3,814 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	26.3 MPa3,814 psi
Travel Speeds (maximum)	2.8 / 5.3 km/hr1.7 / 3.3 mph
Travel Effort (maximum)	56.8 kN12,769 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	21.6 MPa3,133 psi
Swing Speed (maximum)	10.5 rpm
Undercarriage (standard)	Belted Rubber Track
Track Shoe Width (standard)	450 mm18"
Track Rollers (per side)	5
Carrier Rollers (per side)	1

Boom Length	3,720 mm12' 2"
Stick (Arm) Length	2,050 mm6' 9"
Maximum Digging Height	7,390 mm24' 3"
Maximum Dumping Height	5,490 mm18' 0"
Maximum Digging Depth	4,,450 mm14' 7"
Maximum Vertical Wall Digging Depth	3840 mm12' 7"
Maximum Reach at Ground Level	6,505 mm21' 4"
Minimum Swing Radius	1,940 mm6' 4"

Boom Length	––
Stick Length	2,050 mm6' 9"
Bucket Breakout Force (ISO)	––
Stick Digging Force (ISO)	––

Road Equipment

Rollers

Graders

Construction Equipment

Backhoe Loader

Excavators

Telehandlers

Wheel Loaders

Forklift Trucks

Cranes

Crawler Cranes

Rough Terrain Cranes

Container Handlers

Empty Container Handlers

Loaded Container Handlers

Reach Stackers

Piling Machinery

Drill Rigs

SY75C

Operating Weight

Gross Power

Dig Depth

Features

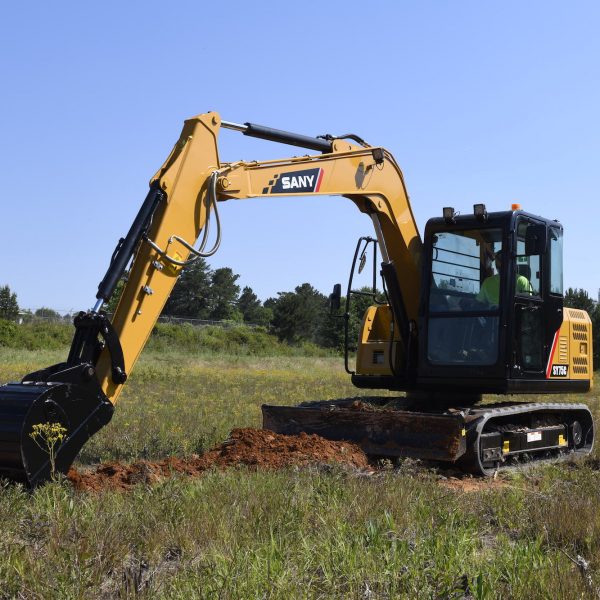

The SY75C in Action
