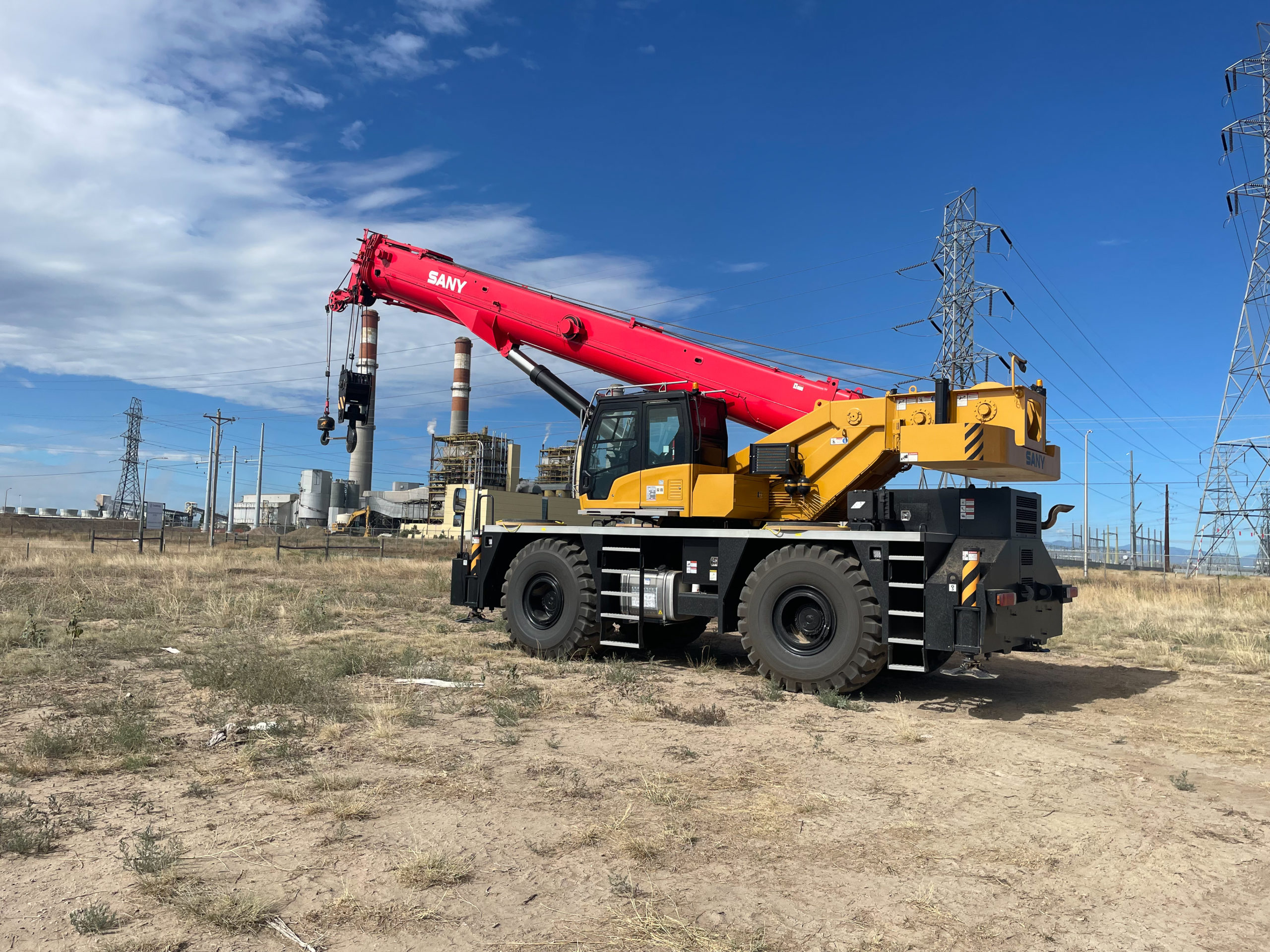

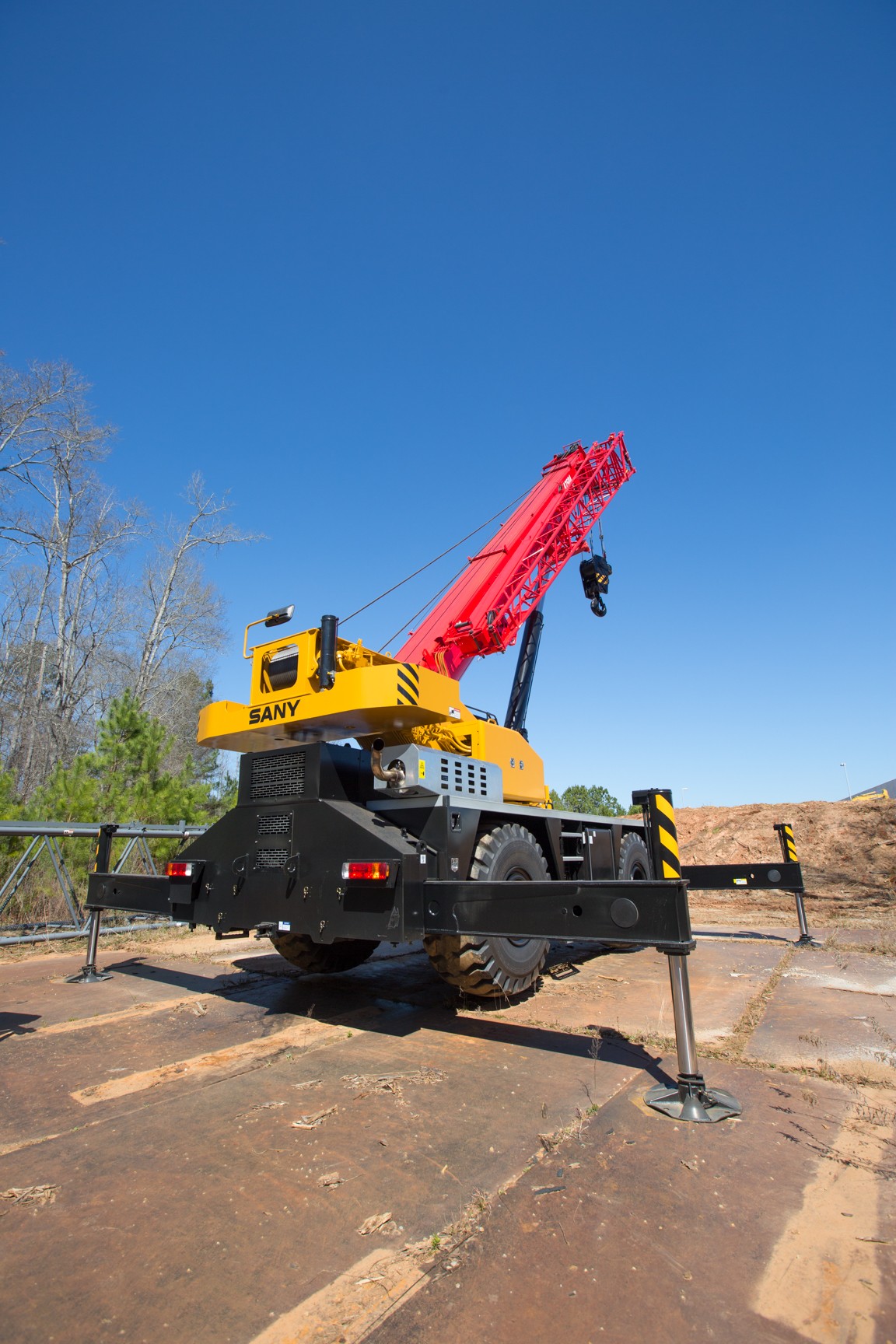

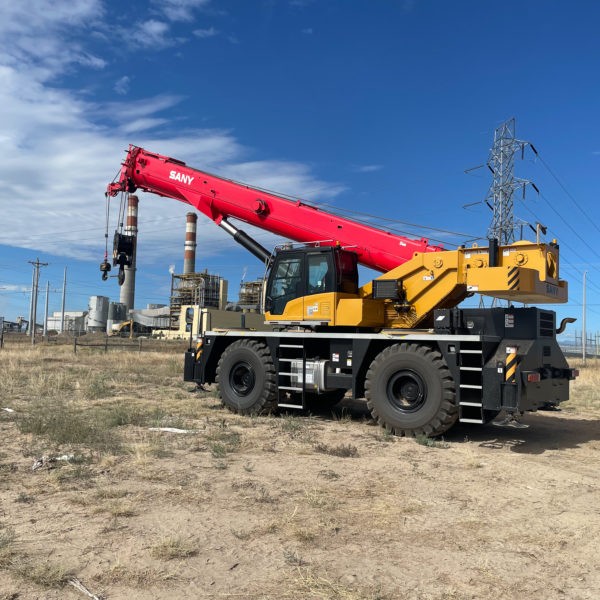

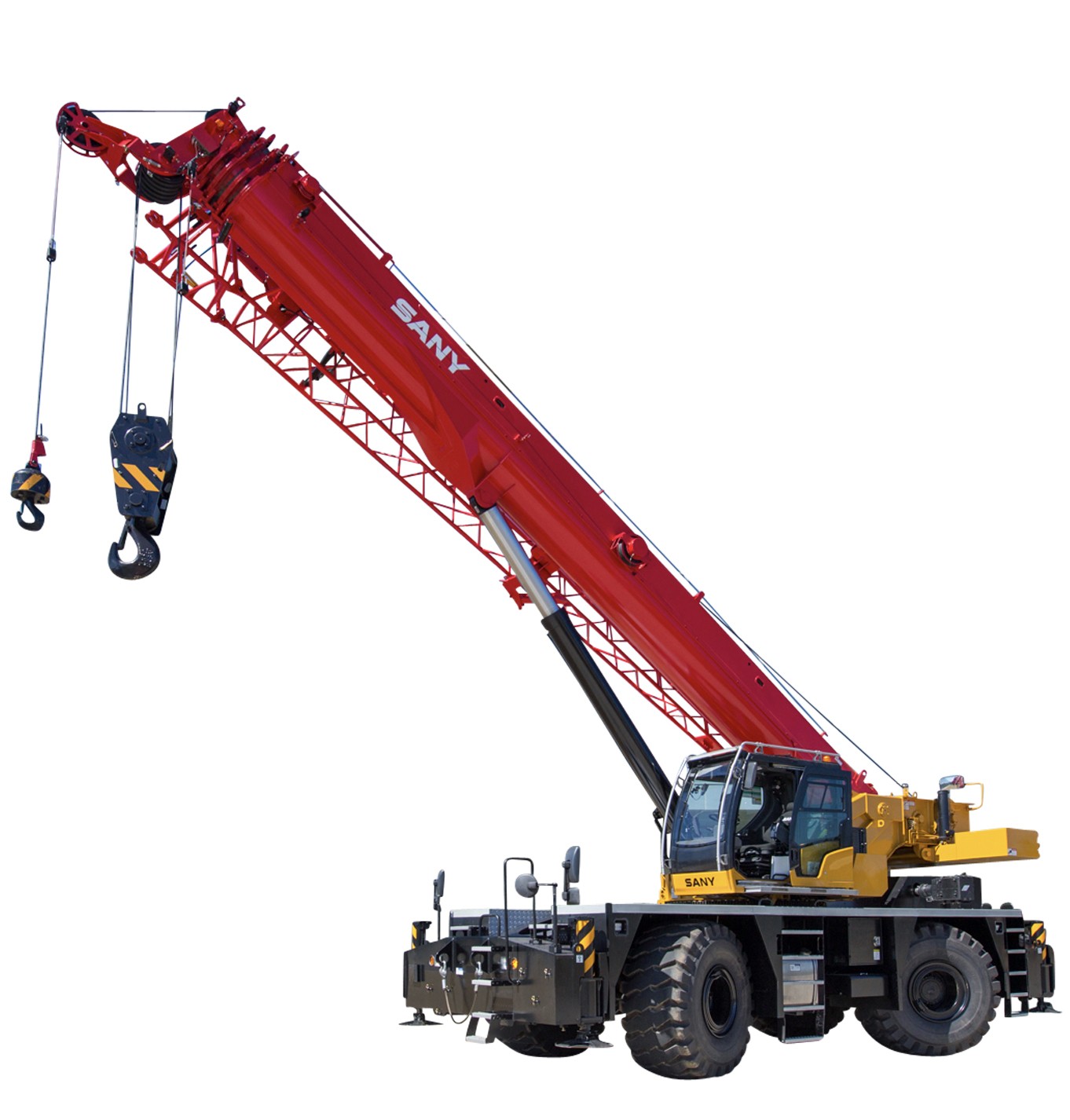

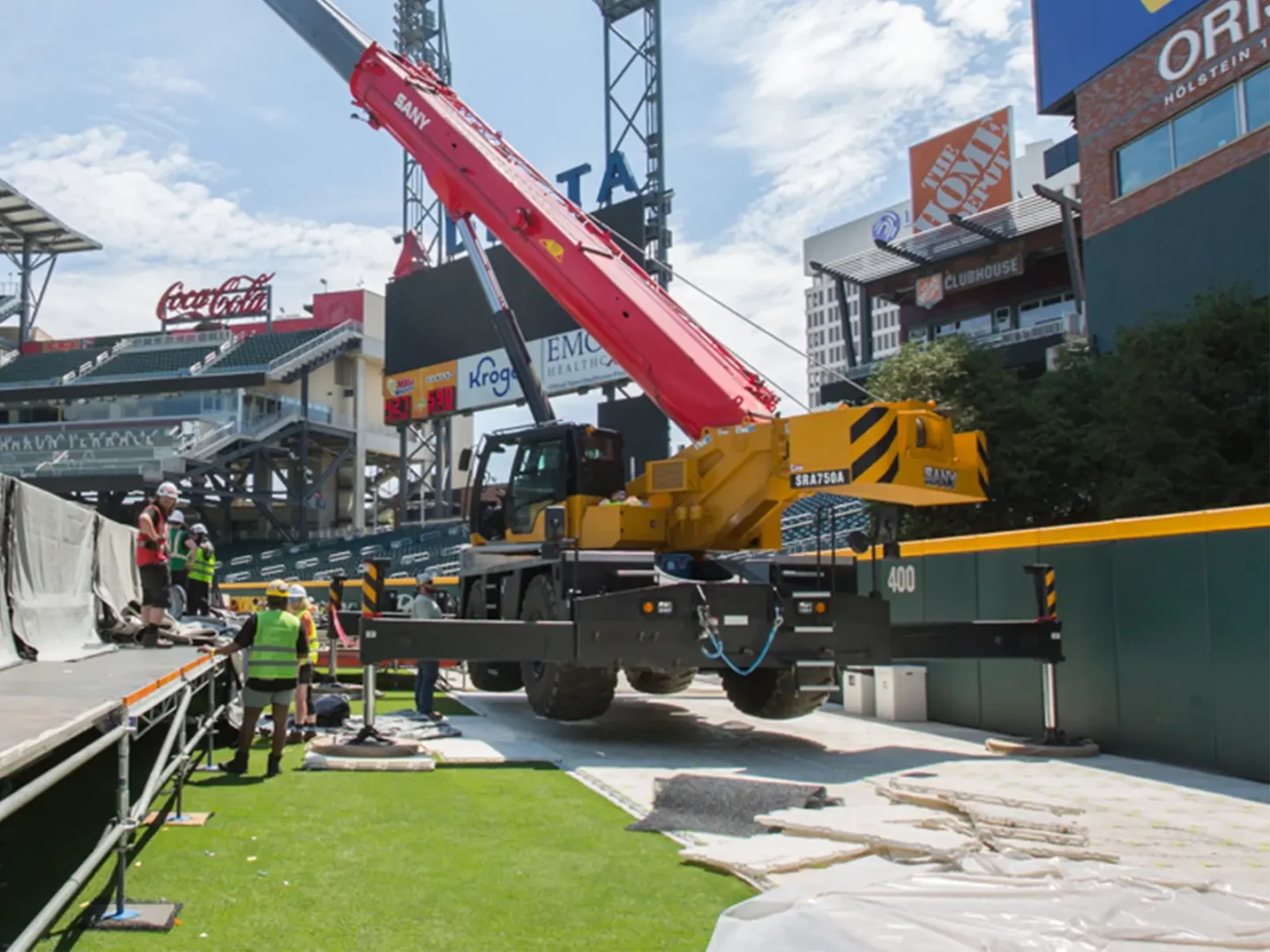

SRA750A

75 USt Max Lift | 142.7 ft Main Boom | 206.6 ft Max Tip

LMI navigation just went to the next level. No need to dig through archaic-looking menus trying to find critical information or functionality. The SRA750A has a 10.1″ full-color touchscreen display with outstanding screen clarity and true onboard diagnostics. This LMI is very pictorial, which allows operators to easily get the information they need typically in less than three clicks. A strong and reliable performer with a five-section, full-power boom reaching 142.7 feet, this 75 USt rough terrain crane is built to dominate the jobsite on general construction, refinery, and industrial projects. Safety features abound, including an anti-two-block limit switch, third-wrap indicators on both winches, virtual wall protection, and a winch camera that monitors rope condition in real time. To improve operator experience, the spacious cab offers outstanding visibility and a climate control system to keep the operator comfortable in all seasons. Transport fully loaded on one truck at under 100,000 lbs. All SANY cranes are backed by the industry’s strongest standard warranty at 3 years/3,000 hours.

Powertrain consisting of Cummins QSB6.7 284hp Stage V engine, Dana automatic transmission, and Kessler axles

Powerful winches with 23,900 lbs of available line pull with a maximum wire rope speed of 492fpm

20-degree tiltable cab with electronic, extendable catwalk

32.8' – 55.8' two-piece lattice hydraulically power-assisted jib

Four steering modes

Features and Specifications

Product Brochure

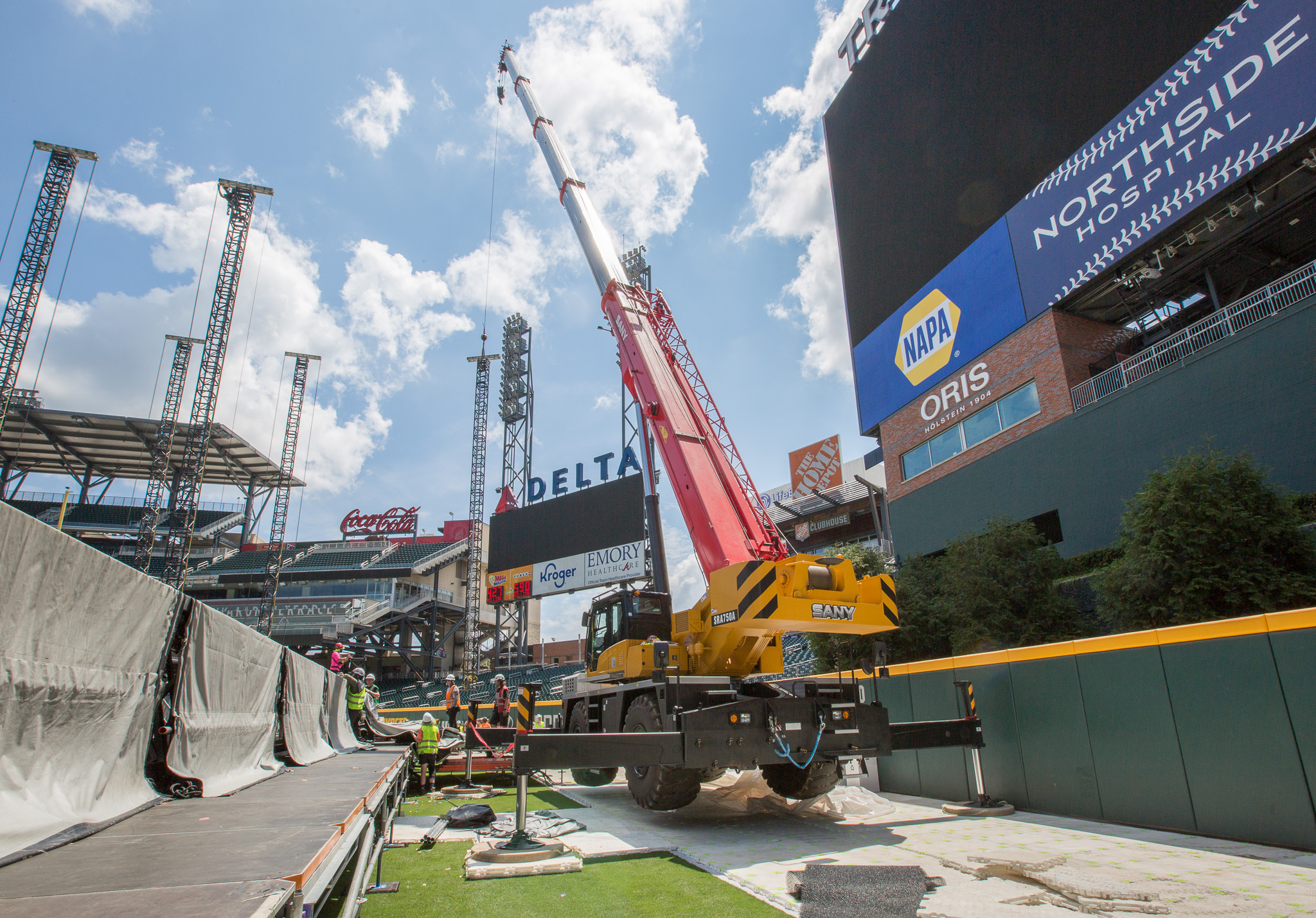

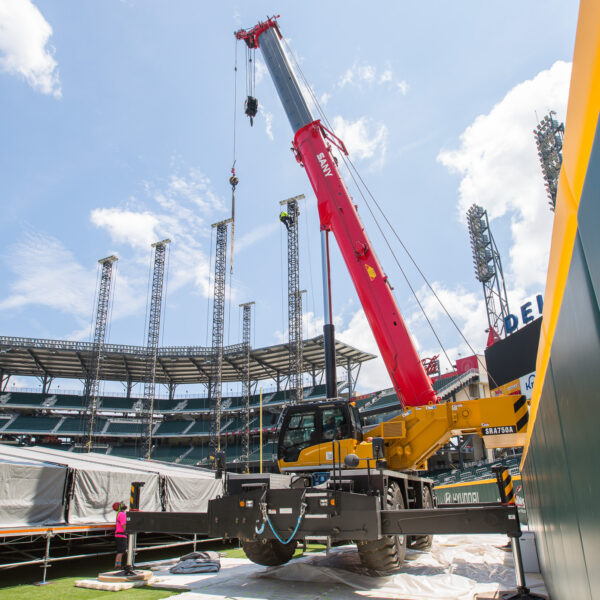

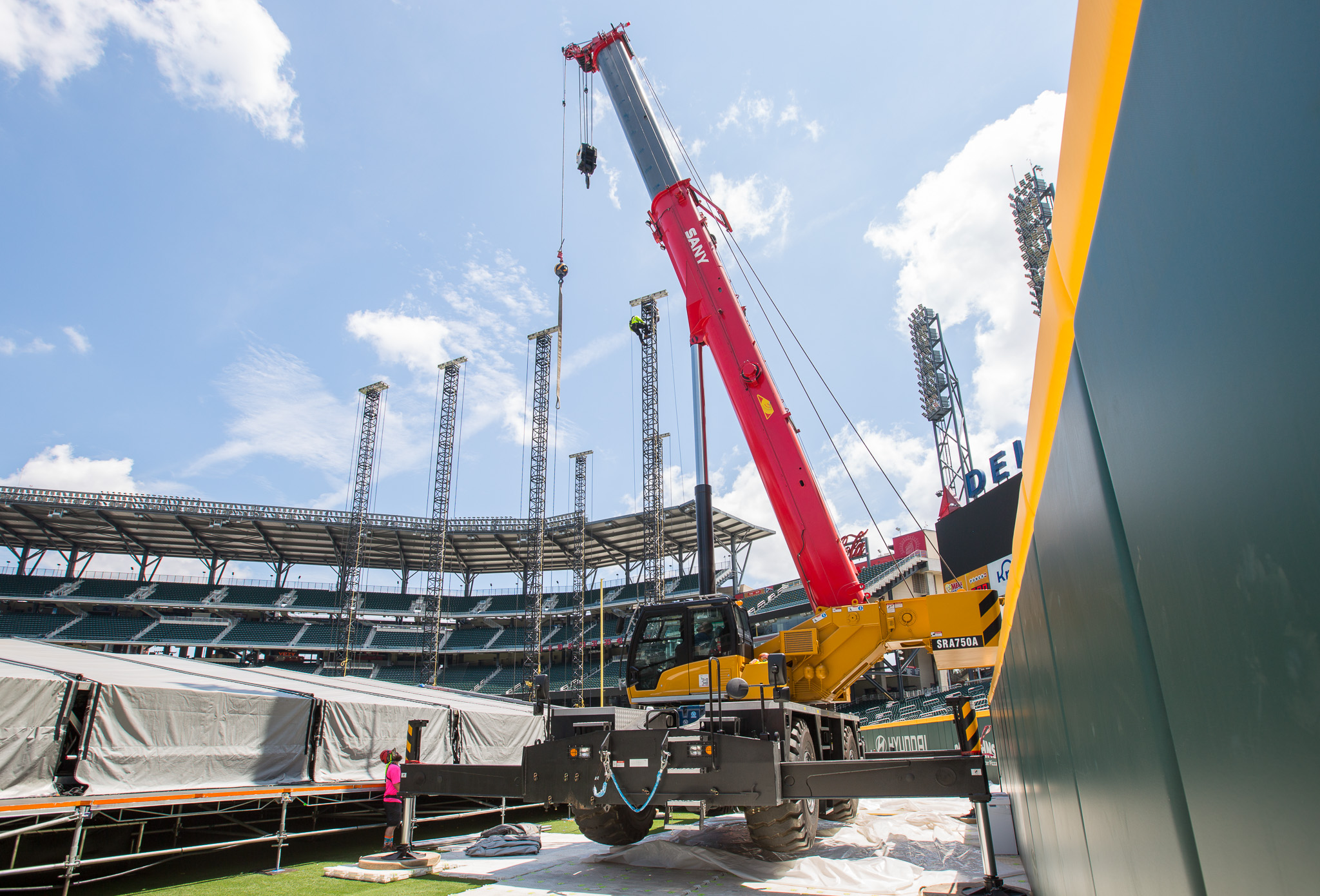

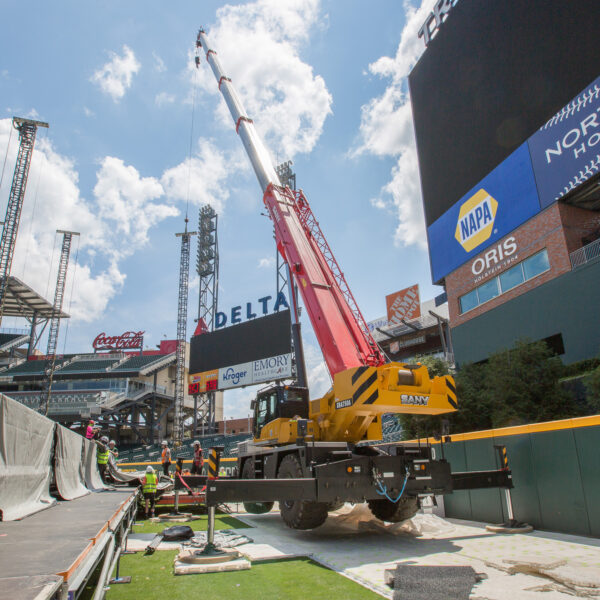

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Engine Make and Model	Cummins QSB6.7 C280 (Stage V)
Max. Engine Power	209 kW / 2,200 rpm284 hp / 2,200 rpm
Max. Engine Torque	1,288 N·m / 1,500 rpm950 lb·ft / 1,500 rpm

Overall Length	13,700 mm44.9 ft
Overall Width	3,300 mm10.8 ft
Overall Height	3,810 mm12.5 ft

Max. Travel Speed	24 km/h15 mph
Min. Steering Radius	13.9/7.9 m45.6/25.6 ft
Min. Steering Radius of Boom Tip	11.9 m39 ft
Wheel Drive Type (Driving Modes)	2 wheel/4 wheel
Min. Ground Clearance	510 mm1.7 ft
Approach Angle	21°
Departure Angle	20°
Max. Gradeability	75%

Min. Rated Lifting Radius	2.4 m8 ft
Tail Swing Radius	4.4 m14.4 ft
No. of Boom Sections	5
Boom Shape	U shape
Max. Lifting Moment (Basic Boom)	2,300 kN·m1,697 klb·ft
Max. Lifting Moment (Full-Extension Boom)	1,150 kN·m849 klb·ft
Max. Lifting Moment (Full-Extension Boom+Jib)	530 kN·m391 klb·ft
Boom Length (Basic Boom)	11.3 kN·m37.1 klb·ft
Boom Length (Full-Extension Boom)	43.5 kN·m142.7 ft
Boom Length (Full-Extension Boom+Jib)	60.5 kN·m198.4 klb·ft
Max. Tip Height (Basic Boom)	14.5 kN·m47.6 klb·ft
Max. Tip Height (Full-Extension Boom)	46 kN·m150.9 klb·ft
Max. Tip Height (Full-Extension Boom+Jib)	63 kN·m206.6 ft
Outrigger span (Longitudinal×Transverse)	7.5 m x 7.4 m24.6 ft × 24.3 ft
Jib Offset	0, 20, 40°
