Operating Weight
56,218 lbs
25,500 kgEngine
Cummins
QSB6.7LLifting Capacity
35,274 lbs @ 48″
16,000 kg @ 1,219 mm

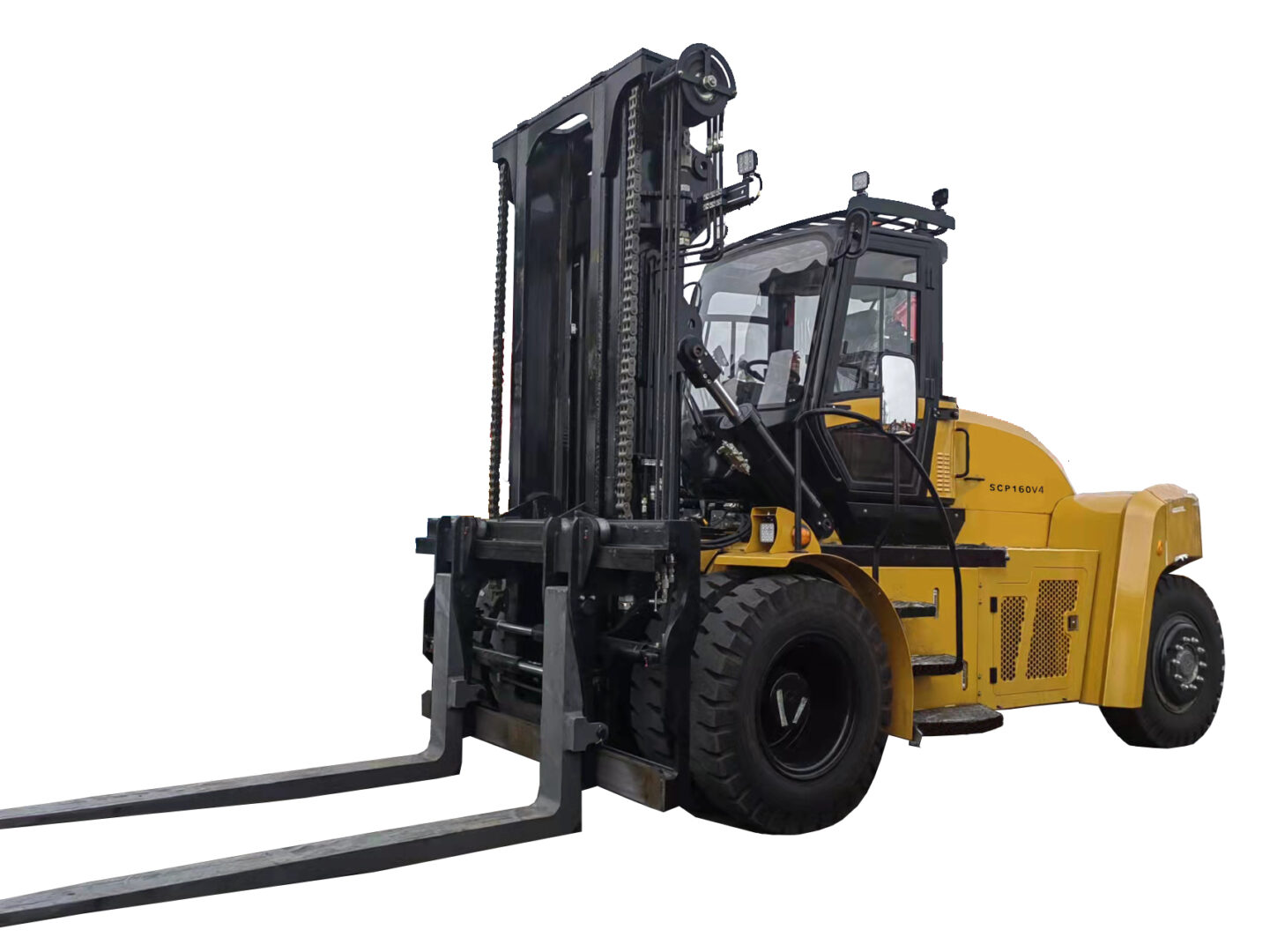

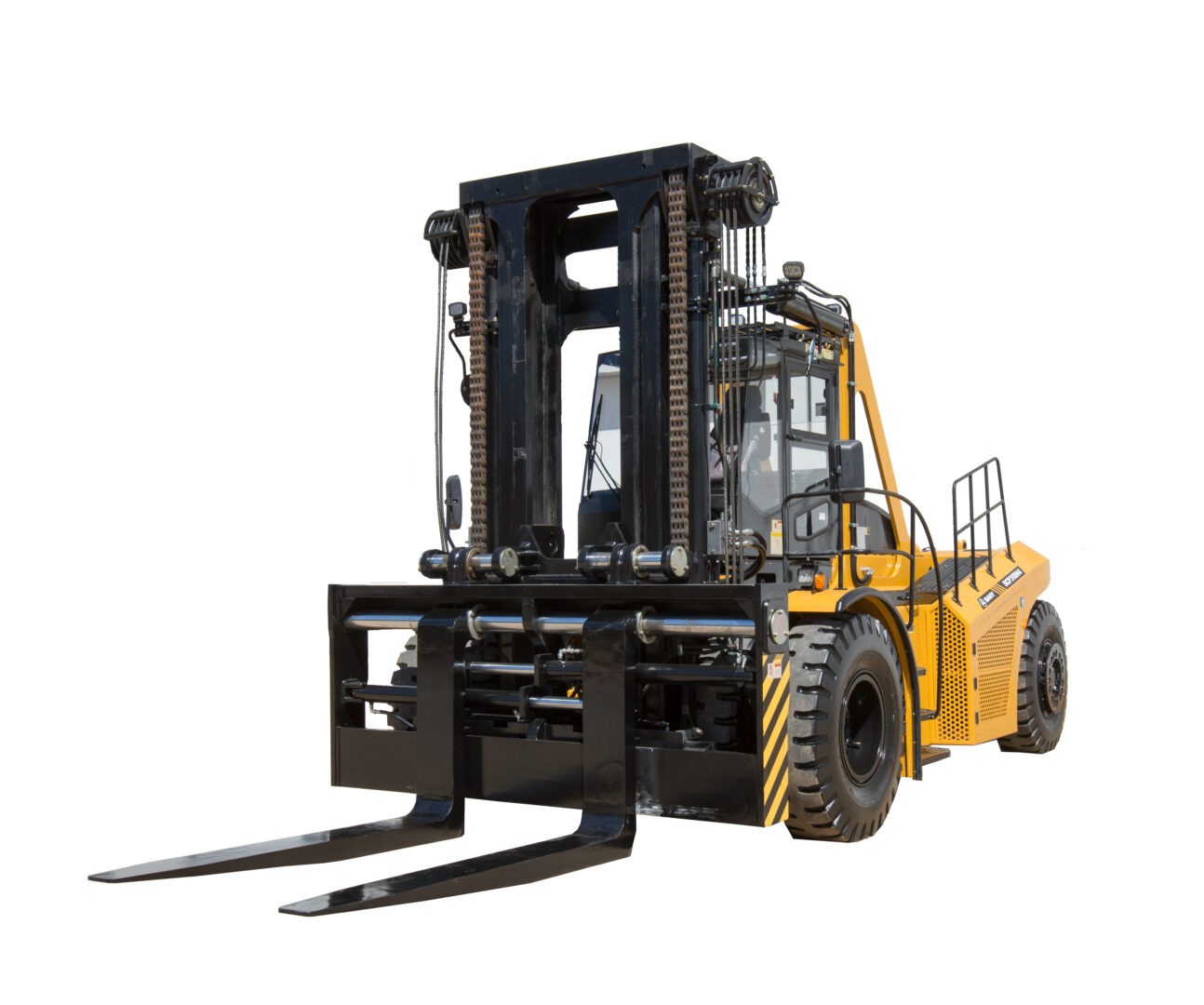

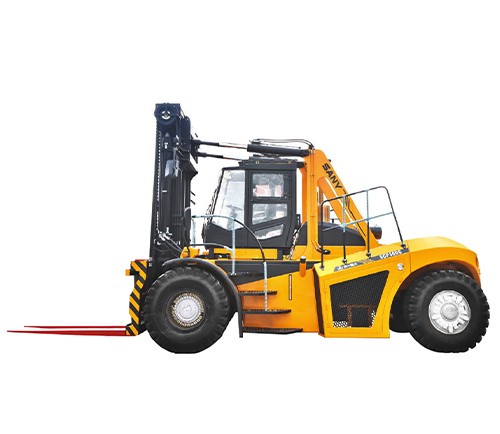

Ready to work, SANY’s SCP160H4 forklift truck is powered by a 6.7-liter Cummins diesel engine, delivering power and performance all day long. This machine is built to make work ease, with a robust power train design and piston pump-supported hydraulics that help extend the life of hoses and components. Designed to make it easy to access service points and reduce maintenance time, the SCP160H4 also ships standard with features like automatic fire suppression and rear camera/radar.
Specifications & Compare
Model
SCP160H4
×
General
| Rated Load Capacity | 16,000 kg35,274 lbs | |||
| Load Center | 1,219 mm48 in | |||
| Load Distance | 1,010 mm39 in | |||
| Wheelbase | 3,750 mm148 in | |||
| Hydraulic Tank Capacity | ||||
| Main | 380 L100 gal | |||
| Brake | 150 L39.6 gal | |||
| Fuel Tank Capacity | 430 L114 gal |
×
Weights
| Total Truck Weight without Load | 25500 kg56,218 lbs | |||
| Axle Loading with Load | ||||
| Front | 37682 kg83,074 lbs | |||
| Rear | 3818 kg8,417 lbs | |||
| Axle Loading without Load | ||||
| Front | 11832 kg26,085 lbs | |||
| Rear | 16668 kg30,133 lbs |
×
Wheels
| Tire Type | Pneumatic | |||
| Tire Size | ||||
| Drive | 12 x 24 (24PR) | |||
| Steer | 12 x 24 (24PR) |
×
Dimensions
| Mast Tilt, Fwd (α)/Back (β) | 5º/10º | |||
| Mast Height Lowered | 3760 mm148 in | |||
| Freelift (Top of Fork) | 0 mm0 in | |||
| Mast Height Extended | 5710 kg225 in | |||
| Cab Height | 3495 mm138 in | |||
| Overall Length | 8070 mm318 in | |||
| Length to Load Face | 5670 mm223 in | |||
| Overall Width Drive Tires | 2620 mm103 in | |||
| Fork | ||||
| Thickness | 100 mm3.94 in | |||
| Width | 200 mm7.9 in | |||
| Length | 2400 mm94 in | |||
| Carriage Width | 2600 mm102.4 in | |||
| Fork Spread (in-in) Minimum | 700 mm27.5 in | |||
| Fork Spread (out-out) Maximum | 2310 mm91 in | |||
| Ground clearance under mast with load | 250 mm9.8 in | |||
| Ground clearance center wheelbase | 330 mm13 in | |||
| Minimum aisle width (with load length) | 8810 mm347 in | |||
| Outside turning radius | 5100 mm201 in |
×
Performance
| Travel Speed | ||||
| with load | 28 km/h17 mph | |||
| without load | 30 km/h18.6 mph | |||
| LIfting Speed | ||||
| with load | 0.35 m/s69 ft/min | |||
| without load | 0.40 m/s79 ft/min | |||
| Lowering Speed | ||||
| with load | 0.40 m/s79 ft/min | |||
| without load | 0.40 m/s79 ft/min | |||
| Drawbar pull-Max | 139 kN31 lbs | |||
| Gradeability @ 1 mph (1.6 km/h) | ||||
| with load | 33% | |||
| without load | 55% |
×
Powertrain
| Power type | Diesel | |||
| Engine Manufacturer | Cummins | |||
| Engine Output-Rated | 168 kW225 HP | |||
| Engine Output-Peak | 172 kW230 HP | |||
| Governed Speed | 2200 rpm | |||
| Number of cylinders/displacement | 6/6.7 L | |||
| Maximum Engine Torque | 1044 N-m770 lb-ft | |||
| Turbocharger | Water-cooled variable geometry | |||
| Alternator | 24V 95A | |||
| Drive Axle | Kessler D-81 | |||
| Transmission | HR32334 | |||
| Number of gears fwd/rev | 3/3 | |||
| Battery Capacity | 2x12/165Ah | |||
| Brakes | Wet disc | |||
| Parking Brake | Dry disc | |||
| DEF tank capacity | 19 L5 gal |
