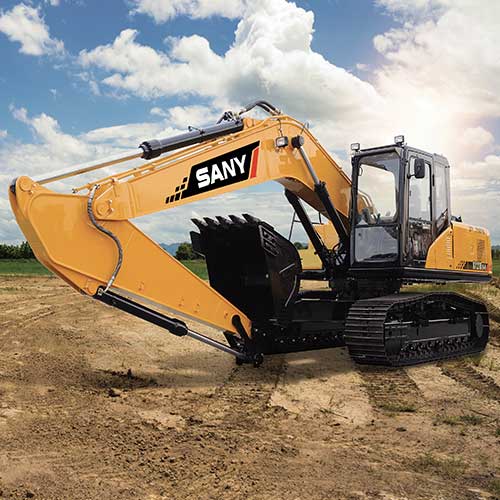

Overall Dimensions

Boom Length
5700mm18' 8"
Stick (Arm) Length
2925mm9' 7"
Transport Length
9728mm31' 11"
Transport Width
3180mm10' 5"
Transport Height
3370mm11' 1"
Upper Structure Width
2710mm8' 11"
Cab Height
Blade Height
Track Width (standard shoe)
Track Gauge
2380mm7' 10"
Ground Clearance (minimum)
Tail Swing Radius
2890mm9' 6"
Track Length on Ground
3640mm11' 11"
Track Length
4450mm14' 7"

Technical Specifications

Operating Weight
23550 kg51,919 lb
Ground Pressure
36.3 kPa5.3 psi
EngineCummins QSB6.7
6.7 L408.9 in3
Gross Power
122 kW163.6 HP
HydraulicsPositive Flow Control with Pilot Control
Main Hydraulic PumpAxial Piston - Variable Displacement
Operating Flow (maximum)
444.0 L/min117.3 gal/min
Operating Pressure (maximum)
34.3 MPa4975 psi
Power Boost Pressure (maximum)
37.3 MPa5410 psi
Travel MotorAxial Piston with Park Brake
Travel Pressure (maximum)
34.3 MPa4975 psi
Travel Speeds (maximum)
3.1 / 5.3 km/hr1.9 / 3.3 mph
Travel Effort (maximum)
180.0 kN40,466 lbf
Grade Capability35º
Swing MotorAxial Piston with Swing Brake
Swing Pressure (maximum)
27.5 MPa3989 psi
Swing Speed (maximum)10.9 RPM
Undercarriage (standard)Steel Track
Track Shoe Width (standard)
800 mm31"
Track Rollers (per side)9
Carrier Rollers (per side)2

Working Range

Boom Length
5700 mm18' 8 "
Stick (Arm) Length
2925 mm9' 7"
Maximum Digging Height
9180 mm30' 1"
Maximum Dumping Height
6670 mm21' 11"
Maximum Digging Depth
6600 mm21' 8"
Maximum Vertical Wall Digging Depth
5980 mm19' 7"
Maximum Reach at Ground Level
10307 mm33' 10"
Minimum Swing Radius
3730 mm12' 3"
