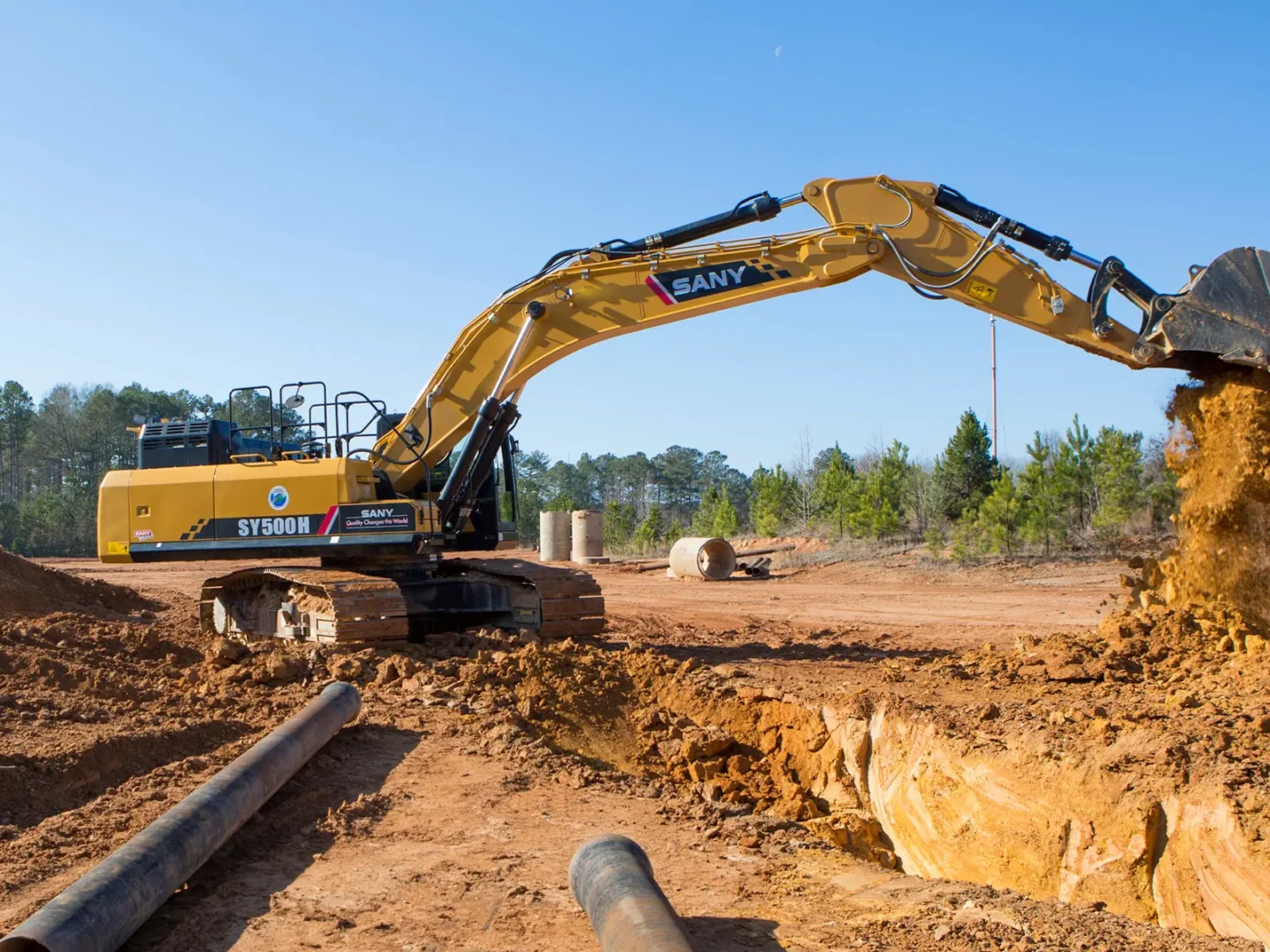

Overall Dimensions

Boom Length
7000mm23' ft
Stick (Arm) Length
3350mm11' ft
Transport Length
12194mm39' 11"
Transport Width
3640mm11' 11"
Transport Height
3874mm12' 8"
Upper Structure Width
3292mm10' 10"
Cab Height
3423mm11' 3"
Blade Height
Track Width (standard shoe)
Track Gauge
Ground Clearance (minimum)
Tail Swing Radius
3850mm12' 8"
Track Length on Ground
4412mm14' 6"
Track Length
5459mm17' 11"

Technical Specifications

Operating Weight
54500 kg120,152 lb
Ground Pressure
59.0 kPa8.6 psi
EngineCummins QSG12
11.8 L720.1 in3
Gross Power
298 kW400 HP
HydraulicsPositive Flow Control with Pilot Control
Main Hydraulic PumpAxial Piston - Variable Displacement
Operating Flow (maximum)
720.0 L/min190.2 gal/min
Operating Pressure (maximum)
34.3 MPa4975 psi
Power Boost Pressure (maximum)
37.3 MPa5410 psi
Travel MotorAxial Piston with Park Brake
Travel Pressure (maximum)
34.3 MPa4975 psi
Travel Speeds (maximum)
3.4 km / 5.2 hr2.1 / 3.2 mph
Travel Effort (maximum)
214.0 kN48,109 lbf
Grade Capability35º
Swing MotorAxial Piston with Swing Brake
Swing Pressure (maximum)
27.5 MPa3989 psi
Swing Speed (maximum)8.0 RPM
Undercarriage (standard)Steel Track
Track Shoe Width (standard)
35"900 mm
Track Rollers (per side)9
Carrier Rollers (per side)2

Working Range

Boom Length
7000 mm23' ft
Stick (Arm) Length
3350 mm11' ft
Maximum Digging Height
10929 mm35' 10"
Maximum Dumping Height
7647 mm25' 1"
Maximum Digging Depth
7705 mm25' 3"
Maximum Vertical Wall Digging Depth
6278 mm20' 7"
Maximum Reach at Ground Level
12035 mm39' 5"
Minimum Swing Radius
5216 mm17' 1"
