SY335C

74,075 lbs | 22' 4" Dig Depth

The SANY SY335C LC is a high-powered, long-chassis excavator built for utility and transportation infrastructure, forestry, construction, and demolition. Designed for large-scale excavation, heavy material handling, and demanding terrain, this machine delivers exceptional breakout force and lifting capacity. The dual auxiliary circuits and quick coupler plumbing allow operators to easily remove heavy attachments for transportation, ensuring greater mobility and eﬃciency when moving between job sites. At the core of the SY335C LC is a 280 HP Cummins Stage V engine, delivering 45,861 lbf of bucket breakout force and a 44,924 lbs max lifting capacity. A dedicated gear pump for the second auxiliary rotate circuit ensures consistent hydraulic power for rotating attachments, improving precision and eﬃciency in material processing and demolition tasks. The Kawasaki hydraulic system, 8-tool selection mode, and 10” multifunction monitor provide smooth, responsive control, while the ROPS-certiﬁed cab and standard rear camera enhance operator comfort and visibility in high-intensity environments.

Dual Auxiliary Circuits

Long Chassis

Quick Coupler Plumbing

Standard Rearview and Blindside Cameras

2nd Auxiliary Gear Pump

10" Touchscreen Display

8 Tool Selection Modes

Air Ride Heated Seat

Cummins Engine

Features and Specifications

Technical Spec Sheet Family Brochure

*Based on theoretical calculation at max flow with no load. Subject to alterations.

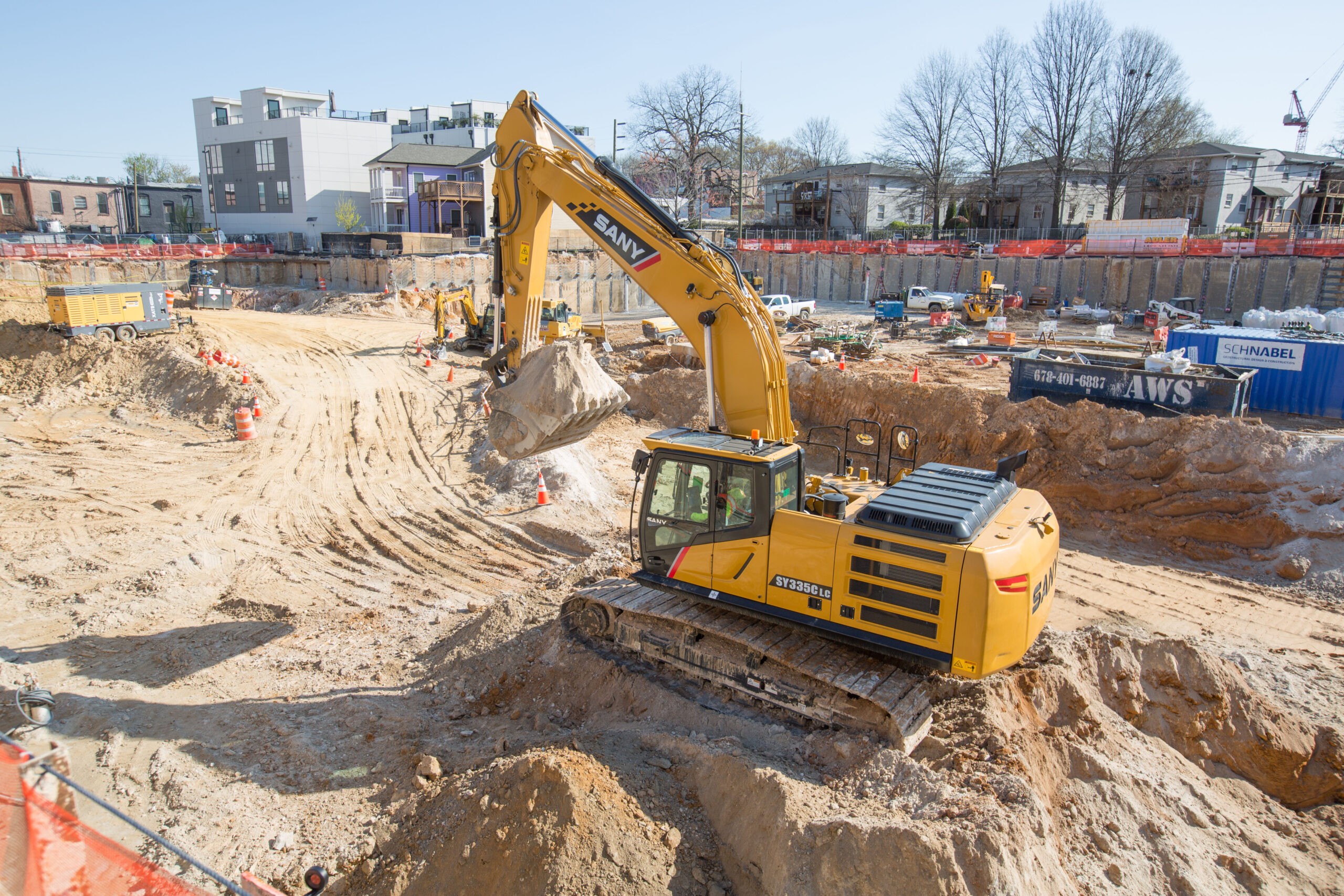

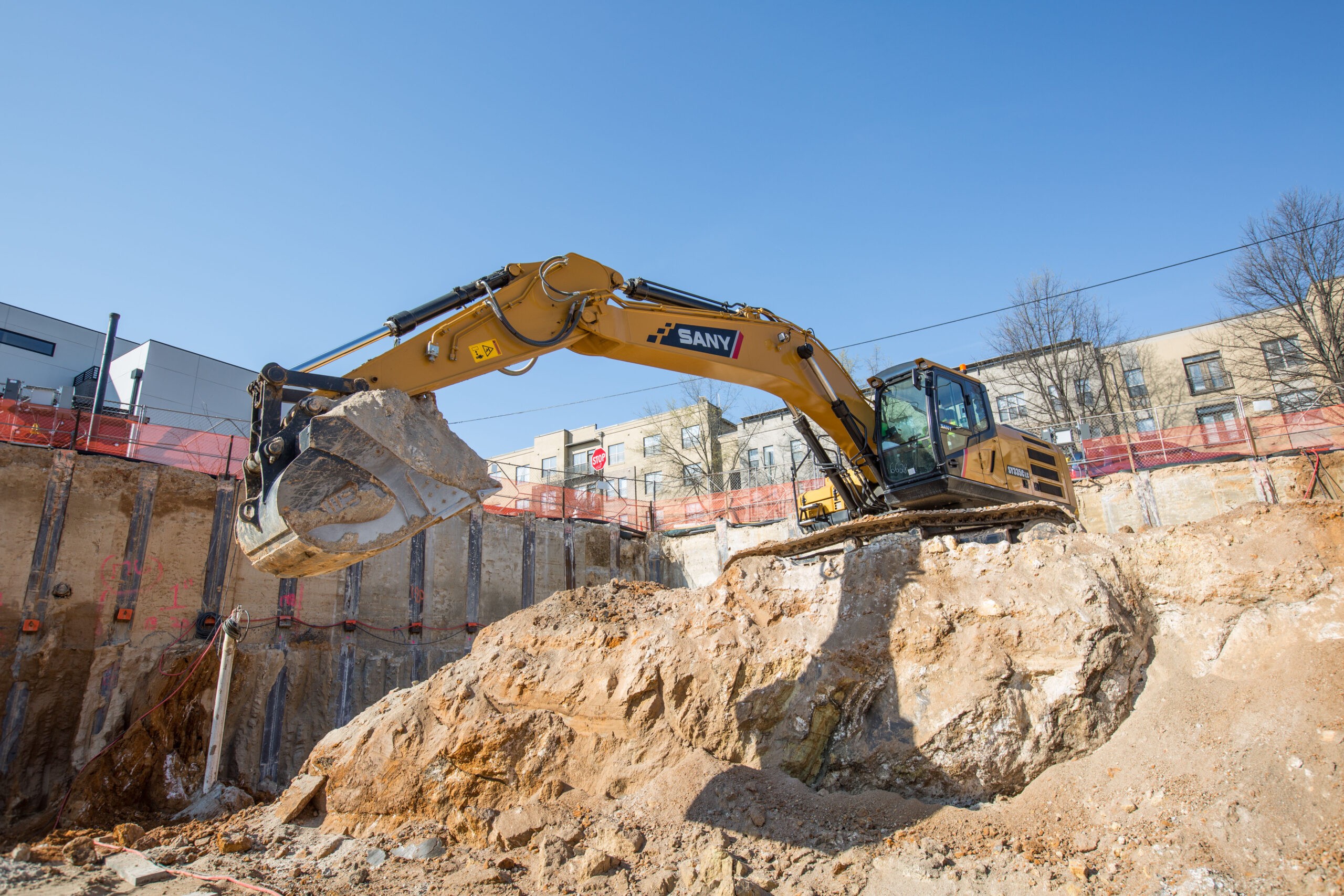

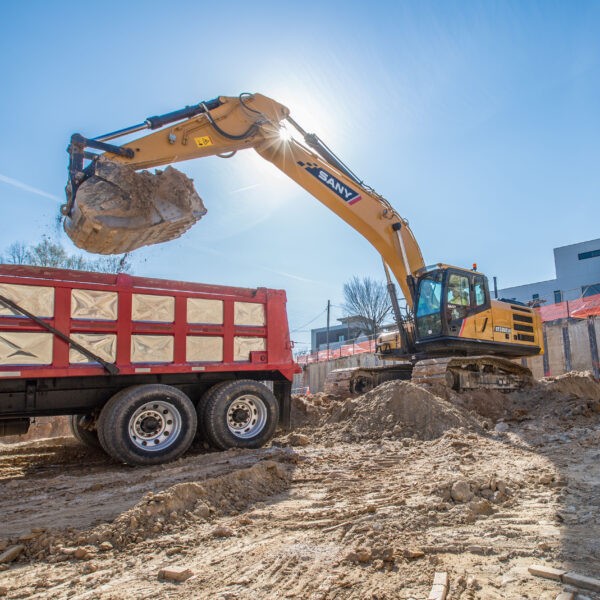

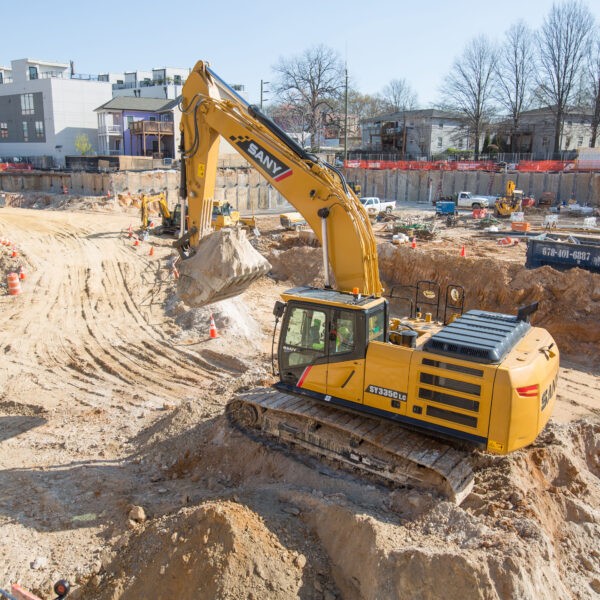

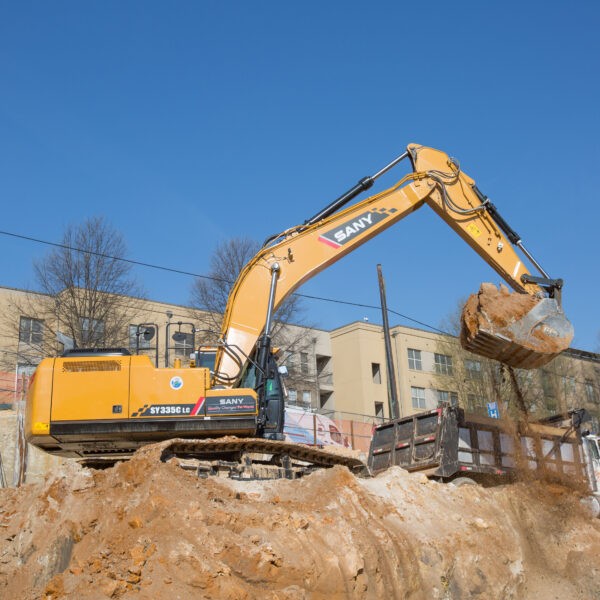

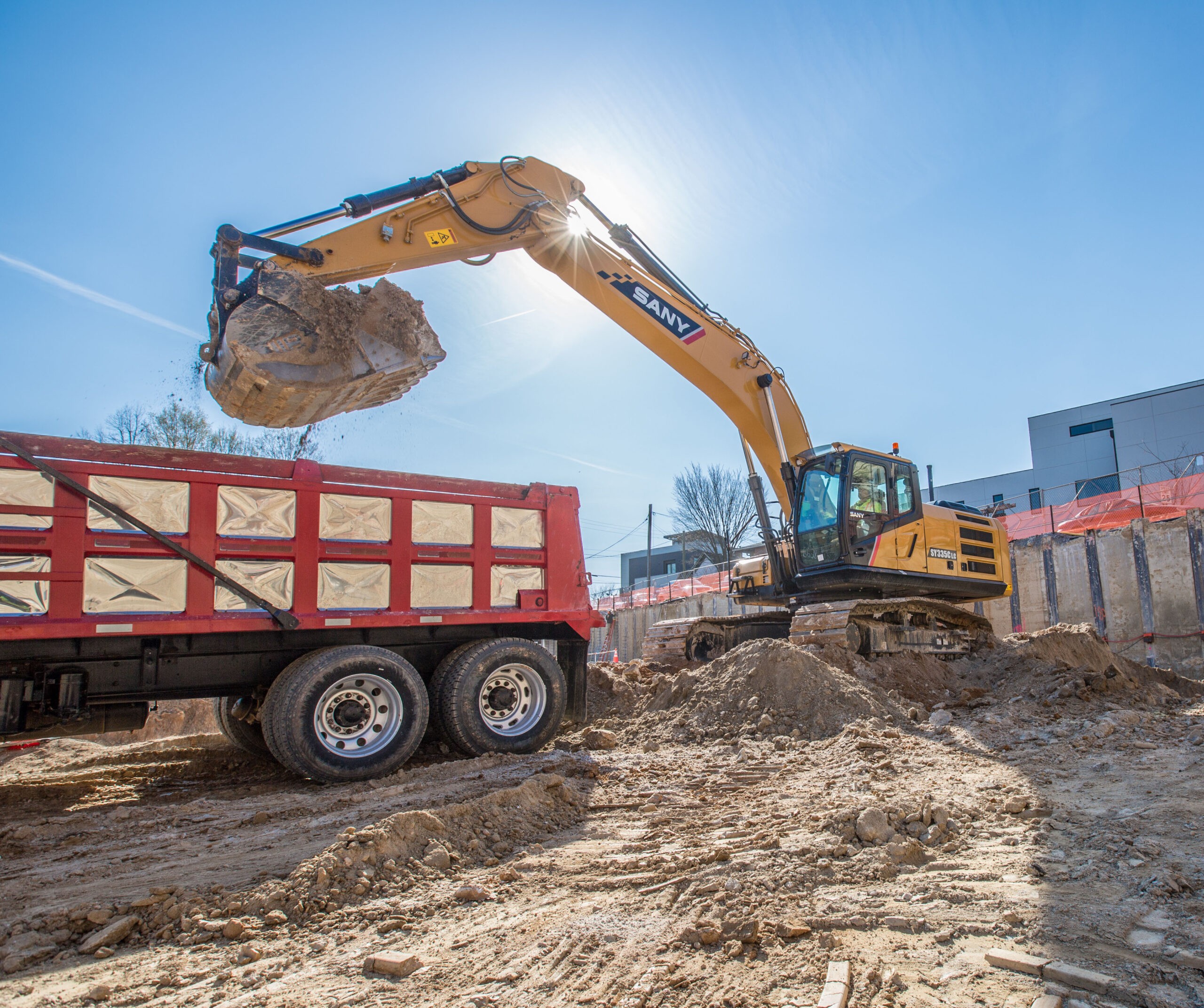

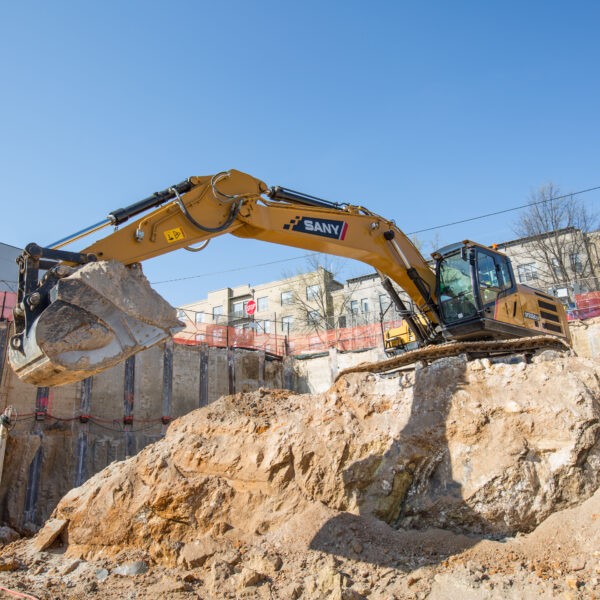

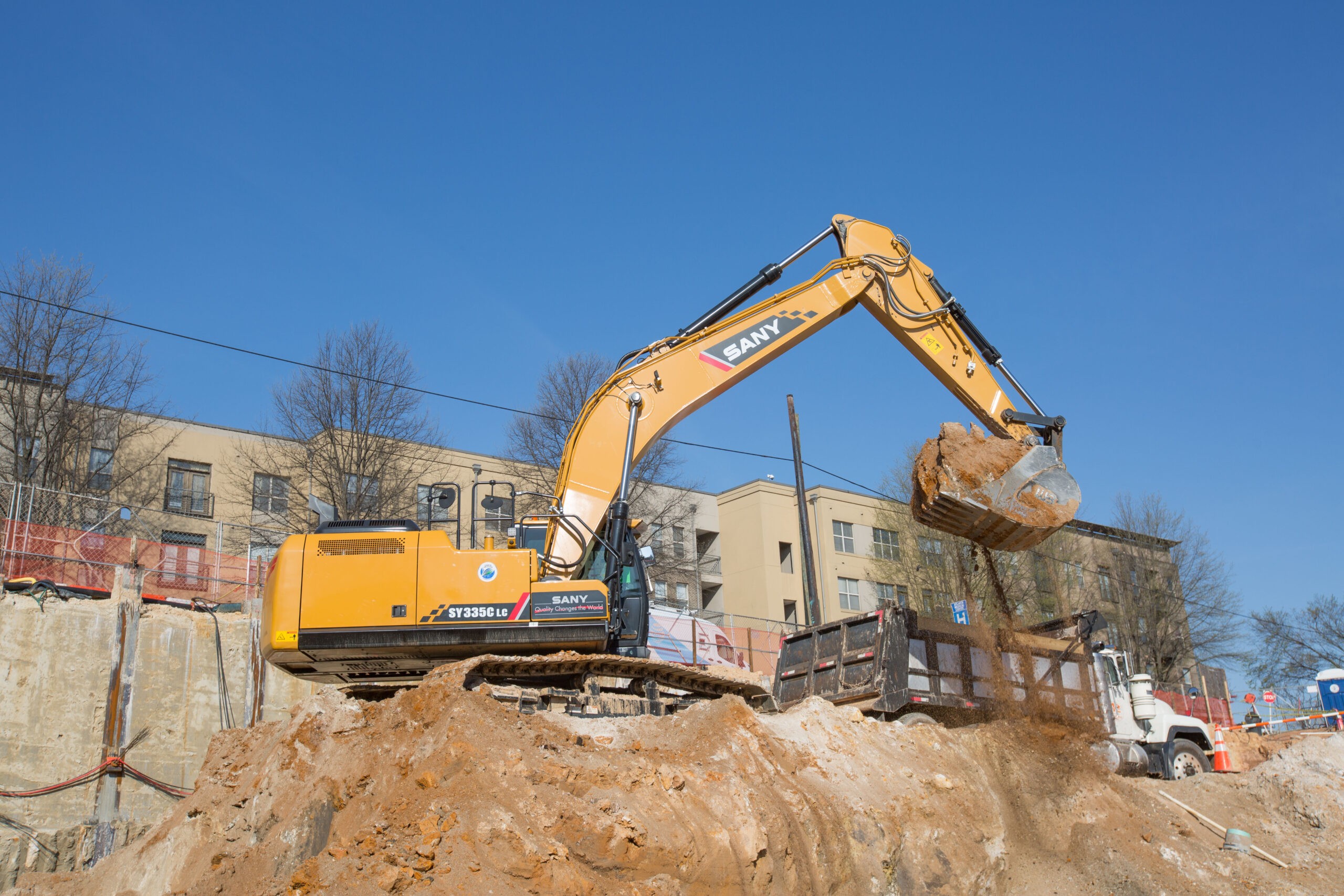

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Boom Length	6,150 mm20' 2"
Stick (Arm) Length	––
Transport Length	10,667 mm35'
Transport Width	3,396 mm11' 2"
Transport Height	3,470 mm11' 5"
Upper Structure Width	3,147 mm10' 4"
Cab Height	––
Blade Height	––
Track Width (standard shoe)	800 mm31"
Track Gauge	2,590 mm8' 6"
Ground Clearance (minimum)	550 mm2'
Tail Swing Radius	3,315 mm10' 11"
Track Length on Ground	––
Track Length	5,055 mm16' 7"

Operating Weight	33,600 kg74,075 lbs
Ground Pressure	60.3 kPA8.8 psi
Engine	Cummins L9 Stage V
Displacement	9.8 L598.0 in³
Net Power	––
Gross Power	209 kW280.3 HP
Hydraulics	Positive Flow System
Main Hydraulic Pump	Axial Piston Variable Displacement
Operating Flow (maximum)	560 L/min147 gal/min
Operating Pressure (maximum)	34.3 MPa4,975 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	2*Axial Piston Motor w/Parking Brake
Travel Pressure (maximum)	34.3 MPa4,975 psi
Travel Speeds (maximum)	3.4 / 5.2 km/hr2.1 / 3.2 mph
Travel Effort (maximum)	245.0 kN55,078 lbf
Grade Capability	35°
Swing Motor	Axial Piston Motor w/Swing Brake
Swing Pressure (maximum)	27.5 MPa3,989 psi
Swing Speed (maximum)	9.0 RPM
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	800 mm31"
Track Rollers (per side)	9
Carrier Rollers (per side)	2

Boom Length	6,150 mm20' 2"
Stick (Arm) Length	3,200 mm10' 6"
Maximum Digging Height	10,497 mm34.5"
Maximum Dumping Height	7,359 mm24' 2"
Maximum Digging Depth	6,815 mm22' 4"
Maximum Vertical Wall Digging Depth	5,800 mm19'
Maximum Reach at Ground Level	10,870 mm35' 8"
Minimum Swing Radius	4,000 mm13' 1"

Boom Length	––
Stick Length	––
Bucket Breakout Force (ISO)	––
Stick Digging Force (ISO)	––
