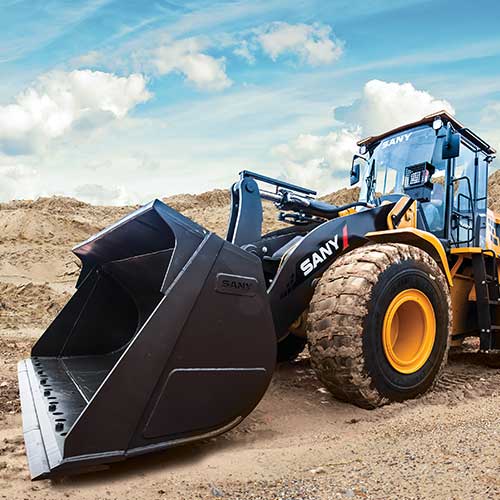

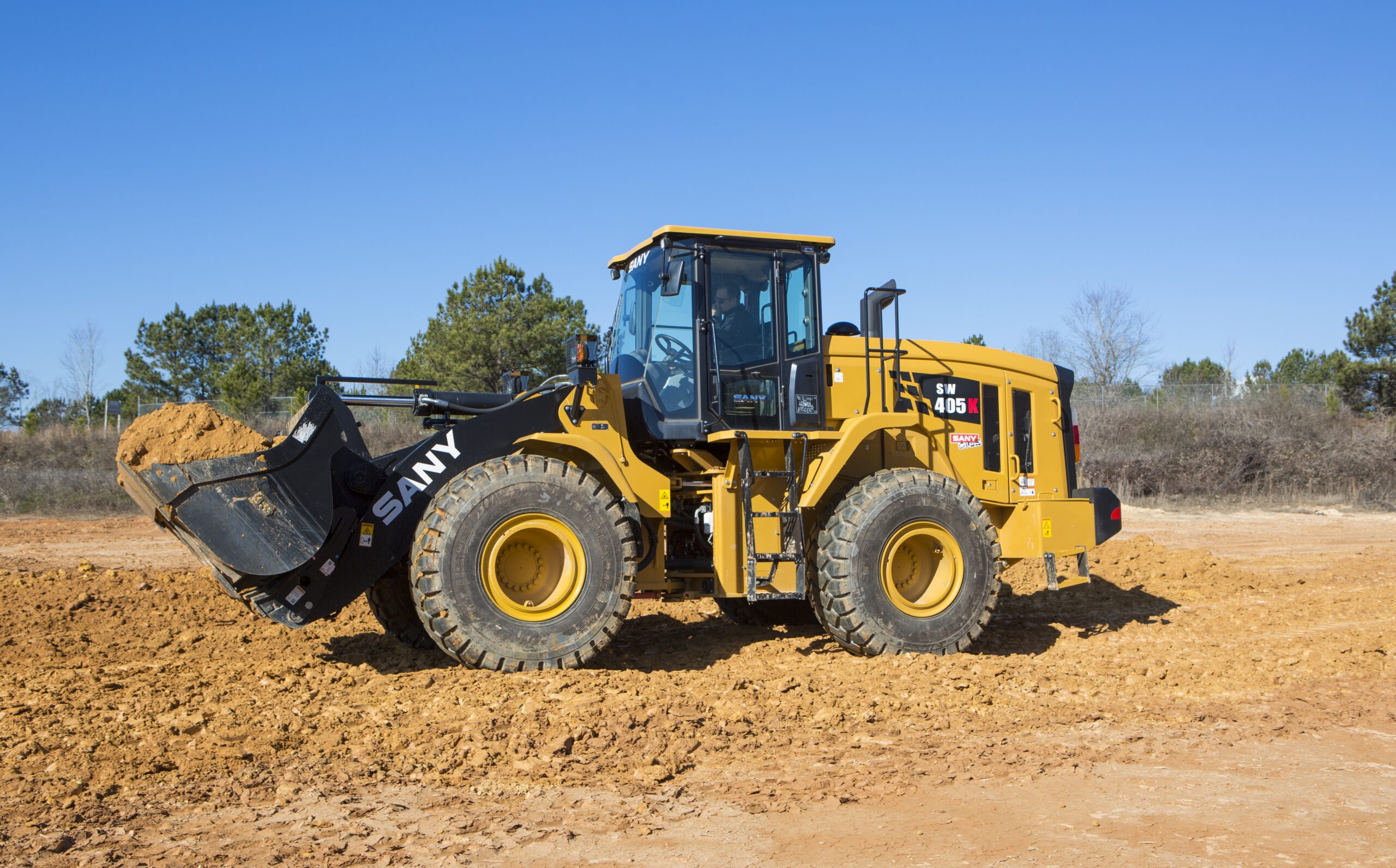

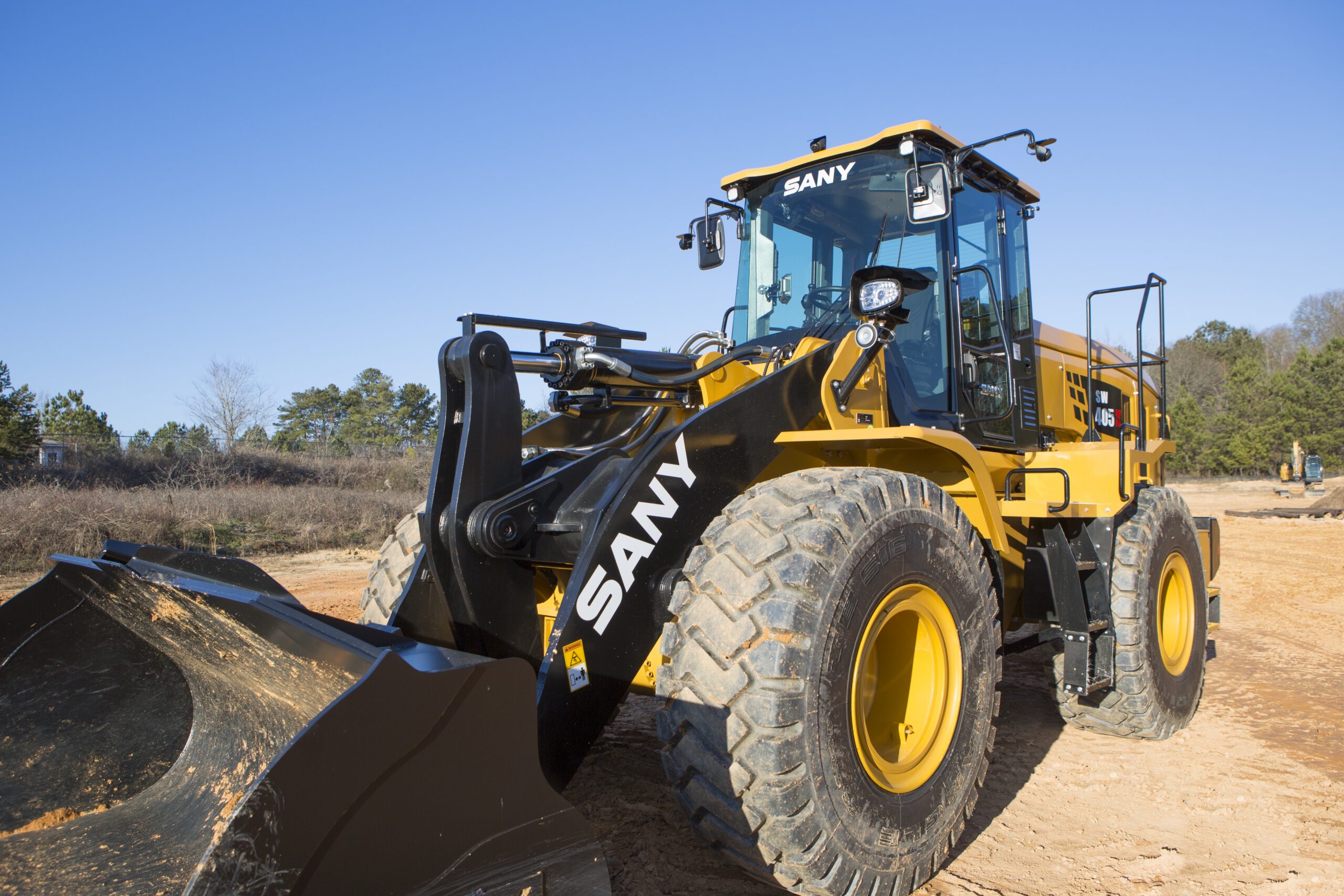

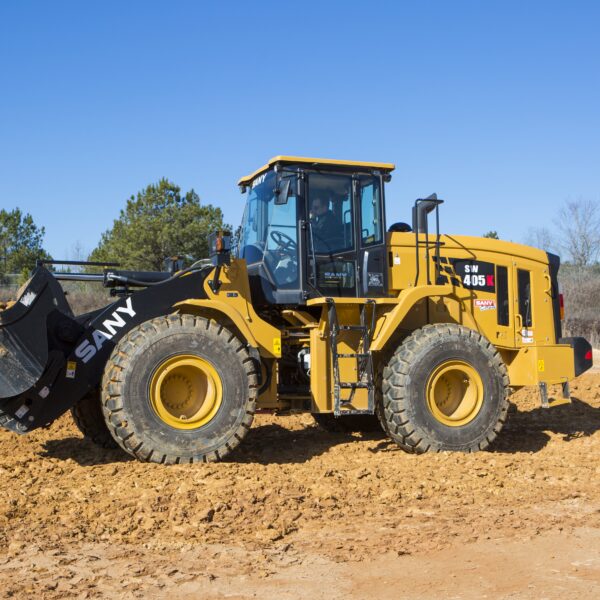

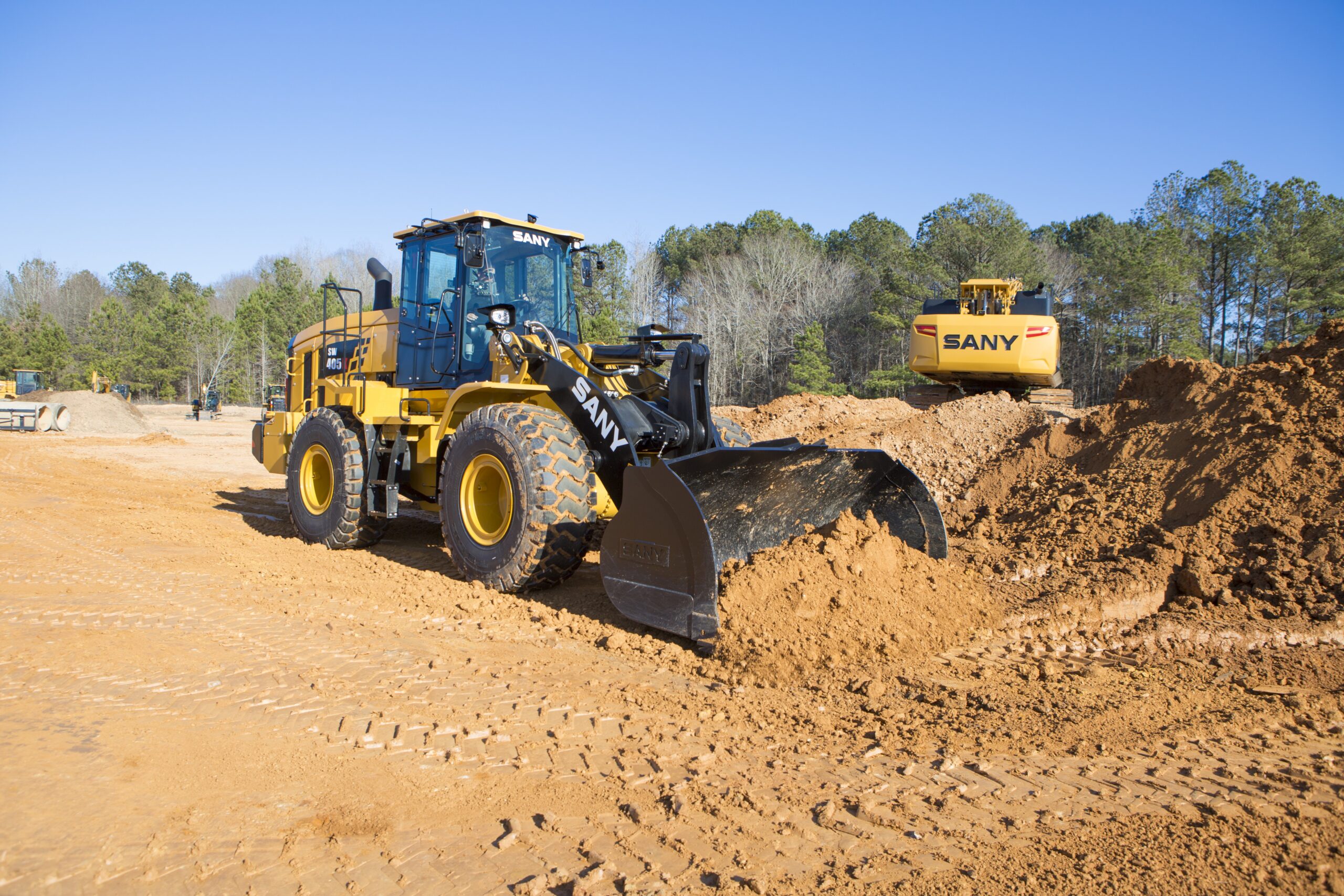

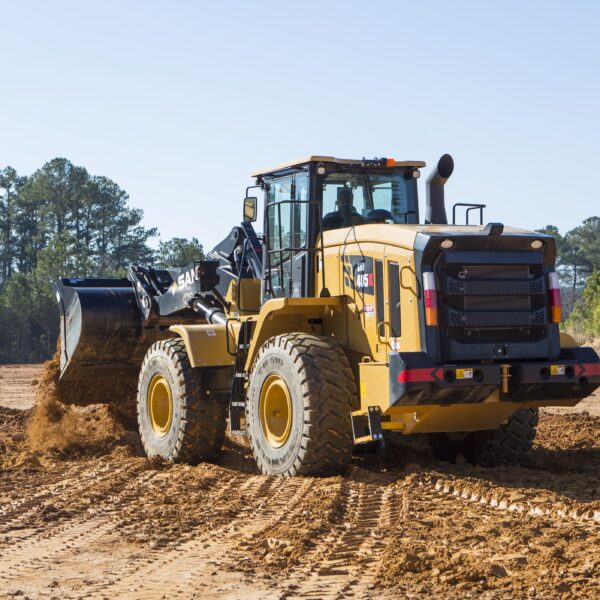

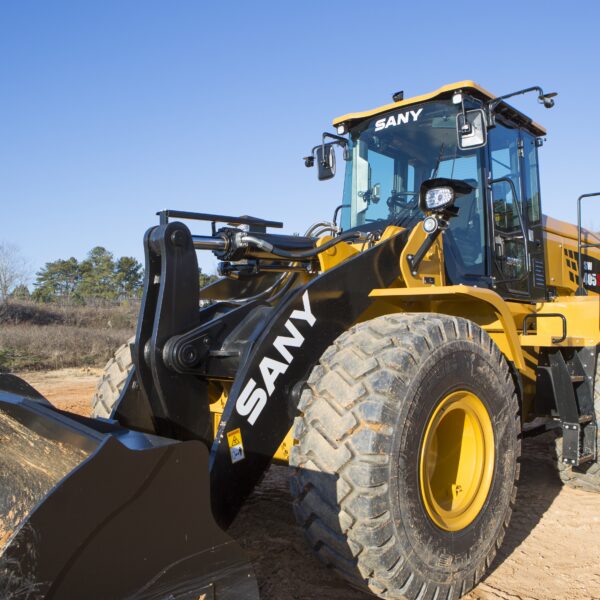

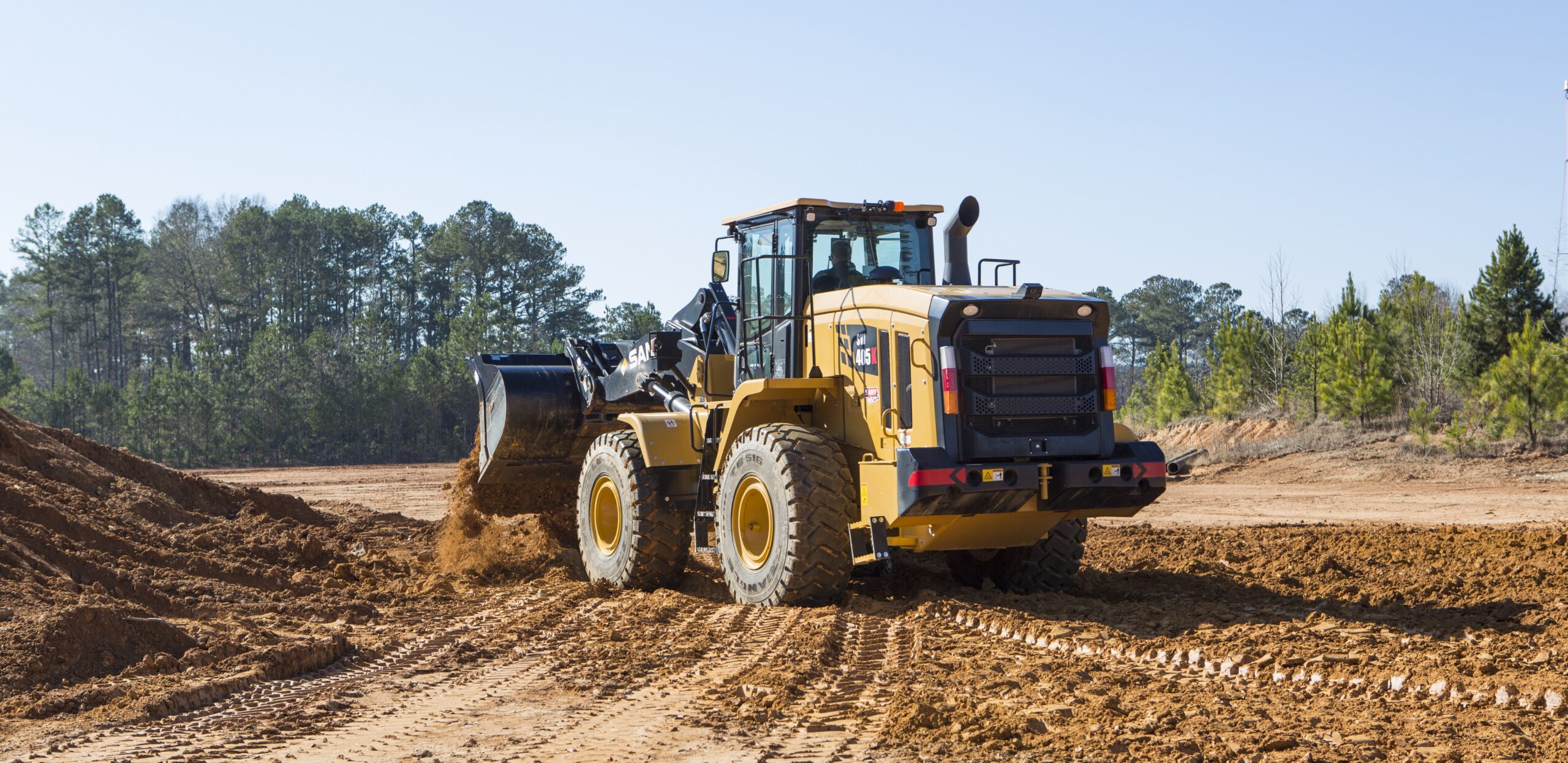

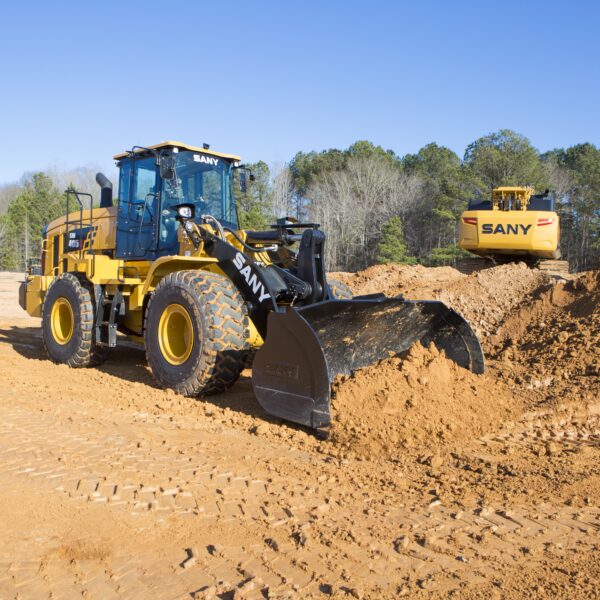

The SW405K features a reinforced structural design that’s built to take on the toughest work, including heavy-duty mining operations. It offers an impressive service life reaching 10,000 hours, and boasts SANY-LIVE Telematics to help keep track of performance and service needs. The high-pressure, load-sensitive hydraulics provide a balance of speed and power while offering 10-15% reductions in energy usage, and the Z-bar linkage design delivers nearly 40,000 lbs. of breakout force.
- The 252-net horsepower with almost 40,000 lbs. of breakout force and bucket capacity of 4 cubic yards
- Tight turning radius coupled with fast cycle times with return to dig functionality means you’ll spend more time working and less time maneuvering.
- Keep more material in the bucket with the SANY boom suspension
- Time-tested components such as the Eaton load sensing steering valve, Dana axles and brakes and Kawasaki pumps
|Engine Model||Deutz TCD7.8|
|Max Gross Power||262 HP|
|Net Engine Power||252 HP|
|Max Gross Torque||962 ft lbs|
|Breakout Force||39,683 lbs|
|Tipping Load Straight||31,967 lbs|
|Tipping Load @ Full Term||28,881 lbs|
|Clearance (full lift 45º dump)||10' 2"|
|Reach (full lift 45º dump)||3'10"|
|Operating Weight||40,786 lbs|
|Max Flow||81 GPM|
|Max Pressure||3916 PSI|
Hydraulic Cycle Times
|Float Down||3.3 sec|
|Total Cycle Time||10.6 sec|
|Fuel Tank||85 gal|
|Cooling Systems||5.25 gal|
|Engine Crankcase||6 gal|
|Front Axle||5 gal|
|Rear Axle||5 gal|
|Hydraulic Tank||31 gal|
|DEF Tank||10.5 gal|
|Shift Modes||Automatic, Manual, Kick-Down|
|Forward Gear 1-4||4-25 mph|
|Reverse Gear 1-4||4-16 mph|
|Traction Aid||Manual Differential Lock|
|Traction Aid||Open Differential|
|Service Brakes||Wet Disk|
|Parking Brake||Disk Brake|
|Height to Axle Centerline|
|Height to Top of Cab|
|Center Line of Rear Axle to Edge of Counterweight|
3200 mm10' 6"
|Center Line of Front Axle to Center Pivot|
|Shipping Length without Attachments|
6862 mm22' 6"
|Shipping Length with Bucket|
8142 mm26' 8"
|Max. Dump Height|
5441 mm17' 10"
|Hinge Pin Height at Max. Lift|
4133 mm13' 6"
|Dump Clearance at Max. Lift|
3118 mm10' 3"
|Dig Depth, Level Bucket|
|Reach at Max. Lift and 45º Discharge|
|Roll Back at Max. Lift||58º|
|Dump Angle at Max. Lift and Dump||45º|
|Roll Back at Carry Height||51º|
|Roll Back at Ground||45º|
|Tail Angle to the Rear Wheel||27º|
|Clearance Circle to Outside of Tires|
|Clearance Circle to Counterweight|
5911 mm19' 5"
6456 mm21' 2"
|Width of the Bucket|
3000 mm9' 10"
|Articulation Angle||+/- 40º|
