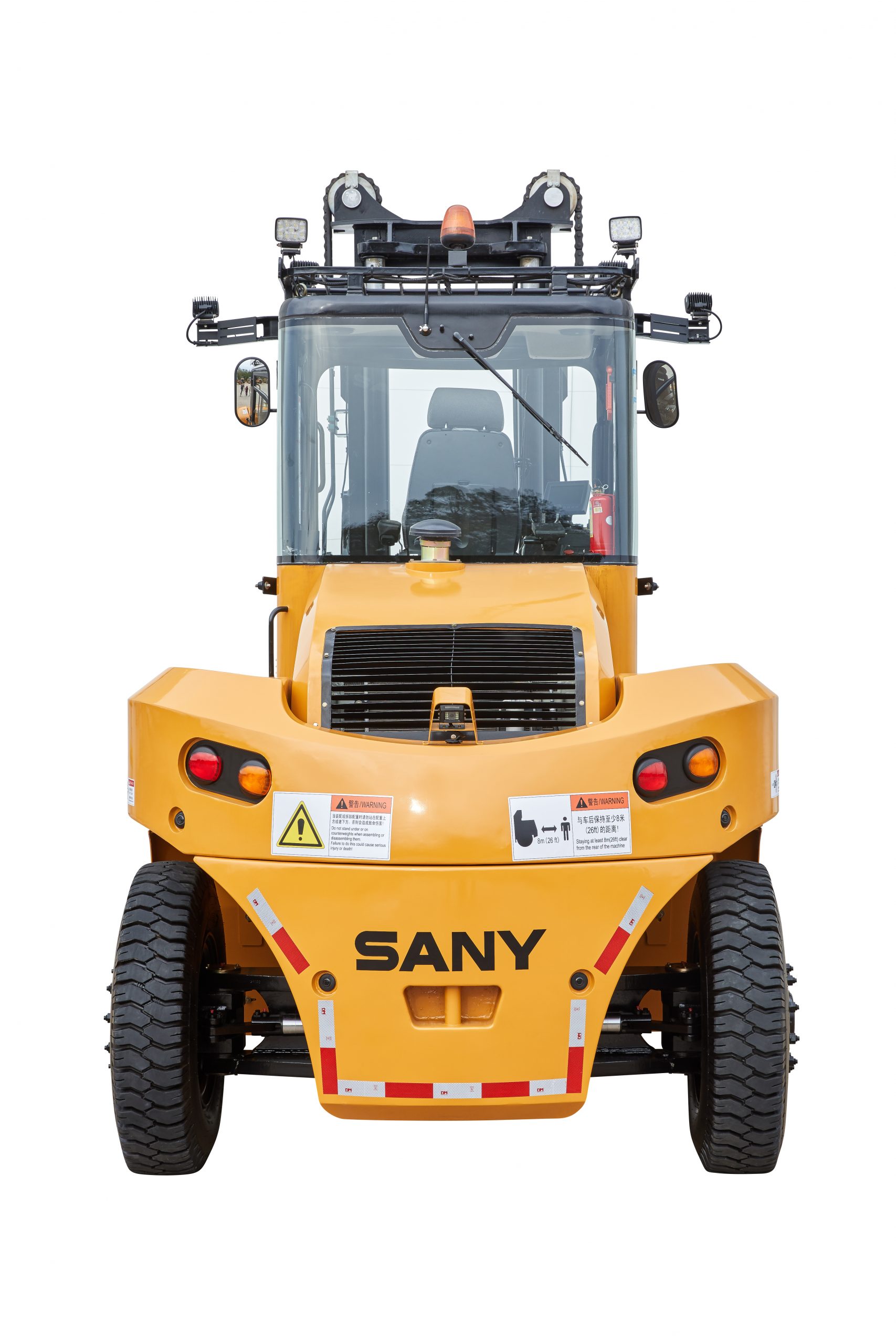

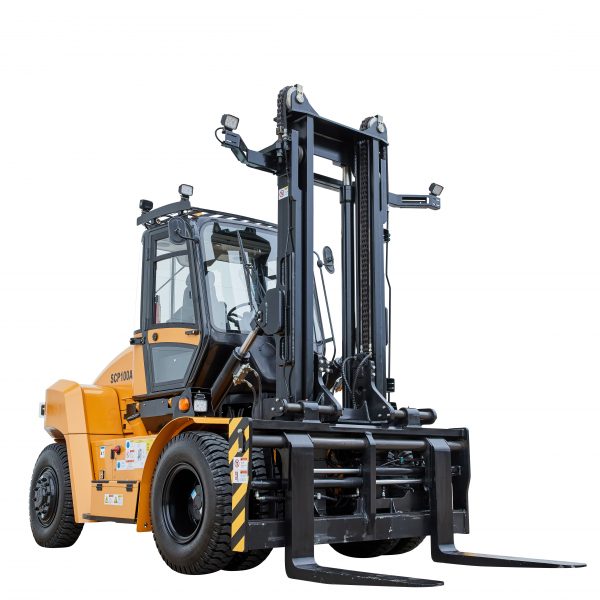

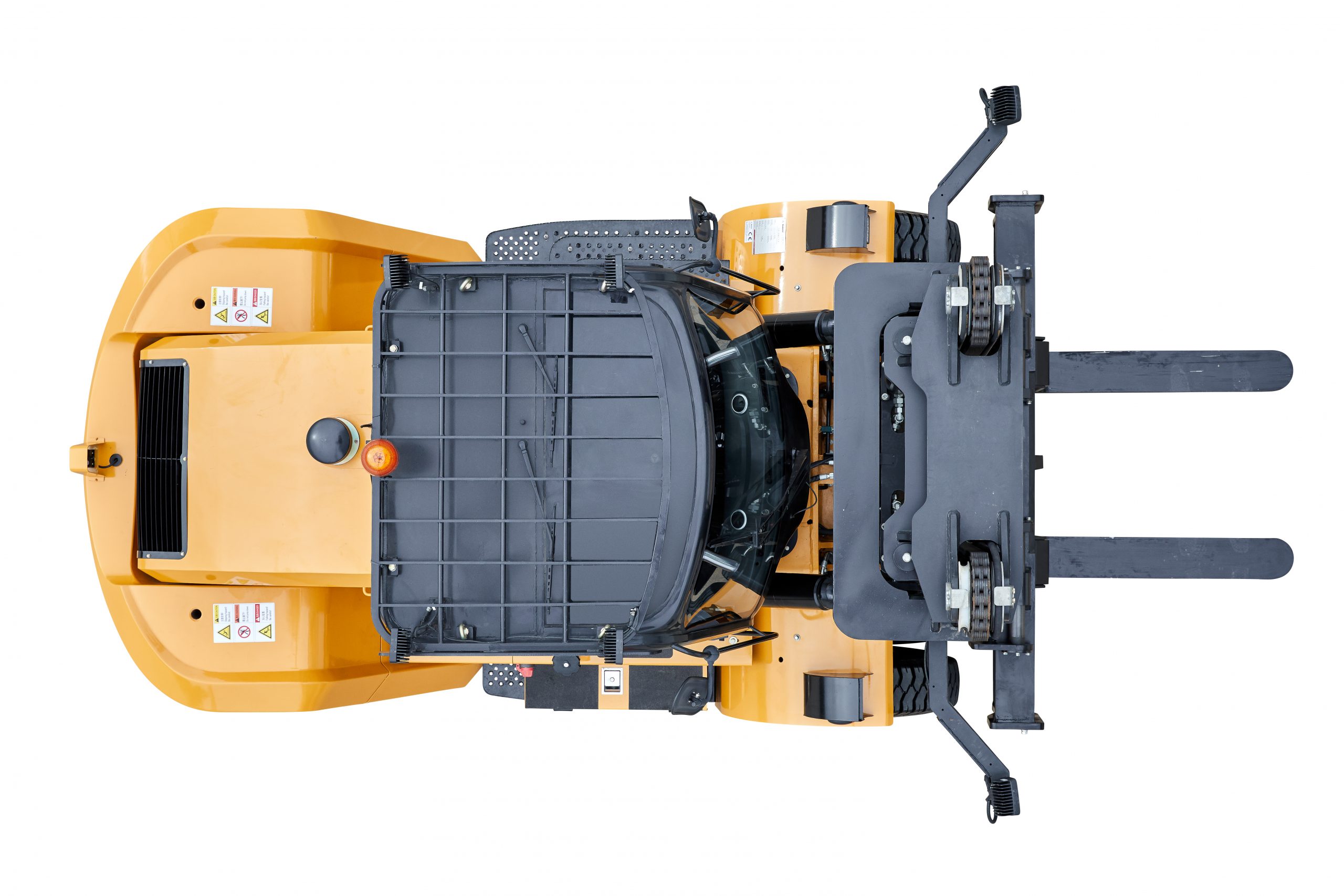

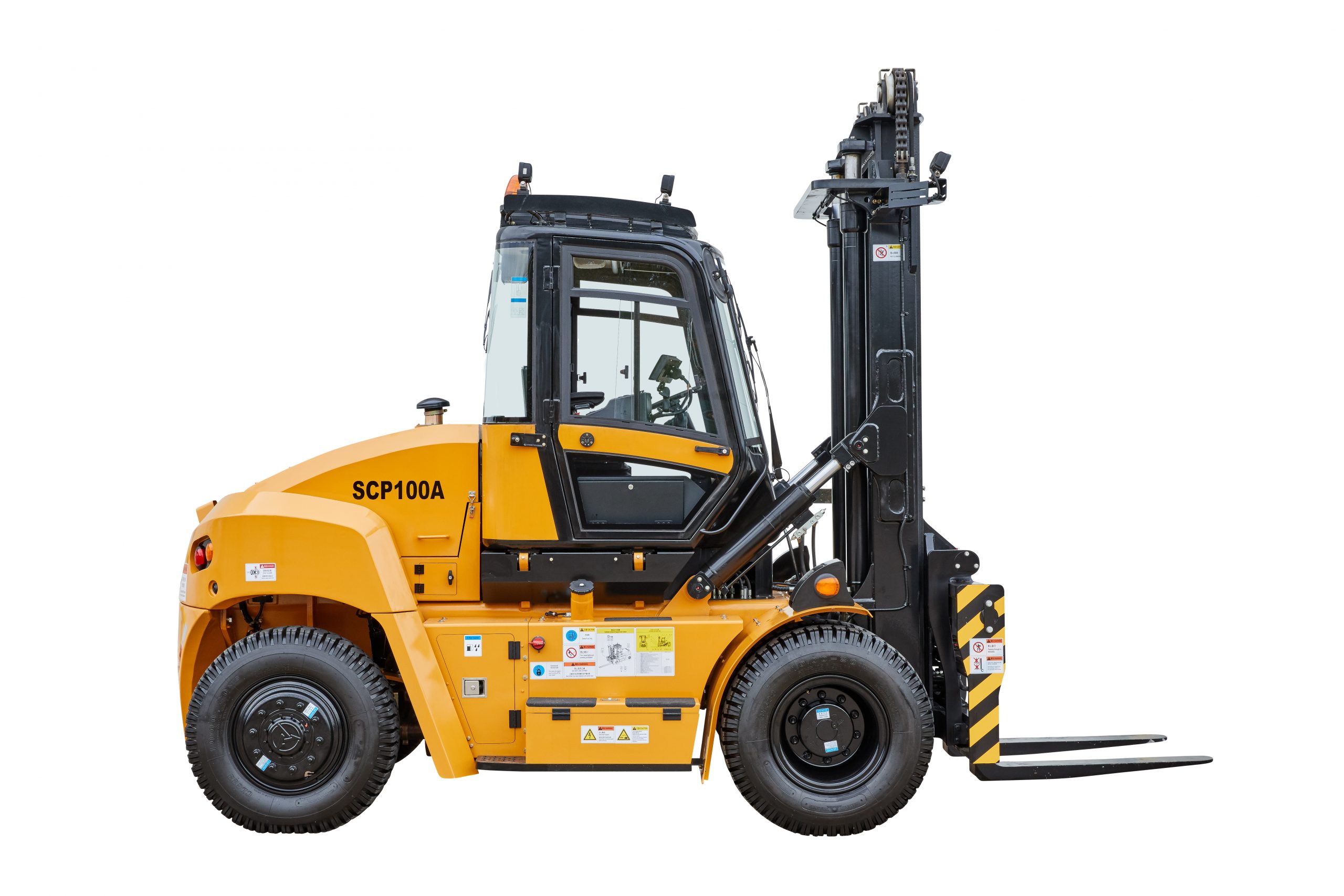

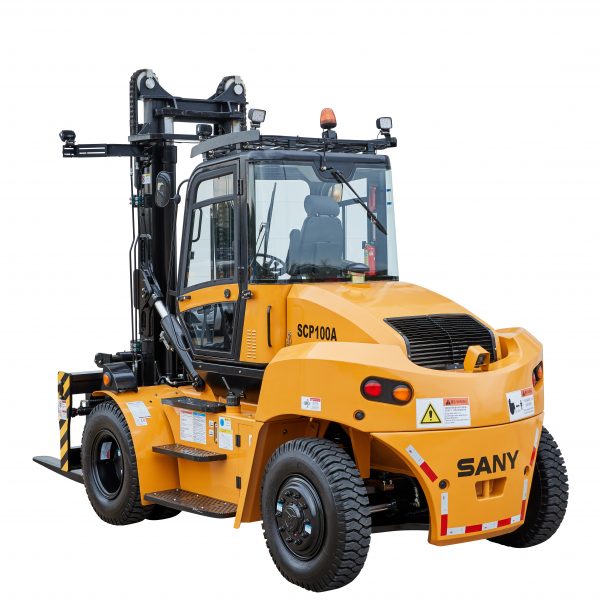

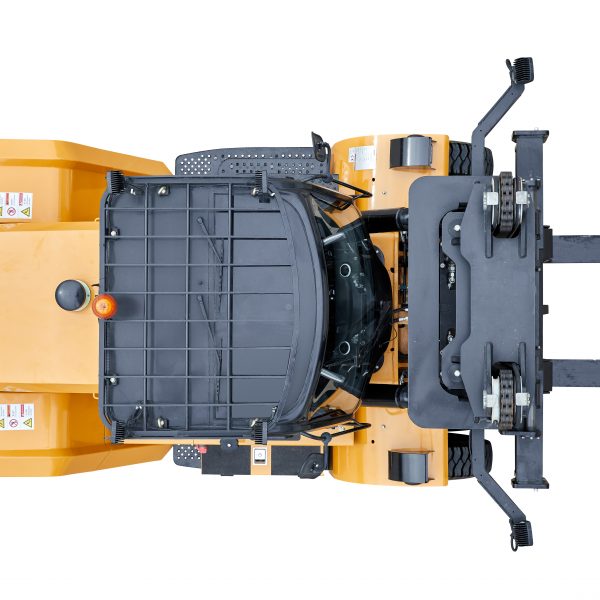

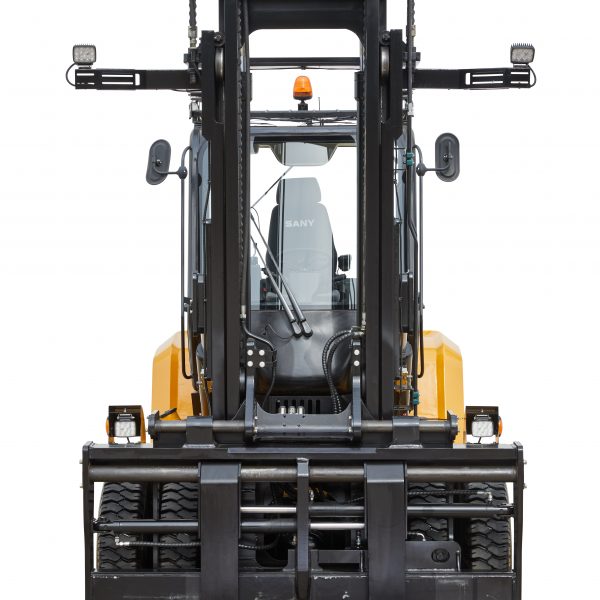

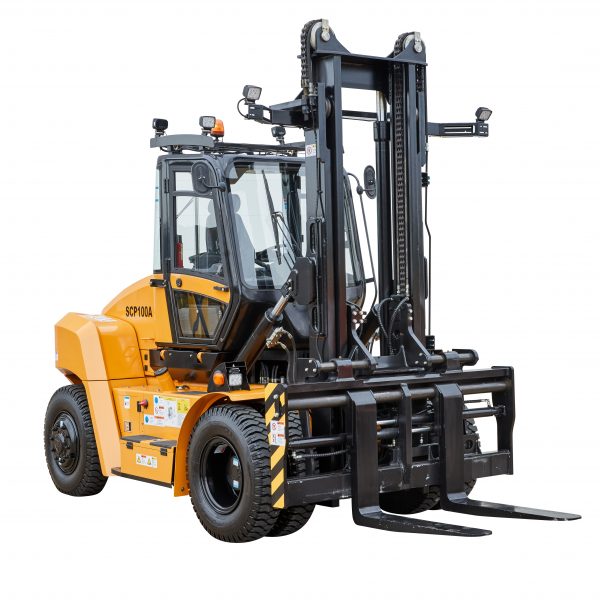

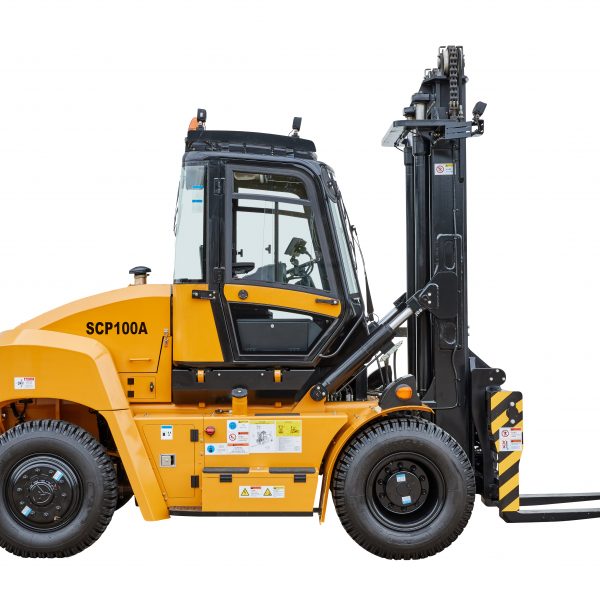

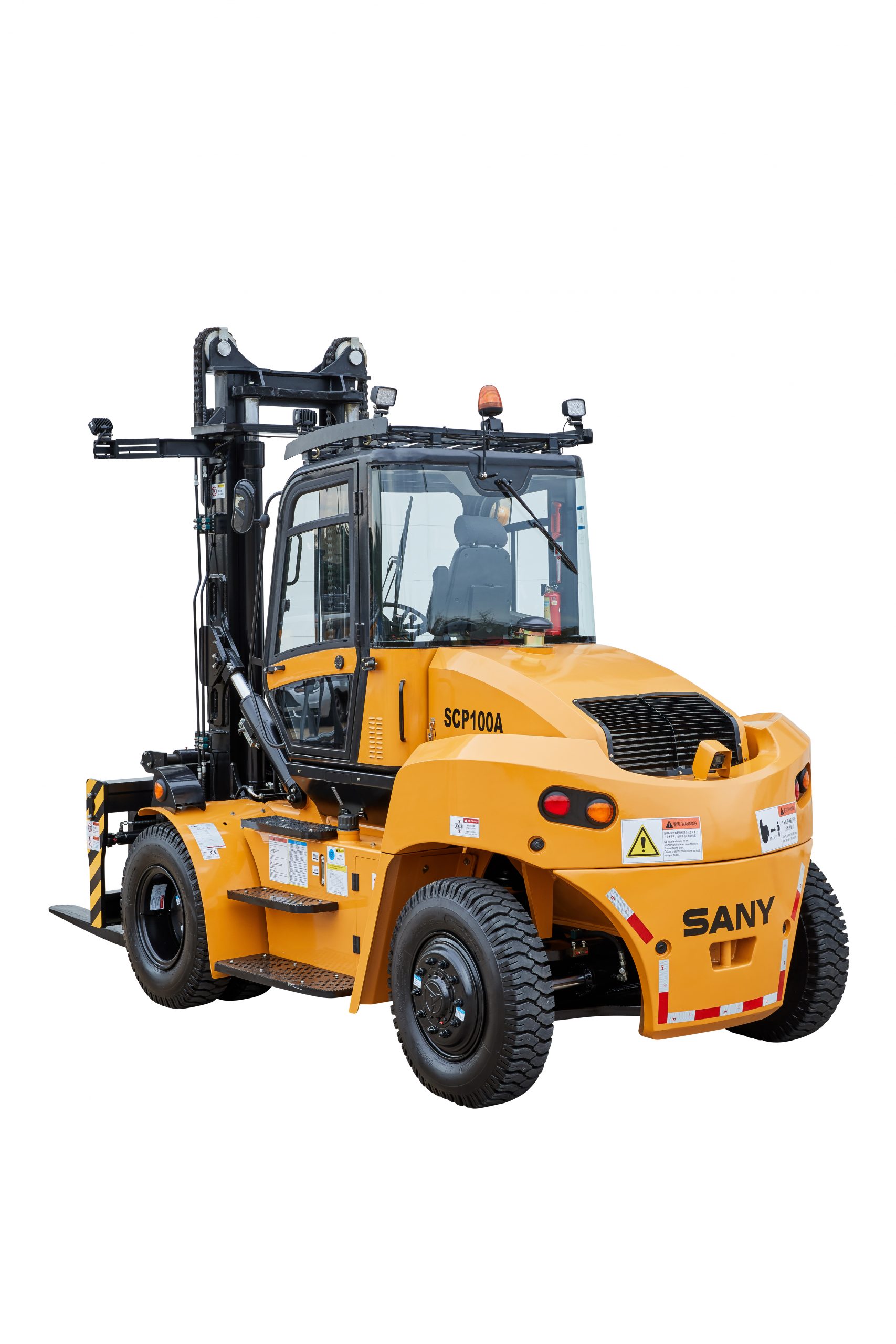

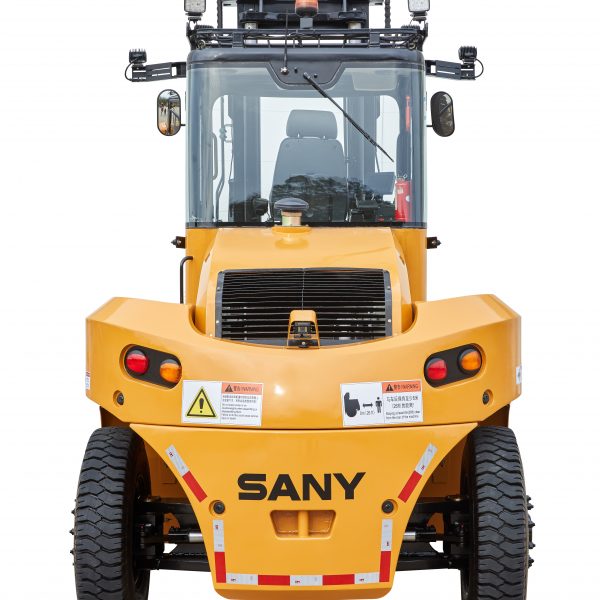

SCP100A

34,800 lbs | Operating Weight 22,000 lbs | Capacity @ 24" | Load Center

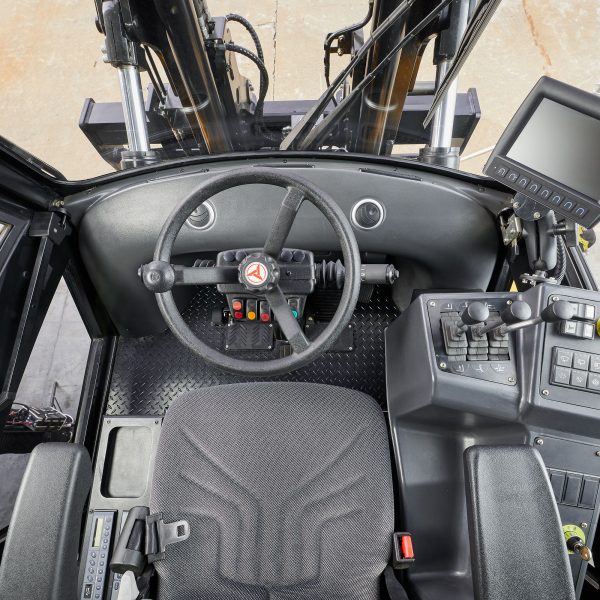

Small but mighty with a wheelbase of 106”, the SCP100A allows for tight, stable turns making it perfect for applications like smaller lumber mills and precast where space is limited. Operators have a comfortable, spacious, climate-controlled cab with high visibility through the mast window. From the cab display, they have a rear camera feed and real-time data on hydraulic pressure, engine RPM, speed, loads, and fault codes. Multiple systems are engineered to improve control, performance, and reliability. For example, a dependable gear pump system allows for full control of the hydraulics which results in more controlled and accurate lifts. The SCP100A is backed by a 3-year/6,000-hour warranty and built to be easy to service, maintain and transport.

Powerful Cummins QSB 4.5L Diesel Engine

Heavy-duty Kessler Drive Axle

24” Load Center and 106” Wheelbase with an Outside Turning Radius of 157”

18.6 mph Travel Speed with Load and 79 ft/min Lifting Speed with Load

Three mast and two carriage options plus a range of fork sizes are available for maximum versatility

Features and Specifications

Technical Spec Sheet Family Brochure

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Rated Load Capacity	10,000 kg22,000 lbs
Load Center	610 mm24"
Wheelbase	2,700 mm106"
Hydraulic Tank Capacity
Main	125 L33 gal
Brake	––
Fuel Tank Capacity	164 L43 gal

Total Truck Weight without Load	15,800 kg34,800 lbs
Axle Loading with Load
Front	23,300 kg51,400 lbs
Rear	1,800 kg4,000 lbs
Axle Loading without Load
Front	7,800 kg17,200 lbs
Rear	8,000 kg17,600 lbs

Tire Type	Pneumatic
Tire Size
Drive	10.00-20 16PR
Steer	10.00-20 16PR

Mast Tilt, Fwd (α)/Back (β)	12º/15º
Mast Height Lowered	3,890 mm153"
Mast Height Extended	5,732 mm226"
Lift Height	3,760 mm148"
Cab Height	3,470 mm137"
Length to Load Face	4,364 mm172"
Width	2,370 mm93"
Load Distance	886 mm35"
Fork
Thickness	75 mm3"
Width	200 mm8"
Length	2,440 mm96"
Carriage Width	2,370 mm93"
Fork Spread (in-in) Minimum	95 mm3.7"
Fork Spread (out-out) Maximum	2,255 mm89"
Minimum Ground Clearance	264 mm10.4"
Aisle width (with load length)	7,526 mm296"
Outside turning radius	4,000 mm157"

Travel Speed
with load	30 km/h18.6 mph
without load	31 km/h19.2 mph
LIfting Speed
with load	0.4 m/s79 ft/min
without load	0.45 m/s89 ft/min
Lowering Speed
with load	0.5 m/s98 ft/min
without load	0.48 m/s94 ft/min
Drawbar pull-Max	103 kN23,200 lbf
Gradeability @ 1 mph (1.6 km/h)
with load	35%

Engine Type	Cummins Diesel
Emissions Type	–
Engine Output-Rated	119 kW160 HP
Governed Speed	2,300 rpm
Number of cylinders/displacement	4/4.5L
Turbocharger	Water-cooled variable geometry
Alternator AMPS	70A24V
Drive Axle	Kessler D61
Transmission	Dana TE10
Number of gears fwd/rev	3/3
Battery Capacity	2 x 12 V 120 Ah CCA
Brakes	Wet disc
Parking Brake	Dry disc
DEF tank capacity	19 L5 gal
