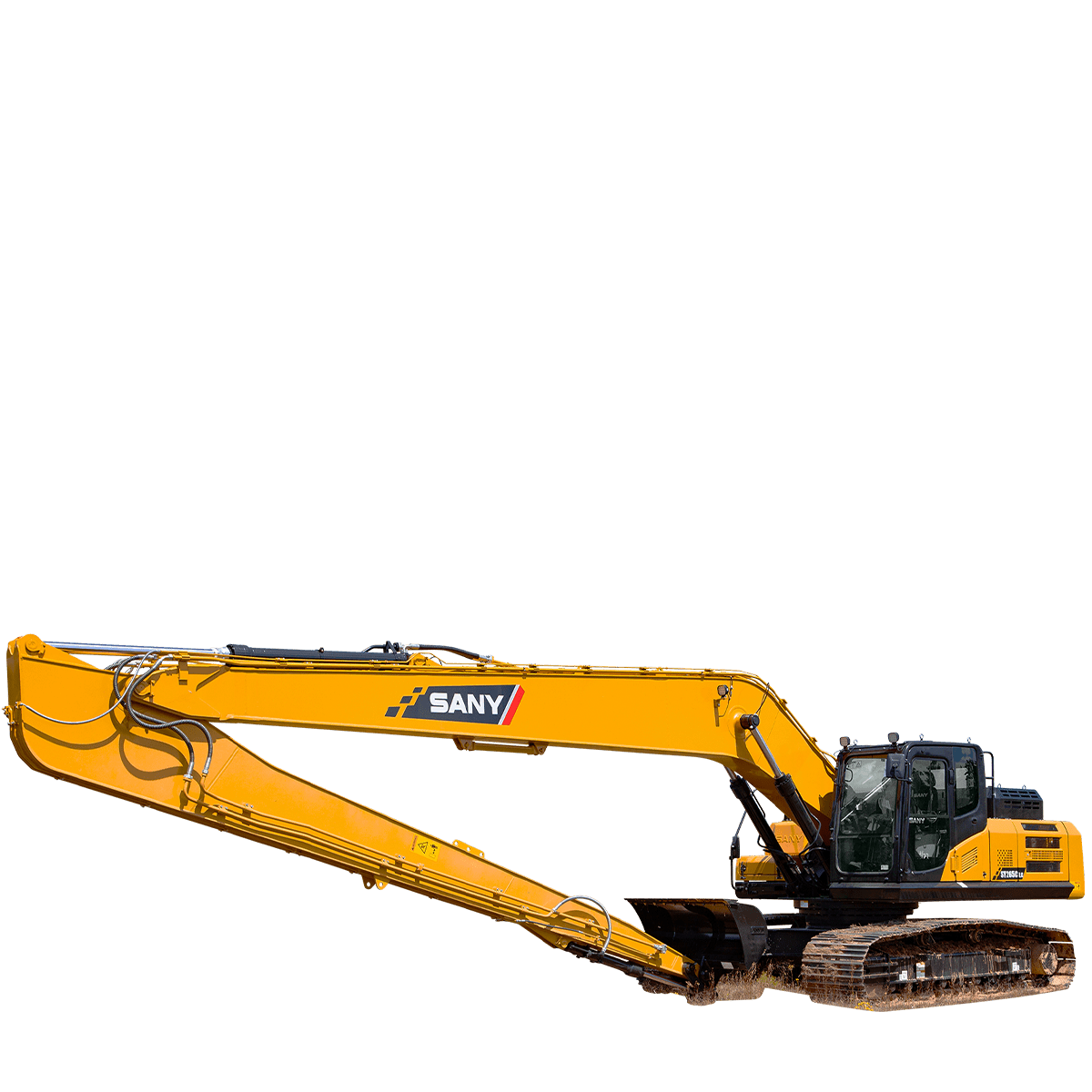

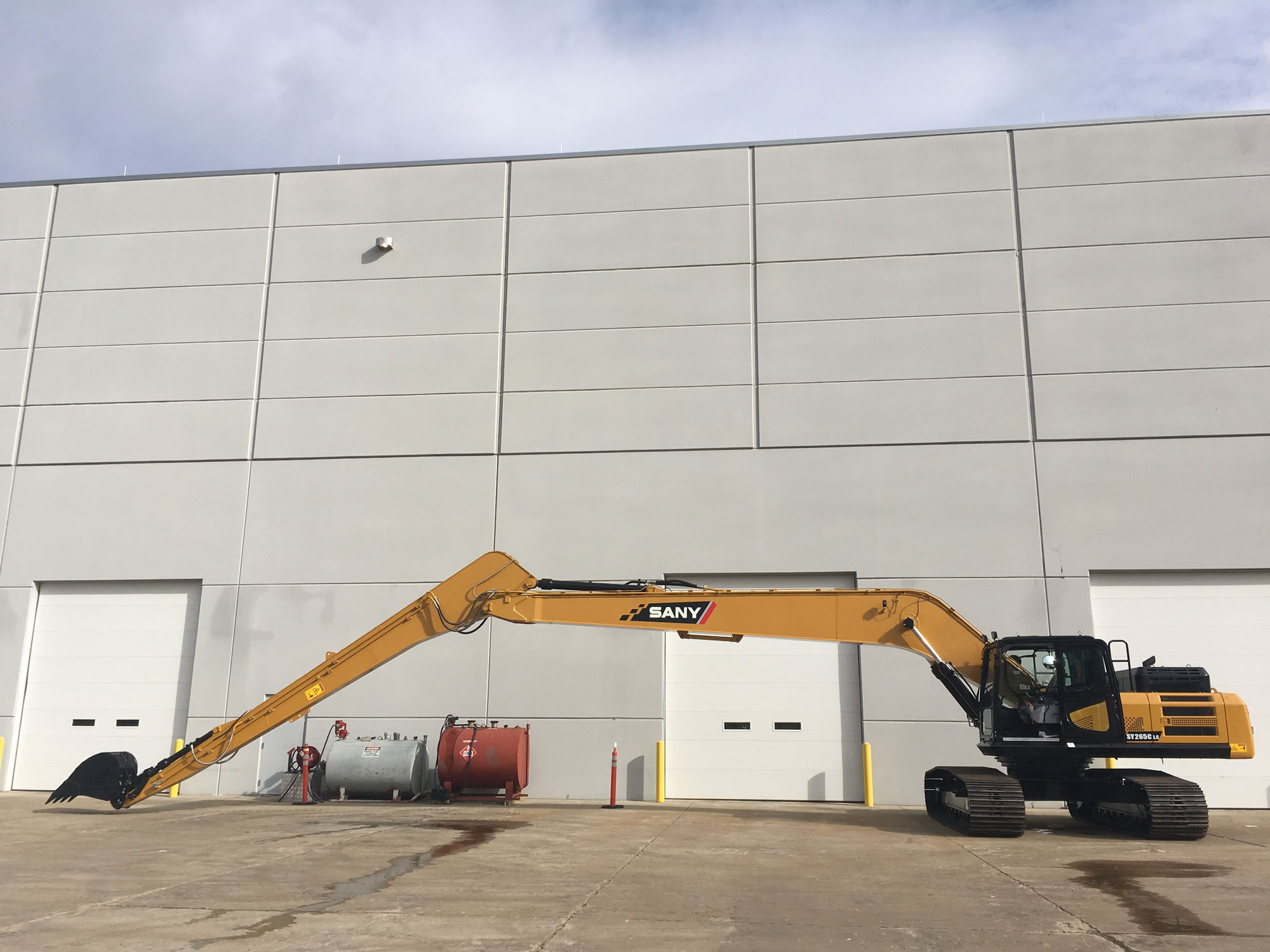

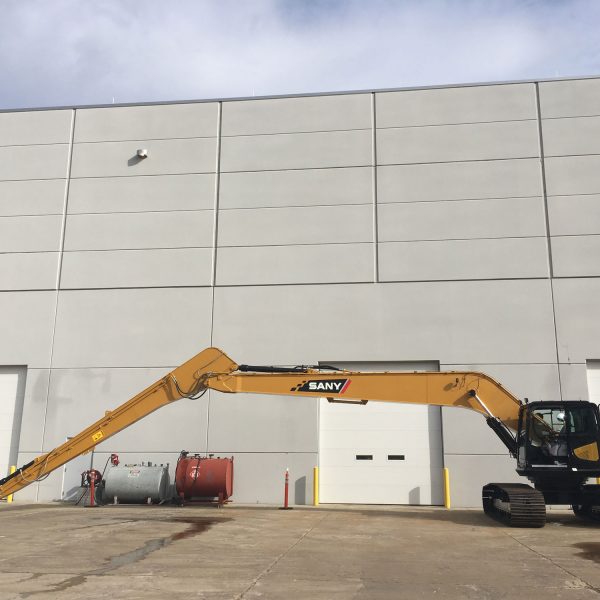

SY265C Long Reach
Excavator

Model
SY265C Long Reach
×

Overall Dimensions

Hide
Boom Length
9800 mm32' 2"

Stick (Arm) Length
7500 mm24' 7"

Transport Length
14059 mm46' 2"

Transport Width
3390 mm11' 1"

Transport Height
3665 mm12'

Upper Structure Width
3150 mm10' 4"

Cab Height
3081 mm10' 1"

Blade Height

Track Width (standard shoe)
800 mm31"

Track Gauge
2590 mm8' 6"

Ground Clearance (minimum)
467 mm19"

Tail Swing Radius
3119 mm10' 3"

Track Length on Ground
3833 mm12' 7"

Track Length
4636 mm15' 3"

×

Technical Specifications

Hide
Operating Weight
31,500 kg69,446 lb

Ground Pressure
46.3 kPa6.7 psi

EngineCummins QSB 6.7 T4F
Displacement
6.7 L408.9 in3

Gross Power
142 kW190.4 HP

HydraulicsPositive Flow Control with Pilot Control
Main Hydraulic PumpAxial Piston - Variable Displacement
Operating Flow (maximum)
520.0 L/min137.4 gal/min

Operating Pressure (maximum)
34.3 MPa4975 psi

Power Boost Pressure (maximum)
37.3 MPa5410 gal/min

Travel MotorAxial Piston with Park Brake
Travel Pressure (maximum)
34.3 MPa4975 psi

Travel Speeds (maximum)
3.5 / 5.5 km/hr2.2 / 3.4 mph

Travel Effort (maximum)
227.0 kN51,032 lbf

Grade Capability35ยบ
Swing MotorAxial Piston with Swing Brake
Swing Pressure (maximum)
27.5 MPa3989 psi

Swing Speed (maximum)10.6 rpm
Undercarriage (standard)Steel Track
Track Shoe Width (standard)
800 mm31"

Track Rollers (per side)9
Carrier Rollers (per side)2
×

Working Range

Hide
Boom Length
9800 mm32' 2"

Stick (Arm) Length
7500 mm24' 7"

Maximum Digging Height
14817 mm48' 7"

Maximum Dumping Height
12512 mm41' 1"

Maximum Digging Depth
13306 mm43' 8"

Maximum Vertical Wall Digging Depth
12743 mm41' 10"

Maximum Reach at Ground Level
17608 mm57' 9"

Maximum Swing Radius
5682 mm18' 8"
