SY75C Compact Excavator

SY75C

16,050 lb | 54 HP | 14' 7" Dig Depth

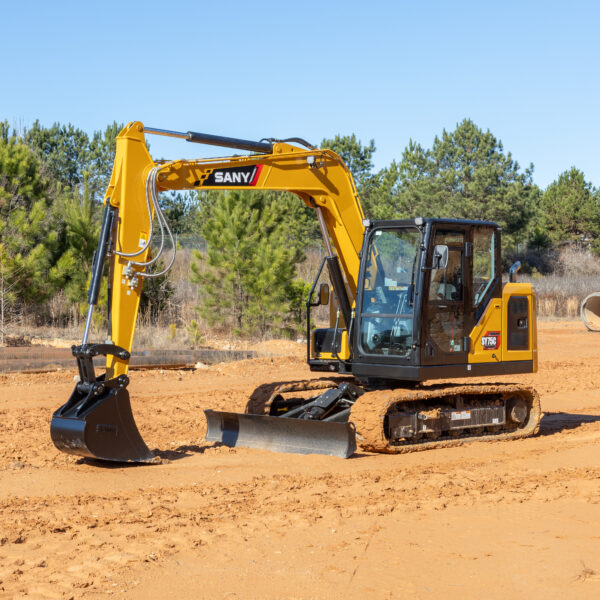

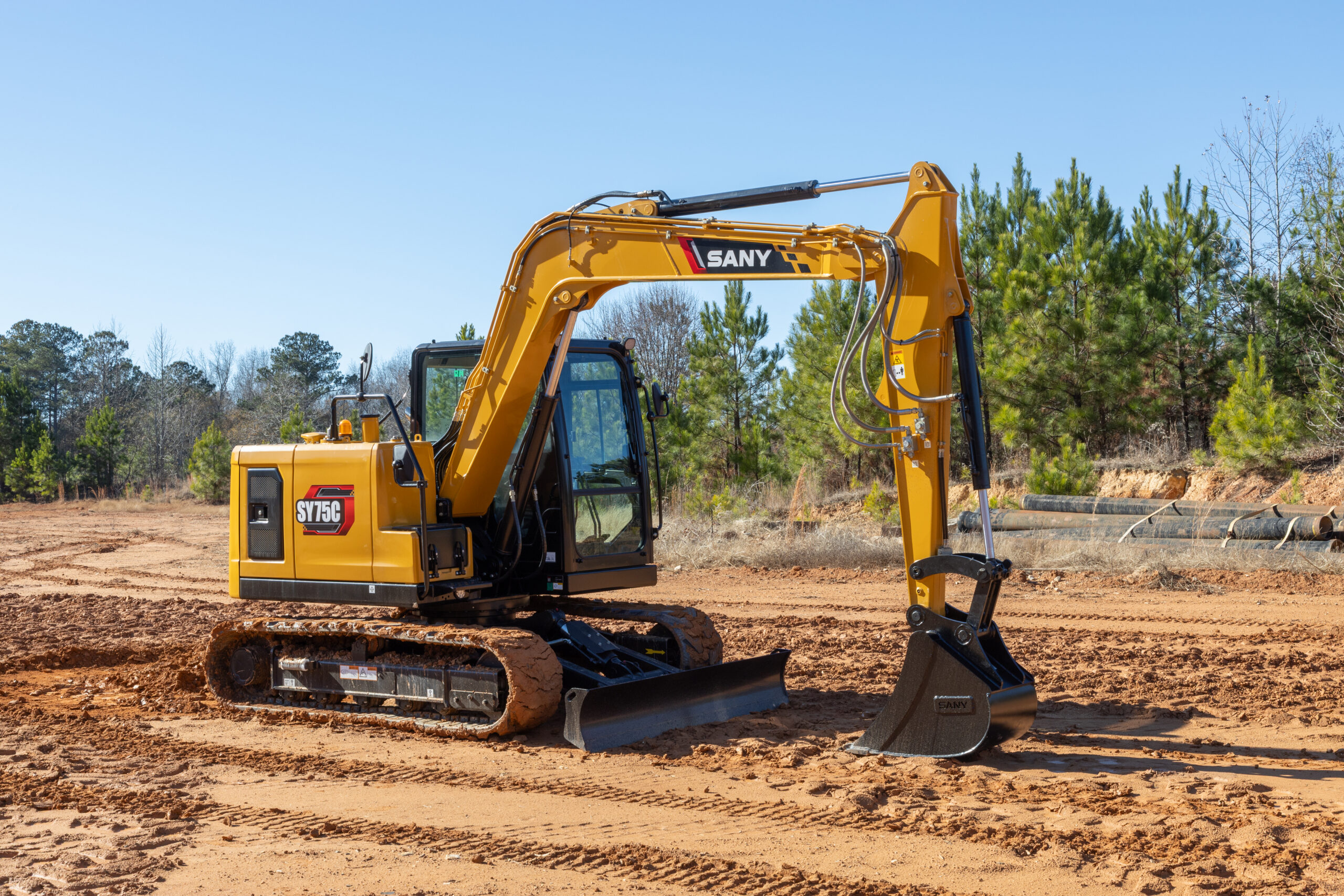

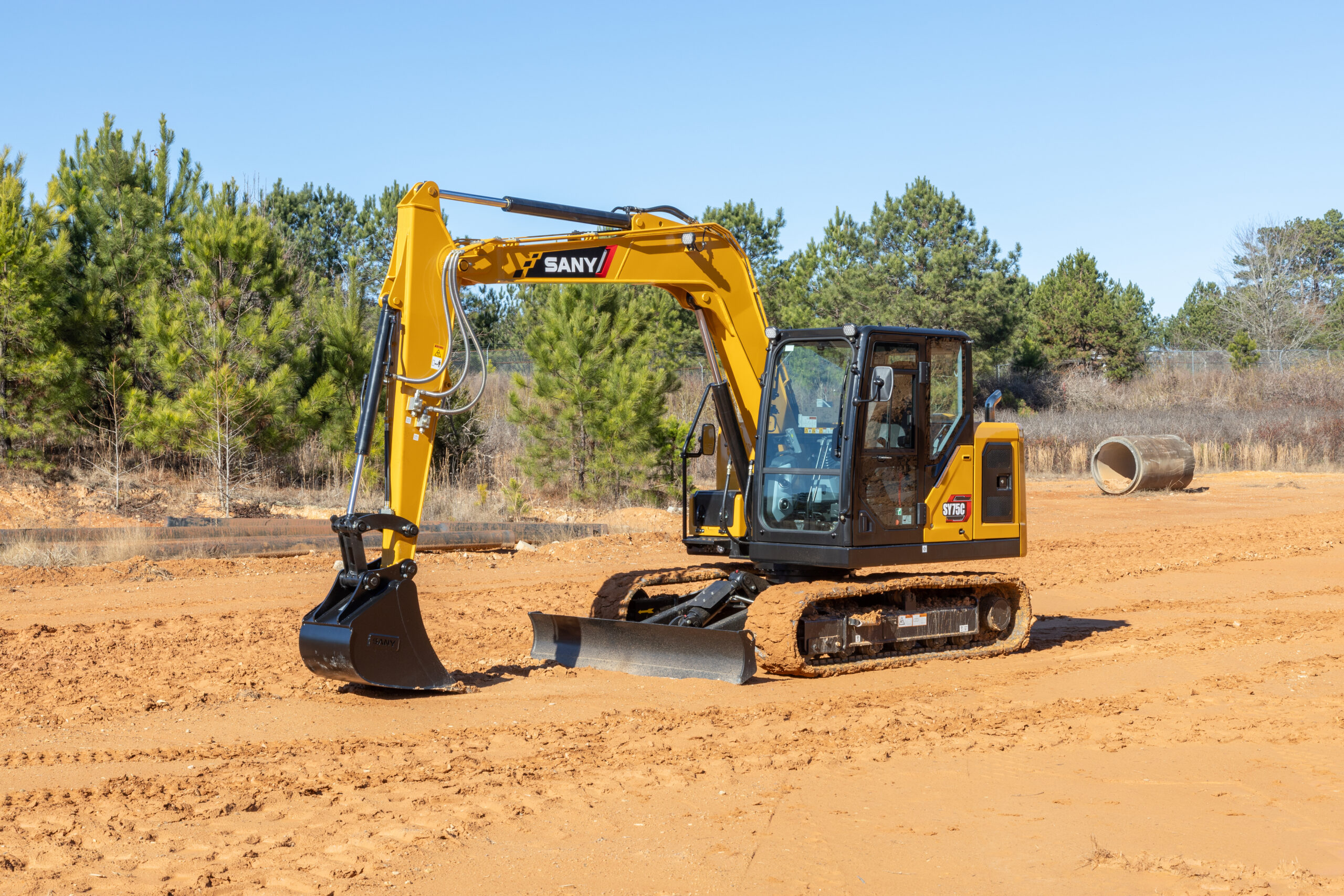

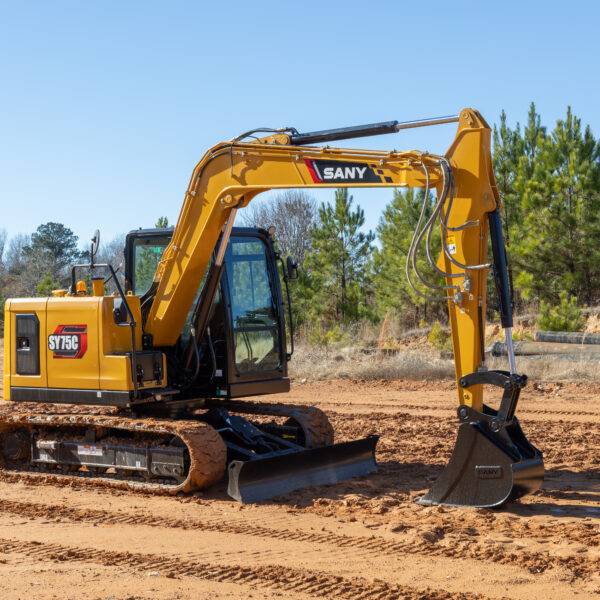

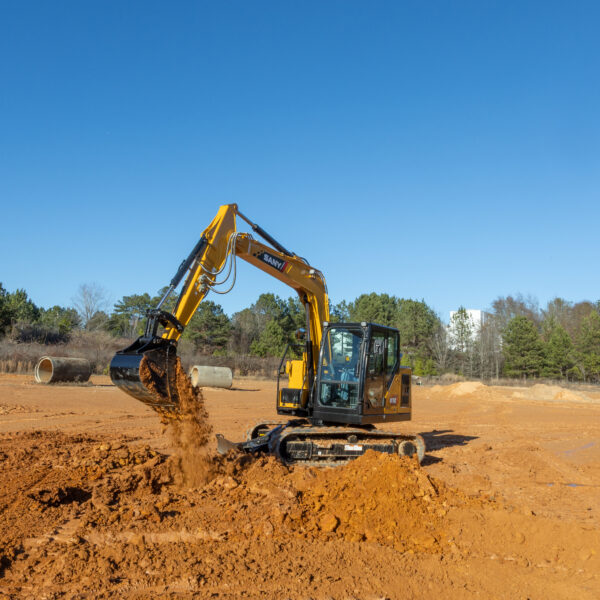

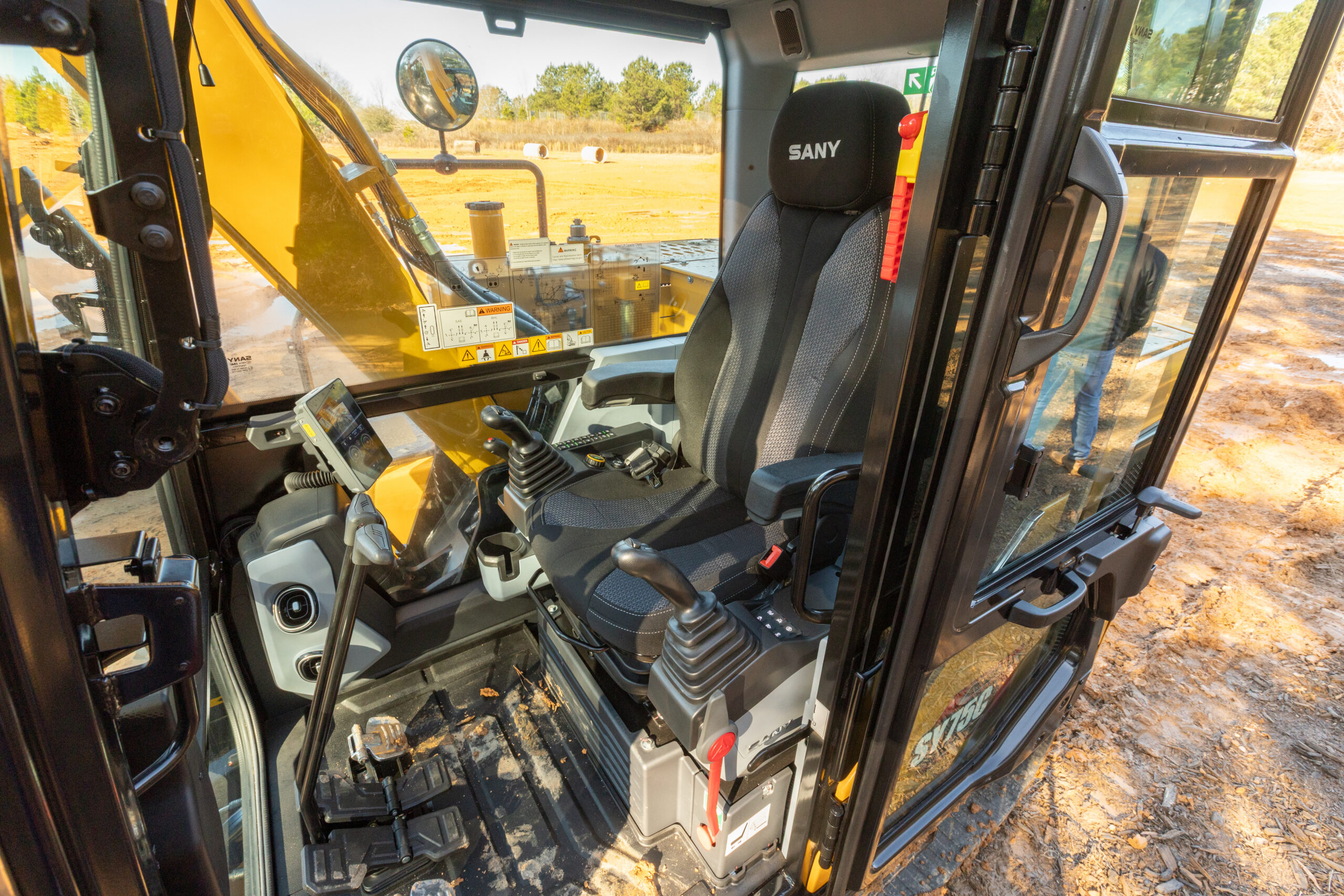

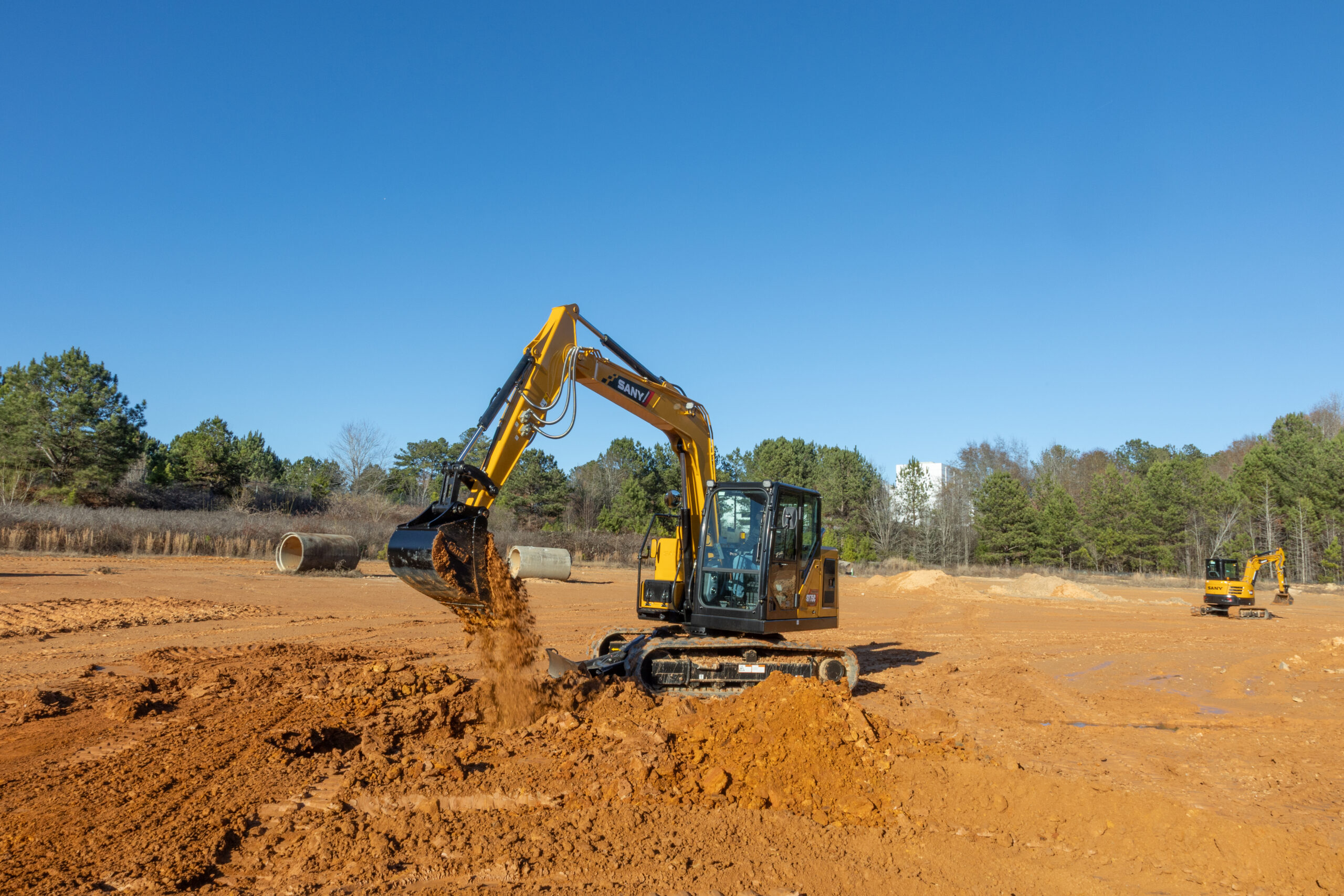

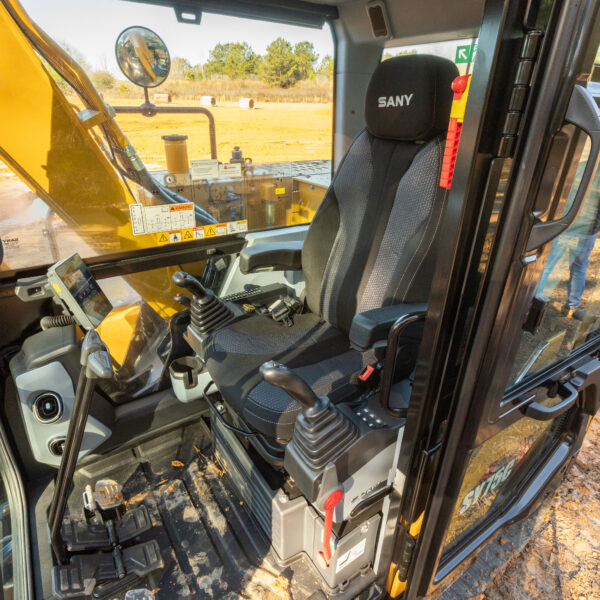

The SANY SY75C is a powerful, conventional tail swing excavator designed for municipalities, small forestry, agriculture, construction, and infrastructure/utilities. Its fixed boom design delivers exceptional lifting power and stability, making it ideal for digging trenches, clearing land, and handling heavy materials. The backfill blade enhances grading and site preparation, while quick coupler plumbing allows for fast and efficient attachment changes, increasing job site productivity. Powered by a 56.9 HP Yanmar engine, the SY75C delivers 11,910 lbf of bucket breakout force and a 9,390 lbs max lifting capacity, ensuring strong performance in excavation, material handling, and land clearing. The dual auxiliary circuits and adjustable hydraulic flow and pressure allow for seamless operation of hydraulic attachments, including thumbs, mulching heads, tilt grading buckets, and demolition breakers, providing maximum versatility across multiple industries. Operators benefit from a ROPS/FOPS-certified cab, HVAC system, and a multifunctional monitor, offering enhanced comfort, safety, and control in all working conditions. With easy serviceability, advanced hydraulics, and high lifting capacity, the SANY SY75C is built to maximize efficiency and reliability. Whether tackling municipal projects, forestry management, agricultural work, or infrastructure development, this excavator delivers the strength, precision, and durability professionals need to get the job done right.

Powered by a reliable, efficient Yanmar T4F engine

Extra reinforcements in the boom, arm, swing platform and undercarriage increase stability and service life

Equipped with joystick controlled, proportional, bi-directional auxiliary hydraulics

Features and Specifications

Technical Spec Sheet Family Brochure

*Based on theoretical calculation at max flow with no load. Subject to alterations.

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Boom Length	3,720 mm12' 2"
Stick (Arm) Length	––
Transport Length	6,121 mm20' 1"
Transport Width	2,220 mm7' 3"
Transport Height	2,720 mm8' 11"
Upper Structure Width	2,040 mm6' 8"
Cab Height	––
Blade Height	405 mm16"
Track Width (standard shoe)	450 mm18"
Track Gauge	1,750 mm5' 9"
Ground Clearance (minimum)	380 mm15"
Tail Swing Radius	1,800 mm5' 11"
Track Length on Ground	2,195 mm7' 2"
Track Length	2,820 mm9' 3"

Operating Weight	7,280 kg16,050 lb
Ground Pressure	33.0 kPa4.8 psi
Engine	Yanmar 4TNV98C
Displacement	2.2 L134.3 in³
Net Power	40.5 kW54 HP
Gross Power	43.0 kW57.7 HP
Hydraulics	Load Sensing with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	149.0 L/min39.4 gal/min
Operating Pressure (maximum)	26.3 MPa3,814 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	26.3 MPa3,814 psi
Travel Speeds (maximum)	2.8 / 5.3 km/hr1.7 / 3.3 mph
Travel Effort (maximum)	56.8 kN12,769 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	21.6 MPa3,133 psi
Swing Speed (maximum)	10.5 rpm
Undercarriage (standard)	Belted Rubber Track
Track Shoe Width (standard)	450 mm18"
Track Rollers (per side)	5
Carrier Rollers (per side)	1

Boom Length	3,720 mm12' 2"
Stick (Arm) Length	2,050 mm6' 9"
Maximum Digging Height	7,390 mm24' 3"
Maximum Dumping Height	5,490 mm18' 0"
Maximum Digging Depth	4,,450 mm14' 7"
Maximum Vertical Wall Digging Depth	3840 mm12' 7"
Maximum Reach at Ground Level	6,505 mm21' 4"
Minimum Swing Radius	1,940 mm6' 4"

Boom Length	––
Stick Length	––
Bucket Breakout Force (ISO)	––
Stick Digging Force (ISO)	––
