SY60U

13,228 lb | 55.1 HP | 13' 1" Dig Depth

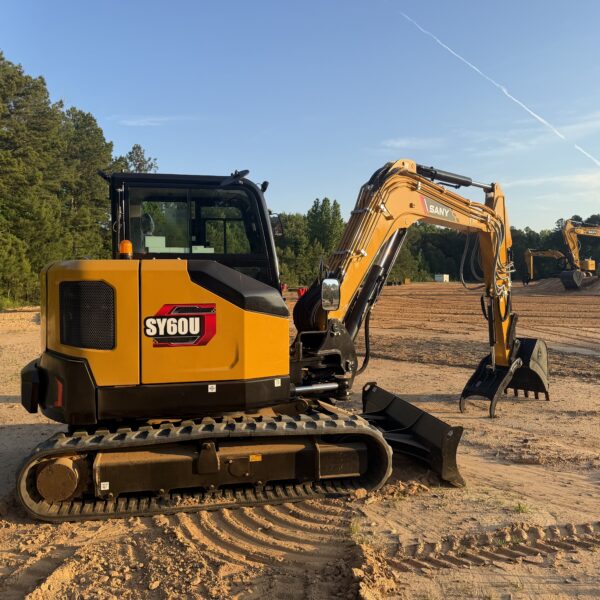

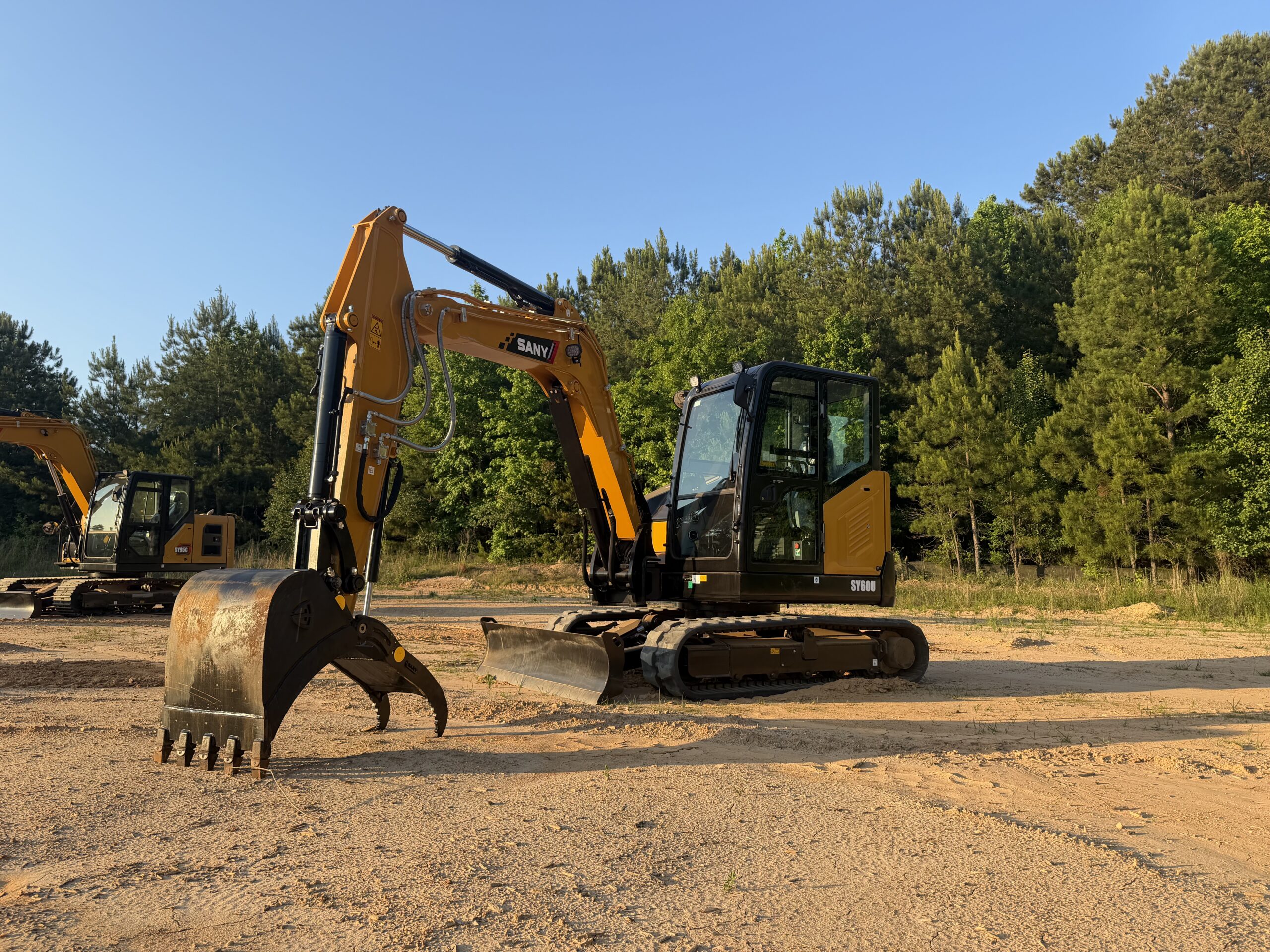

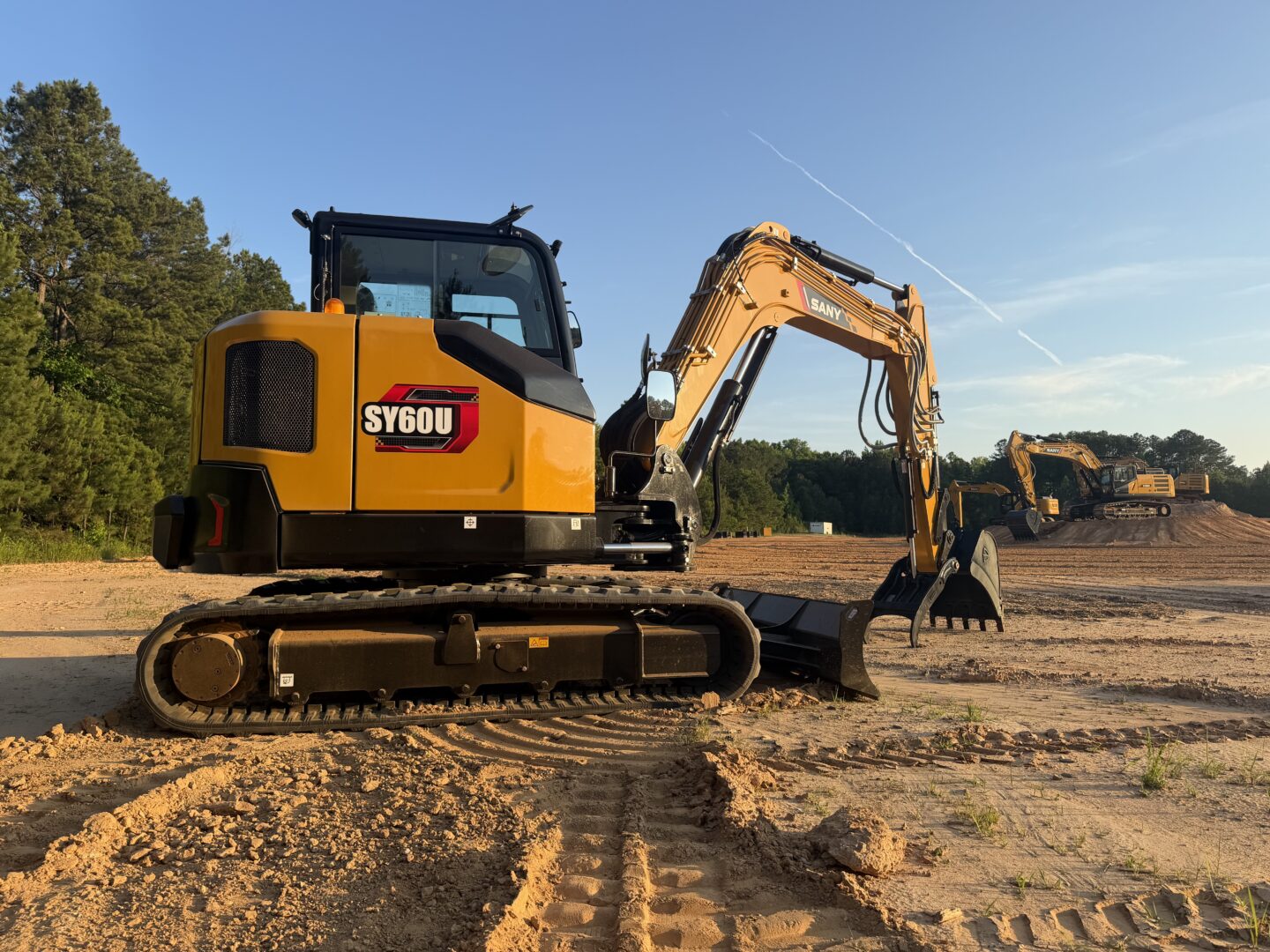

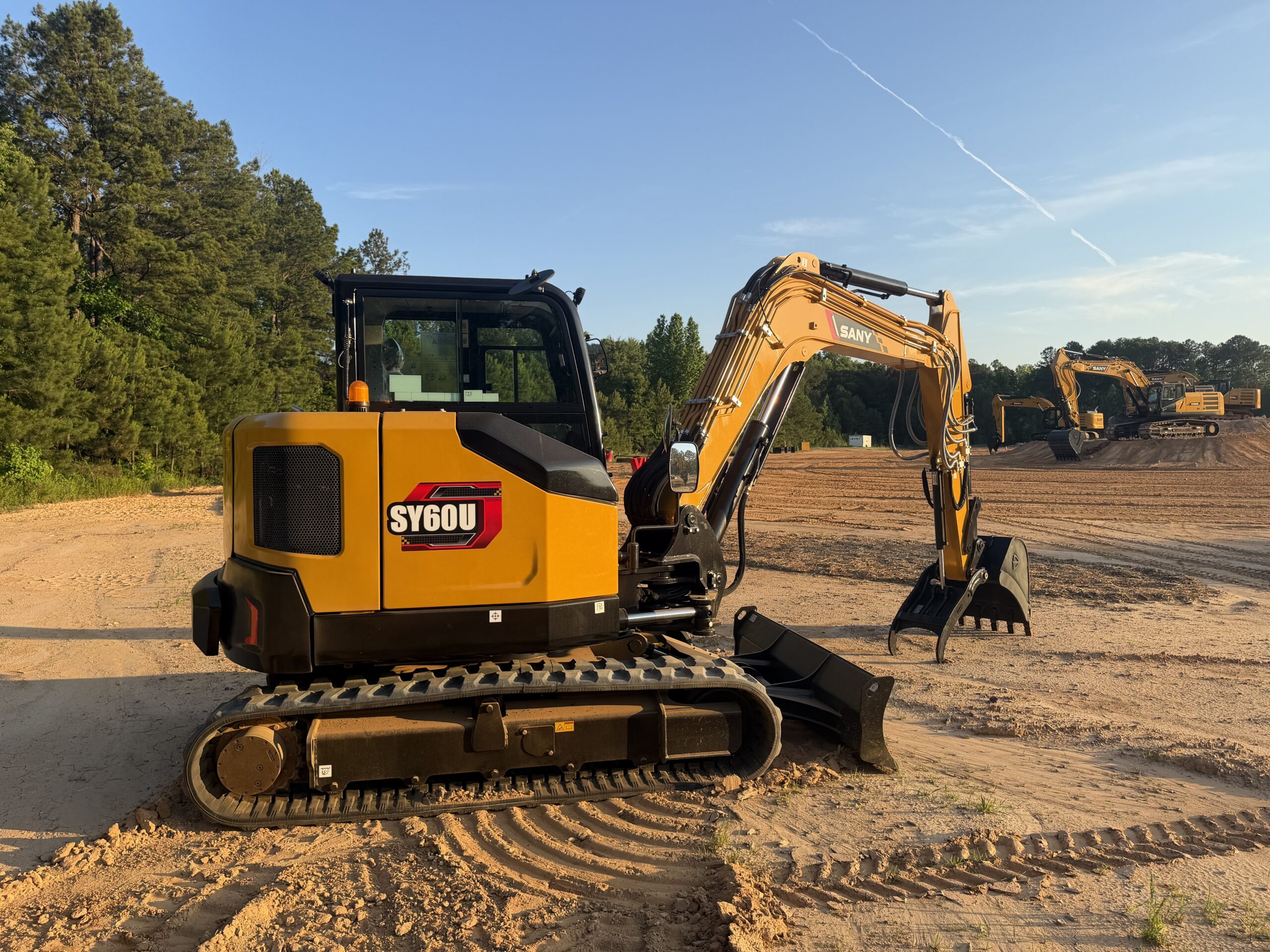

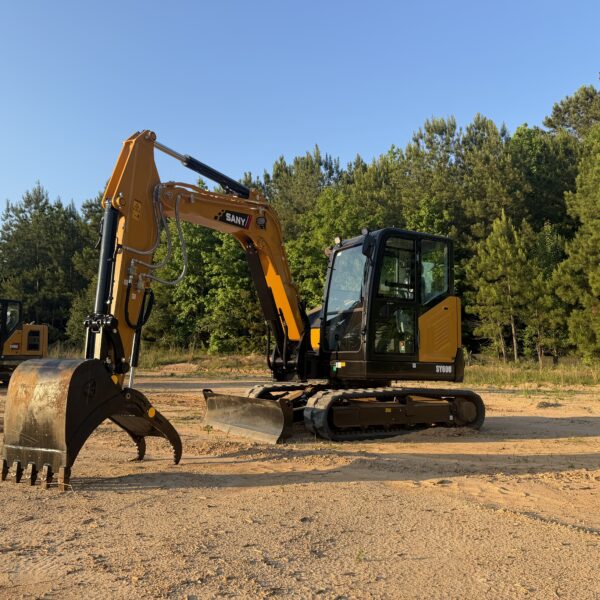

The SANY SY60U is a powerful swing boom hydraulic excavator designed for general construction, utility work, landscaping, trenching, site preparation, and material handling applications. Its swing boom design allows operators to work efficiently in tight job sites and around obstacles with excellent maneuverability. Powered by a fuel-efficient 56.9 HP Yanmar engine, the SY60U delivers 10,116 lbf of bucket breakout force and a maximum digging depth of 13′ 1″, making it a strong performer in digging, lifting, and heavy material handling. The load sensing hydraulic system with generous auxiliary flow expands its versatility with thumbs, breakers, augers, and quick couplers. Operator-focused features including a comfortable cab with HVAC, ergonomic pilot controls, and an intuitive multifunction monitor enhance productivity, safety, and ease of use. With emphasis on easy serviceability and durable construction, the SY60U is built for contractors who need reliable performance in a compact yet capable machine. Whether tackling utility trenching, foundation work, landscaping projects, or general construction tasks, this excavator delivers the power, flexibility, and precision needed for efficient job site productivity.

Swing boom

Conventional tail swing

Primary auxiliary circuit

Dozer blade with float function

Quick-coupler plumbing to the end of the stick

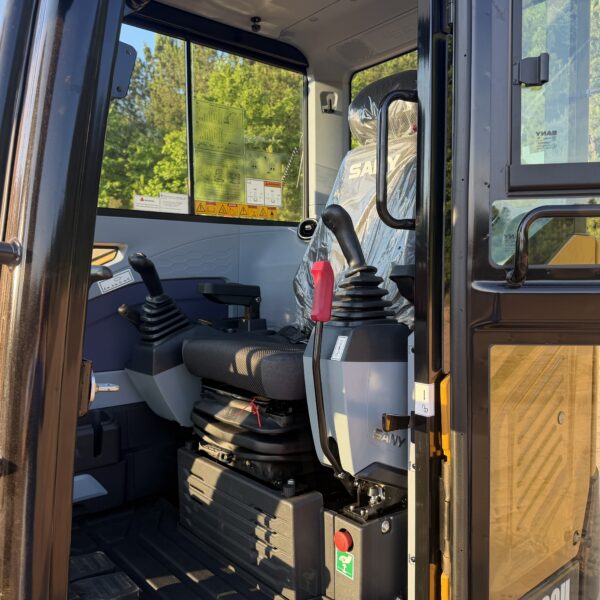

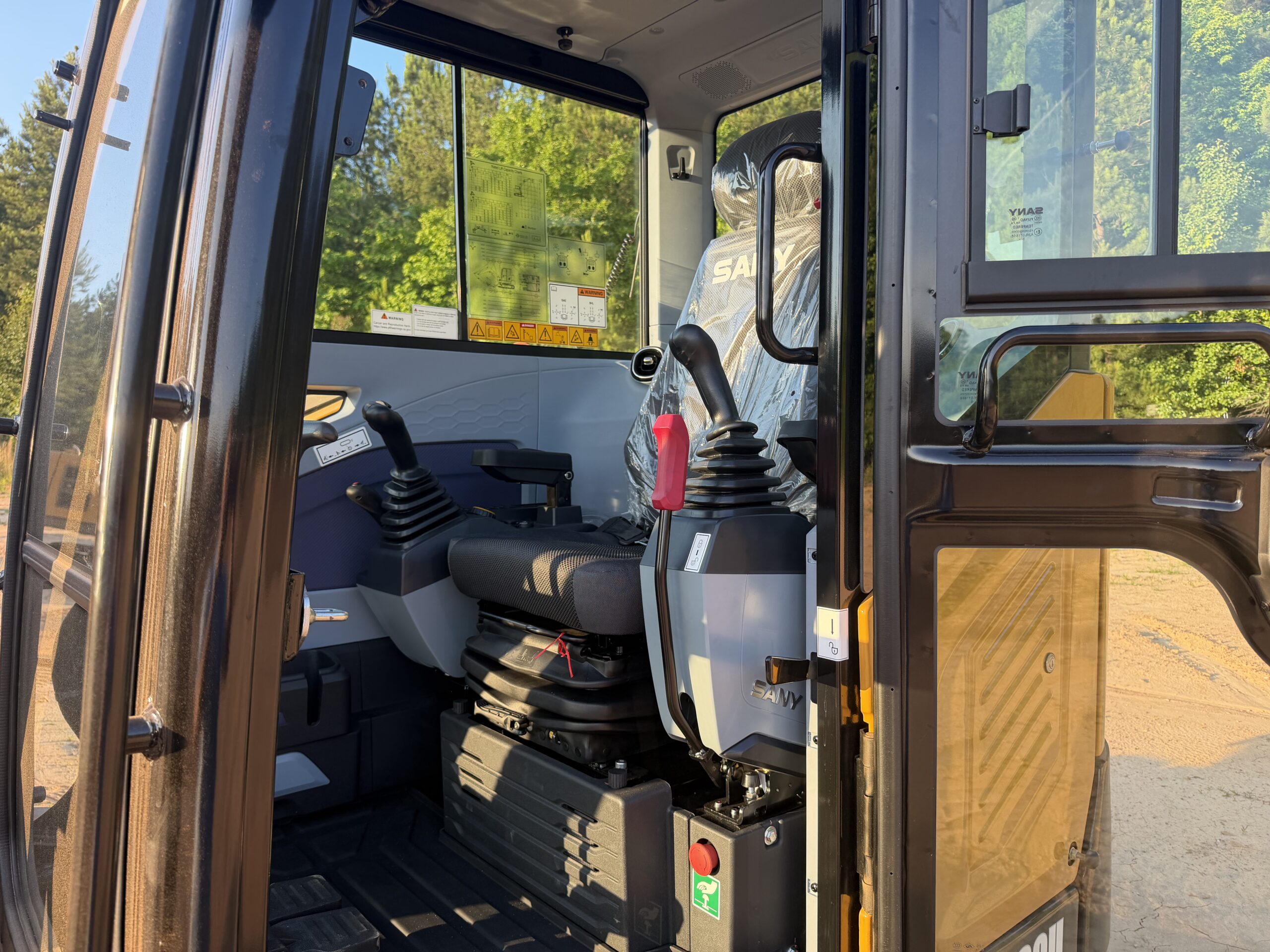

Pilot controls with pattern change valve

Load sensing hydraulics

Cylinder guards for increased protection

16" rubber tracks

Touchscreen display with backup camera

Bright LED lighting package

Powerful and reliable Yanmar engine

Features and Specifications

Technical Spec Sheet

*Based on theoretical calculation at max flow with no load. Subject to alterations.

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Boom Length	3,000 mm9' 10"
Stick (Arm) Length	––
Transport Length	6,000 mm19' 8"
Transport Width	2,000 mm6' 7"
Transport Height	2,590 mm8' 6"
Upper Structure Width	1,875 mm6' 2"
Cab Height	––
Blade Height	385 mm15"
Track Width (standard shoe)	400 mm16"
Track Gauge	1,600 mm5' 3"
Ground Clearance (minimum)	330 mm13"
Tail Swing Radius	1,560mm5' 1"
Track Length on Ground	2,050 mm6' 9"
Track Length	2,545 mm8' 6"

Operating Weight	6,000 kg13,228 lb
Ground Pressure	34.6 kPa5.0 psi
Engine	Yanmar 4TNV98C
Displacement	3.3 L201.4 in³
Net Power	41.1 kW55.1 HP
Gross Power	41.1 kW56.9 HP
Hydraulics	Load Sensing with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	148.0 L/min39.1 gal/min
Operating Pressure (maximum)	27.0 MPa3,916 psi
Auxiliary Flow*	90 L/min23.8 gal/min
Auxiliary Pressure	25 MPa3,626 psi
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	27.0 MPa3,916 psi
Travel Speeds (maximum)	2.3 / 4.0 km/hr1.4 / 2.5 mph
Travel Effort (maximum)	61.0 kN13,713 lbf
Grade Capability	30º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	19.1 MPa2,770 psi
Swing Speed (maximum)	9.6 rpm
Undercarriage (standard)	Belted Rubber Track
Track Shoe Width (standard)	400 mm16"
Track Rollers (per side)	5
Carrier Rollers (per side)	1

Boom Length	3,000 mm9' 10"
Stick (Arm) Length	1,700 mm5' 7"
Maximum Digging Height	5,747 mm18' 10"
Maximum Dumping Height	4,020 mm13' 2"
Maximum Digging Depth	3,990 mm13' 1"
Maximum Vertical Wall Digging Depth	3,220 mm10' 6"
Maximum Reach at Ground Level	6,280 mm20' 7"
Minimum Swing Radius	2,640 mm8' 8"

Boom Length	3,000 mm9'10"
Stick Length	––
Bucket Breakout Force (ISO)	45.0 kN10,116 lbf
Stick Digging Force (ISO)	33.0 kN7,419 lbf
