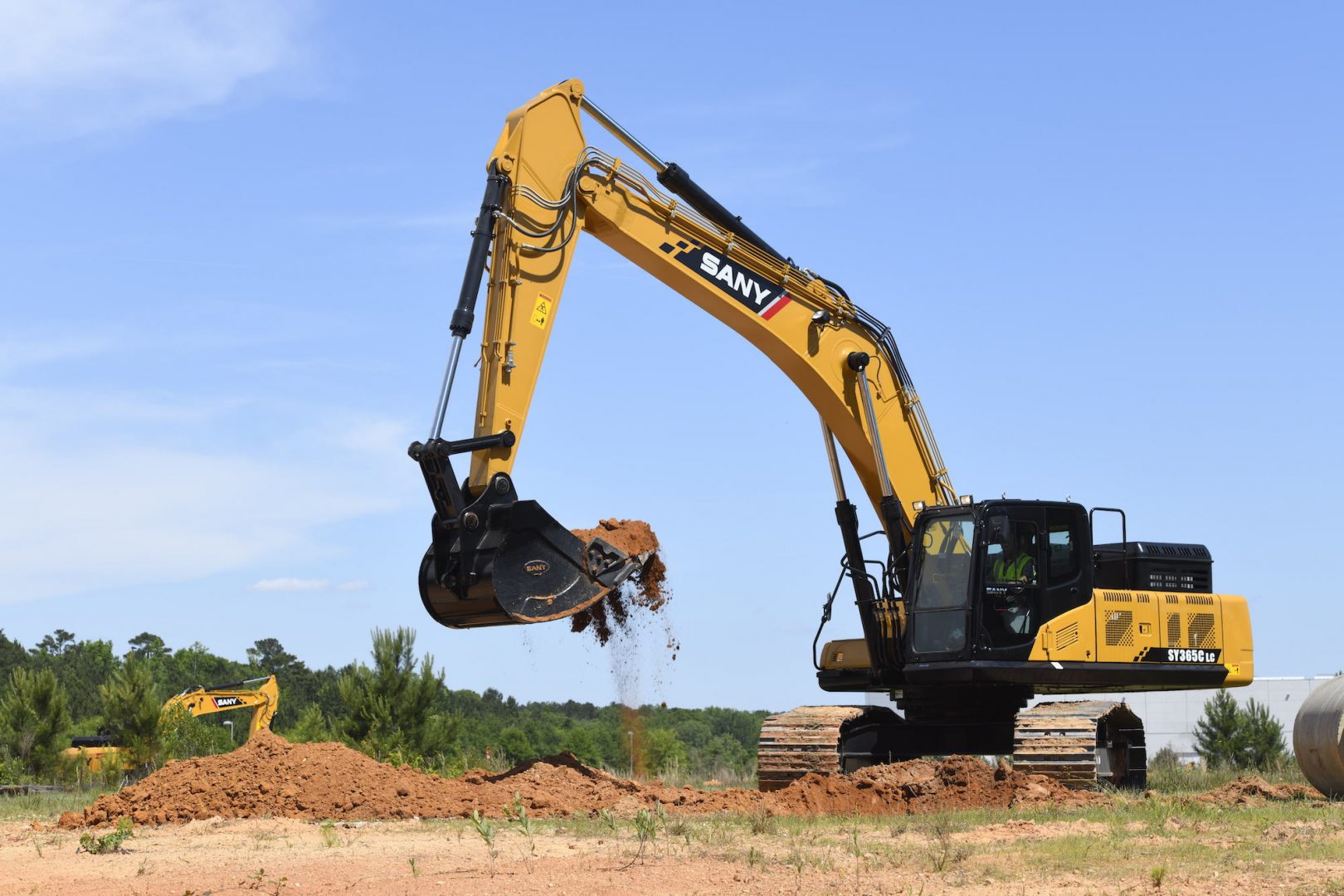

SY365C Large Excavator | SANY America

SY365C

80,910 lb | 23' 11" Dig Depth

The SANY SY365C large excavator is built to deliver performance 365 days a year in any conditions, any climate and any terrain. Designed to provide outstanding performance even under continuous stress, this large excavator offers both reliability and versatility and can handle earthmoving, demolition or road-building jobs with ease. Plus, with an efficient design and selectable work modes, the SY365C large excavator can provide optimized performance to increase productivity while decreasing operating costs.

Powerful, robust and reliable powertrain & hydraulic components for long life in the most demanding applications

Optimized negative flow hydraulics improve operating efficiency by up to 5% and fuel efficiency by up to 10%

A high-performance cooling system equipped with electronic control fan clutch provides clean, quiet operation

Selectable working modes match machine performance to the application, maximizing productivity and minimizing operating costs

Features and Specifications

Technical Spec Sheet Family Brochure

*Based on theoretical calculation at max flow with no load. Subject to alterations.

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Boom Length	6,470 mm21' 3"
Stick (Arm) Length	3,178 mm10' 5"
Transport Length	11,100 mm36' 5"
Transport Width	3,390 mm11' 1"
Transport Height	3,600 mm11' 10"
Upper Structure Width	3,020 mm9' 11"
Cab Height	3,140 mm10' 4"
Blade Height	––
Track Width (standard shoe)	800 mm31"
Track Gauge	2,590 mm8' 6"
Ground Clearance (minimum)	550 mm22"
Tail Swing Radius	3,300 mm10' 10"
Track Length on Ground	4,140 mm13' 7"
Track Length	5,055 mm16' 7"

Operating Weight	36,700 kg80,910 lb
Ground Pressure	48.7 kPa7.1 psi
Engine	Cummins QSL9 T4F
Displacement	8.9 L543.1 in³
Net Power	––
Gross Power	205 kW275 HP
Hydraulics	Negative Flow Control with Pilot Control
Main Hydraulic Pump	Axial Piston - Variable Displacement
Operating Flow (maximum)	740.0 L/min195.5 gal/min
Operating Pressure (maximum)	34.3 MPa4,975 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa4,975 psi
Travel Speeds (maximum)	3.4 / 5.2 km/hr2.1 / 3.2 mph
Travel Effort (maximum)	214.0 kN48,109 lbf
Grade Capability	35º
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	27.5 MPa3,989 psi
Swing Speed (maximum)	9.8 RPM
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	800 mm2' 7"
Track Rollers (per side)	9
Carrier Rollers (per side)	2

Boom Length	6,470 mm21' 3"
Stick (Arm) Length	3,178 mm10' 5"
Maximum Digging Height	9,820 mm32' 3"
Maximum Dumping Height	7,150 mm23' 5"
Maximum Digging Depth	7,290 mm23' 11"
Maximum Vertical Wall Digging Depth	6,480 mm21' 3"
Maximum Reach at Ground Level	11,090 mm36' 5"
Minimum Swing Radius	4,450 mm14' 7"

Boom Length	––
Stick Length	3,178 mm10' 5"
Bucket Breakout Force (ISO)	––
Stick Digging Force (ISO)	––
