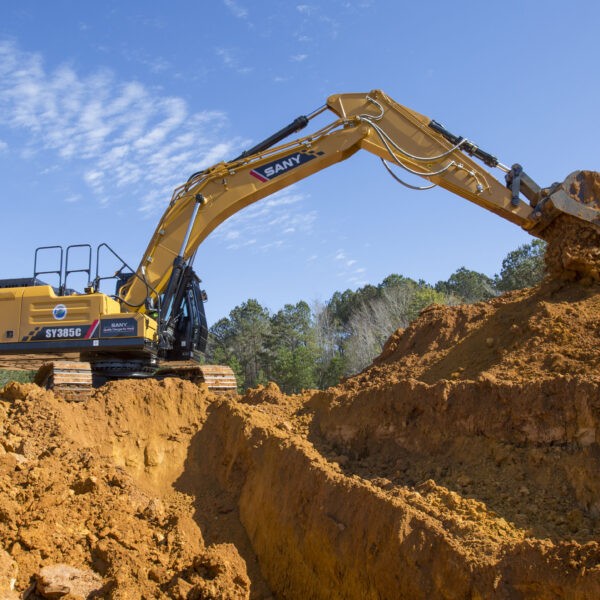

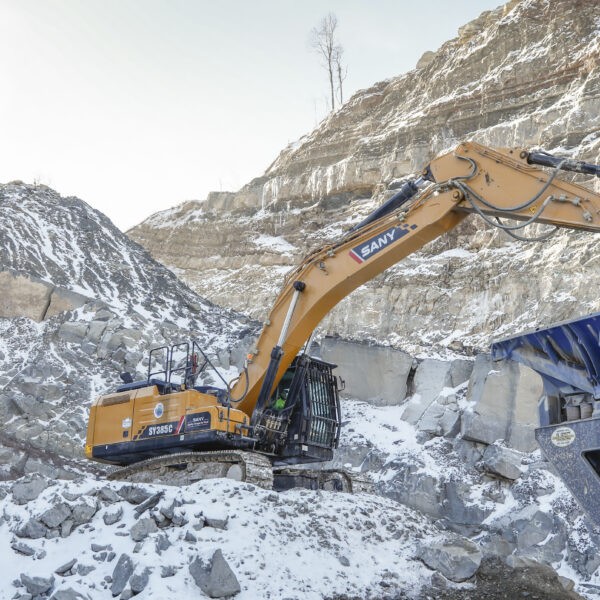

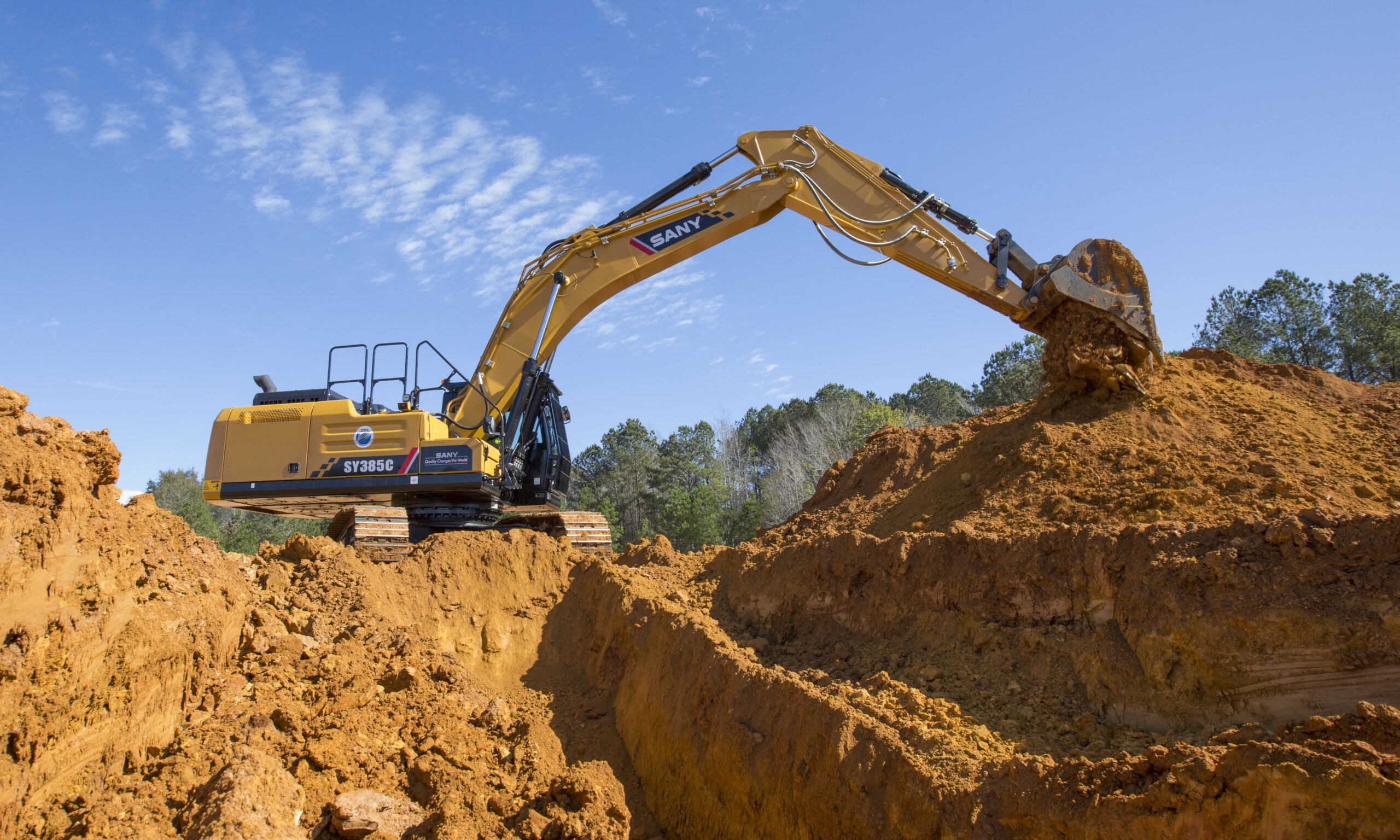

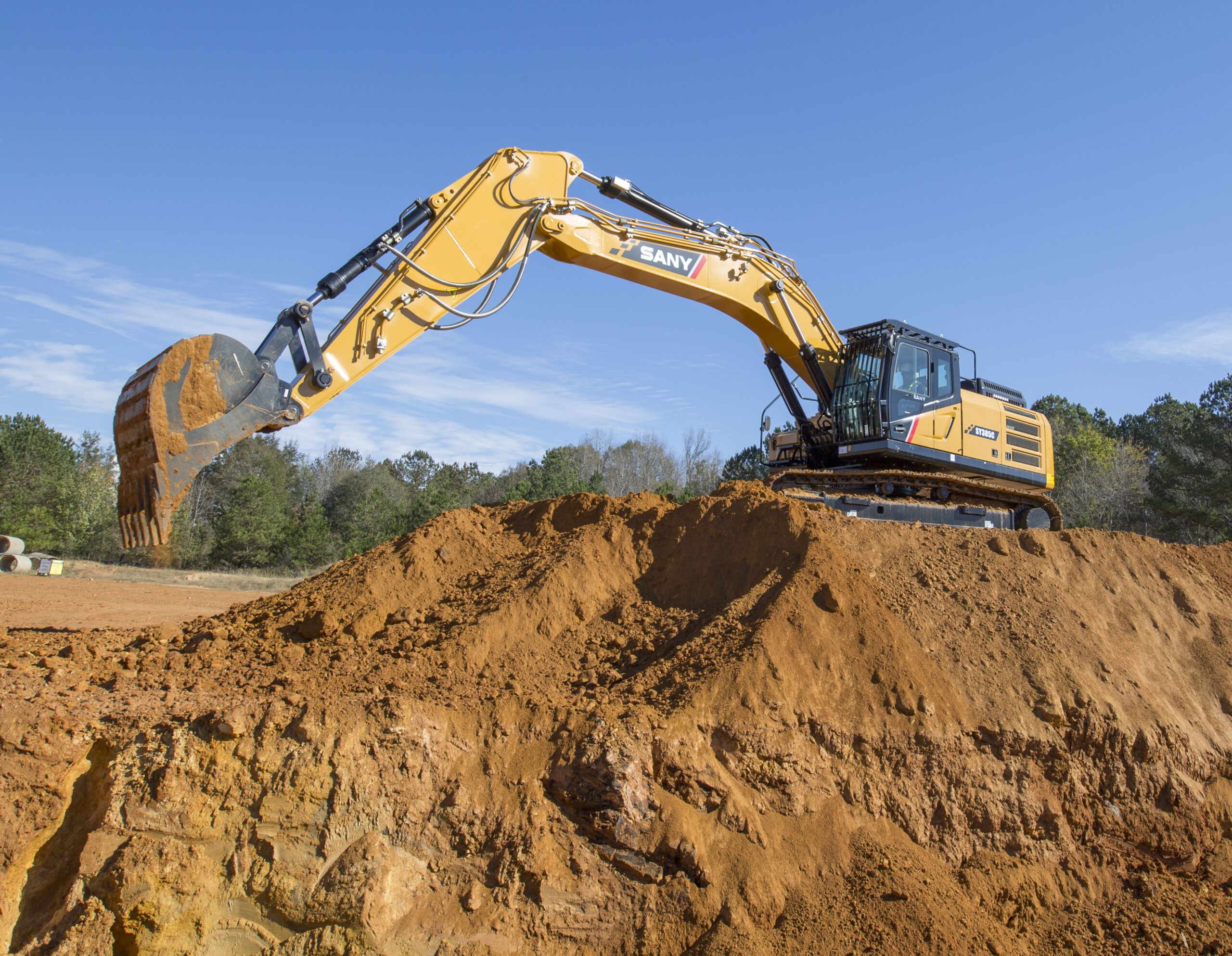

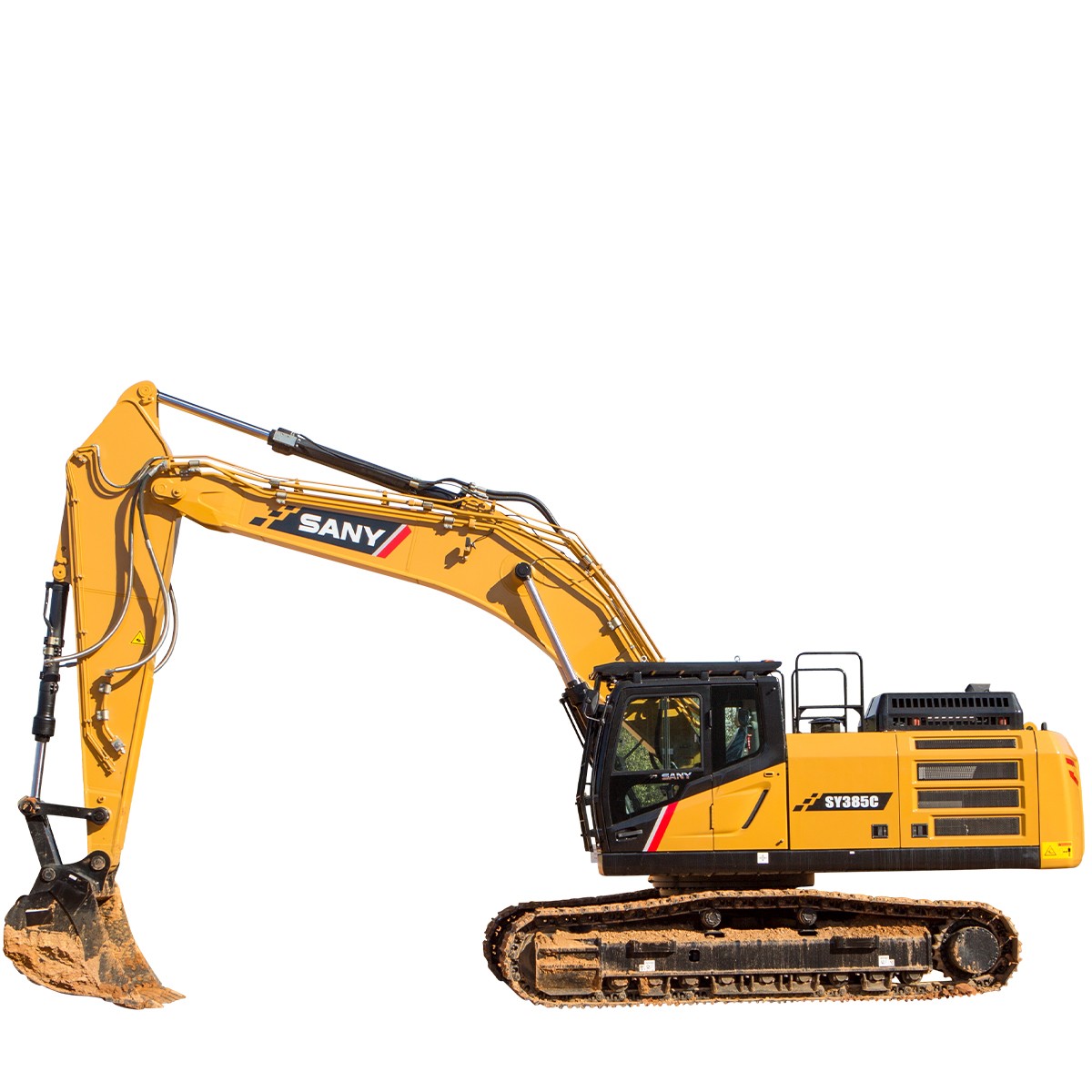

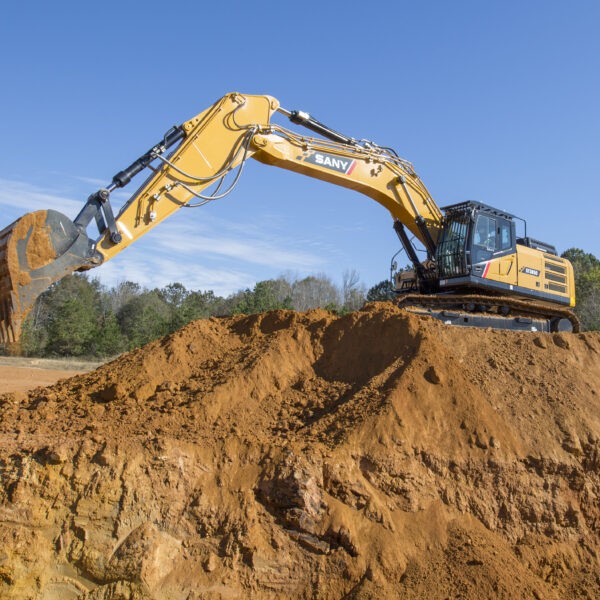

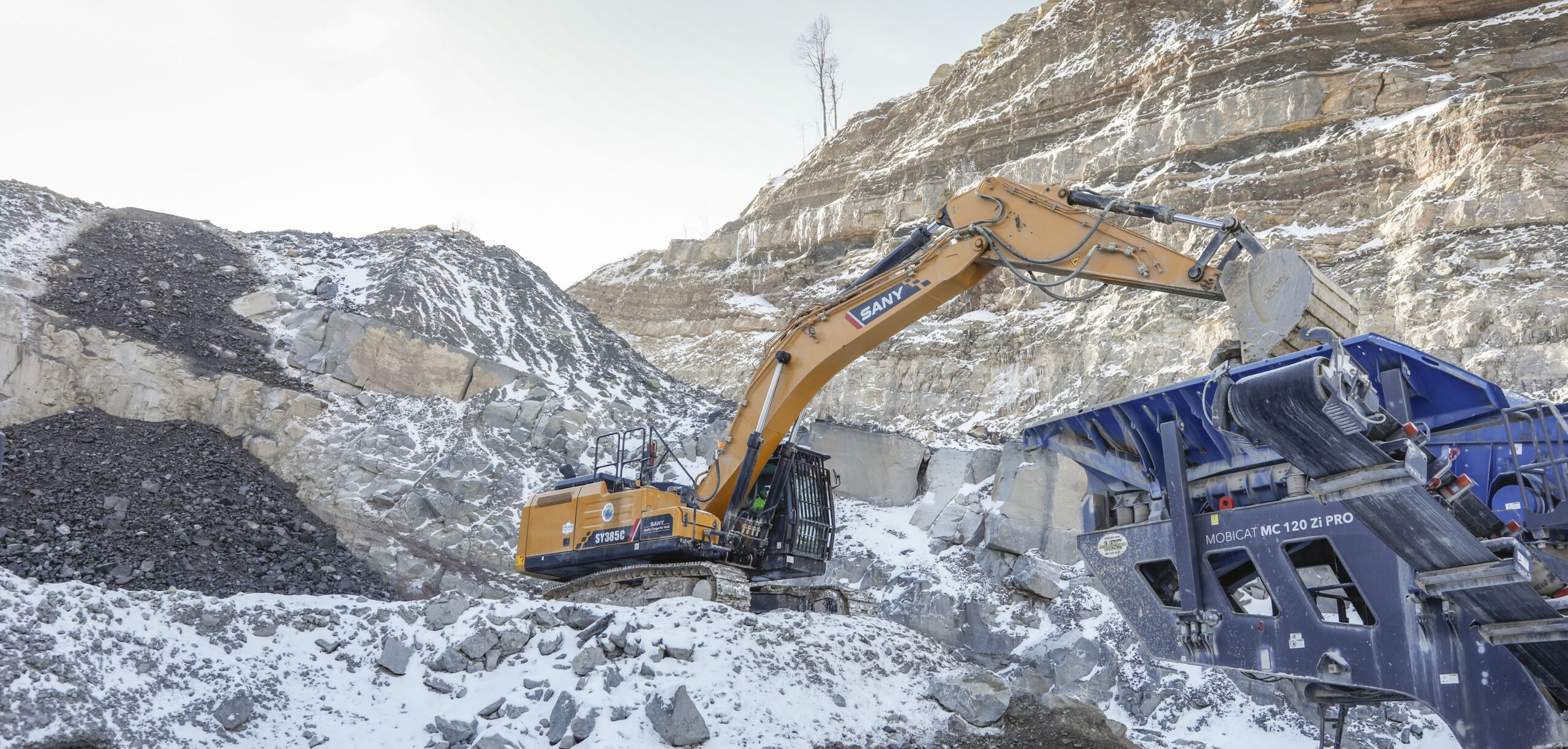

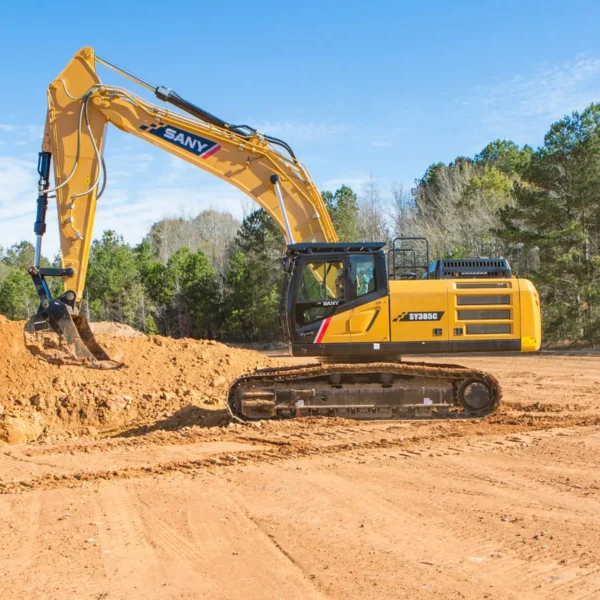

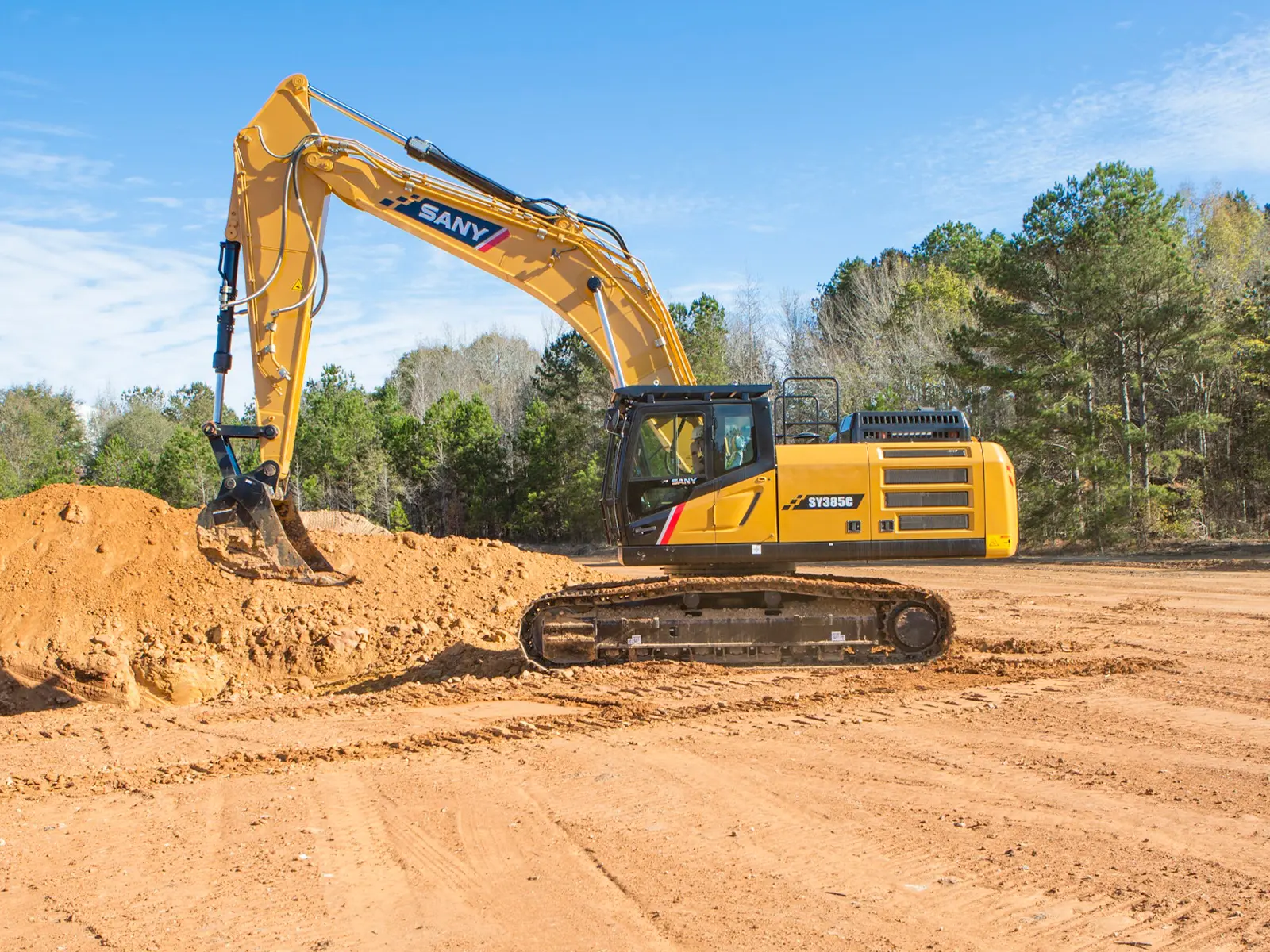

SY385C

85,318 lbs | 26' 4" Dig Depth

The SANY SY385C is a heavy-duty excavator built for mass excavation, utility infrastructure, forestry, construction, and demolition. Engineered for deep digging, material handling, and large-scale site work, this machine delivers exceptional breakout force and lifting capacity to handle the most demanding applications. Its long chassis enhances stability, while dual auxiliary circuits and quick coupler plumbing allow for easy removal of heavy attachments for transportation, increasing mobility between job sites.

With advanced hydraulics, rugged construction, and simplified serviceability, the SY385C is designed for high productivity in the toughest conditions. Whether handling heavy excavation, land clearing, large-scale demolition, or infrastructure development, this machine delivers the power, precision, and durability professionals need to complete the job efficiently.

Dual Auxilary Circuits

Long Chassis

Quick Coupler Plumbing

Cummins Engine

ROPS Certified Cab

Standard Rear Camera

Gear Pump 2nd Aux Circuit

Kawasaki Hydraulics

Power Boost on Joystick

10” Multifunction Monitor

Features and Specifications

Technical Spec Sheet Family Brochure

*Based on theoretical calculation at max flow with no load. Subject to alterations.

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Boom Length	6,500 mm21' 4"
Stick (Arm) Length	––
Transport Length	11,137 mm36' 6"
Transport Width	3,190 mm9' 9"
Transport Height	3,350 mm12' 3"
Upper Structure Width	2,986 mm9' 9"
Cab Height	3,490 mm11' 5"
Blade Height	––
Track Width (standard shoe)	800 mm31"
Track Gauge	2,590 mm7' 10"
Ground Clearance (minimum)	537.5 mm1' 9"
Tail Swing Radius	3,461 mm11' 4"
Track Length on Ground	––
Track Length	5,080 mm16' 7"

Operating Weight	38,700 kg85,318 lbs
Ground Pressure	68.0 kPa9.9 psi
Engine	Cummins QSL9 Stage V / Tier4F
Displacement	8.9 L542 in³
Net Power	––
Gross Power	231 kW314 HP
Hydraulics	Positive Flow w/Pilot Control
Main Hydraulic Pump	Axial Piston – Variable Displacement
Operating Flow (maximum)	720.0 L/min190 gal/min
Operating Pressure (maximum)	34.3 MPa4,975 psi
Auxiliary Flow*	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa4,975 psi
Travel Speeds (maximum)	3 / 5 km/hr1.9 / 3.1 mph
Travel Effort (maximum)	320 kN71,938 lbf
Grade Capability	35°
Swing Motor	Planetary Drive w/Axial Piston Motors
Swing Pressure (maximum)	28.5 MPa4,134 psi
Swing Speed (maximum)	8.8 RPM
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	600 mm24"
Track Rollers (per side)	2
Carrier Rollers (per side)	9

Boom Length	6,500 mm21' 4"
Stick (Arm) Length	3,900 mm10' 6"
Maximum Digging Height	11,000 mm36' 1"
Maximum Dumping Height	7,700 mm25' 3"
Maximum Digging Depth	8,037 mm26' 4"
Maximum Vertical Wall Digging Depth	8,004 mm26' 3"
Maximum Reach at Ground Level	11,200 mm36' 9"
Minimum Swing Radius	4,178 mm13' 8"

Boom Length	––
Stick Length	––
Bucket Breakout Force (ISO)	––
Stick Digging Force (ISO)	––
