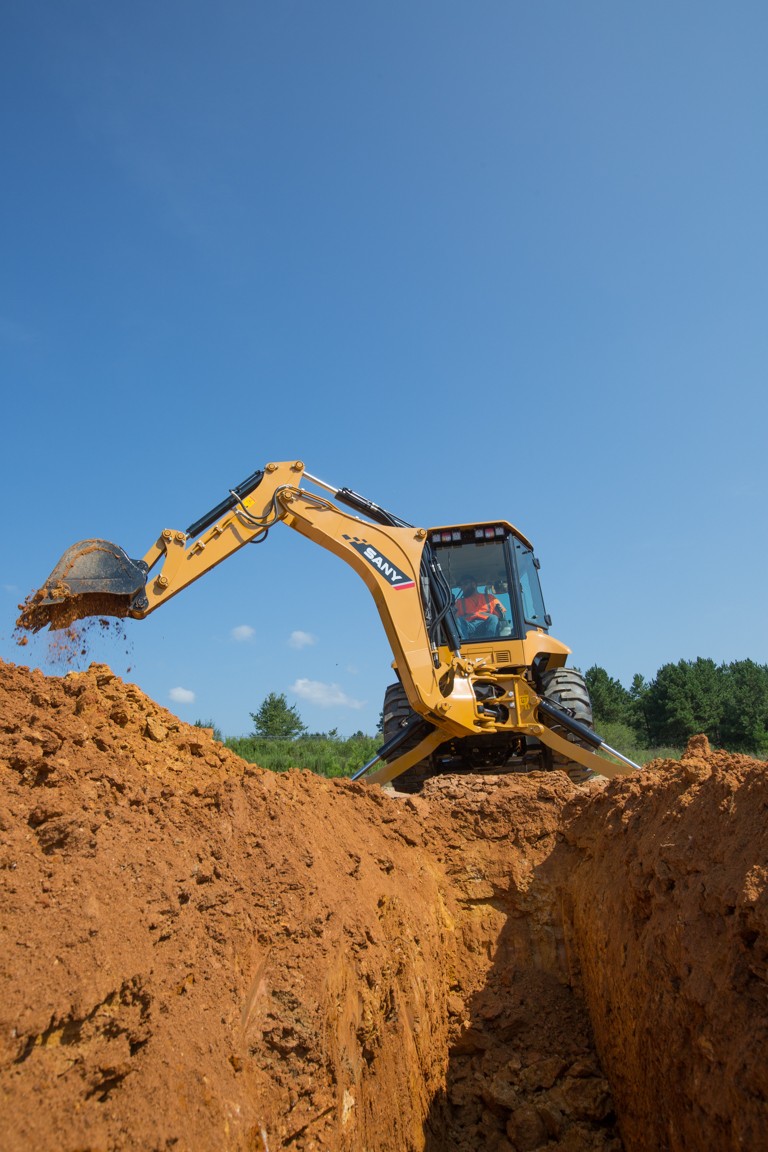

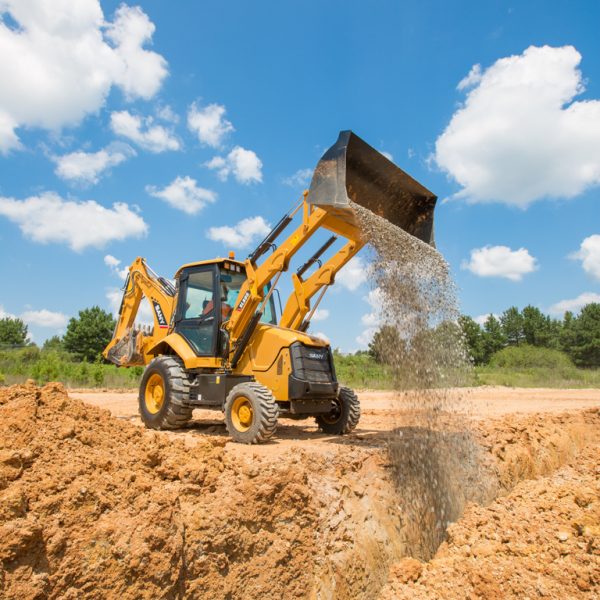

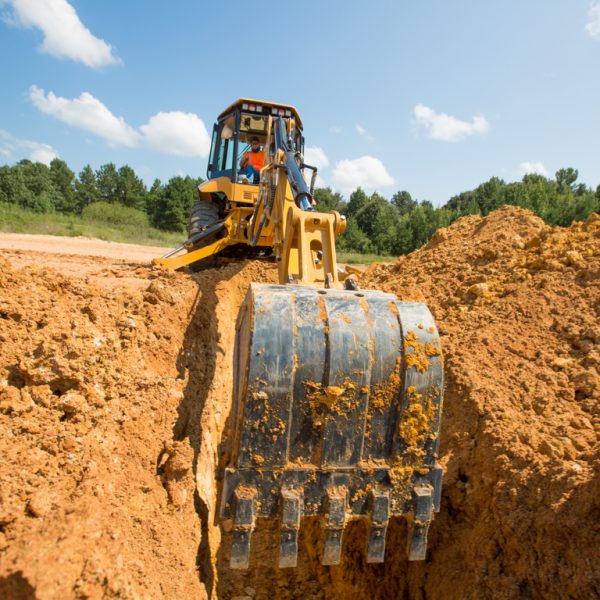

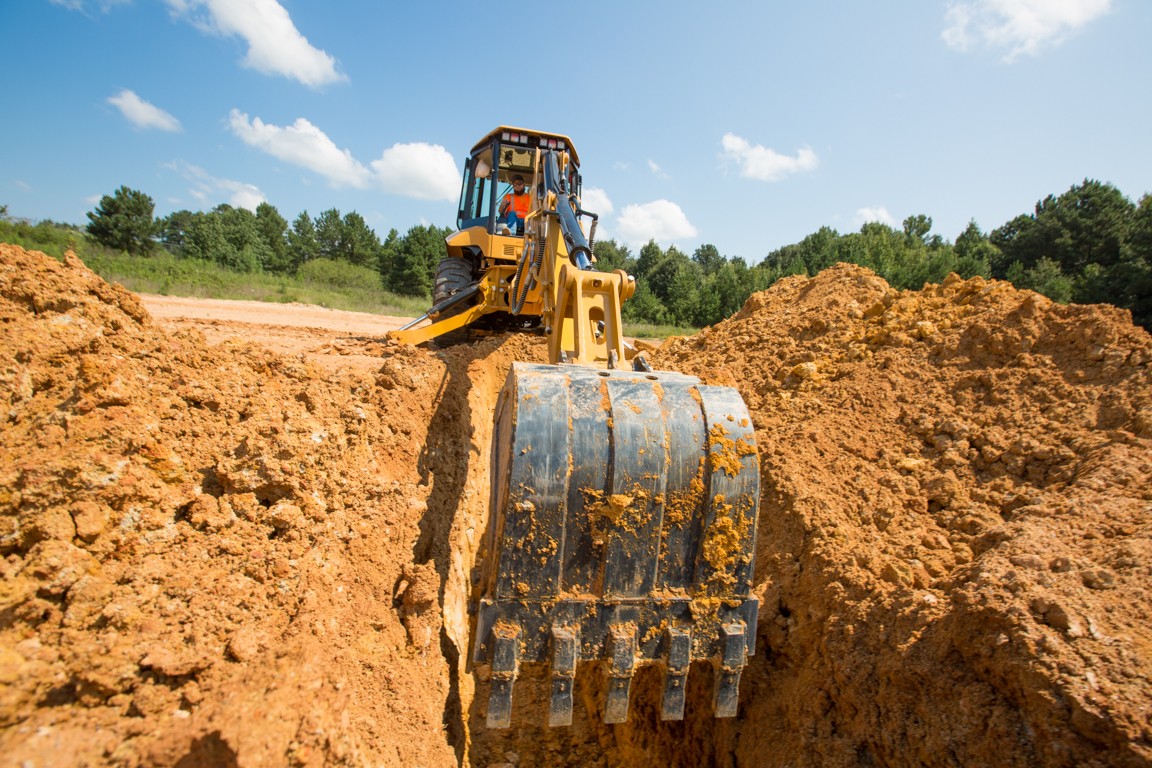

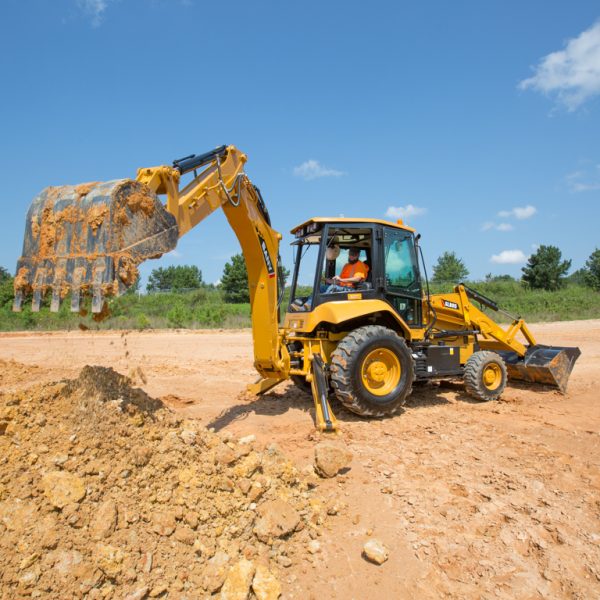

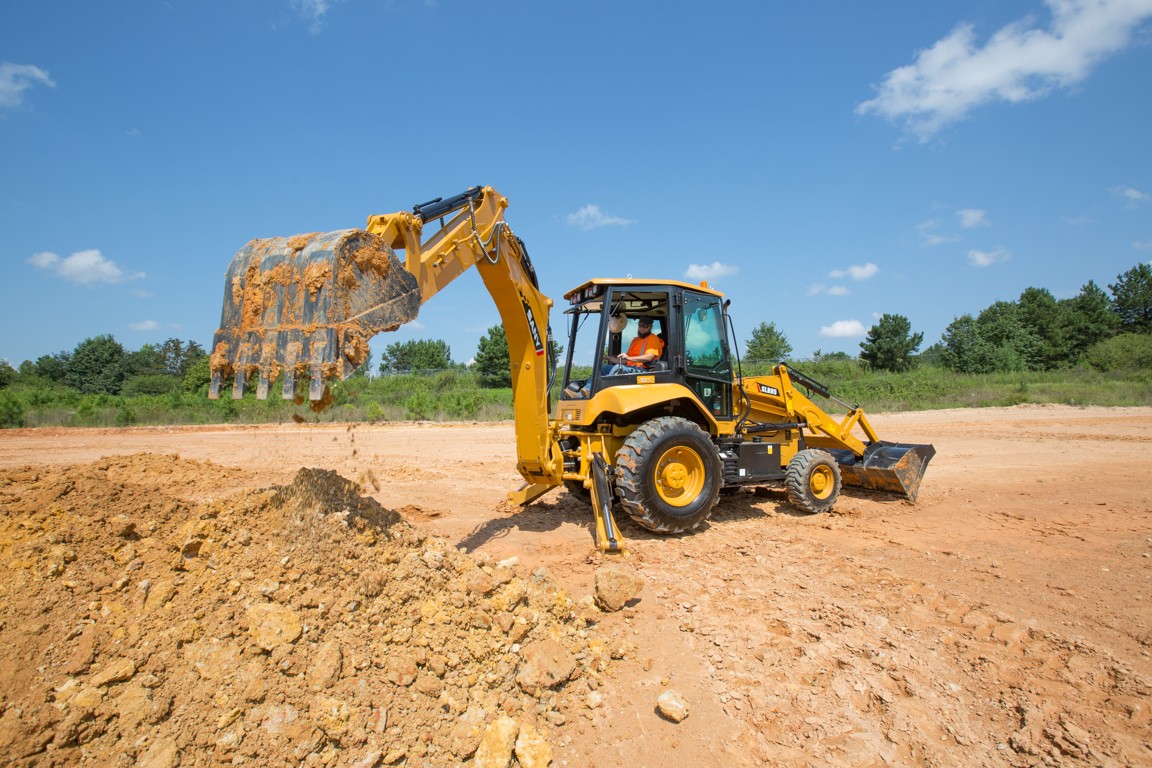

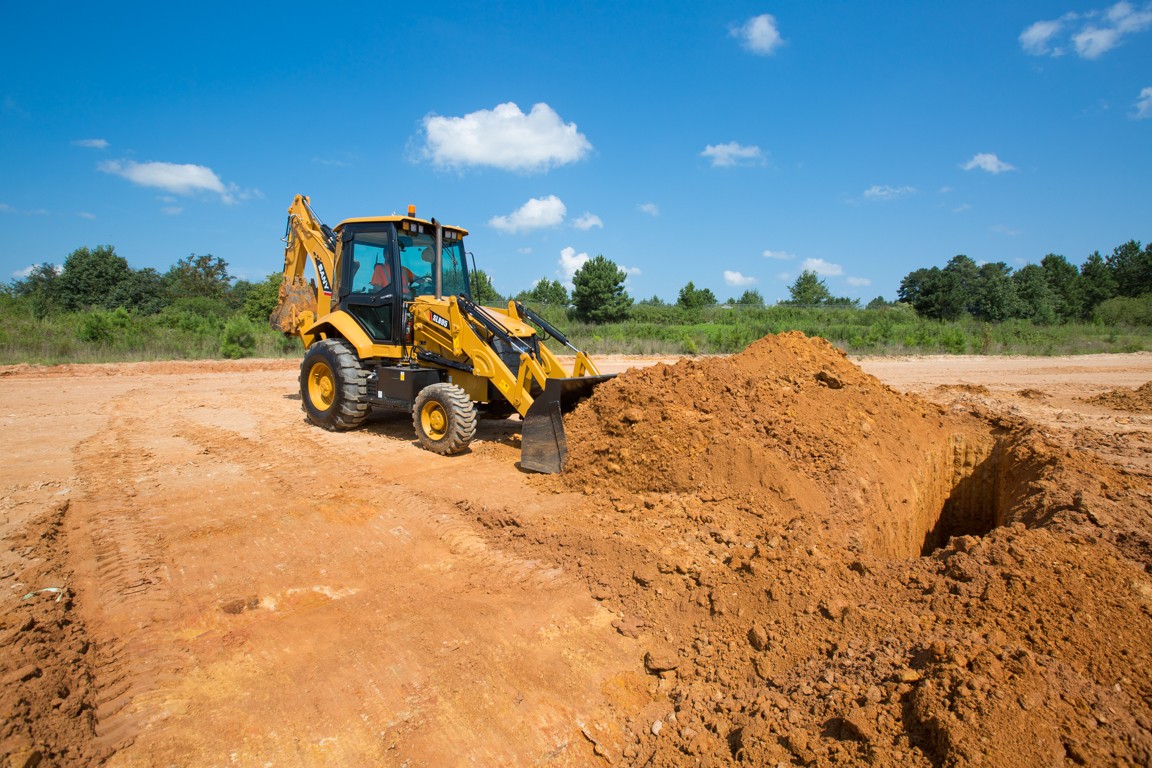

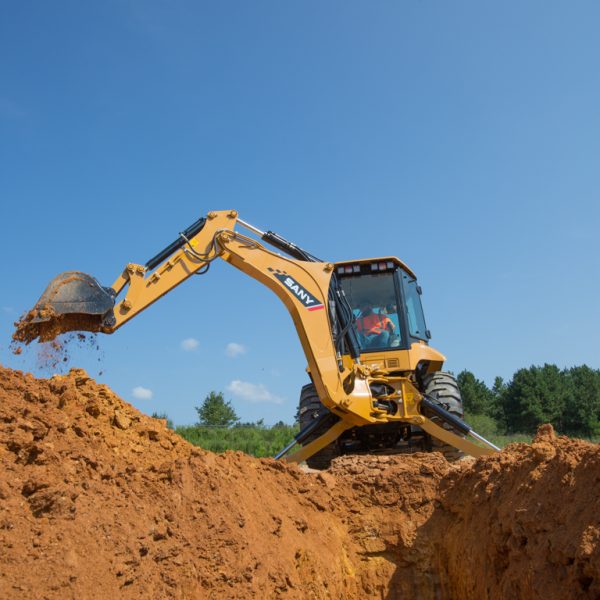

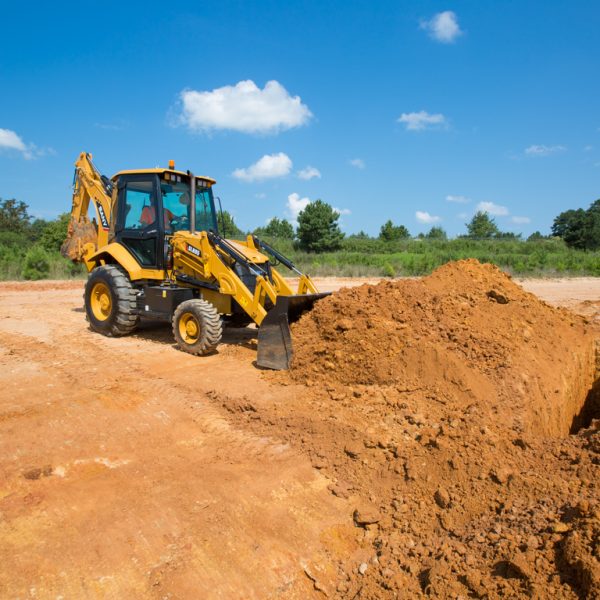

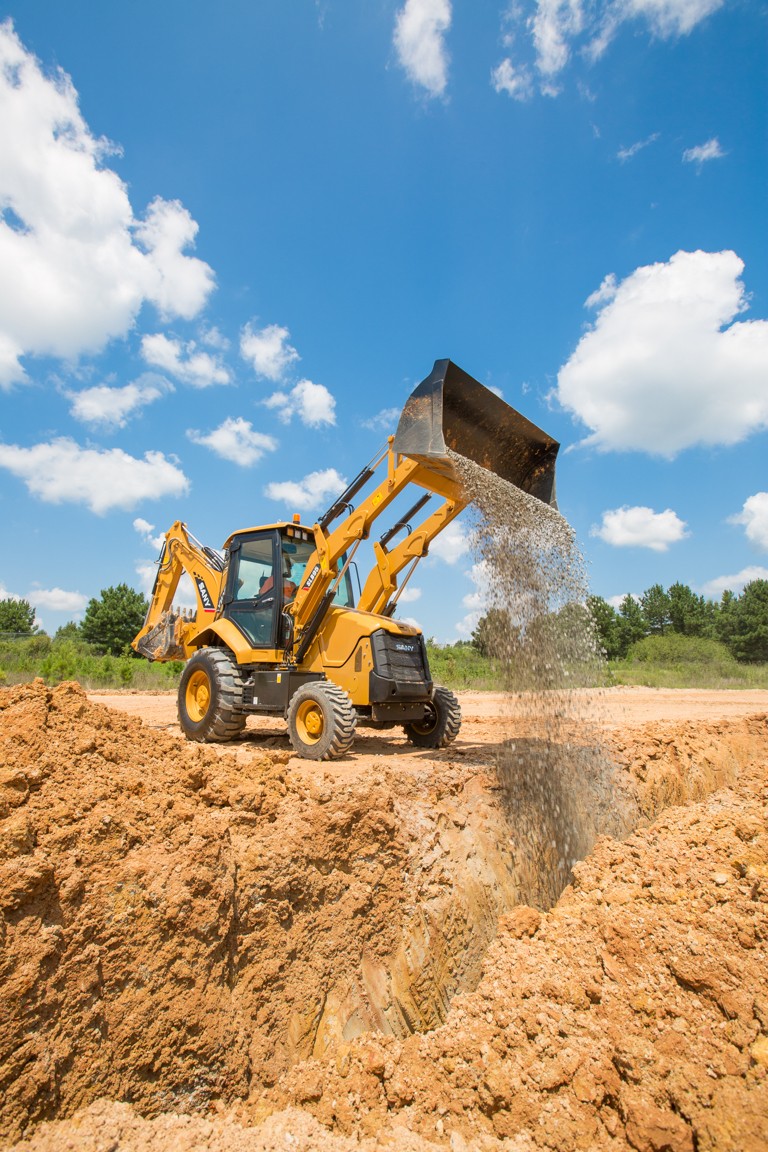

SLB95
Backhoe Loader



Specifications

Model
SLB95
×

Technical Specifications

Hide
Operating Weight
17,637 lbs8 000 kg
EngineDeutz TCD3.6-L4 - Low Maintenance T4F
Displacement
220 in³3.6 L
Gross Power
99 hp @ 2200 rpm73.8 kW @ 2200 rpm
Net Power
95 hp @ 2200 rpm70.8 kW @ 2200 rpm
Maximum Torque
302.4 lbs-ft @1600 rpm410 Nm @ 1600 rpm
TransmissionsZF 4WD — 4 Speed Forward/Reverse
Speed Gear 1
3 mph4.8 km/hr
Speed Gear 2
6 mph9.6 km/hr
Speed Gear 3
12 mph19.3 km/hr
Speed Gear 4
22 mph35.4 km/hr
HydraulicsLoad Sensing with Pilot Controls
Main Hydraulic PumpKawasaki Variable Displacement—Axial Piston
Hydraulic Power
52.3 hp @ 2200 rpm39 kW @ 2,200 rpm
System Flow
41.2 gal/min156 l/min
Operating Pressure
3,625 psi24.9 MPa
One-way Aux Line Max Flow
21 gal/min79.4 l/min
One-way Aux Line Max Pressure
2,103 psi14.5 MPa
×

Dimensions

Hide
Overall Length, Transport
24' 3"7 381 mm
Overall Width, Transport
7' 6"2 280 mm
Transport Height
12' 3"3 732 mm
Cab Roof Height
10' 3"3 129 mm
Ground Clearance
1' 1"320 mm
Length from Axle to Axle
7' 4"2 245 mm
Wheel Base, Rear
5' 10"1 780 mm
Turning Radius, Front Tires
13' 11"4 240 mm
Turning Radius, Front Bucket
15' 9"4 800 mm
Stabilizer Overall Width
11' 5"3 491 mm
×

Service Refill Capacities

Hide
Fuel Tank Capacity
140.0 L37.0 gal
DEF Tank Capacity
10.0 L2.6 gal
Hydraulic Oil Capacity
120.0 L31.7 gal
Engine Oil Capacity
8.5 L2.2 gal
Cooling System Capacity
20.0 L5.3 gal
Gear Box Oil Capacity
18.0 L4.8 gal
×

Working Range

Hide
Maximum Digging Height
17' 7"5 370 mm
Maximum Reach from Center of Swing Pivot
18' 7"5 671 mm
Maximum Digging Depth
14' 3"4 332 mm
Maximum Height to Bucket Hinge Pin
11' 5"3 478 mm
Dump Clearance
8' 10"2 700 mm
Reach at Dump Position
2' 5"730 mm
Maximum Digging Depth with Bucket Leveled
3"88 mm
Bucket Rollback Angle @ Ground Level40º
Bucket Rollback Angle @ Full Height51º
Loader Dump Angle @ Full Height44º
Maximum Operating Height
14' 1"4 293 mm
×

Digging Performance

Hide
Bucket Breakout Force—Excavator
12,354 lbf55 kN
Bucket Breakout Force—Loader
11,240 lbf50 kN
