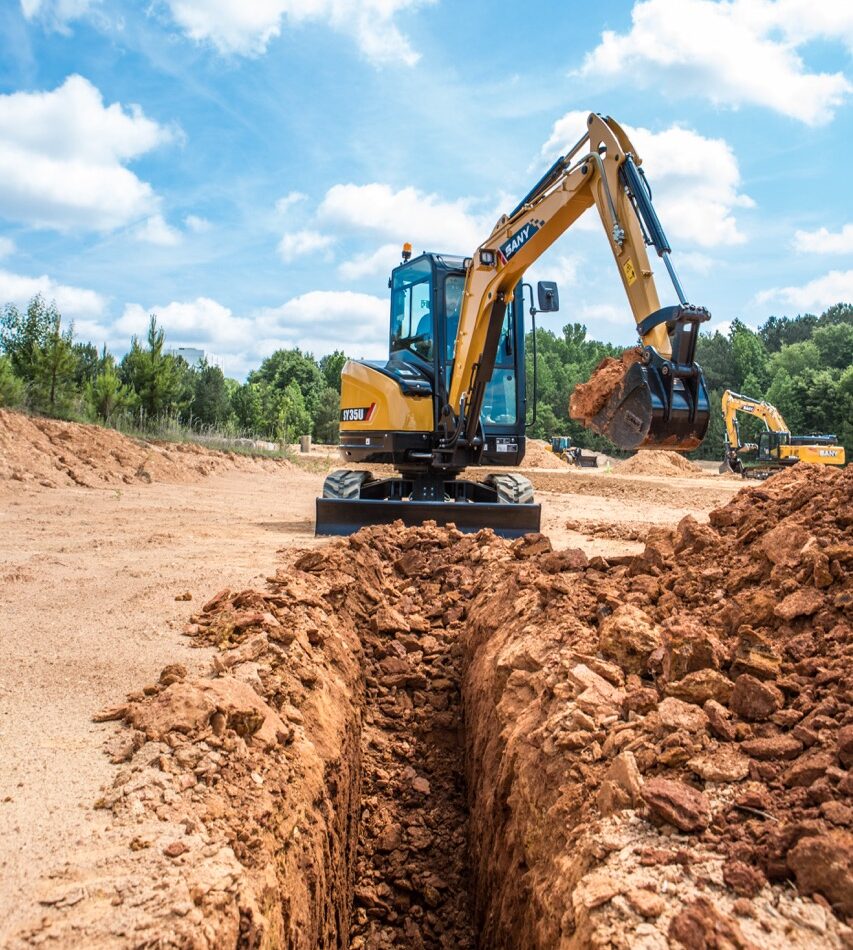

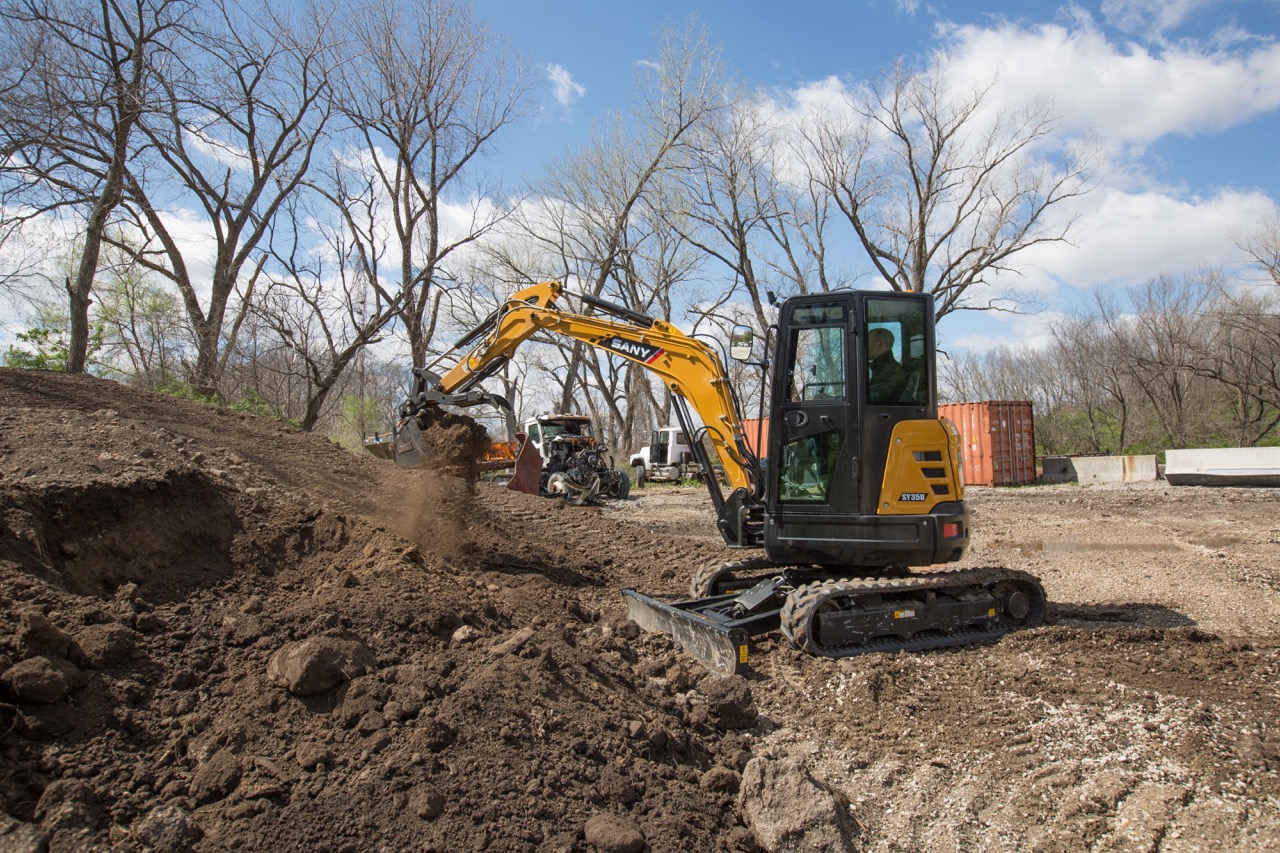

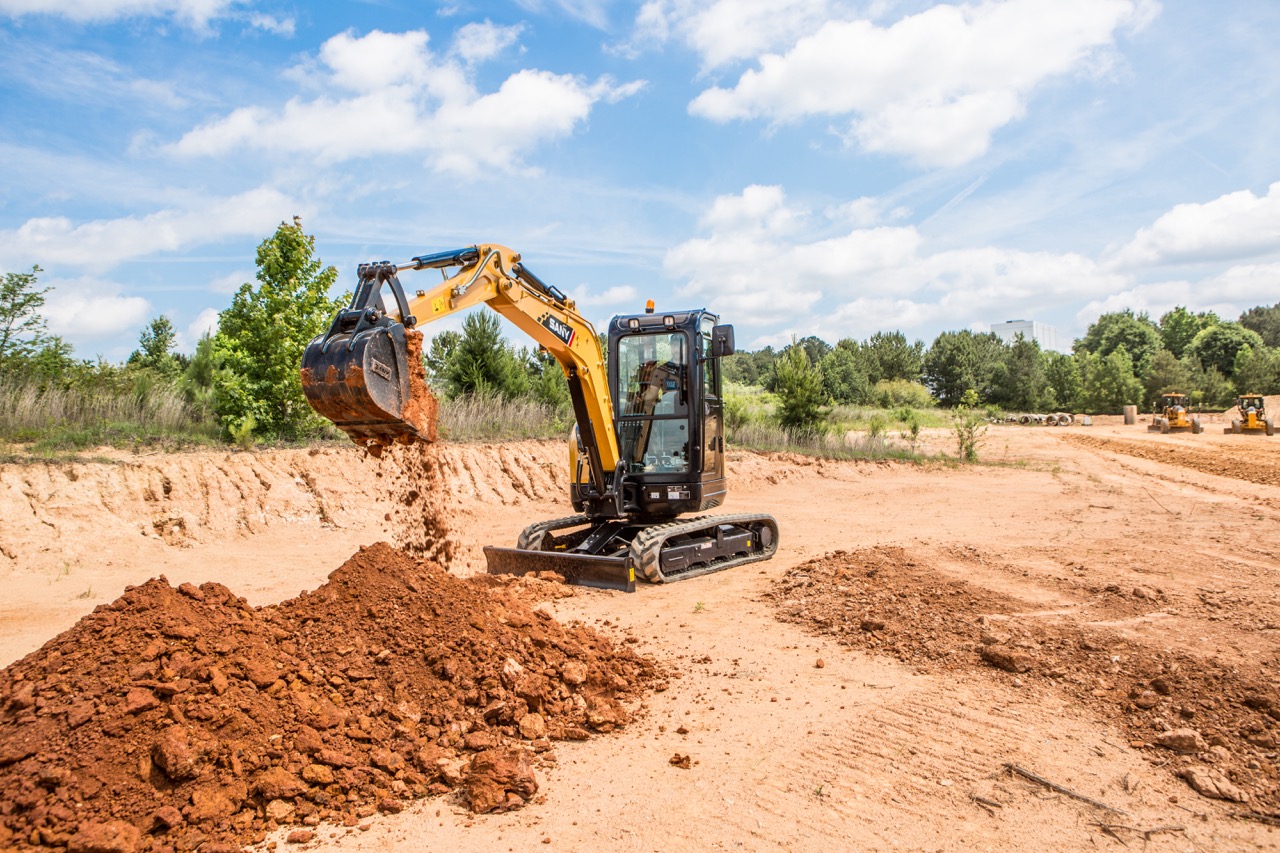

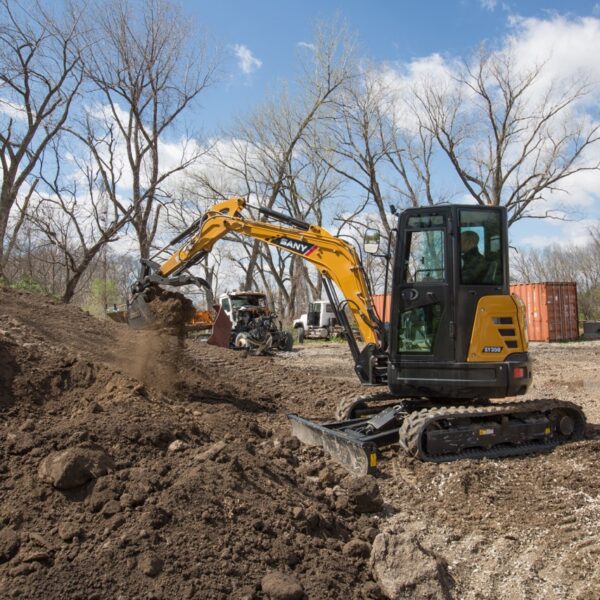

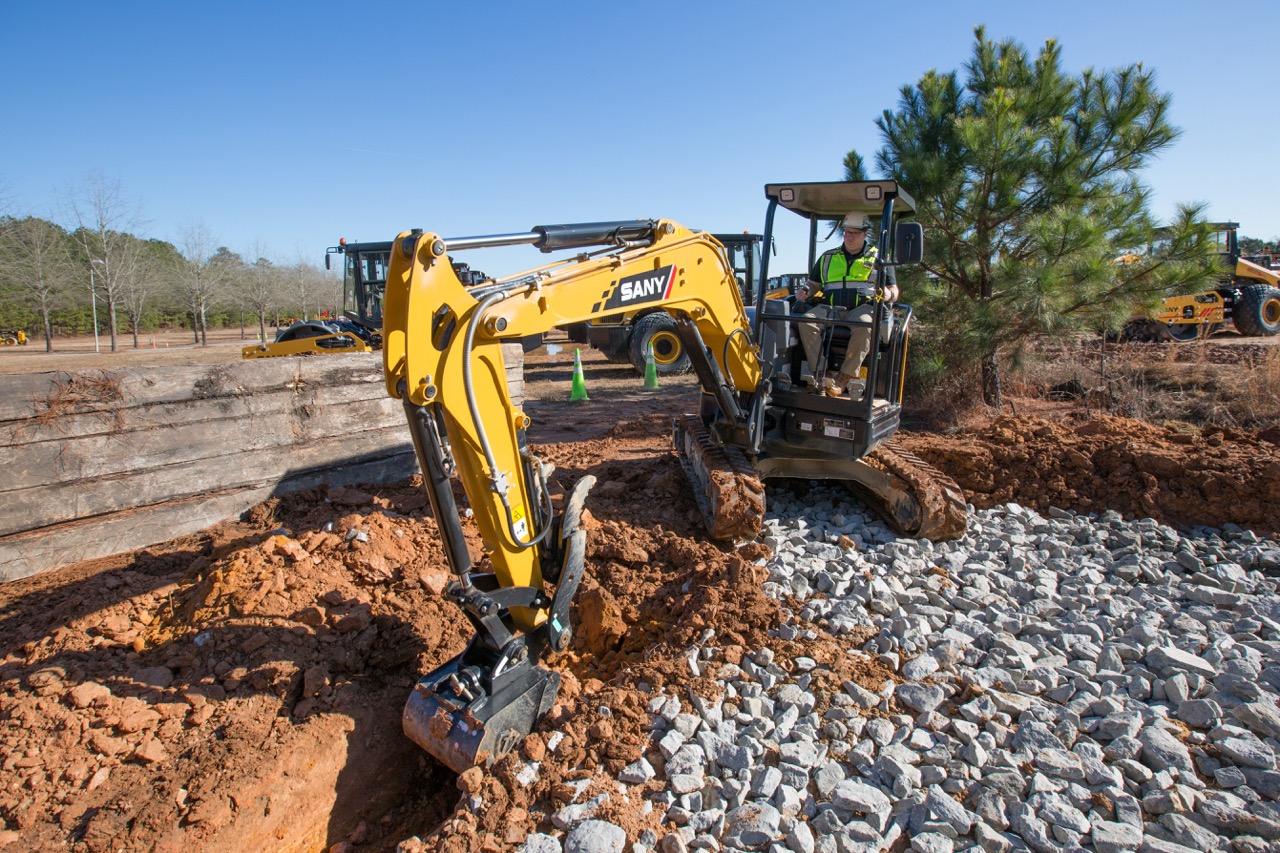

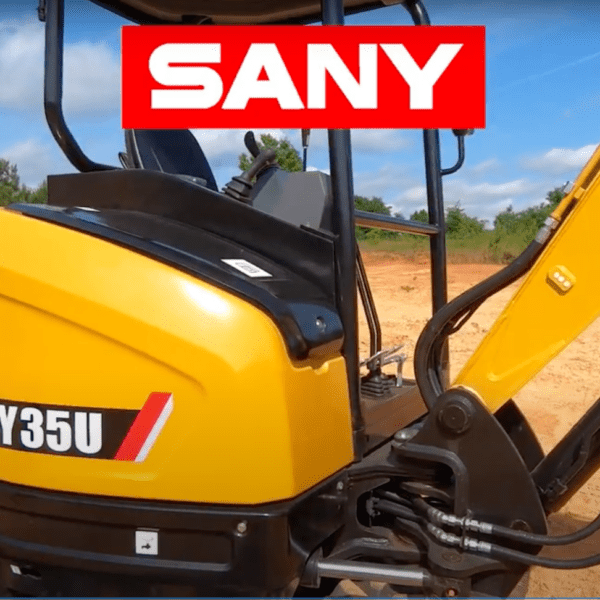

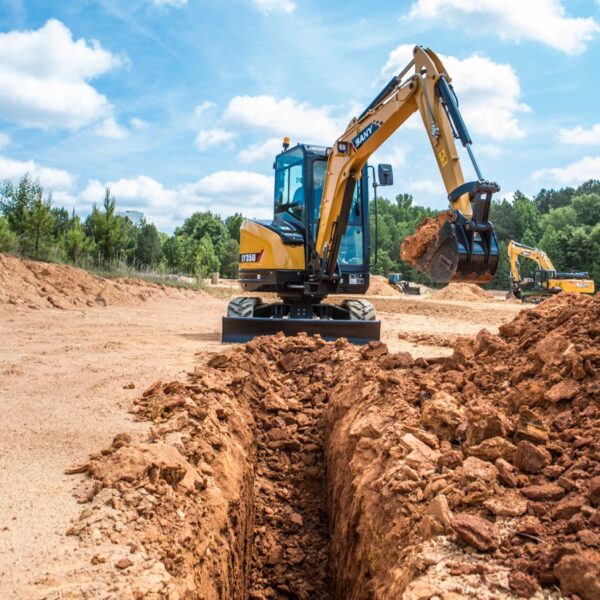

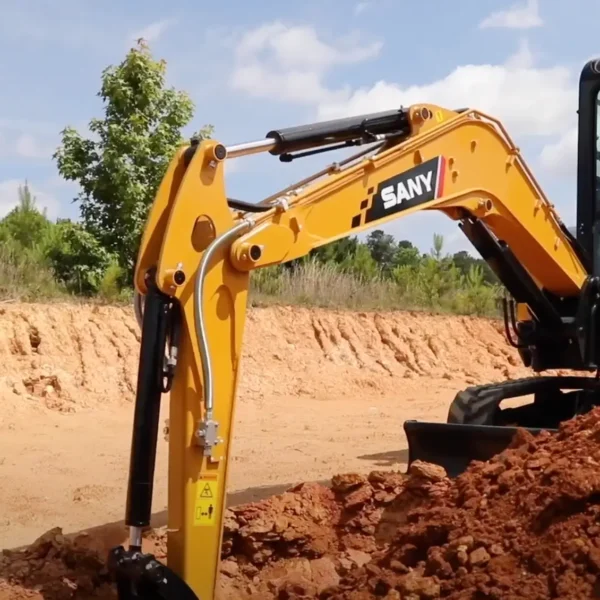

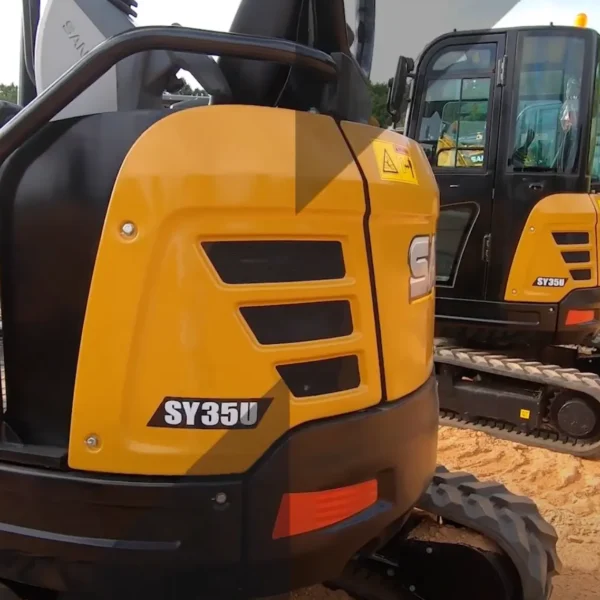

SY35U
Excavator

Model
SY35U
×

Overall Dimensions

Hide
Boom Length
2540 mm8' 4"

Stick (Arm) Length
1400 mm4' 7"

Transport Length
4915 mm16' 2"

Transport Width
1720 mm5' 8"

Transport Height
2515 mm8' 3"

Upper Structure Width
1550 mm5' 1"

Cab Height

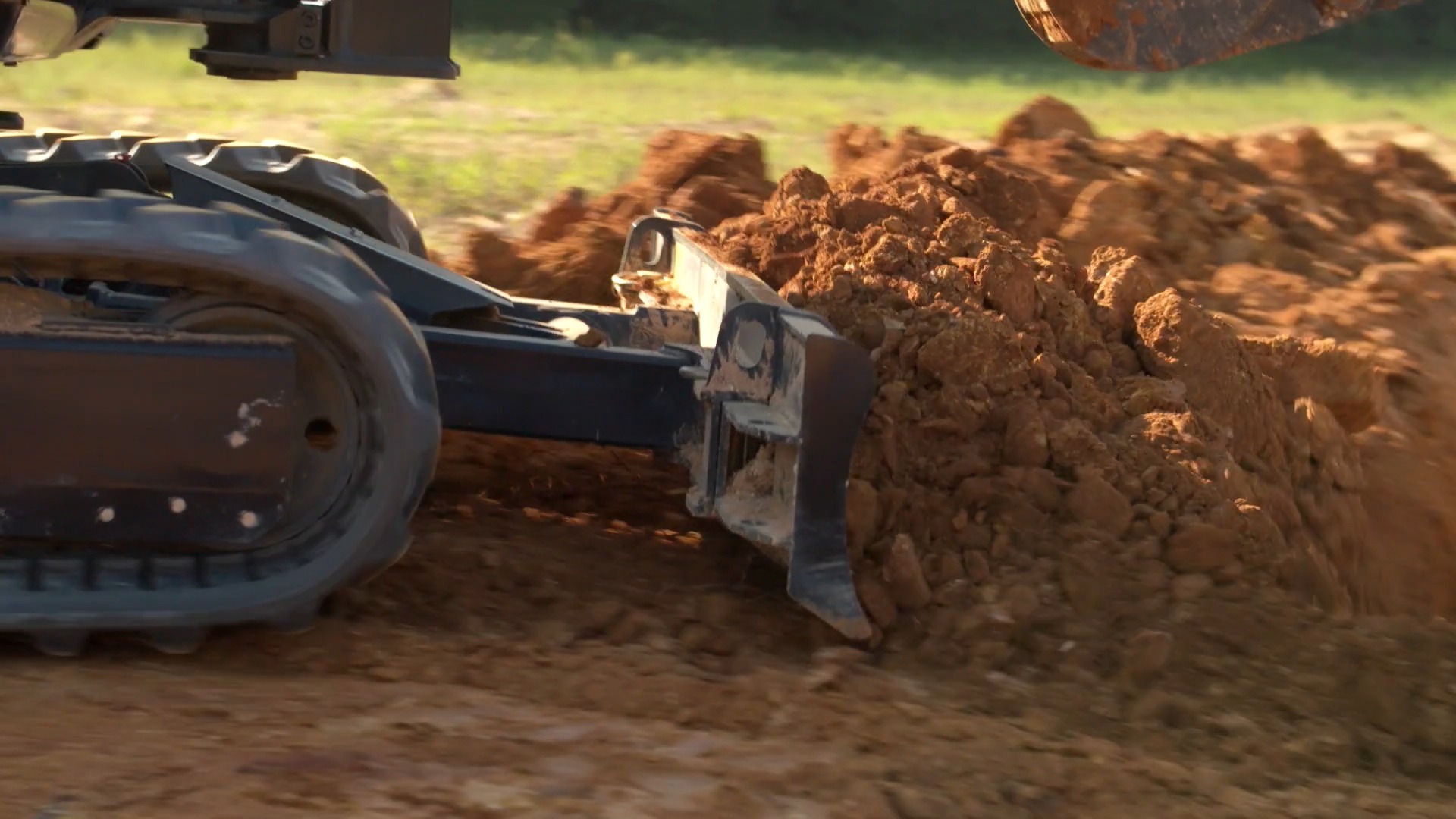

Blade Height
350 mm14"

Track Width (standard shoe)
300 mm12"

Track Gauge
1420 mm4' 8"

Ground Clearance (minimum)
295 mm12"

Tail Swing Radius
860 mm2' 10"

Track Length on Ground
1670 mm5' 6"

Track Length
2155 mm7' 1"

×

Technical Specifications

Hide
Operating Weight
3855 kg8,499 lb

Ground Pressure
32.0 kPa4.6 psi

EngineYanmar 3TNV88F
Displacement
1.6 L97.6 in3

Gross Power
18.2 kW24.4 HP

HydraulicsLoad Sensing with Pilot Control
Main Hydraulic PumpAxial Piston - Variable Displacement
Operating Flow (maximum)
88.0 L/min23.2 gal/min

Operating Pressure (maximum)
24.5 MPa3553 psi

Power Boost Pressure (maximum)

Travel MotorAxial Piston with Park Brake
Travel Pressure (maximum)
24.5 MPa3553 psi

Travel Speeds (maximum)
2.4 / 4.4 km/hr1.5 / 2.7 mph

Travel Effort (maximum)
36.8 kN8,273 lbf

Grade Capability35º
Swing MotorAxial Piston with Swing Brake
Swing Pressure (maximum)
20.6 MPa2988 psi

Swing Speed (maximum)9 rpm
Undercarriage (standard)Belted Rubber Track
Track Shoe Width (standard)
300 mm12"

Track Rollers (per side)4
Carrier Rollers (per side)1
×

Working Range

Hide
Boom Length
2540 mm8' 4"

Stick (Arm) Length
1400 mm4' 7"

Maximum Digging Height
4855 mm15' 11"

Maximum Dumping Height
3460 mm11' 4"

Maximum Digging Depth
3105 mm10' 2"

Maximum Vertical Wall Digging Depth
2700 mm8' 10"

Maximum Reach at Ground Level
5465 mm17' 11"

Maximum Swing Radius
2475 mm8' 1"
