Medium Excavator

SY225C

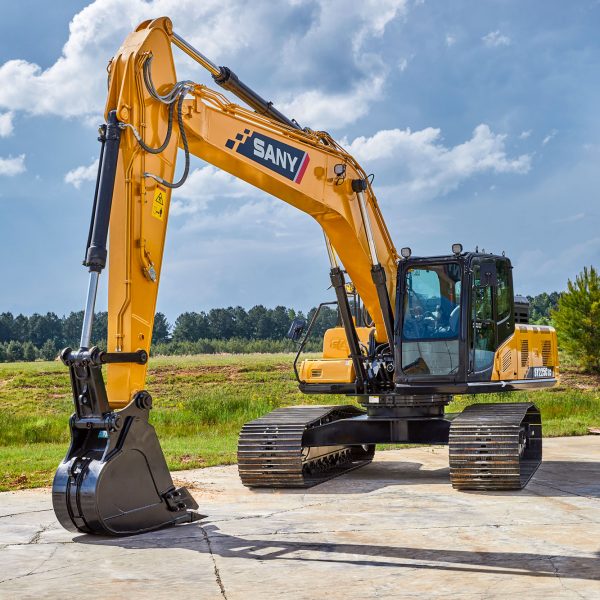

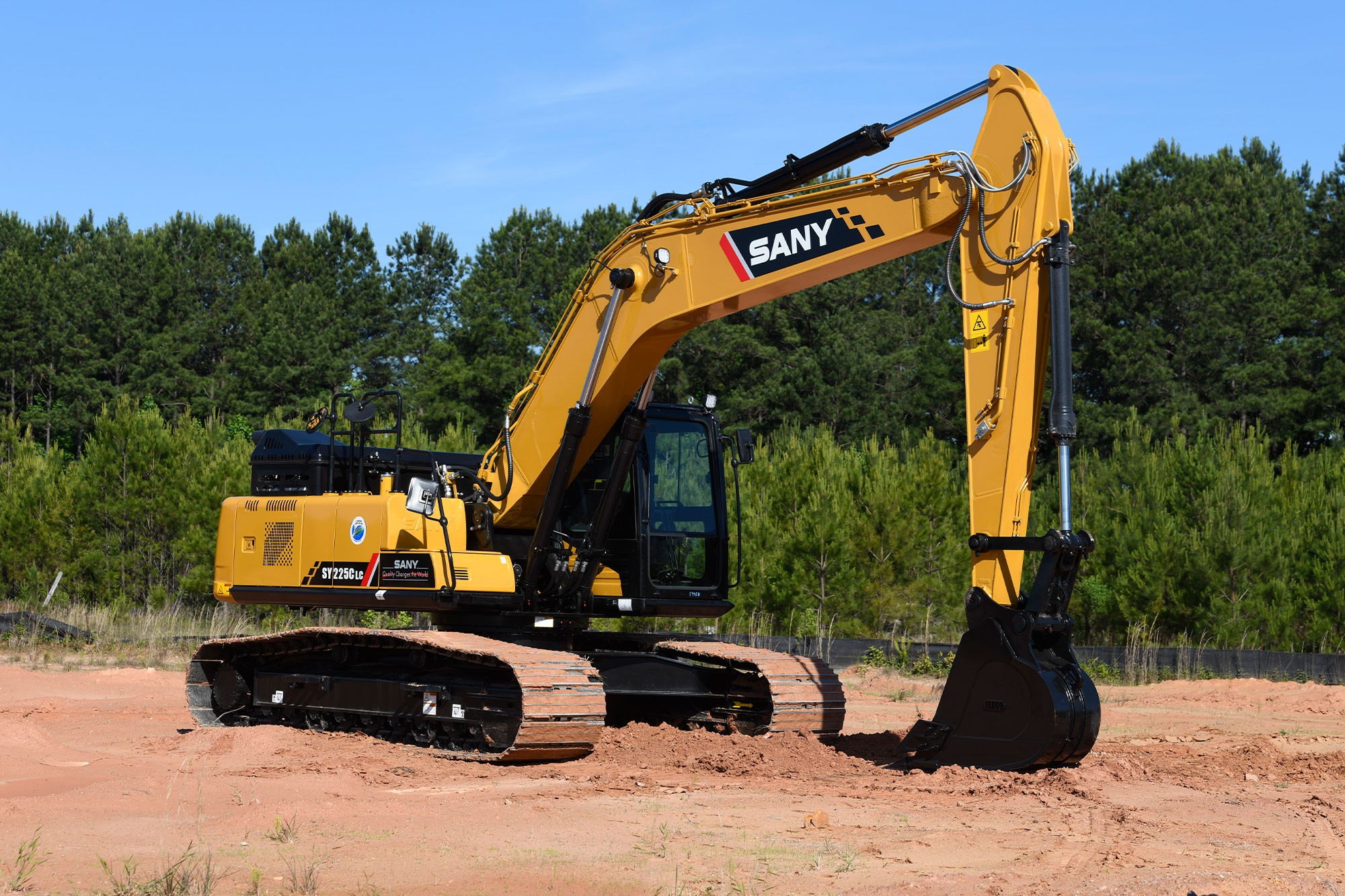

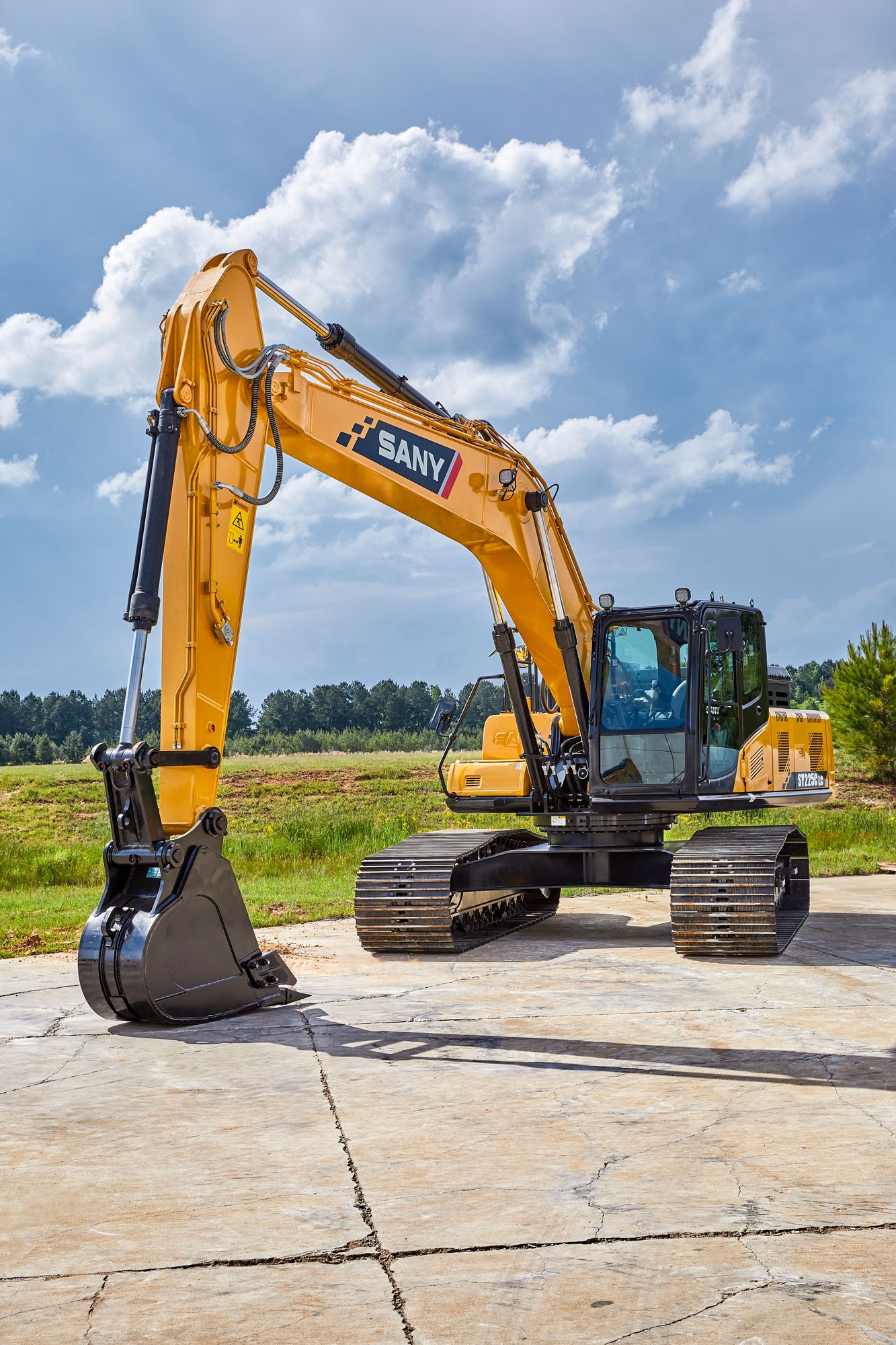

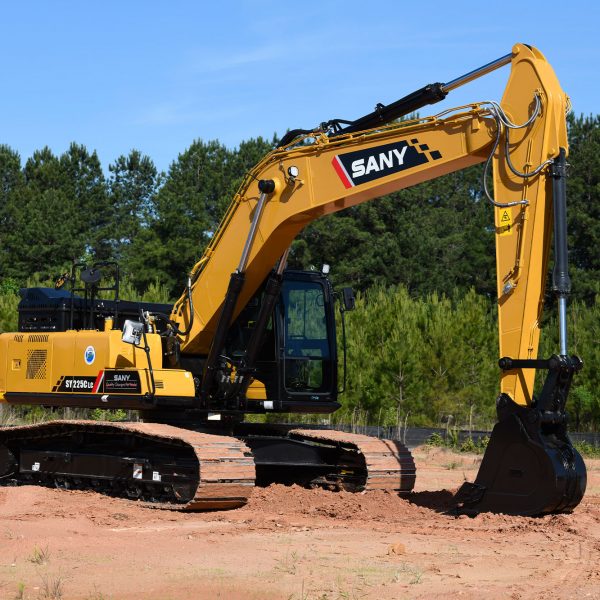

SANY’s SY225C medium excavator is earthmoving equipment built for power, stability and performance, boasting a reinforced undercarriage and additional counterweight, making it a versatile tool carrier. This new excavator adapts in the most rugged environments with bucket breakout force of 28,551 lbf and an extended track-to-surface length of 12′ 7″.

Powerful and robust powertrain with Cummins and Kawaski
Reliable and well know Kawasaki hydraulic components
When equipped with quick coupler, operators can easily reduce the time it takes to change work tools giving convenience and flexibility in the field
Extended steel track length allows operator more stability in challenging environments

Find a Dealer Near You
Have Product Feedback?

Operating Weight

54,013 lbs
24,500 kg

Gross Power

163.6 hp
122 kW

Dig Depth

21′ 8″
6,600 mm

Features

Download Product Specifications Sheet

In the interest of continual equipment development, SANY America, Inc. reserves the right to change these specifications at any time without prior notification.

*Based on theoretical calculation at max flow with no load. Subject to alterations.

Boom Length	5,700 mm18' 8"
Stick (Arm) Length	2,925 mm9' 7"
Transport Length	9,728 mm31' 11"
Transport Width	3,390 mm11' 1"
Transport Height	3,370 mm11' 1"
Upper Structure Width	2,710 mm8' 11"
Cab Height	3,050 mm10' 0"
Blade Height	––
Track Width (standard shoe)	800 mm31"
Track Gauge	2,590 mm8' 6"
Ground Clearance (minimum)	480 mm19"
Tail Swing Radius	2,890 mm9' 6"
Track Length on Ground	3,830 mm12' 7"
Track Length	4,636 mm15' 3"

Operating Weight	24,500 kg54,013 lb
Ground Pressure	36.1 kPa5.2 psi
Engine	Cummins QSB6.7
Displacement	6.7 L408.9 in³
Gross Power	122 kW163.6 HP
Hydraulics	Positive Flow with Pilot Control
Main Hydraulic Pump	Axial Piston – Variable Displacement
Operating Flow (maximum)	444.0 L/min117.3 gal/min
Operating Pressure (maximum)	34.3 MPa4975 psi
Auxiliary Flow	––
Auxiliary Pressure	––
Travel Motor	Axial Piston with Park Brake
Travel Pressure (maximum)	34.3 MPa4975 psi
Travel Speeds (maximum)	3.3 / 5.1 km/hr2.1 / 3.2 mph
Travel Effort (maximum)	180.0 kN40,466 lbf
Grade Capability	35°
Swing Motor	Axial Piston with Swing Brake
Swing Pressure (maximum)	28.0 MPa3989 psi
Swing Speed (maximum)	10.9 RPM
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	800 mm31"
Track Rollers (per side)	9
Carrier Rollers (per side)	2

Boom Length	5,700 mm18' 8"
Stick (Arm) Length	2,925 mm9' 7"
Maximum Digging Height	9,180 mm30' 1"
Maximum Dumping Height	6,670 mm21' 11"
Maximum Digging Depth	6,600 mm21' 8"
Maximum Vertical Wall Digging Depth	5,980 mm19' 7"
Maximum Reach at Ground Level	10,307 mm33' 10"
Minimum Swing Radius	3,730 mm12' 3"
