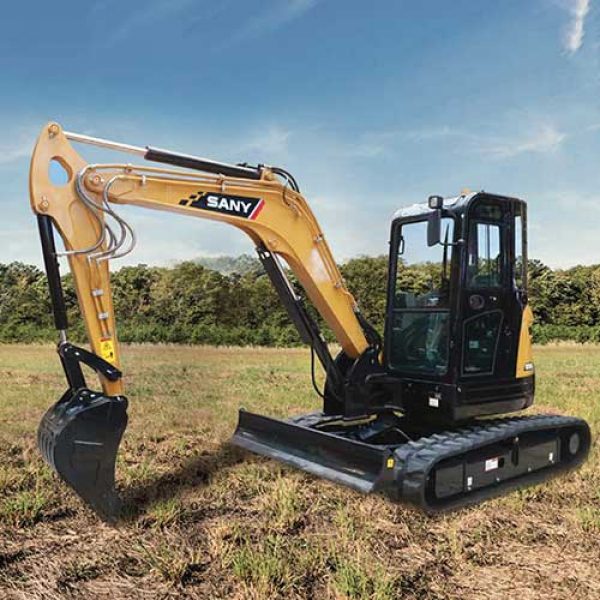

SY50U
Excavator

Model
SY50U
×

Overall Dimensions

Hide
Boom Length
2700 mm8' 10"

Stick (Arm) Length
1500 mm4' 11"

Transport Length
5390 mm17' 8"

Transport Width
1960 mm6' 5"

Transport Height
2630 mm8' 8"

Upper Structure Width
1760 mm5' 9"

Cab Height

Blade Height
330 mm13"

Track Width (standard shoe)
400 mm16"

Track Gauge
1560 mm5' 1"

Ground Clearance (minimum)
325 mm13"

Tail Swing Radius
980 mm3' 3"

Track Length on Ground
1990 mm6' 6"

Track Length
2510 mm8' 3"

×

Technical Specifications

Hide
Operating Weight
5300 kg11,684 lb

Ground Pressure
31.6 kPa4.6 psi

EngineYanmar 4THV88C
Displacement
2.2 L134.3in3

Gross Power
29.1 kW39.0 HP

HydraulicsLoad Sensing with Pilot Control
Main Hydraulic PumpAxial Piston - Variable Displacement
Operating Flow (maximum)
110.0 L/min29.1 gal/min

Operating Pressure (maximum)
24.5 MPa3553 psi

Power Boost Pressure (maximum)

Travel MotorAxial Piston with Park Brake
Travel Pressure (maximum)
24.5 MPa3553 psi

Travel Speeds (maximum)
2.7 / 4.0 km/hr1.5 / 2.5 mph

Travel Effort (maximum)
40.7 kN9,150 lbf

Grade Capability35º
Swing MotorAxial Piston with Swing Brake
Swing Pressure (maximum)
19.1 MPa2770 psi

Swing Speed (maximum)10 RPM

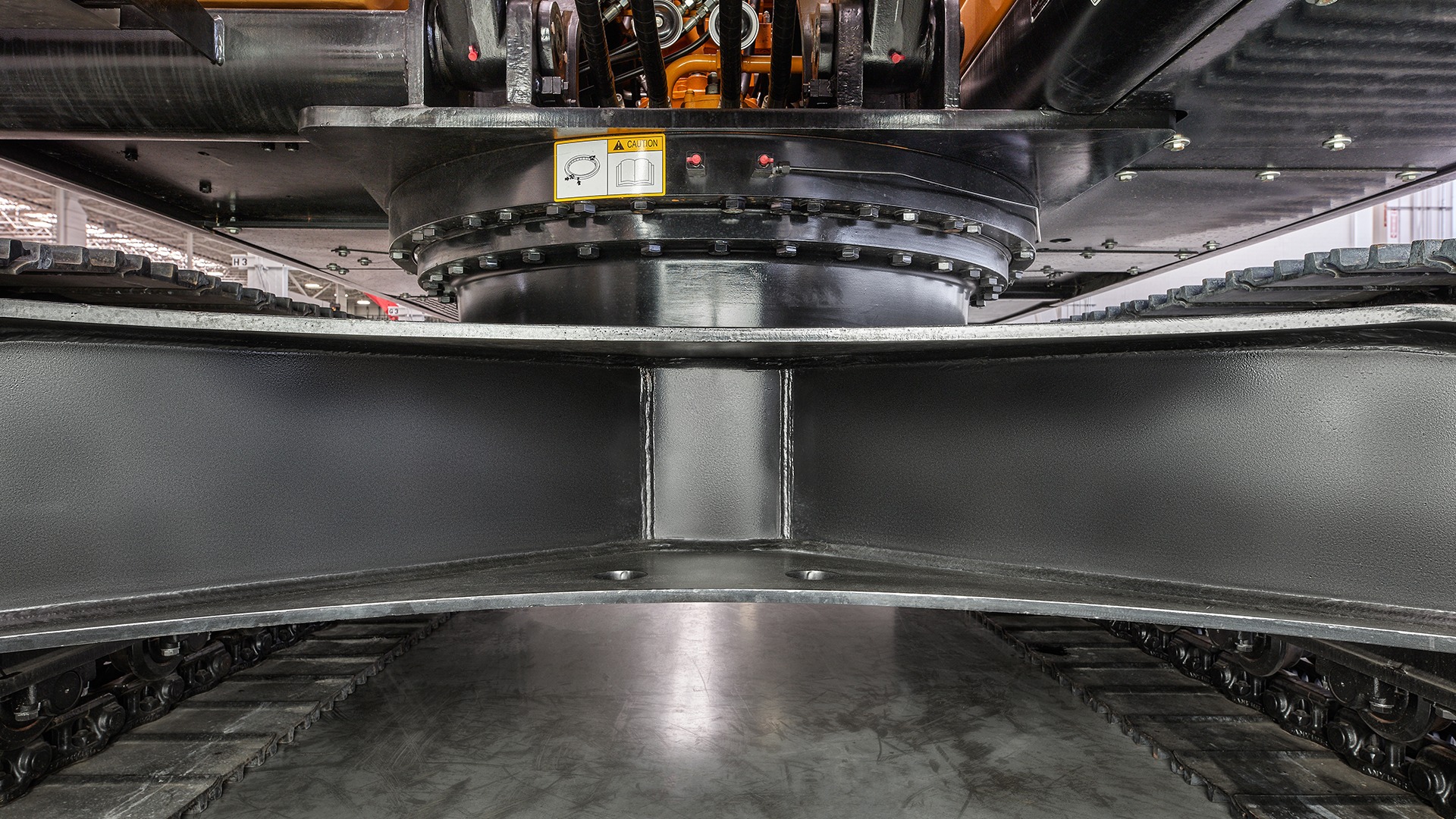

Undercarriage (standard)Belted Rubber Track
Track Shoe Width (standard)
400 mm16"

Track Rollers (per side)4
Carrier Rollers (per side)1
×

Working Range

Hide
Boom Length
2700 mm8' 10"

Stick (Arm) Length
1500 mm4' 11"

Maximum Digging Height
5450 mm17' 11"

Maximum Dumping Height
3805 mm12' 6"

Maximum Digging Depth
3420 mm11' 3"

Maximum Vertical Wall Digging Depth
2460 mm8' 1"

Maximum Reach at Ground Level
5880 mm19' 3"

Maximum Swing Radius
2520 mm8' 3"
