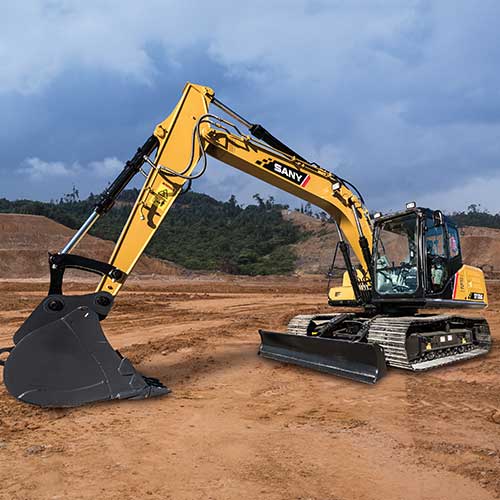

Overall Dimensions

Boom Length
4600mm15' 1"
Stick (Arm) Length
2500mm8' 2"
Transport Length
7700mm25' 3"
Transport Width
2600mm8' 6"
Transport Height
2815mm9' 3"
Upper Structure Width
2490mm8' 2"
Cab Height
Blade Height
Track Width (standard shoe)
Track Gauge
1990mm6' 6"
Ground Clearance (minimum)
Tail Swing Radius
2205mm7' 3"
Track Length on Ground
2930mm9' 7"
Track Length
3665mm12' 0"

Technical Specifications

Operating Weight
14870 kg32,783 lb
Ground Pressure
39.0 kPa5.7 psi
EngineISUZU 4JJ-FT4
3.0 L183 in3
Gross Power
77.0 kW103.3 HP
HydraulicsPositive Flow Control with Pilot Control
Main Hydraulic PumpAxial Piston - Variable Displacement
Operating Flow (maximum)
242.0 L/min63.9 gal/min
Operating Pressure (maximum)
34.3 MPa4975 psi
Power Boost Pressure (maximum)
Travel MotorAxial Piston with Park Brake
Travel Pressure (maximum)
34.3 MPa4975 psi
Travel Speeds (maximum)
3.5 / 5.5 km/hr2.2 / 3.4 mph
Travel Effort (maximum)
110.0 kN24,729 lbf
Grade Capability35ยบ
Swing MotorAxial Piston with Swing Brake
Swing Pressure (maximum)
25.0 MPa3626 psi
Swing Speed (maximum)12 rpm
Undercarriage (standard)Steel Track
Track Shoe Width (standard)
600 mm24"
Track Rollers (per side)7
Carrier Rollers (per side)1

Working Range

Boom Length
4600 mm15' 1"
Stick (Arm) Length
2500 mm8' 2"
Maximum Digging Height
8645 mm28' 4"
Maximum Dumping Height
6175 mm20' 3"
Maximum Digging Depth
5500 mm18' 1"
Maximum Vertical Wall Digging Depth
4850 mm15' 11"
Maximum Reach at Ground Level
8290 mm27' 2"
Minimum Swing Radius
2500 mm8' 2"
