SY235H

53,793 lbs | 21' 1" Dig Depth

The SANY SY235C medium excavator delivers the power and durability you need for tackling demanding North American job sites with confidence. Powered by a reliable 163.6 hp Cummins QSB6.7 Tier 4 Final engine and SANY’s optimized positive flow hydraulic system, it provides exceptional digging performance, smooth and responsive controls, and up to 10% better fuel efficiency to help you get more done for less. Featuring a maximum digging depth of over 21 ft, high-flow auxiliary hydraulics up to 117 gpm, and a spacious, low-noise cab with superior visibility and comfort, the SY235H is built for all-day productivity in heavy excavation, trenching, and material handling applications. With rugged steel tracks, proven reliability, and SANY’s industry-leading warranty and support, it’s the high-value choice for contractors who demand maximum uptime without compromise.

Dual Auxiliary Circuits

Long Chassis

Quick Coupler Plumbing

Standard Rearview and Blindside Cameras

2nd Auxiliary Gear Pump

10" Touchscreen Display

8 Tool Selection Modes

Air Ride Heated Seat

Cummins Engine

Features and Specifications

*Based on theoretical calculation at max flow with no load. Subject to alterations.

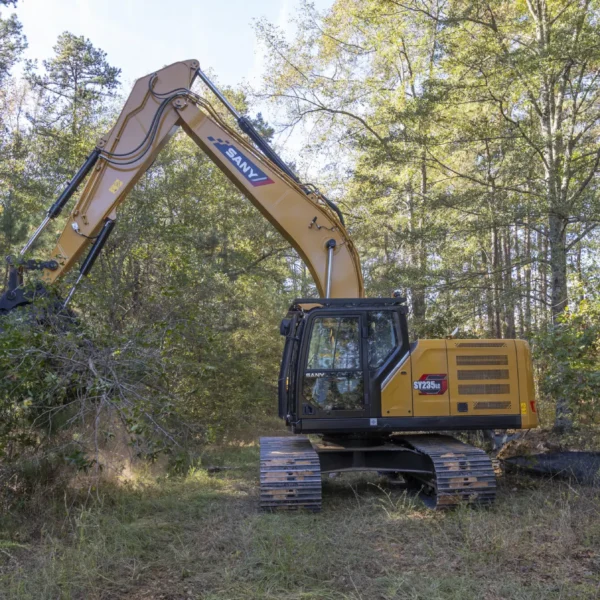

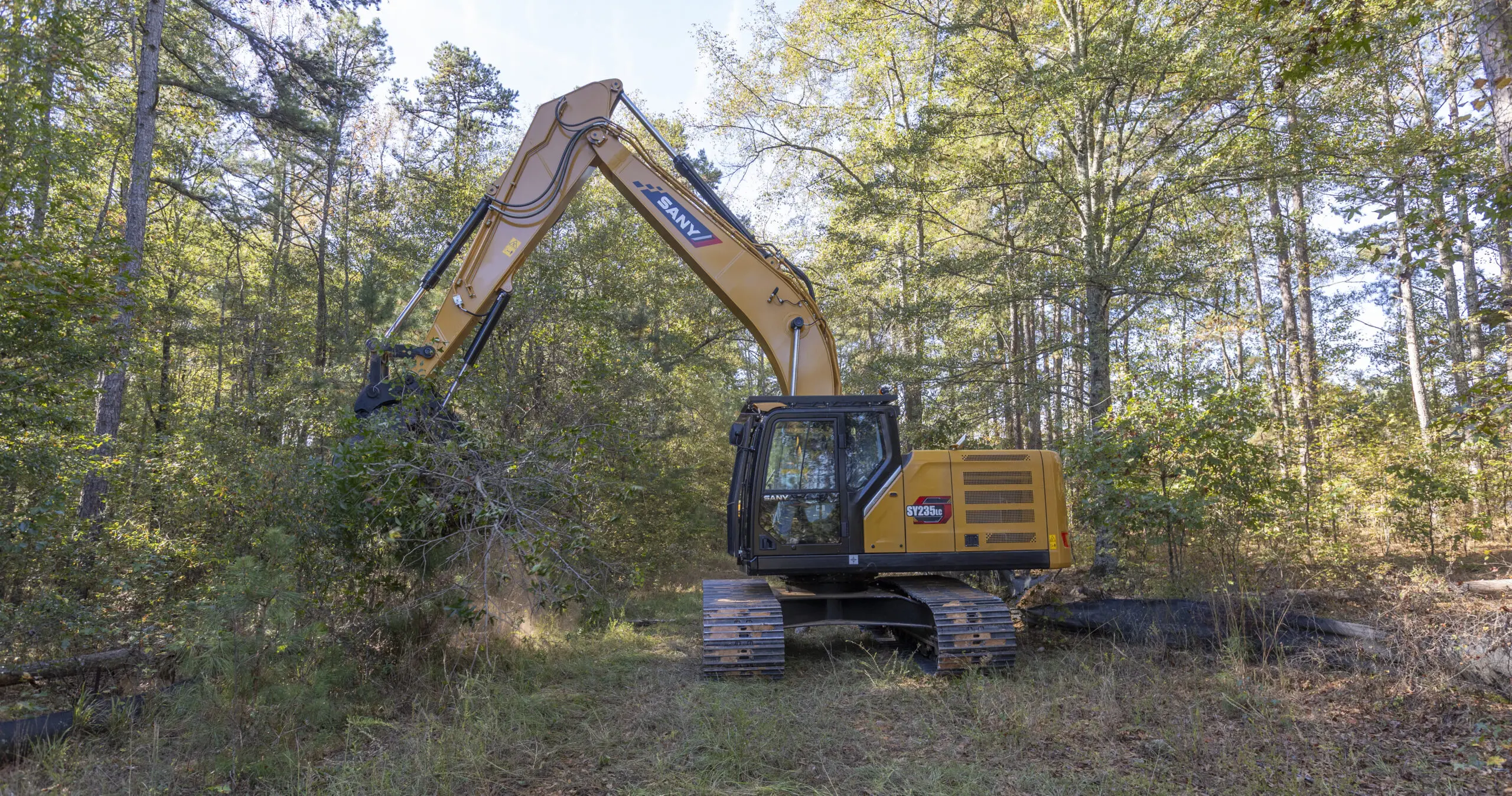

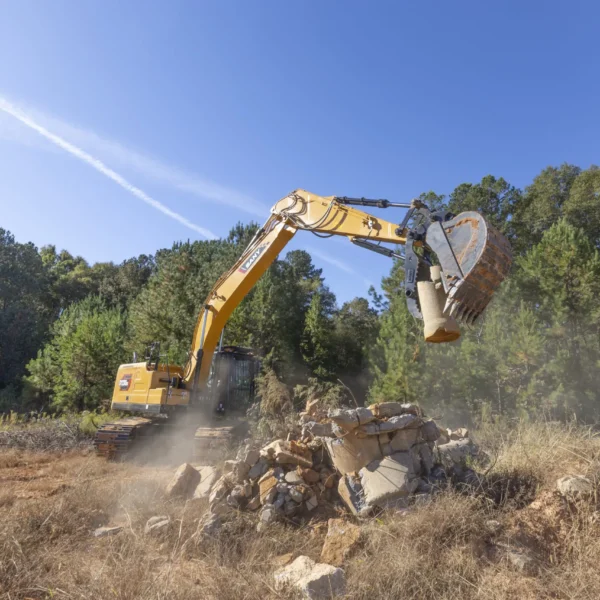

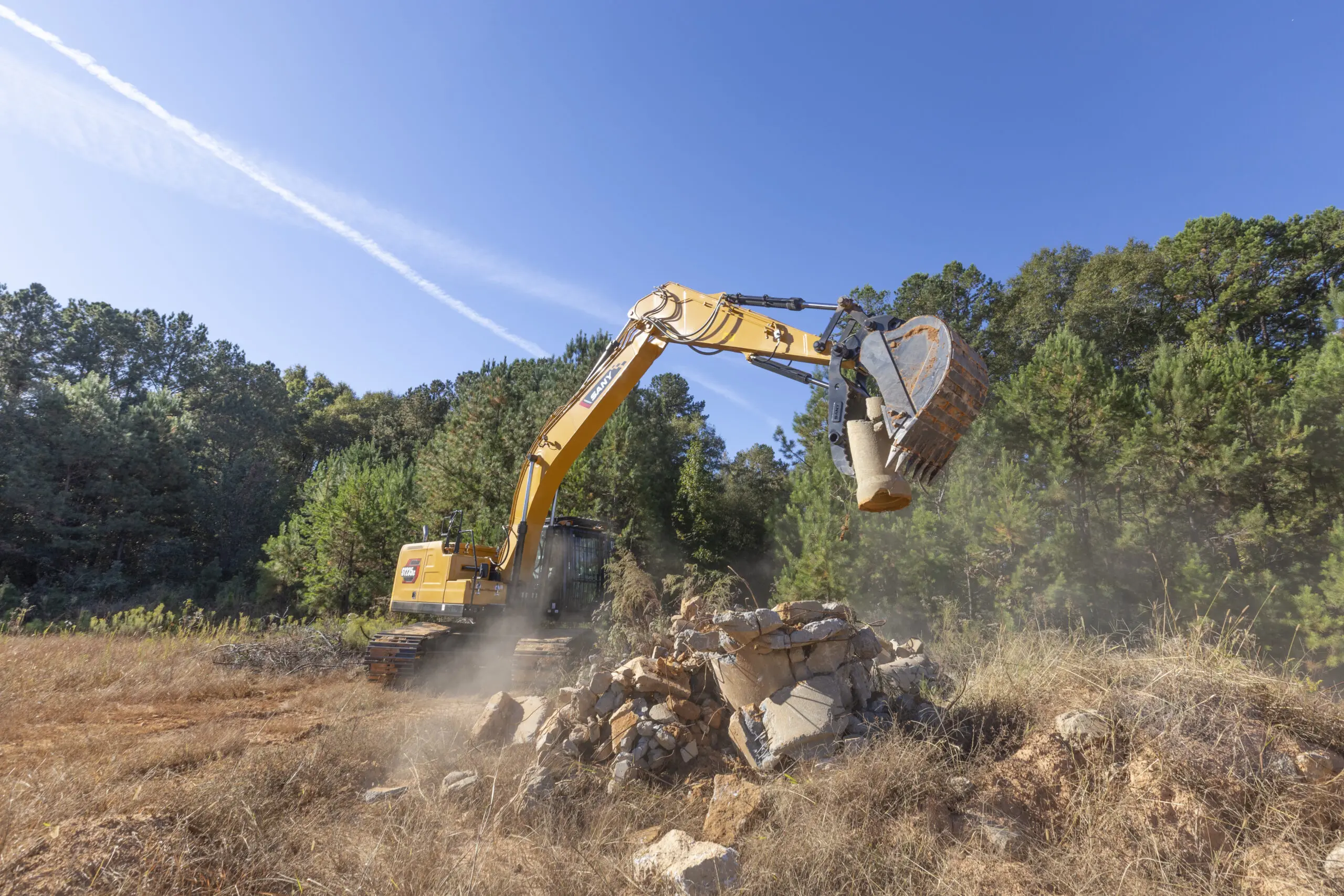

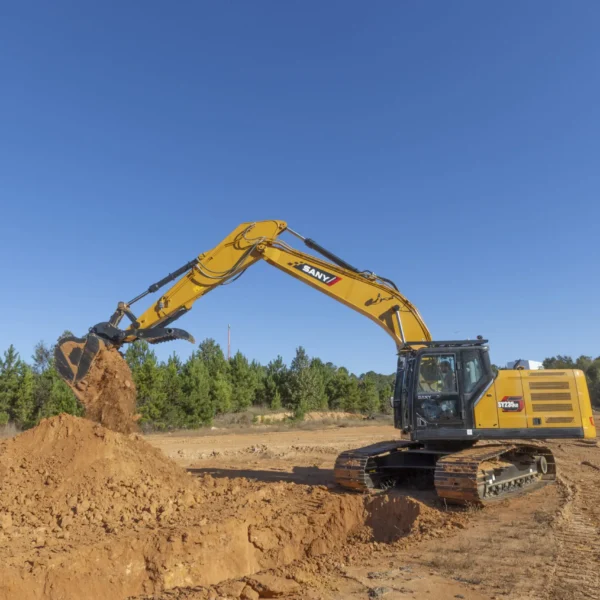

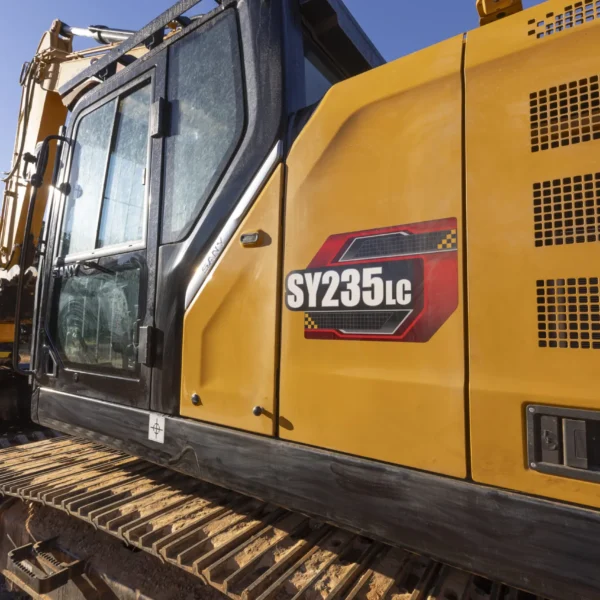

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Boom Length	5,700 mm18' 8"
Stick (Arm) Length	––
Transport Length	9,635 mm31' 7"
Transport Width	3,180 mm10' 5"
Transport Height	3,288 mm10' 9"
Upper Structure Width	2,862 mm9' 5"
Cab Height	3,170 mm10' 4"
Blade Height	––
Track Width (standard shoe)	––
Track Gauge	2,380 mm7' 9"
Ground Clearance (minimum)	468 mm1' 6"
Tail Swing Radius	2,915 mm9' 6"
Track Length on Ground	3,640 mm11' 11"
Track Length	4,445 mm14' 7"

Operating Weight	24,400 kg53,793 lbs
Ground Pressure	37 kPa5.4 psi
Engine	Cummins QSB6.7 T4F
Displacement	6.7 L6.7 L
Net Power	––
Gross Power	129 kW173 hp
Hydraulics	–
Main Hydraulic Pump	2x Variable Piston Pump
Operating Flow (maximum)	2 x 228 L/m2 x 60 gal/m
Operating Pressure (maximum)	343 kPa4,975 psi
Auxiliary Flow*	360 L / 40 L95 gal / 11 gal
Auxiliary Pressure	340 kPa / 140 kPa4,931 psi / 2,030 psi
Travel Motor	Two Speed Axial Piston Motor with Planetary
Travel Pressure (maximum)	24.5 Mpa3,553 psi
Travel Speeds (maximum)	3.4/2.1 km/h5.4/3.4 mph
Travel Effort (maximum)	222 kN49,908 lbf
Grade Capability	35°
Swing Motor	Axial Piston Motor With Planetary Reducer and Automatic Holding Brake
Swing Pressure (maximum)	275 kPa3,988 psi
Swing Speed (maximum)	11.1 rpm
Undercarriage (standard)	Steel Track
Track Shoe Width (standard)	800 mm2' 7"
Track Rollers (per side)	9
Carrier Rollers (per side)	2

Boom Length	5,700 mm18' 8"
Stick (Arm) Length	2,925 mm9' 7"
Maximum Digging Height	9,740 mm31' 11"
Maximum Dumping Height	6,735 mm22' 1"
Maximum Digging Depth	6,450 mm21' 1"
Maximum Vertical Wall Digging Depth	5,800 mm19' 9"
Maximum Reach at Ground Level	9,745 mm31' 11"
Minimum Swing Radius	3,622 mm11' 10"

Boom Length	5,700 mm18' 8"
Stick Length	––
Bucket Breakout Force (ISO)	150 kN150 kN
Stick Digging Force (ISO)	117 kN117 kN
