ST230V

10,318 lbs

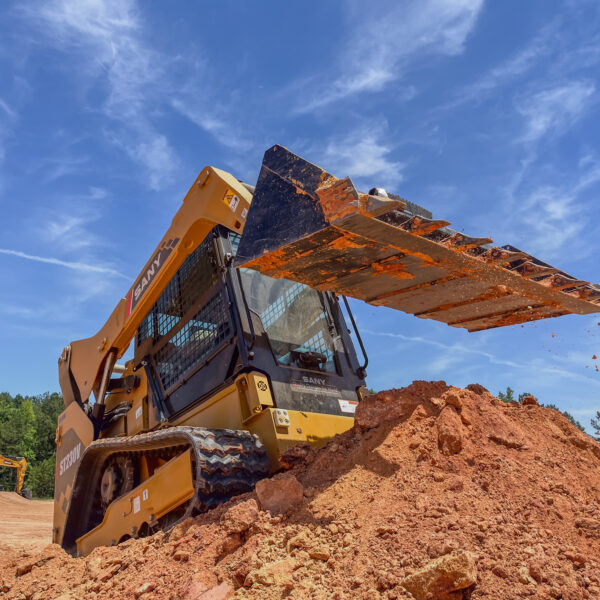

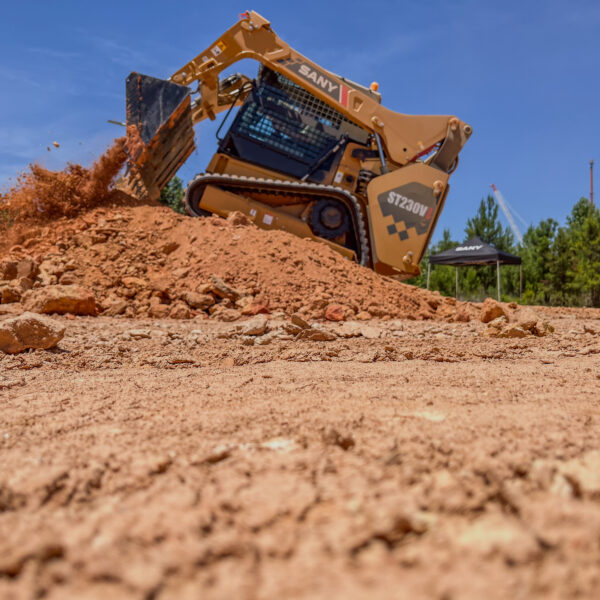

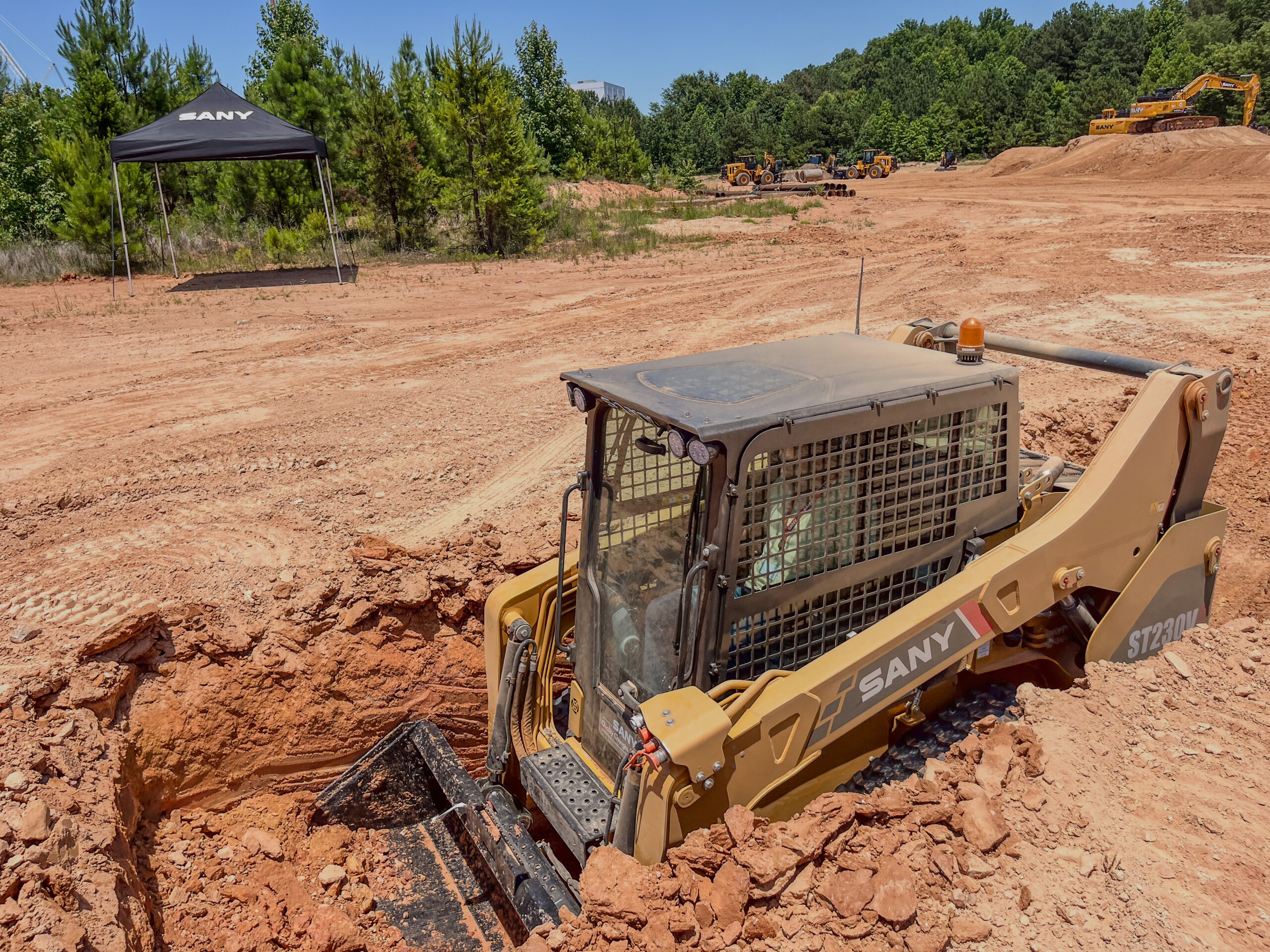

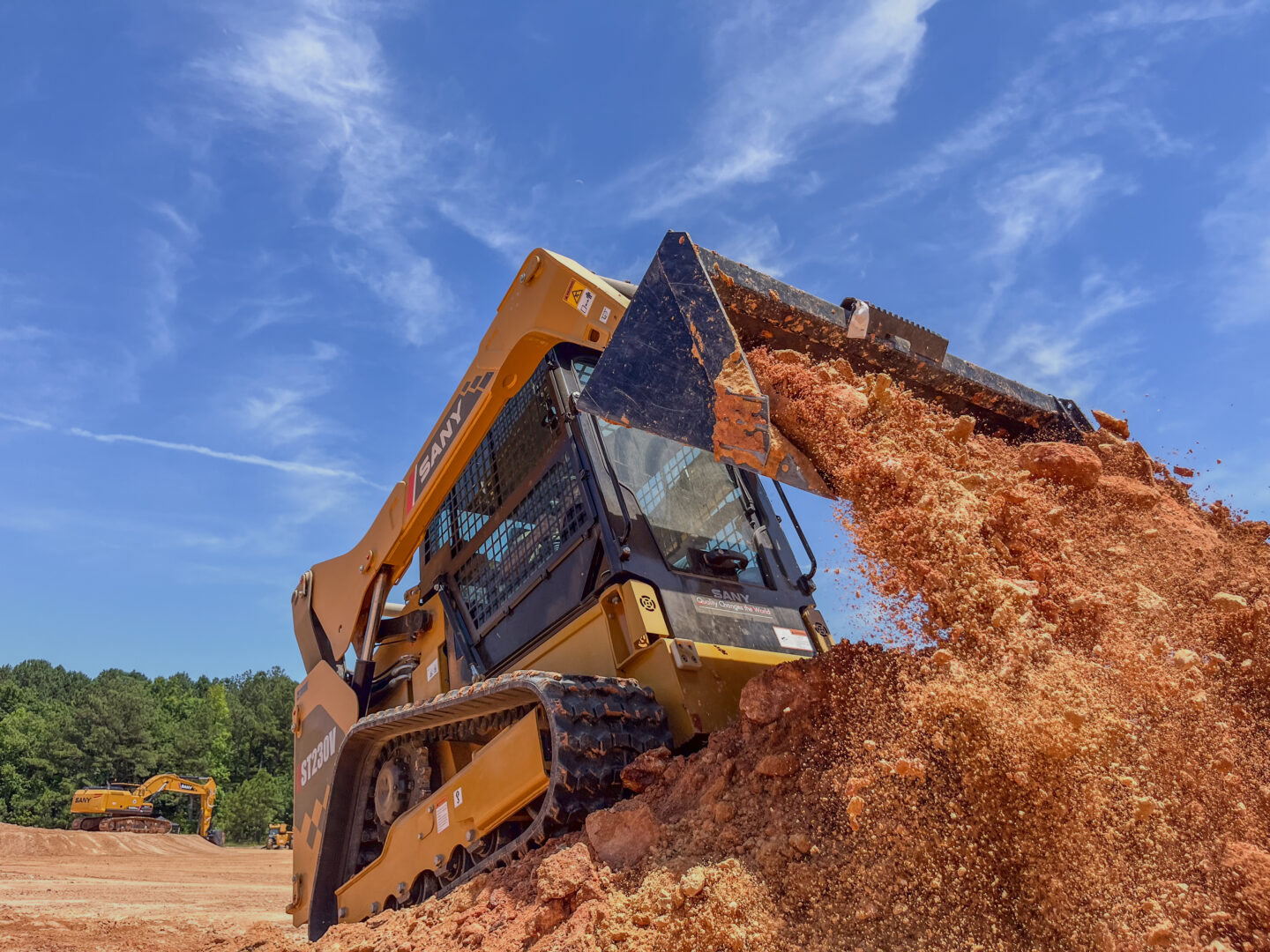

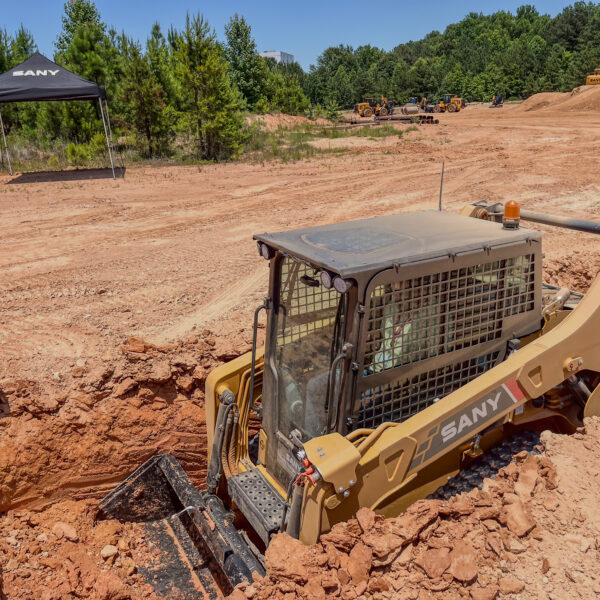

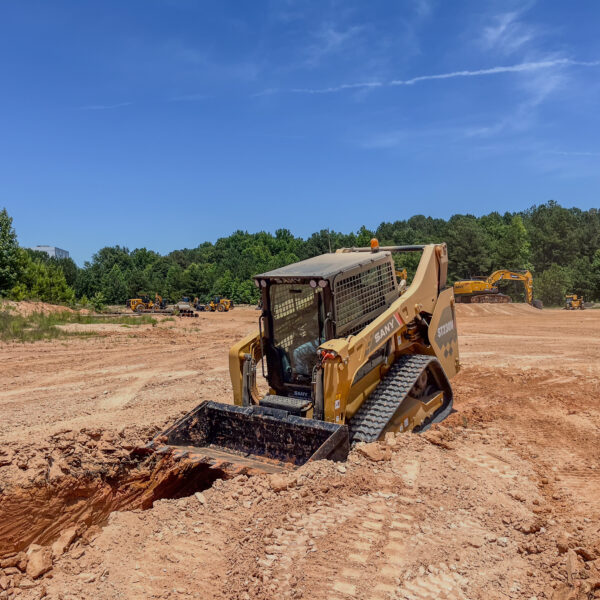

SANY America’s Compact Track Loader (CTL) is a versatile, agile, high-performance machine designed for demanding tasks, and increasing job site profitability. Weighing 10,318 lbs and powered by a reliable 73 HP Yanmar engine, this non-DEF solution delivers strong tractive force, stability, and smooth operation on slopes. Its heavy-weight design in the sub-74 HP market, paired with optimized weight distribution, enhances stability, gradeability, and operator comfort. It is easily transportable with standard duty trucks and trailers for added convenience. With a Universal Skid Steer Quick Attach coupler, the SANY CTL is compatible with hundreds of attachments and supports 19 SANY branded attachment options, including buckets, grapples, snow blowers, trenchers, pallet forks, and more. Ideal for landscaping, construction, agriculture, forestry, material handling, snow removal, utilities, and municipal work, the SANY CTL combines power, versatility, and efficiency. It provides a stable, durable, easy to service solution to conquere job site challenges.

Flip-Up Cab Door

Auto Shift 2-Speed

Single Piece Cab

High Flow Hydraulics

400 Z Pattern Tracks

Decelerator Pedal

Air Ride Seat

LED Worklight Package

Wide Tracks

Automatic Reversing Fan

Backup Camera

Yanmar Engine

Features and Specifications

CTL Pocket Guide

SANY in Action

YOU RELY ON YOUR EQUIPMENT TO HIT DEADLINES AND KEEP YOUR CREW MOVING.

The SANY Dealer Partner network offers quick access to all the components and parts you need...
keeping your uptime high and working to get you replacement parts fast.

Find a Dealer Near You

Engine	–
Engine Model	Yanmar 4TNV98CT
Max Rated Power	73 hp
Peak Torque	206 lbf-ft at 1,560 rpm
Displacement	–
Displacement	–
Aspiration	Turbocharged
Emissions	Tier 4 Final/Stage V
Cycle Time (Raise/Lower/Dump)	9 sec
Loader Hydraulic Pressure	3,336 psi
Battery Voltage	12 V
Diesel Tank	26.4 gal
Rated Operating Capcity	2,579 lbs
Tipping Load	7,368 lbs
Operating Weight	10,318 lbs
Max Breakout Force	5,733 lbf
Lift Geometry	Vertical Lift
One Speed	5.4 mph
Two Speed	8.5 mph
Rubber Track Size	320 mm, 400 mm
Standard Flow	21 gpm
High Flow	31.6 gpm
Cab	ROPS & FOPS

Maximum Overall Height	156"
Bucket Pin Height at Maximum Lift	120.5"
Clearance at Maximum Lift and Dump	92"
Ground Clearance	9"
Track Length on Ground	57.5"
Bumper Overhang Behind Rear Axle	34.8"
Maximum Dump Angle	40°
Rollback Angle of Bucket on Ground	30°
Departure Angle	28°
Height to Top of Cab	82.7"
Length with Bucket on Ground	142.1"
Reach at Maximum Lift and Dump	42"
Length Without Bucket	113.6"
Turning Radius From Center-Bucket	82.7"
Width with Bucket	72"
Width without Bucket	70"
