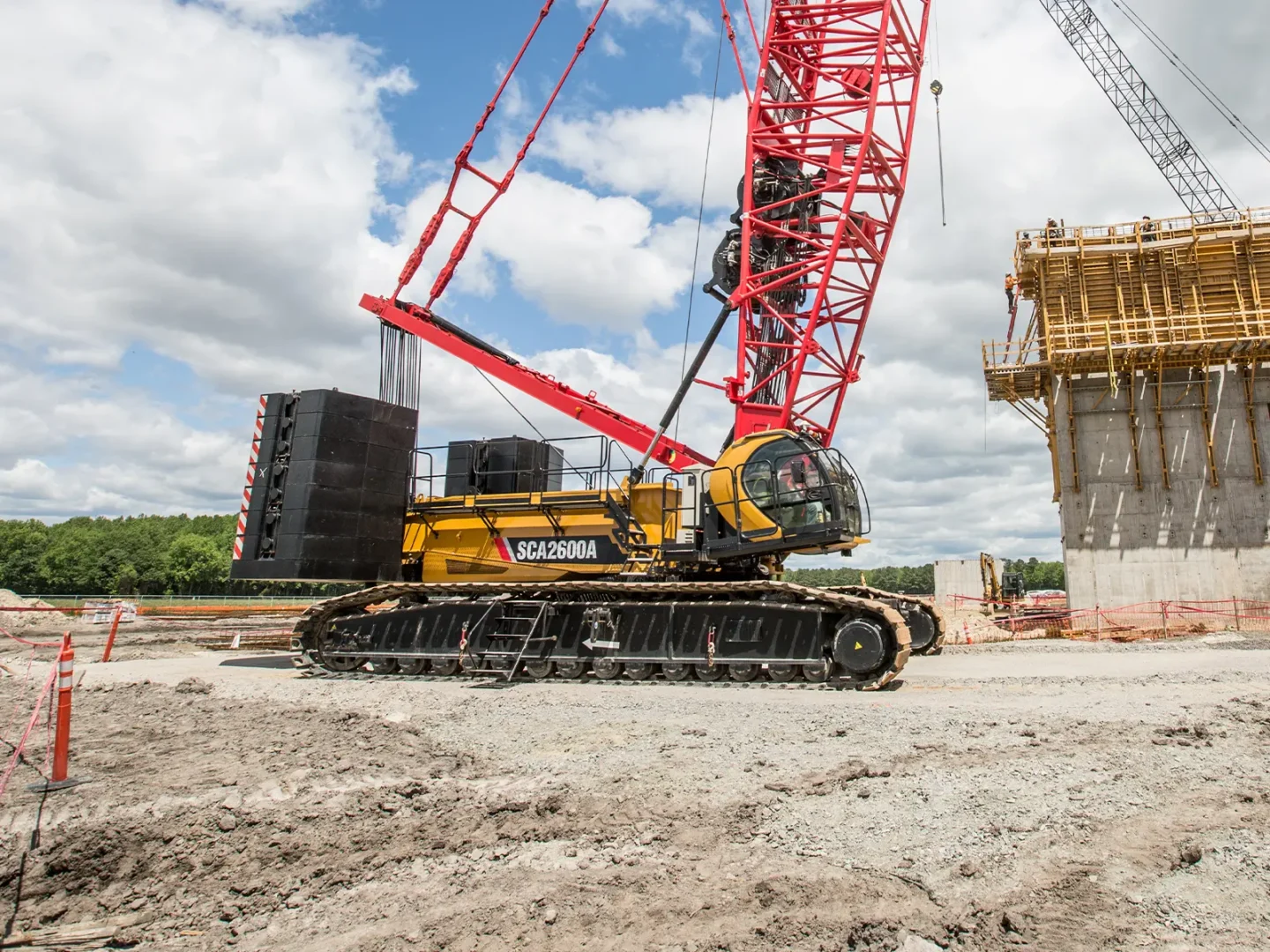

SCA2600A

Built for durability on the job site, SANY’s SCA2600A crawler crane provides a lifting capacity of 300 tons at 16.4 feet. It has a main boom of 302 feet and a maximum boom/fixed jib combination of 203 feet and 138 feet with a maximum boom/luffing jib combination of 203 feet and 207 feet.

Built with intelligent technology—self-diagnoses issues and provides solutions
Ease of maintenance

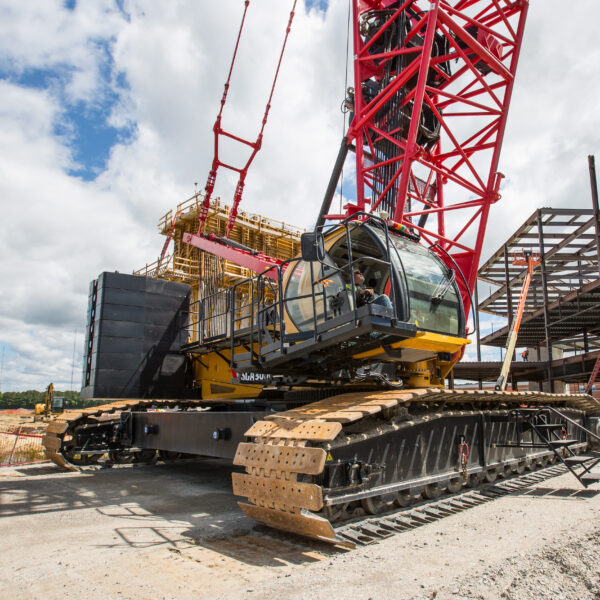

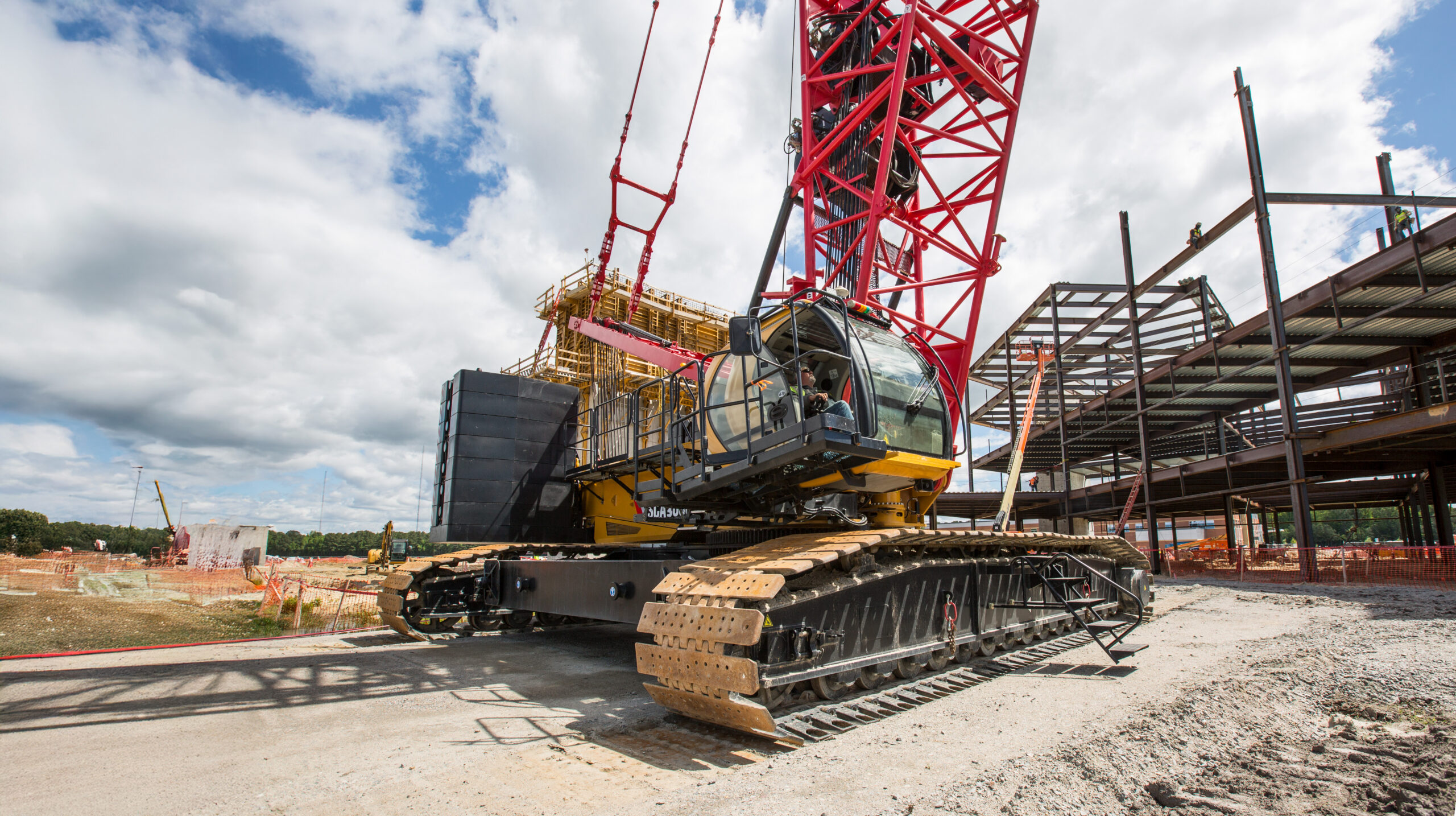

Porsche designed tiltable operator’s cab is built for safety, comfort, and functionality with everything the operator needs right in front of them
Main and auxiliary hoists operate independently with free fall
Wireless camera attaches to any boom tip being used for continuous visibility of the hook
No assist crane is needed. Outfitted with a self-assembly cylinder on the mast allowing easy, efficient assembly.
Comes with main boom, fixed jib and a luffer

Find a Dealer Near You
Have Product Feedback?

Lifting Capacity

286T @ 16.4′

Max Tip Height

302′

Maximum Load Moment

405.2Klb @ 26′

Features

Download Product Specifications Sheet Configurations Technical Parameters Transportation Dimensions Schematics for Self-Assembly Schematics for Boom Assembly Schematics for Fixed Jib Assembly

In the interest of continual equipment development, SANY America, Inc. reserves the right to change these specifications at any time without prior notification.

Max. Rated Lifting Capacity	260t286T
Max. Rated Lifting Moment	183.8t×8m=1470405.2Klb×26ft
Boom Length	20~92m65.6~301.8ft
Boom Angle	30°~85°

Longest Boom + Longest Fixed Jib	62+42m203.4+137.8ft
Boom to Jib Angle	10°, 30°

Boom + Fixed Jib (Shield Application)	20+12(7)m65.6+39.4(23.0)ft
Boom to Jib Angle	20°
Largest Lifting Moment	62.5t×18m=1125137,786lbs×59ft=8,129,374

Longest Boom + Longest Luffing Jib	62~63m203.4+206.7ft
Boom Luffing Angle	65°~88°

Speed of Single Rope of the Main Hoist (outermost work layer)	0~125m/min0~410.1ft/min
Max. (Aux.) Speed of Single Rope of the Main Hoist (free fall) (optional)	0~117m/min0~383.9ft/min
Boom Hoist Winch Speed (outermost layer)	0~132m/min0~433.1ft/min
Jib Hoist Winch Speed (outermost layer)	0~77m/min0~252.6ft/min
Slewing Speed	0~1.8rpm
Travel Speed	0~1.0km/h
Gradeability	30%

Road Equipment

Rollers

Graders

Construction Equipment

Backhoe Loader

Excavators

Telehandlers

Wheel Loaders

Forklift Trucks

Cranes

Container Handlers

Empty Container Handlers

Loaded Container Handlers

Reach Stackers

SCA2600A

Lifting Capacity

Max Tip Height

Maximum Load Moment

Features

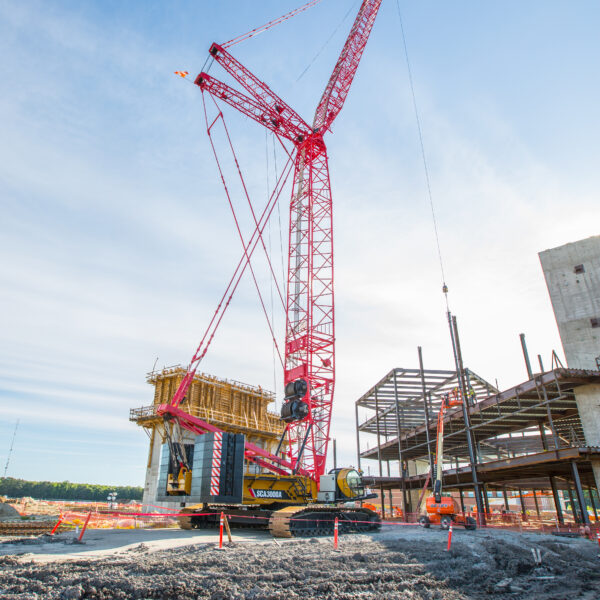

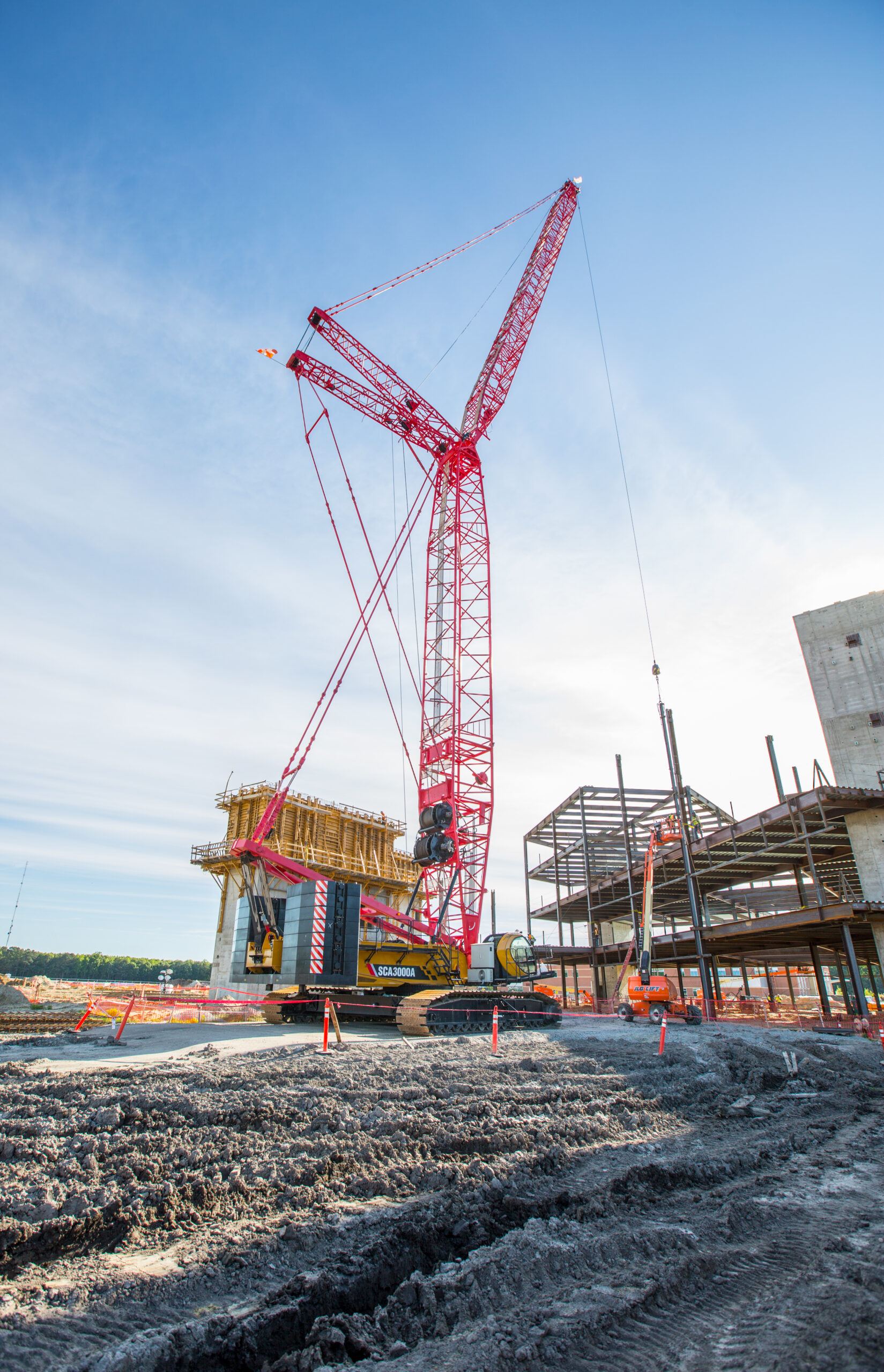

The SCA2600A in Action

Max. Transport Weight of Single Part (with main and aux. hoist winches)	45t99.2Klb
Max. Transport Dimension of Single Part (L × W × H)	13320×3000×3200Mm43.7×9.8×10.5ft
Average Ground Pressure	0.14MPa1.4kgf/cm2

Output Power	450hp@1800rpm
Rated Speed	1800rpm
