Lifting Capacity
150t @ 15′
Max Tip Height
250′
Maximum Load Moment
210Klb @ 23′

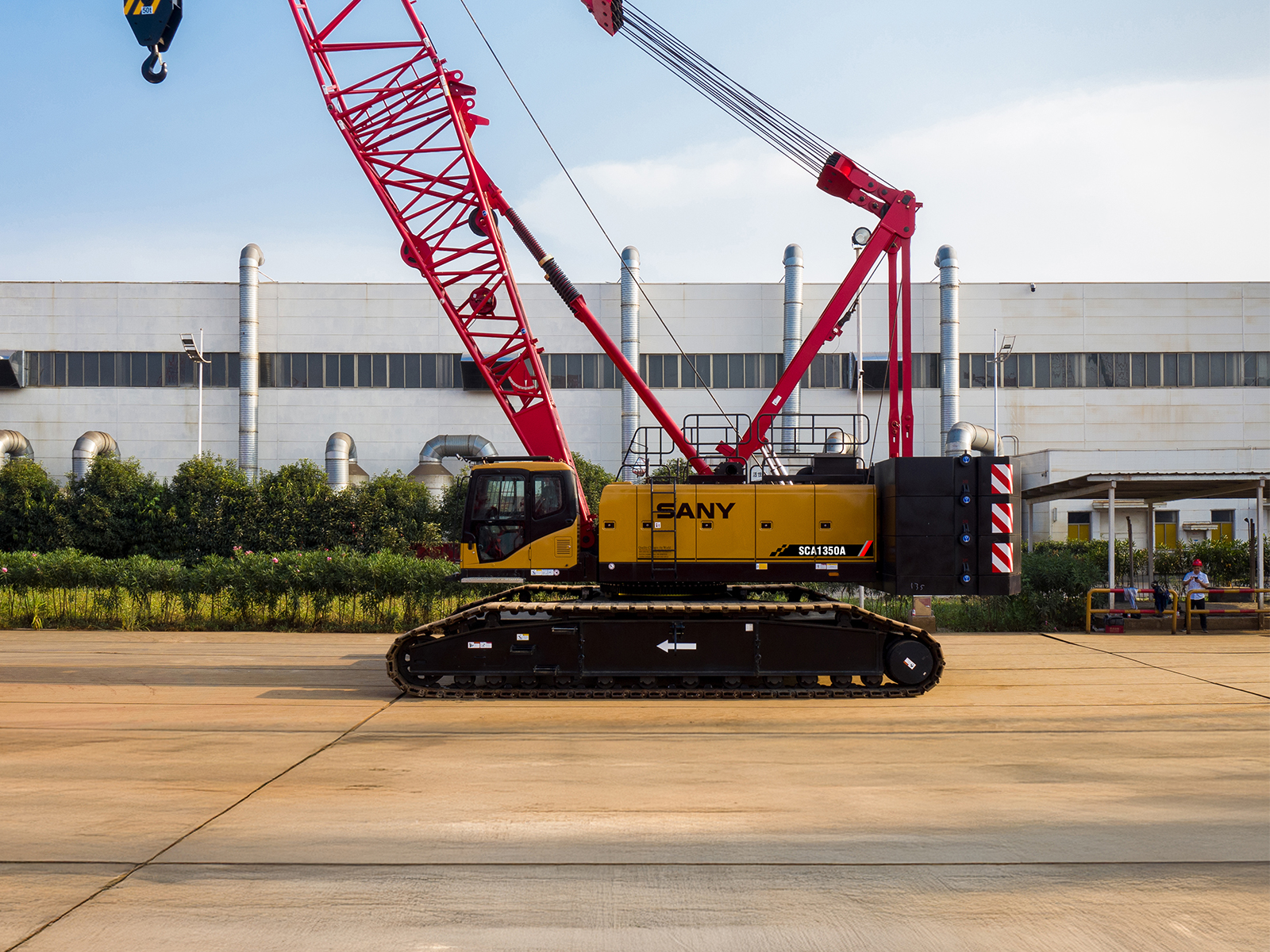

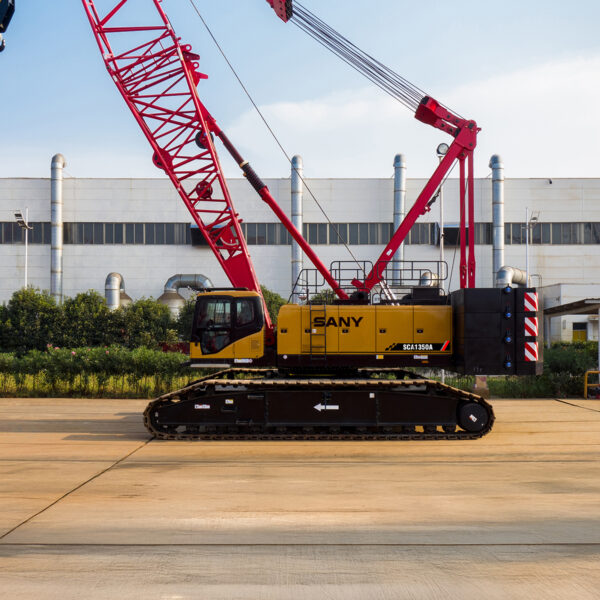

SANY America’s SCA1350A crawler crane delivers superior lifting performance with 150 ton lifting capacity at 15 feet with added standard features. This crane has a main boom of 249 feet and a maximum boom/fixed jib combination of 200 feet and 102 feet.
- Built with intelligent technology—self-diagnoses issues and provides solutions
- Ease of maintenance
- Comfortable cab with everything right in front of the operator and high visibility
- Main and auxiliary hoists operate independently with free fall
- Third drum for duty cycle work
- Wireless camera on boom tip for continuous visibility of the hook
- No assist crane is needed. Self-assembly used with hook block in the boom base.
- Comes with main boom, fixed jib and a luffer
Specifications
Model
SCA1350A
×
Boom Configuration
| Maximum Rated Lifting Capacity | 136t300Klb |
| Maximum Rated Lifting Moment | 95.4×7m210.3Klb @ 23ft |
| Boom Length | 16~76m52.5~249.3ft |
×
Fixed Jib Configuration
| Maximum Rated Lifting Capacity | 27t59.5Klb |
| Jib Length | 13~31m42~102ft |
| Longest Main Boom + Jib | 61+31m200+102ft |
×
Luffing Jib Configuration
| Maximum Rated Lifting Capacity | 40t88.2Klb |
| Jib Length | 22~52m72~171ft |
| Longest Main Boom + Jib | 49+52m161-171ft |
×
Operation Speed
| Rope Speed of Main/Aux. Hoist (1st Layer) | 0~121m/min0~397.0ft/min |
| Boom Hoist Winch Rope Speed (1st Layer) | 0~45m/min0~147.6ft/min |
| Swing Speed | 0~2.2 rpm |
| Traveling Speed | 0~1.3km/h0~0.8 mile/h |
×
Engine
| Output Power | 242kW |
| Rated Speed | 1800rpm |
×
Transport
| Maximum Transport Weight of Basic Machine (Including Base) | 40t88.18Klb |
| Maximum Transport Dimension of Basic Machine (L x W x H) | 16050x3000x3250 mm52.7x9.8x10.7 ft |
×
Other Parameters
| Average Ground Bearing Pressure | 0.112MPa |
| Gradeability | 30% |
